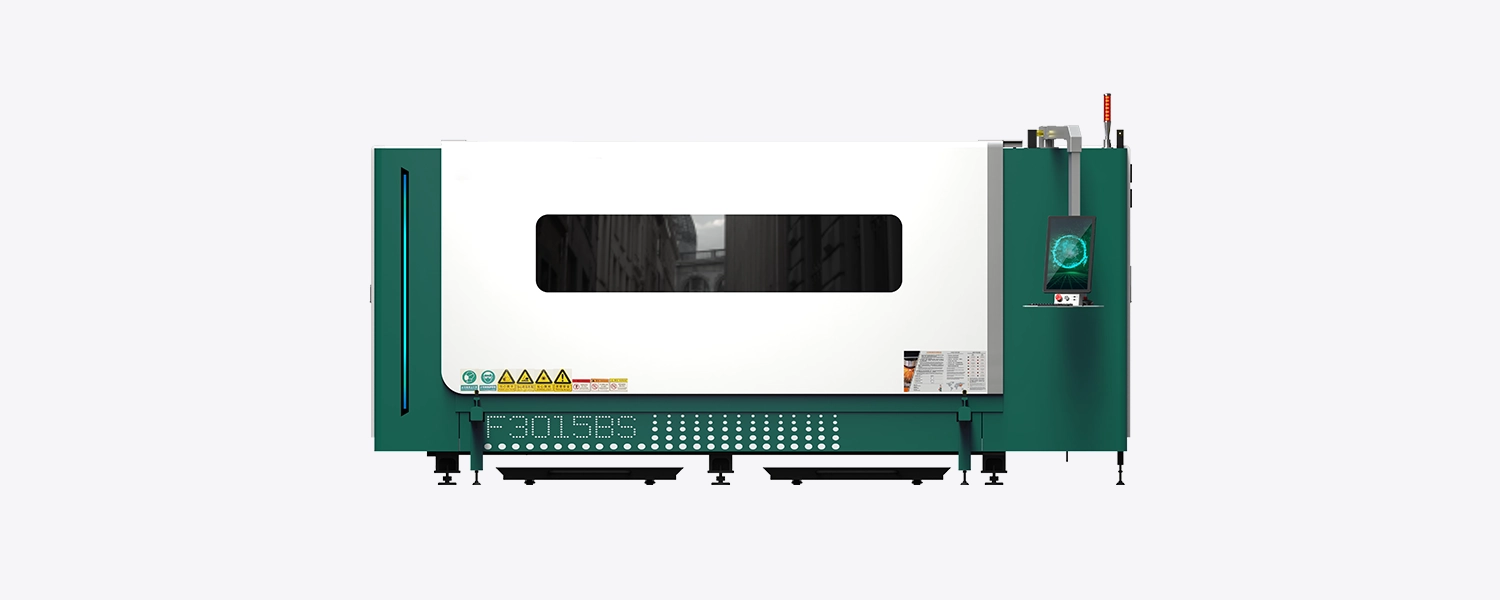

Senrytech B Plus

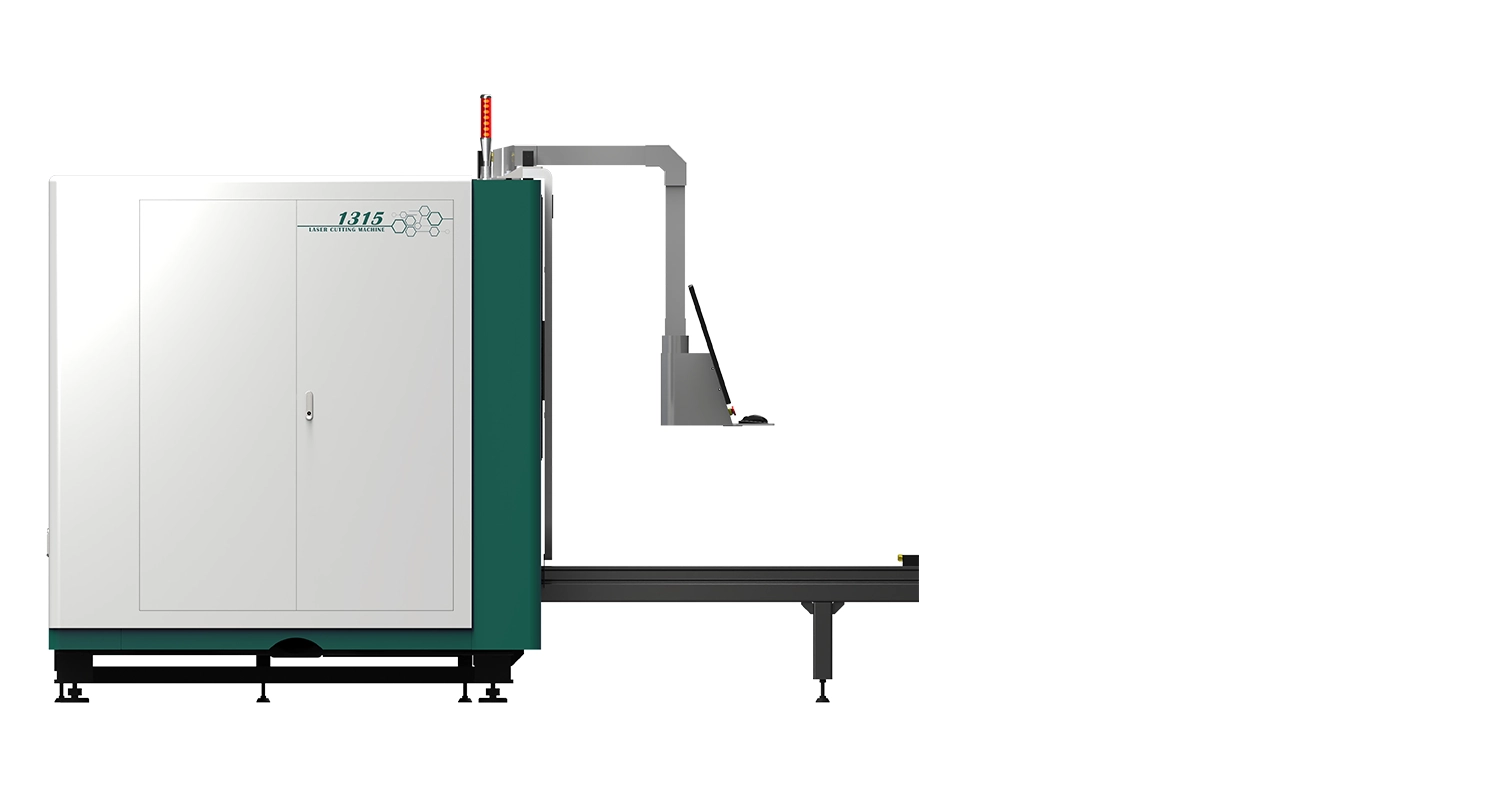

Side opening province
Efficiently increase dimensionality

“spatial adaptation + Efficiency upgrade” Design logic for the core：Adopt side-opening large opening hatch and lateral exchange station， Compress the space occupied by the device in depth 30%，Just need 1.5 The lateral operating area can complete loading and unloading of thick plates.，Perfectly adapted to the lack of depth in the workshop、Scenarios with dense layout of multiple devices， Increased productivity per unit area 25% above；The side sliding stroke of the switching table is shorter than that of traditional models 50%，Material changeover time is as low as 15 Second / Second-rate， The cost of model change waiting for small and medium-sized batches and multi-variety processing has dropped sharply. 40%；Side door + Human-machine layout of side operating position，Achieve full field of view observation of the cutting process， Equipment core components（guide、Dust removal system）The maintenance operation radius is reduced to 0.8 mine，Improved daily operation and maintenance efficiency 30%，Taking into account the adaptability of compact space and the efficiency of the entire production process。

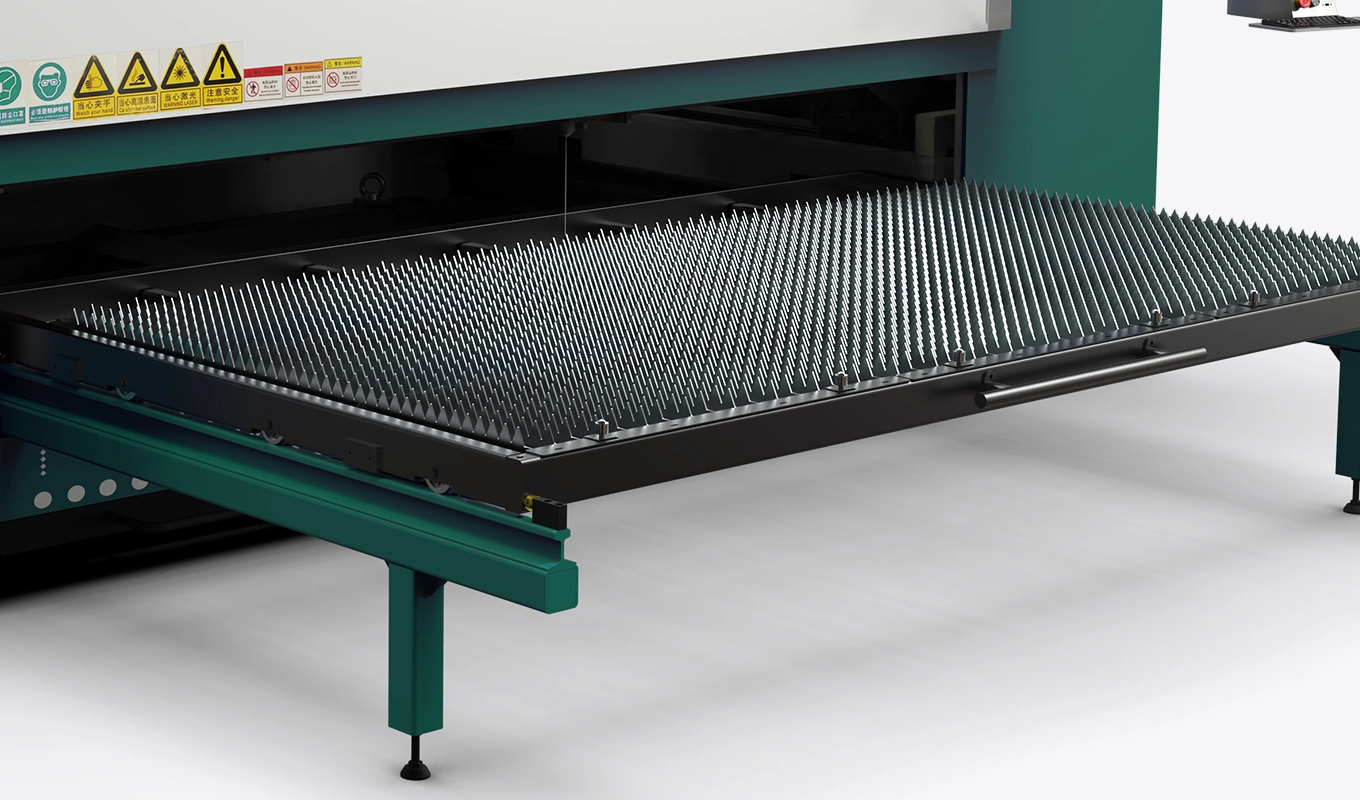

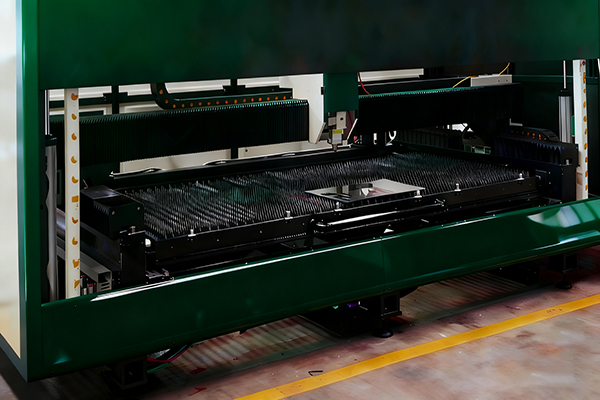

Pull out slide
Save time and space

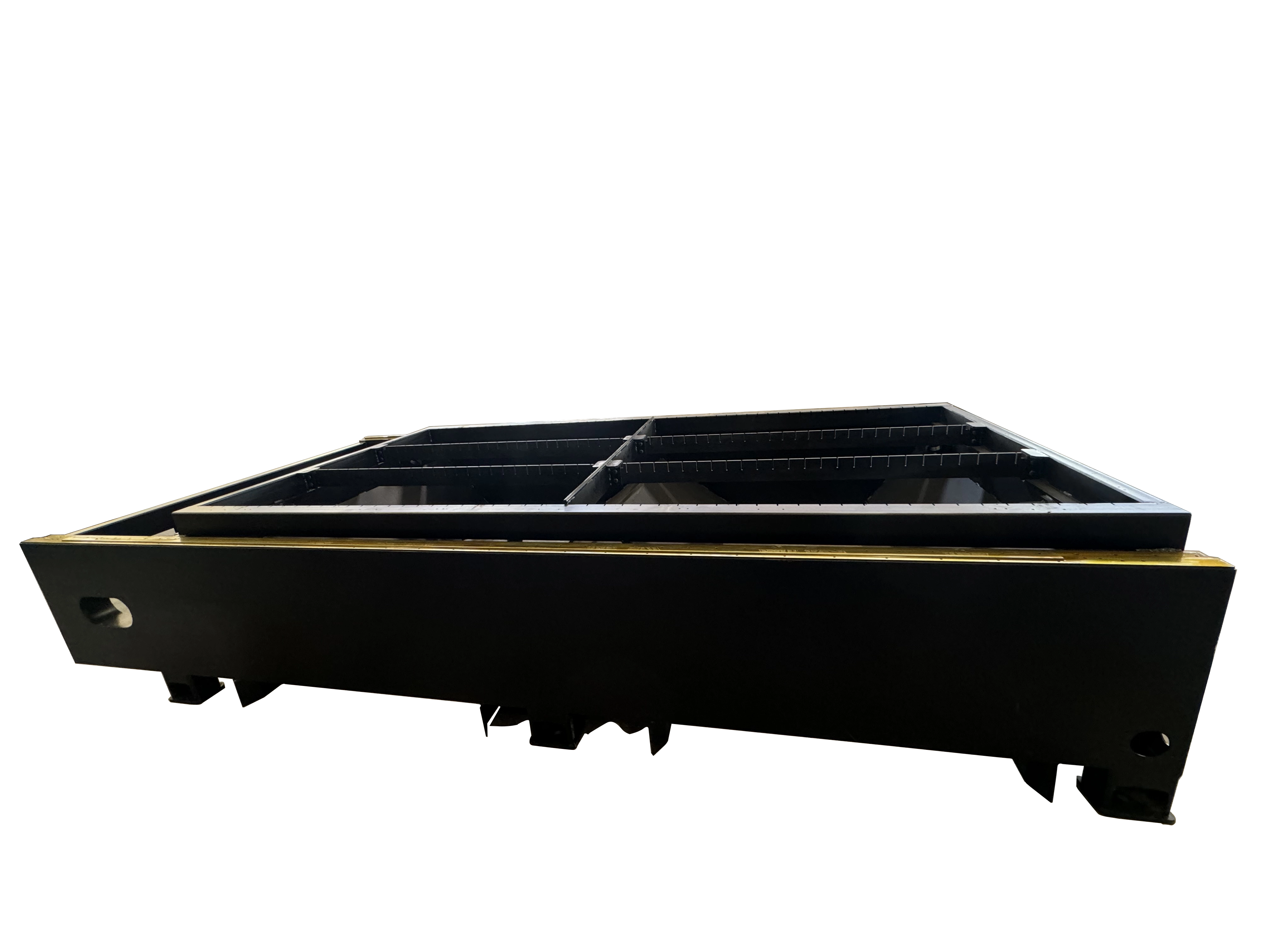

Adopt high-precision roller guide rail + Self-locking pin structure，The dual platforms can be pulled out simultaneously along the sides of the fuselage， accomplish “In-machine cutting + Loading and unloading outside the machine” Parallel jobs，Shortening of single batch processing cycle 40% above； Pulley type low friction design，Allows loading and unloading of multi-ton thick plate workpieces without the need for large lifting equipment，Easy to push and pull with manual assistance，Significantly reduce operating intensity and scheduling costs； Platform homing repeat positioning accuracy≤±0.02mm，No offset under heavy load conditions、No deformation；Compatible with side door opening layout，Just need 1.5 Meters of lateral space can complete the entire process operation， Perfectly adapted to the lack of depth in the workshop、Compact scene with multiple devices densely placed，Taking into account the dual advantages of efficient production and space utilization。
