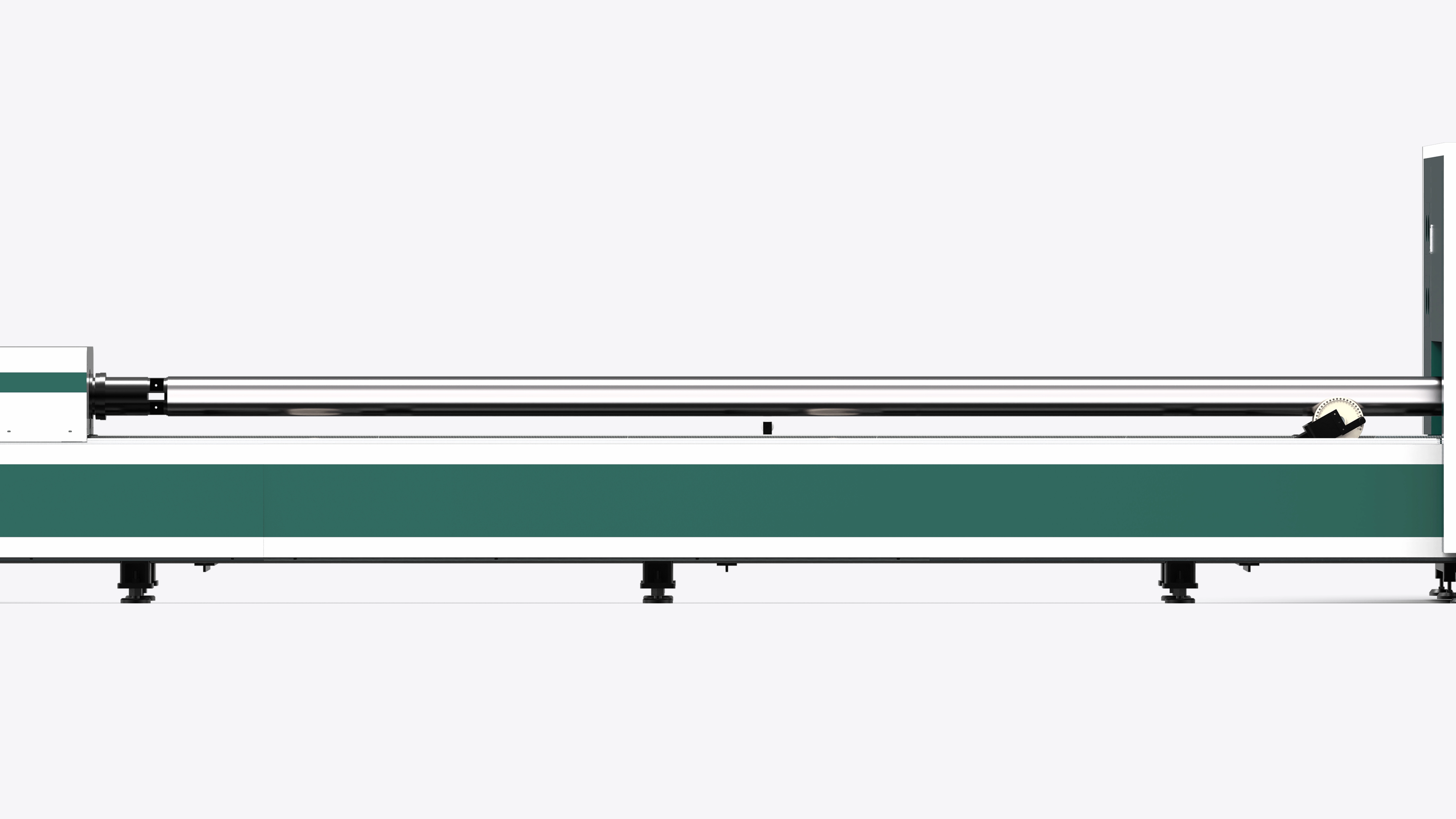

Small and compact，Effectiveness remains unchanged

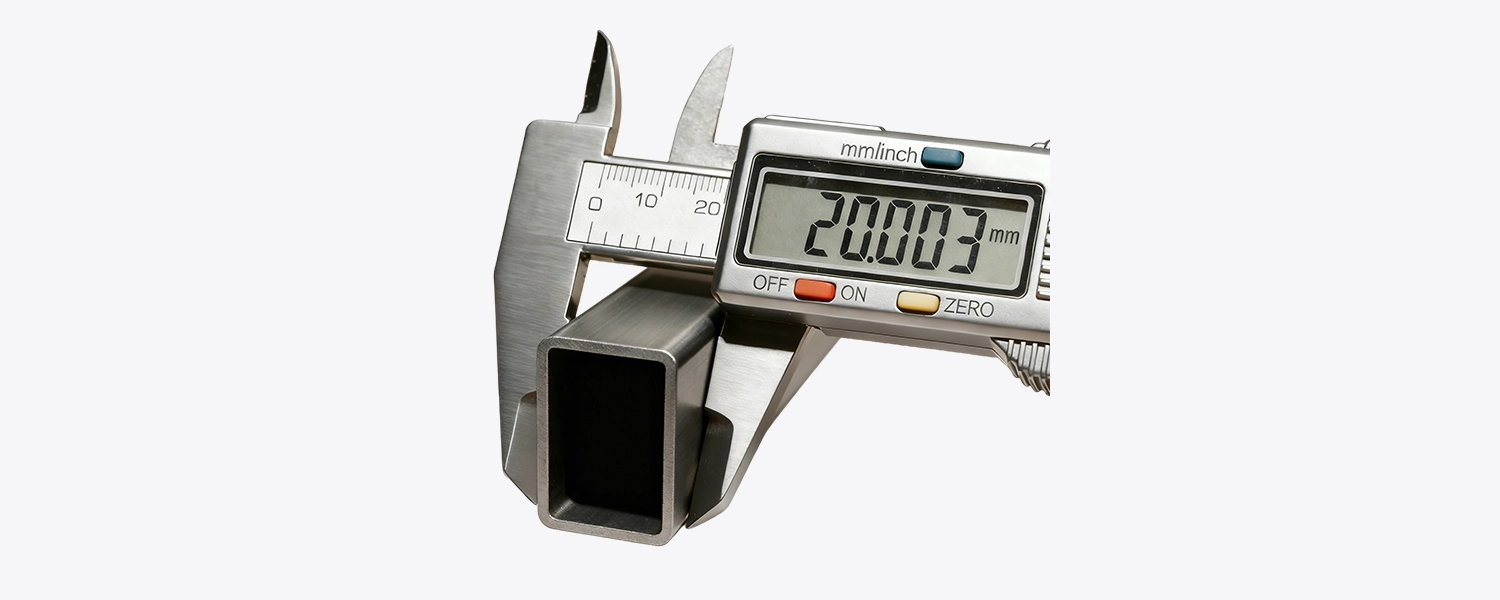

Precise and detailed，Every cent will appear
by ±0.05mm ultra-high precision，Ensure the cutting surface is smooth and flat，Lay a solid foundation for finished product quality。
Intelligent protection，Efficient cutting
Built-in crash protection，Equipped with water cooling system and protective window temperature detection，Monitor and respond to abnormal conditions in real time，Avoid equipment damage，Ensure long-term stable operation。
One machine for multiple purposes，Pipes take all
Support square tube、round tube、Cutting of various pipes such as profile steel，Can handle various processing needs without changing equipment，Adapt to various production scenarios。
Double wheel claw
High precision clamping core
Adopts rack and pinion interconnected transmission structure，With double roller claw design，accomplish0.05mmRepeat positioning accuracy and0.05mmBounce accuracy， Equipped with an exclusive single-row dual-cylinder drive unit，Output in a compact space100kg-800kgMaximum clamping force，response time＜0.3s， Modular integrated roller set、Cylinder group and rack box，With high protection level，Suitable for high dust cutting conditions，Improved maintenance cycle 30%；
Proportional valve
Precise pressure control core
Equipped with high-precision pressure sensor and digital display module，support 0.001MPa Resolution real-time feedback，The output pressure can be 0.005~0.9MPa Continuous stepless adjustment within the range； Driven by high-speed response solenoid valve，response time＜100ms，Cooperate PID closed loop control，Pressure control accuracy can reach ±0.5%； integrated IP65 Grade dustproof and waterproof structure，Adapt to high vibration、High dust industrial environment，Also has overvoltage、Overcurrent protection function；
Formal design
Stable load-bearing, Precise cutting
Adopt formal structure design，Equipped with high rigidity lathe bed and adaptive clamping mechanism，Strong load-bearing capacity，Excellent clamping stability； Can adapt to pipe processing needs of different pipe diameters，Effectively avoid deflection and vibration during cutting，Make sure the cutting section is smooth、Controllable precision， Suitable for large batches、Highly consistent pipe cutting production scenarios。
Put an end to false propaganda
| model | A2-120 | A2-160 | A2-240 | A2-360 |
|---|---|---|---|---|
| diameter（roundφ/square□） | φ/□ 10-120mm | φ/□ 10-160mm | φ/□ 10-240mm | φ/□ 25-360mm |
| I-beam | ≤8# | ≤12# | ≤18# | ≤22# |
| Feeding length（roundφ/square□） | standard6.5rice limit7.0rice |
standard6.2rice limit6.9rice |
standard6.6rice limit7.4rice |
standard6.6rice limit7.4rice |
| tail length（roundφ/square□） | 250mm | 290mm | 100mm | 100mm |
| Optional power | 1500w 2000w 3000w |
1500w 2000w 3000w 6000w |
1500w 2000w 3000w |
3000w 6000w 12000w |
| Number of chucks | 2 | 2 | 2 | 2 |
| Chuck speed | 120r/min | 75r/min | 75r/min | 75r/min |
| maximum acceleration | 0.7G | 0.8G | 0.8G | 0.8G |
| Feeding method | Manual | Manual Semi-automatic（Optional） |
Manual | Manual |
| Material receiving method | Material receiving trolley | Material receiving trolley | receiving table | receiving table |
| Heat dissipation method | air cooling | air cooling | air cooling | air cooling |
| smoke purifier | Optional | Optional | Optional | Optional |
| Site reserved size | 8.5mx2mx2m | 9.0mx2mx2m | 11mx4mx3m | 11mx4mx3m |
use Senrytech A2 Optical fiber pipe cutting machine processing stainless steel pipes，±0.05mm The cutting accuracy is amazing，Smooth cut without burrs，The previous manual polishing process is eliminated.，The efficiency of small batch custom orders has improved a lot。
This device is suitable for round pipes、Square tubes in various specifications，Fast material change and debugging，Novices in our workshop can get started in just two days.，The noise is also low during operation，Daily processing does not affect surrounding workstations at all。
Used it for three consecutive months，A2 The pipe cutting machine did nothing wrong，Fiber cutting energy consumption is much lower than that of old equipment，Calculated, this can save nearly a thousand yuan on monthly electricity bills.，It is very cost-effective for small and medium-sized processing plants.。
Senrytech A2
A2Series pipe cutting machines are cost-effective and
economical models specially designed for cost-sensitive
users.2chuck equipment，Control costs with streamlined and
practical configurations，It is an ideal choice for focusing
on small diameter and thin tube processing scenarios.。
Senrytech A2 Plus
A2 PlusSeries pipe cutting machines withA2Economic model is
built for basic upgrades，Core optimization against
deformation through machine bed reinforcement，Use higher
power motors，Configurations such as doubling the
deceleration power，Greatly improve pipe cutting
efficiency，It is an ideal choice to focus on efficient
processing scenarios of medium-thick pipes.。
Senrytech A2 Ultra
New side-mounted pipe cutting structure，Dual chuck
configuration，Breaking through the limitations of
traditional formal wear design，Adapt to more special pipe
processing scenarios，A new cutting experience。
Senrytech B3 Plus
continue A2 PLUS Core upgrade advantages，Formal design + Upgrade bed / Electrical power，Double upgrade to three chucks，Support multi-station processing，Suitable for mid-to-high-end batch cutting needs；
Senrytech B3 Ultra
inherit A2 ULTRA Side-mounted innovative structure，Three-chuck configuration，Innovative design + Multiple chuck support，Taking into account special processing and efficiency improvement。
Senrytech C4 Ultra
exist C3 ULTRA Upgrade the four-cartridge configuration based on，High-end customized design，Suitable for large batches、Highly demanding pipe cutting operations，Multi-station simultaneous processing，Significantly improve production efficiency。
