3Chuck side-mounted flagship laser pipe cutting machine

Brush up on the key points first

Side-mounted and efficient，Pipe Cutting Pioneer

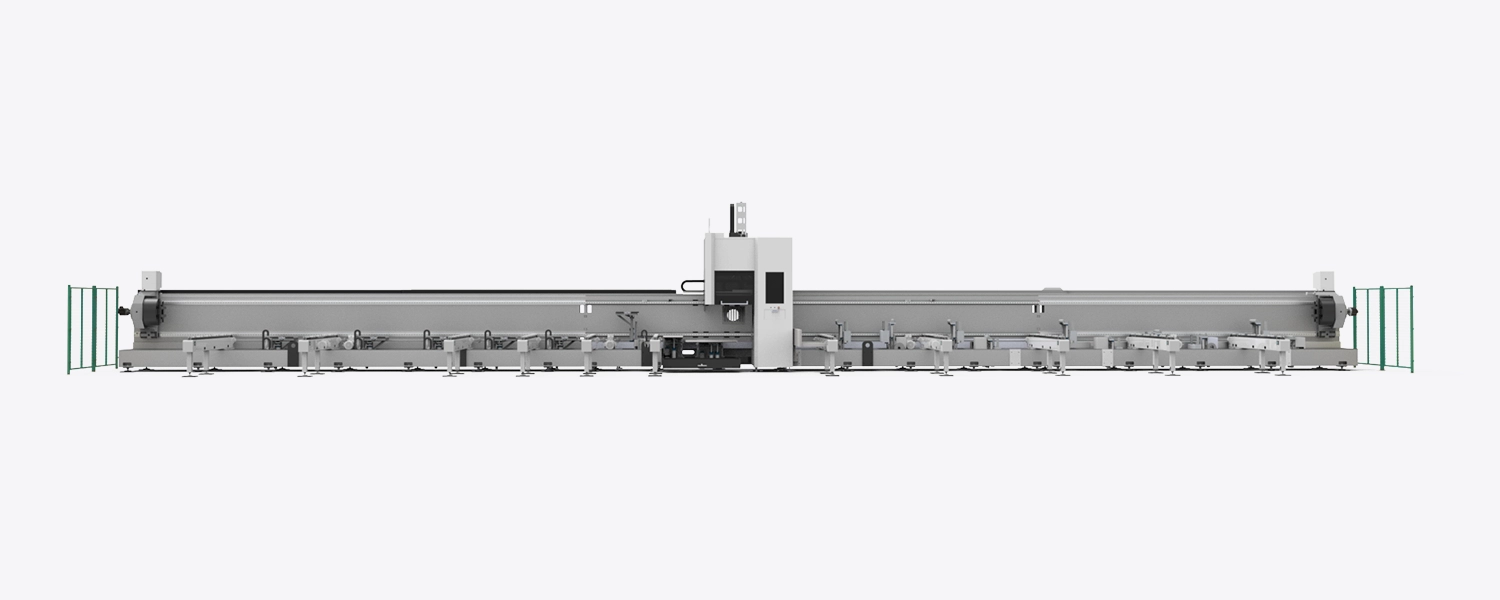

Senrytech B3 Ultra Side mounted three chuck

Three card synergy，stable as a rock

Side-mounted design，±0.05mm Precise pipe cutting

Stable processing of extra-long pipes，Lay a solid foundation for efficient production

enrytech B3 Ultra Laser pipe cutting machine laser head

Intelligent protection，Efficient cutting

Quick focus，Improve processing efficiency

Built-in crash protection，Equipped with water cooling system and protective window temperature detection，Monitor and respond to abnormal conditions in real time，Avoid equipment damage，Ensure long-term stable operation。

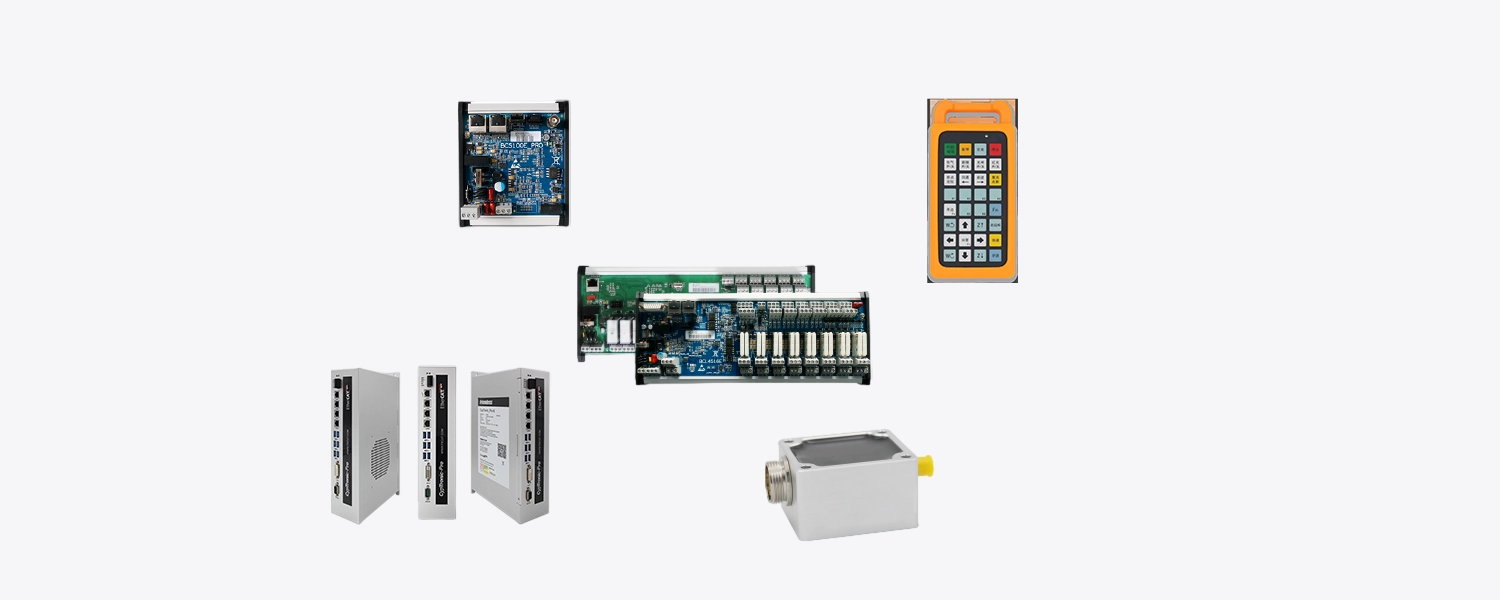

Senrytech B3 Ultra Baichu operating system

Bai Chu 5000A Kernel，Strong computing power and fast response

Intelligent interactive interface，Efficient operation and less worry

Deeply adapted to pipe cutting scenarios，Stable escort of the whole process。

Design process

Efficient adaptation
Flexible circulation

Using semi-automatic loading and unloading design，adaptation 10-650mm Pipe diameter range，Cooperate with the supporting frame and positioning mechanism，Realize a single pipe 30s Internal fast loading and positioning， Repeatable feeding accuracy reaches ±0.1mm；Equipped with pneumatic lifting and roller conveyor units，Complete pipe lifting in a compact space、Conveying and docking， response time＜0.5s，Suitable for high dust cutting conditions；Modular integrated loading rack、Positioning assembly and conveyor roller set，have IP54 Protection level，Improved maintenance cycle 25%， Can be flexibly connected to the production line，Taking into account small batch and multi-variety production scenarios。

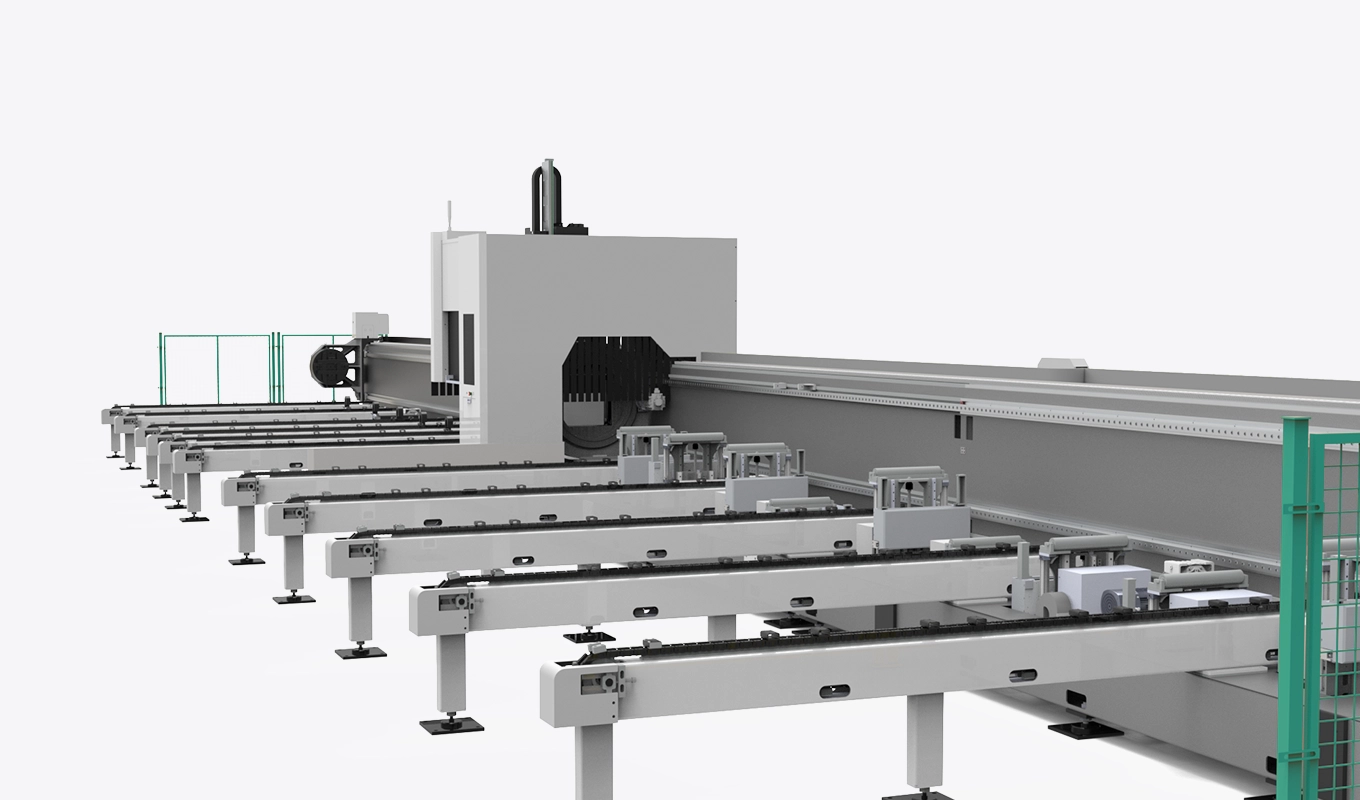

Senrytech B3 Ultra Semi-automatic loading and unloading

Follow-up feeding support
An efficient assistant for stable and continuous cutting

Adopt follow-up linkage structure，Can be synchronized with the cutting process in real time，Provides dynamic support for long pipes，Avoid cutting deviations caused by sagging due to dead weight。 Equipped with adaptive adjustment function，Compatible with different pipe diameters、length of pipe，Stable loading in a compact space，Greatly improve the smoothness of continuous cutting。 Modular integrated protection design，Suitable for high dust cutting conditions，Extended maintenance cycle，Make long tube processing more worry-free、Efficient。

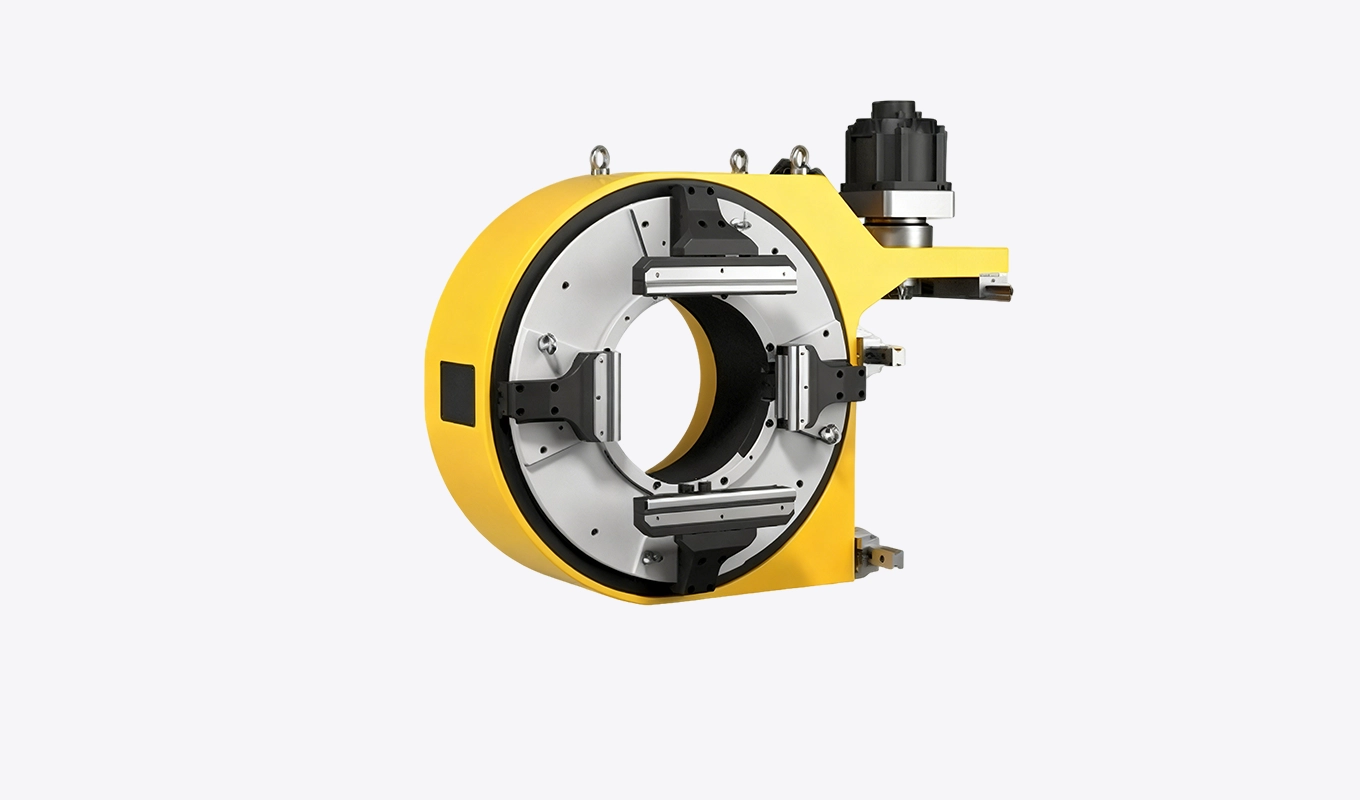

Side mounted pneumatic chuck
Strong centering clamping core

Adopt side-mounted pneumatic drive structure，With four-claw linkage centering design，Achievable 0.05mm Repeat positioning accuracy within，Provides a stable clamping reference for pipe cutting。 Equipped with high thrust cylinder unit，output 100kg-800kg Adjustable clamping force，Compatible with different wall thicknesses、material pipe，Stable clamping without slip even during high-speed cutting。 Modular integrated dust seal design，Suitable for high dust cutting conditions，Improved maintenance cycle 60%，And the side-mounted layout releases more processing space，Suitable for continuous cutting of long tubes。

Technical parameters

model	B3-240Ultra	B3-360Ultra	B3-550Ultra	B3-650Ultra
diameter（roundφ/square□）	φ/□ 10-240mm	φ/□ 20-360mm	φ/□ 40-550mm	φ/□ 38-650mm
I-beam	≤18#	≤22#	≤42#	≤63#
Feeding length（roundφ/square□）	0-6m 0-9m 0-12m	0-6m 0-9m 0-12m	0-6m 0-9m 0-12m	0-6m 0-9m 0-13m
tail length（roundφ/square□）	0mm	0mm	0mm	0mm
Optional power	6000w 12000w 20000w 30000w	6000w 12000w 20000w 30000w	6000w 12000w 20000w 30000w	6000w 12000w 20000w 30000w
Number of chucks	3	3	3	3
Chuck speed	75r/min	75r/min	30r/min	30r/min
maximum acceleration	0.7G	0.7G	0.7G	0.7G
Feeding method	Semi-automatic	Semi-automatic	Semi-automatic	Semi-automatic
Material receiving method	Semi-automatic	Semi-automatic	Semi-automatic	Semi-automatic
Heat dissipation method	air cooling	air cooling	air cooling	air cooling
smoke purifier	Optional	Optional	Optional	Optional
Site reserved size	Feeding0-6mneed18mx4mx3m Feeding0-9mneed21mx5mx4m Feeding0-12mneed30mx5mx4m	Feeding0-6mneed20mx4mx3m Feeding0-9mneed23mx5mx4m Feeding0-12mneed32mx5mx4m	Feeding0-6mneed22mx5mx4m Feeding0-9mneed25mx6mx5m Feeding0-12mneed32mx8mx5m	Feeding0-6mneed24mx5mx4m Feeding0-9mneed27mx6mx5m Feeding0-12mneed33mx8mx5m

Parameter data is based on standard test environment，Actual use may vary depending on material properties、Operating conditions vary slightly

Customer testimonials

Used Senrytech B3 Ultra After the three-card side-mounted pipe machine，The accuracy of our processing of stainless steel pipes is directly stable at ±0.03mm within，The cut is so flat and smooth that the subsequent polishing process is completely eliminated.。The three-card linkage design allows long tube processing without jitter.，The delivery efficiency of small batch customized orders is directly improved 40%，For a processing company like us that pursues precision,，This equipment is a complete guarantee of efficiency and quality.。

Mr. Zheng

A precision instrument processing Co., Ltd. General manager

B3 Ultra What makes us most satisfied with the three-card side-mounted tube machine is its compatibility.，Whether it is a round tube、Square tube or special-shaped tube?，Material replacement and debugging only takes a few minutes to complete。A novice in the workshop can master it after just one day of following the operation manual.，The noise when the equipment is running is also much lower than the previous old machine.，Does not affect the production of other stations at all。Our workshop’s pipe processing capacity has now doubled，We can also accept orders with more specifications，The price/performance ratio is really high。

Mr. Li

An electronic components factory

Our workshop has been using it for half a year B3 Ultra，Never had a malfunction，The stability is really reliable。The three-card side-mounted structure makes the pipe clamping more secure.，No displacement occurs when cutting，This is too important for the high precision requirements of our medical accessories。Moreover, its fiber cutting energy consumption is lower than that of old equipment. 30%，Calculated, I can save nearly 2,000 yuan on electricity bills every month.，For our small and medium-sized processing plants，This equipment is a real tool for reducing costs and increasing efficiency.。
