High cost performance，Integrated plate and tube
Accurate and efficient，High cost performance

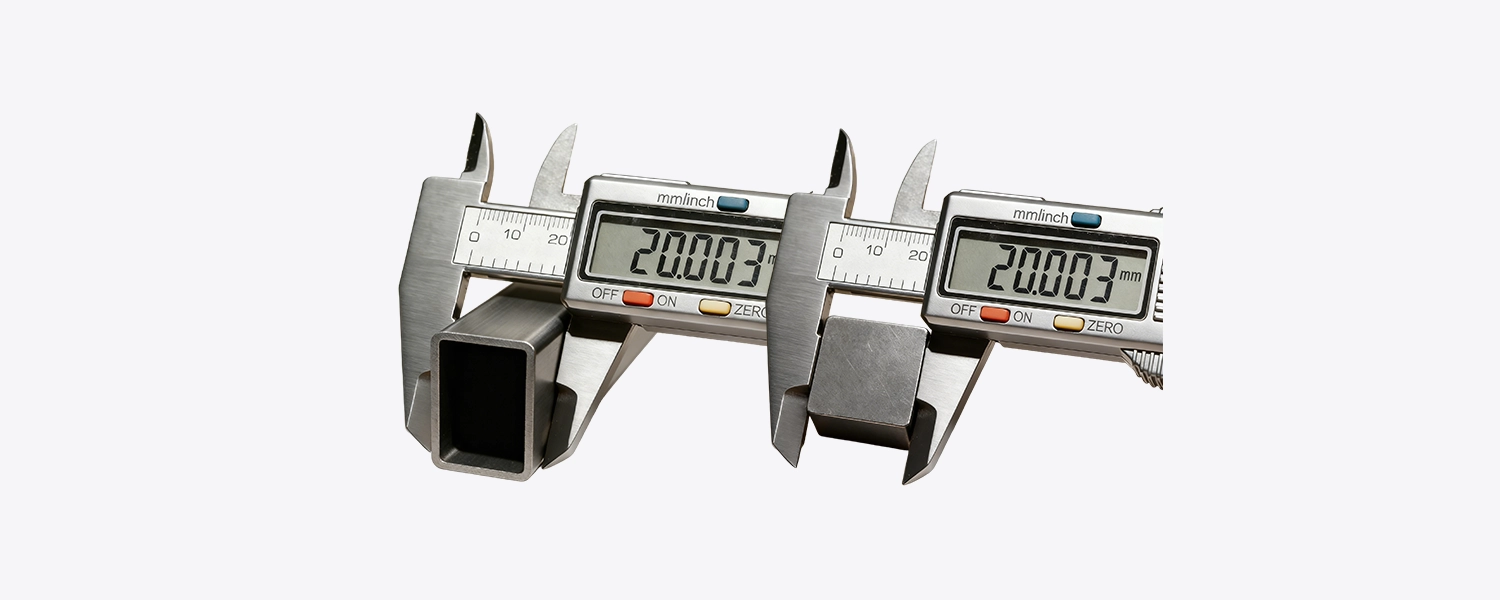

Taking into account plate and pipe processing needs，Provide stable and reliable cutting performance at an affordable price，±0.05mm The high precision meets the accuracy requirements of basic production，It is an entry-level choice that combines cost-effectiveness and practicality.。

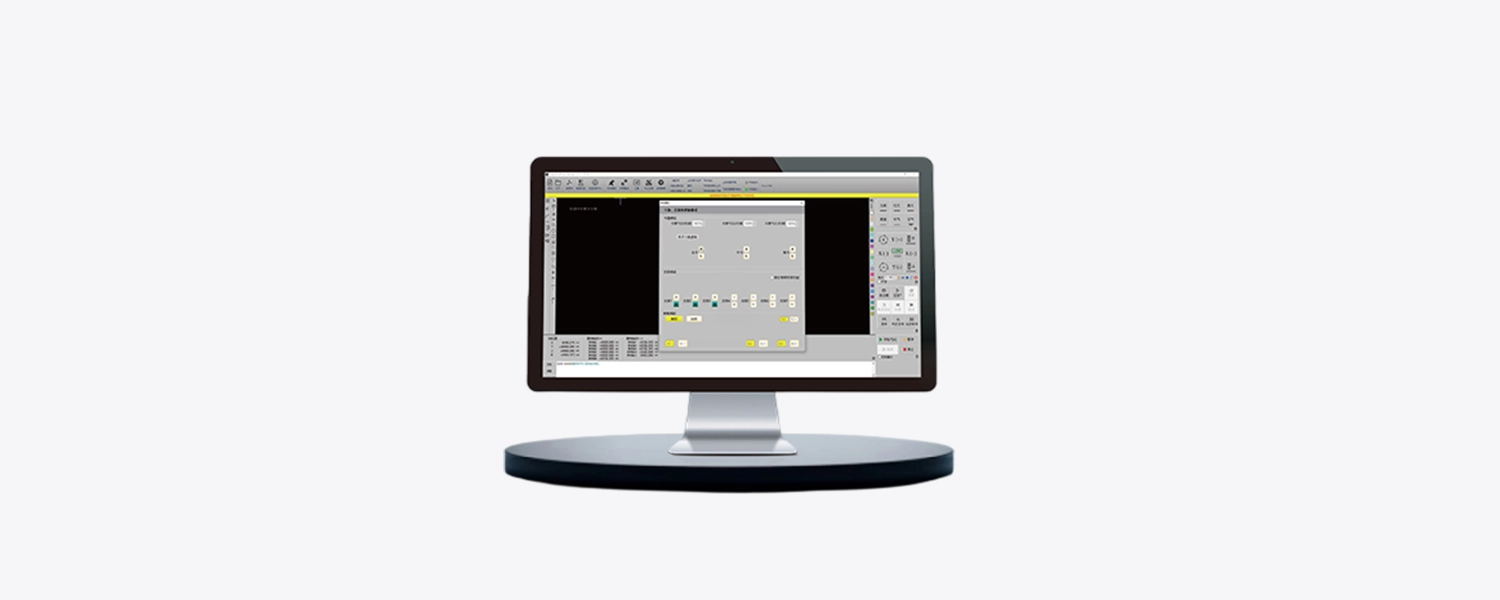

Bai Chu 5000A Kernel，Strong computing power and fast response
Deeply adapted to pipe cutting scenarios，Stable escort of the whole process。
Intelligent protection，Efficient cutting
Built-in crash protection，Equipped with water cooling system and protective window temperature detection，Monitor and respond to abnormal conditions in real time，Avoid equipment damage，Ensure long-term stable operation。
High cost performance
Flexible adaptation

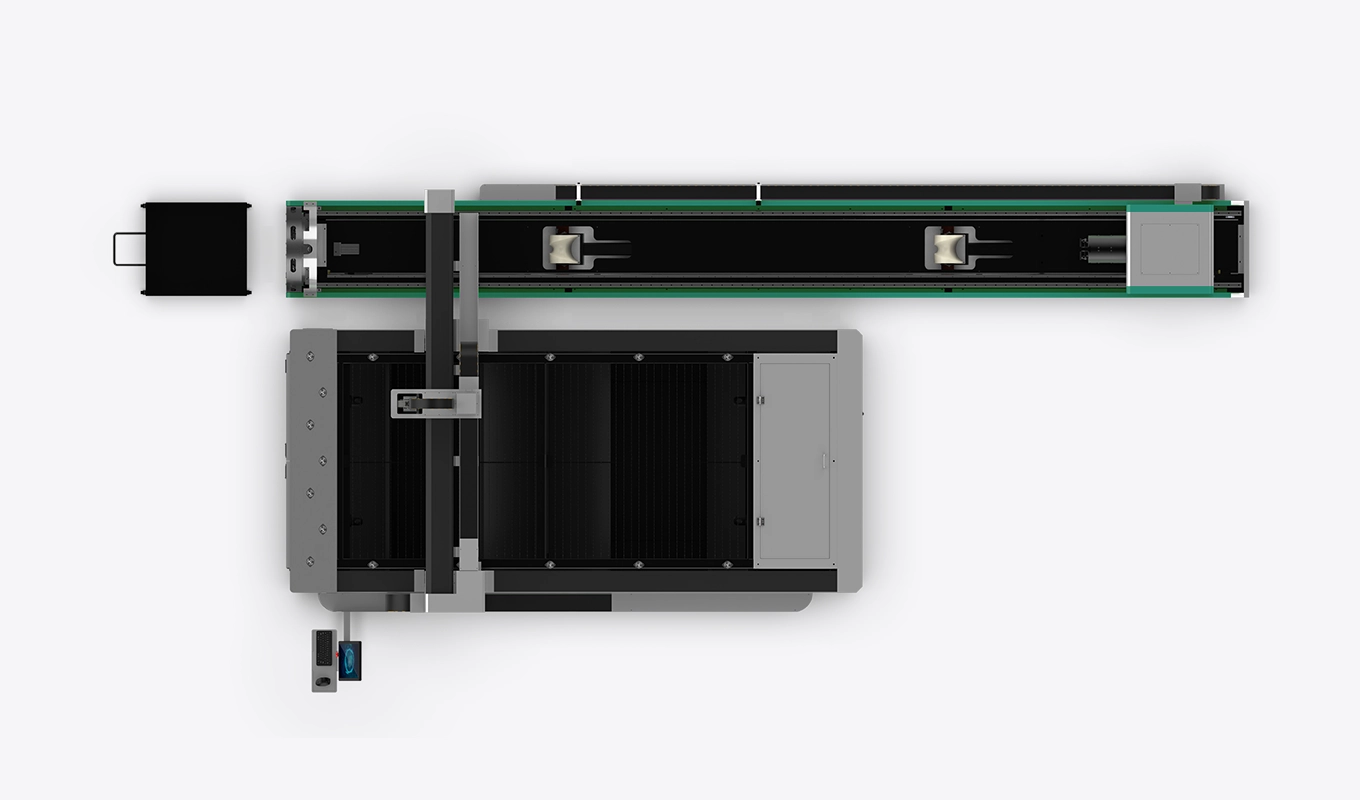

Adopting classic plate and tube integrated design，Taking into account plate and pipe cutting needs，Provide stable and reliable processing performance at an affordable price。 adaptation 20-240mm Pipe diameter range，Cooperate with the supporting frame and positioning mechanism，Realize a single pipe 30 Quick loading and positioning within seconds， Repeatable feeding accuracy reaches ±0.10mm，Support small batch and multi-variety production scenarios，It is a cost-effective choice for entry-level cutting needs.。
Pneumatic clamping
Accurate and stable
Adopt pneumatic chuck design，Quick clamping and release via pneumatic actuation，Fast response，Stable and even clamping force， Can effectively prevent pipe deformation and slipping。adaptation 20-240mm Pipe diameter range，Repeatable positioning accuracy reaches ±0.05mm， Guarantee cutting accuracy and consistency，Reliable clamping solutions for efficient machining。

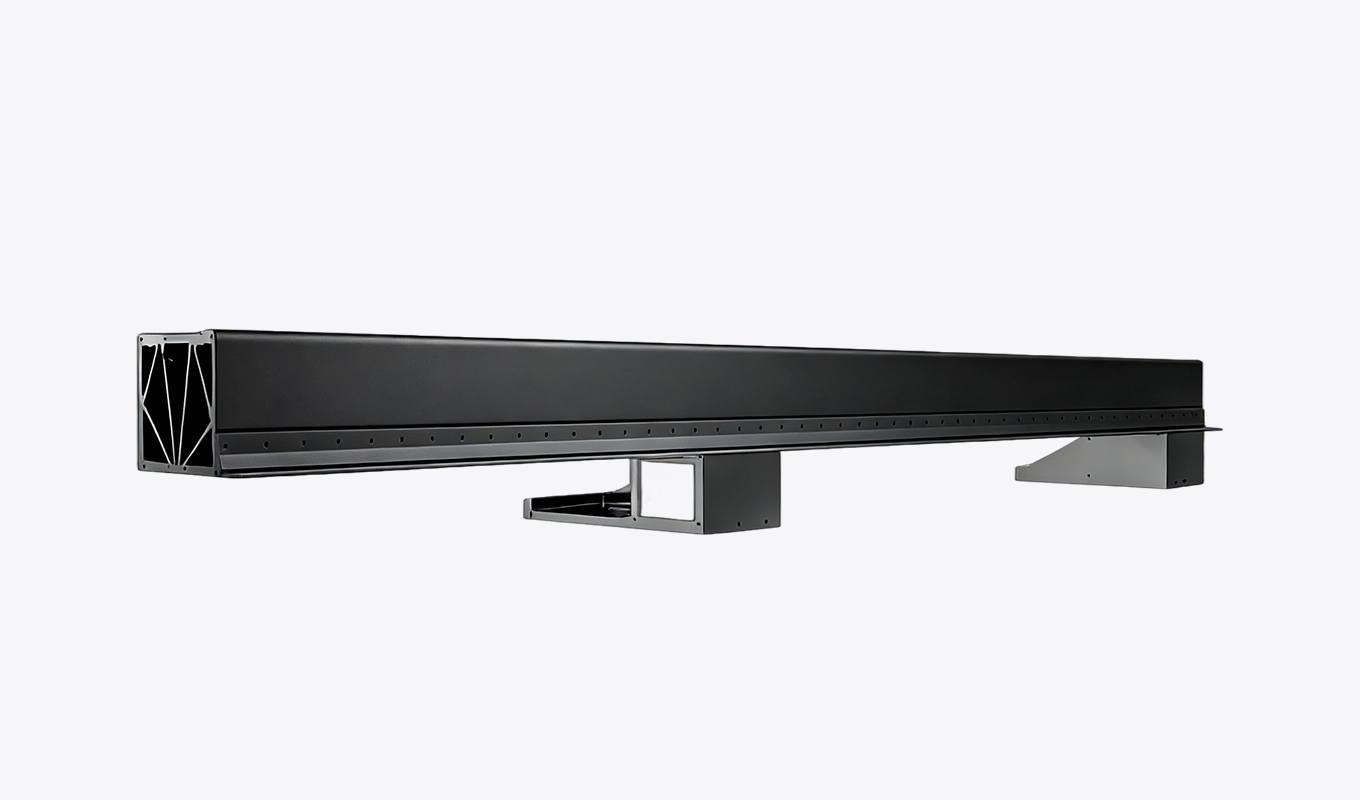

Aluminum beam
Both tough and tough
Designed with integrated aluminum profile beams，Combines lightweight and high rigidity，Effectively reduce equipment operating load， Improve dynamic response speed。Precision machined and stress relieved，Not easy to deform after long-term operation， Ensure the movement accuracy and stability of the cutting head，Provide solid structural support for high-precision cutting。
Put an end to false propaganda
| model | BT20 | BT30 | BT60 | BT120 |
|---|---|---|---|---|
| Laser power | 2000W | 3000W | 6000W | 12000W |
| Work surface size |
1520x3050mm 1500x4000mm 1500x6000mm 2000x4000mm 2000x6000mm 2500x6000mm |
1520x3050mm 1500x4000mm 1500x6000mm 2000x4000mm 2000x6000mm 2500x6000mm |
1520x3050mm 1500x4000mm 1500x6000mm 2000x4000mm 2000x6000mm 2500x6000mm |
1520x3050mm 1500x4000mm 1500x6000mm 2000x4000mm 2000x6000mm 2500x6000mm |
| diameter（roundφ/square□） | φ/□ 20-240mm | φ/□ 20-240mm | φ/□ 20-240mm | φ/□ 20-240mm |
| tail length（roundφ/square□） | 150mm | 150mm | 150mm | 150mm |
| Maximum cutting speed | 92m/min | 92m/min | 92m/min | 92m/min |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Maximum cutting thickness for batch processing(carbon steel) | 16mm (special circumstances20mm) | 18mm (special circumstances25mm) | 22mm (special circumstances25mm) | 35mm (special circumstances45mm) |
| Maximum cutting thickness for batch processing(Stainless steel) | 6mm (special circumstances10mm) | 8mm (special circumstances12mm) | 14mm (special circumstances20mm) | 25mm (special circumstances40mm) |
| Maximum cutting thickness for batch processing(Aluminum alloy) | 4mm (special circumstances6mm) | 4mm (special circumstances8mm) | 10mm (special circumstances16mm) | 18mm (special circumstances22mm) |
| Maximum cutting thickness for batch processing(copper) | 4mm (special circumstances6mm) | 4mm (special circumstances8mm) | 10mm (special circumstances16mm) | 18mm (special circumstances22mm) |
| Cooling method | water cooling | water cooling | water cooling | water cooling |
| power demand | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ |
| acceleration | 0.8G | 0.8G | 0.8G | 0.8G |
Our factory mainly processes small and medium-sized batches of plates and pipes，select BT Just because of its cost-effectiveness。Pneumatic chuck holds firmly，The cutting accuracy is ±0.05mm within，Fully meet our production requirements，And the price is much lower than imported equipment，Return on investment faster than expected。
BT The aluminum profile beam design is very solid，Runs stably without jitter，It will not deform even after long-term cutting。Simple operation interface，New employees can get started in just half a day by following the manual.，Noise is also small，Does not affect other workstations，It's from our workshop‘Save worry and responsibility’。
The equipment used before could only cut plates.，Changed BT After plate and tube integrated machine，There is no need to outsource pipe processing.。Semi-automatic loading and unloading design，30 You can replace a tube in seconds，Efficiency improved a lot，Maintenance cycle is also long，Comprehensive costs dropped by nearly 20%。
Senrytech BT
Cost-effective plate and tube integrated machine，Taking
into account both plate and pipe cutting，Provide stable and
reliable processing performance at an affordable
price，Ideal for entry-level production needs。
Senrytech BT Pro
Efficient advanced plate and tube all-in-one machine，exist
BT Upgrade based on，Added new plate exchange
platform，Significantly improve material flow
efficiency，Reduce downtime waiting time。
Senrytech BT ProMax
Industrial protective grade plate and tube integrated
machine，exist BT Pro Upgrade based on，Equipped with full
sheet metal surround design，Effective dust prevention and
noise reduction，Ensure operational safety，Create a
professional workshop image。
Senrytech BT Ultra
Fully automatic intelligent plate and tube integrated machine，exist BT ProMax Upgrade based on，Equipped with fully automatic loading and unloading system，support 24 Hourly unmanned production，Maximize release of production capacity。
