Aluminum coil continuous processing safety upgrade

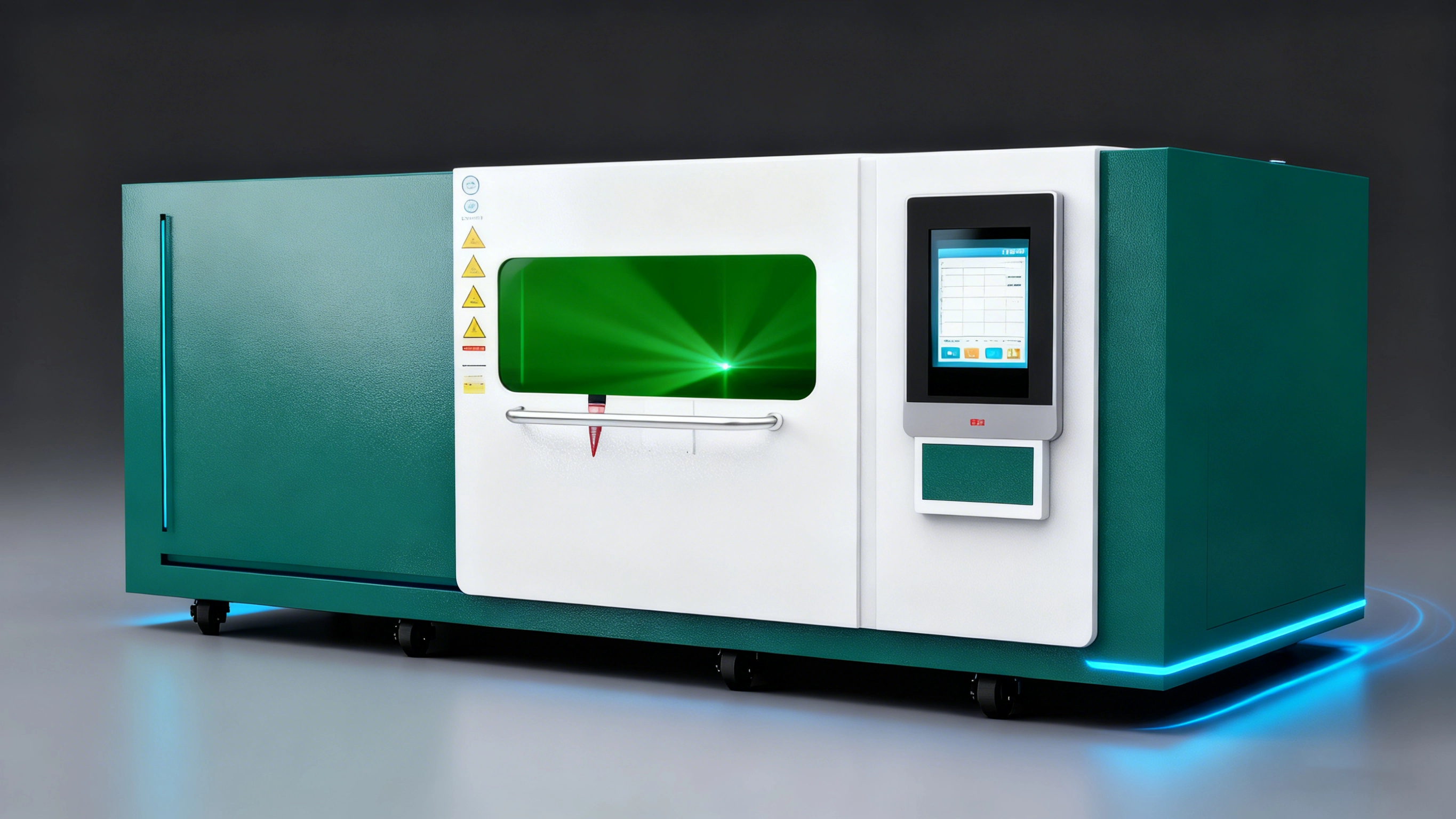

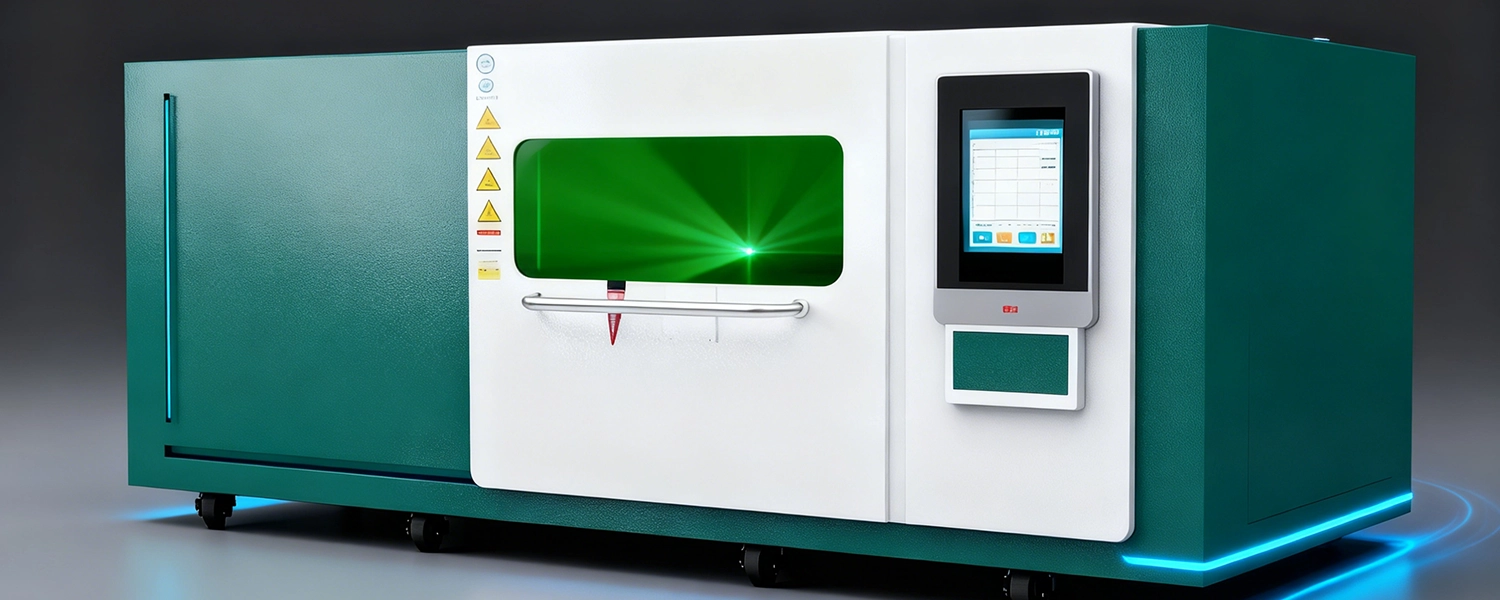

Sheet metal surround
Compatible equipment overall size，Protection and aesthetics upgraded。

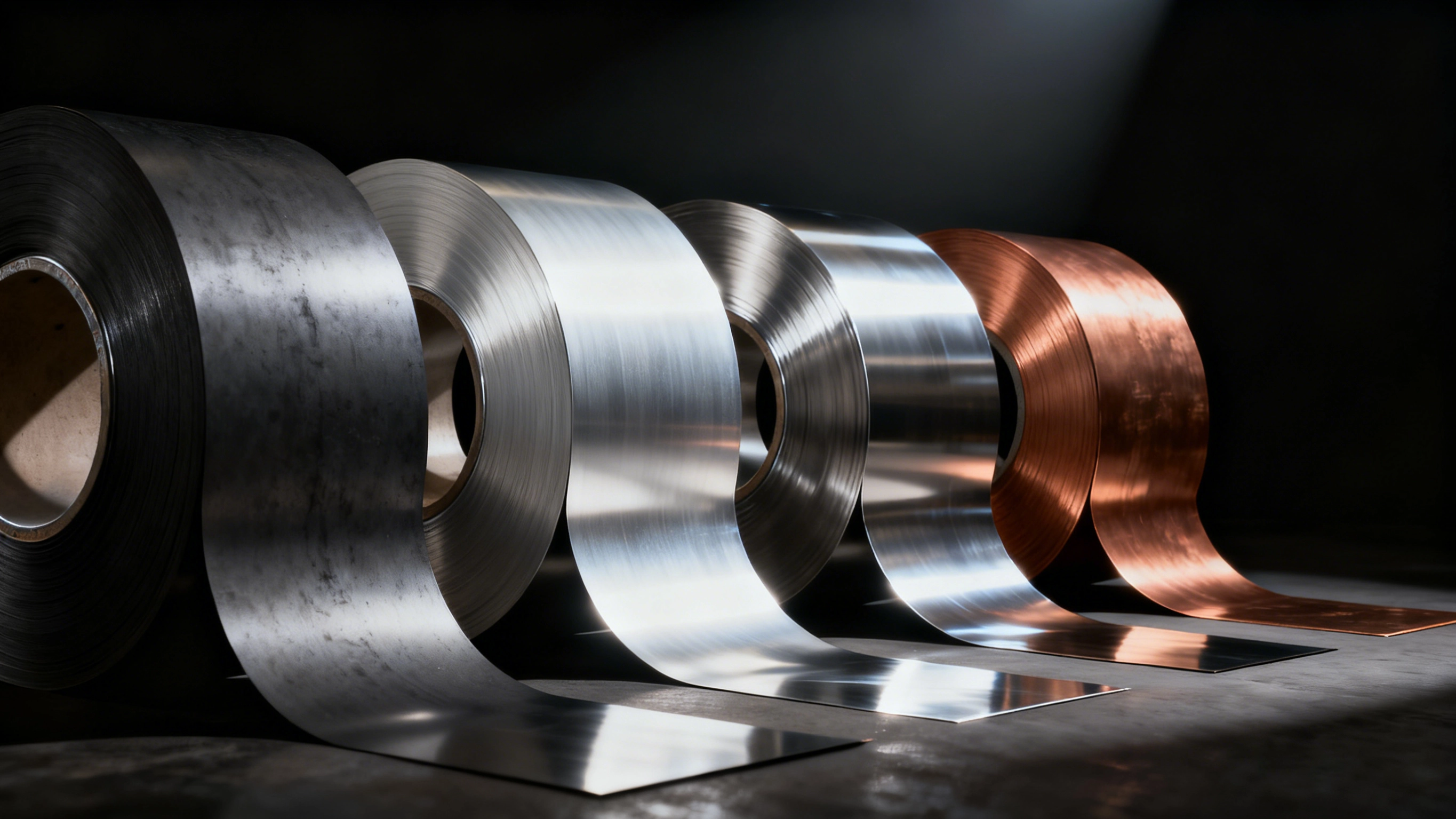

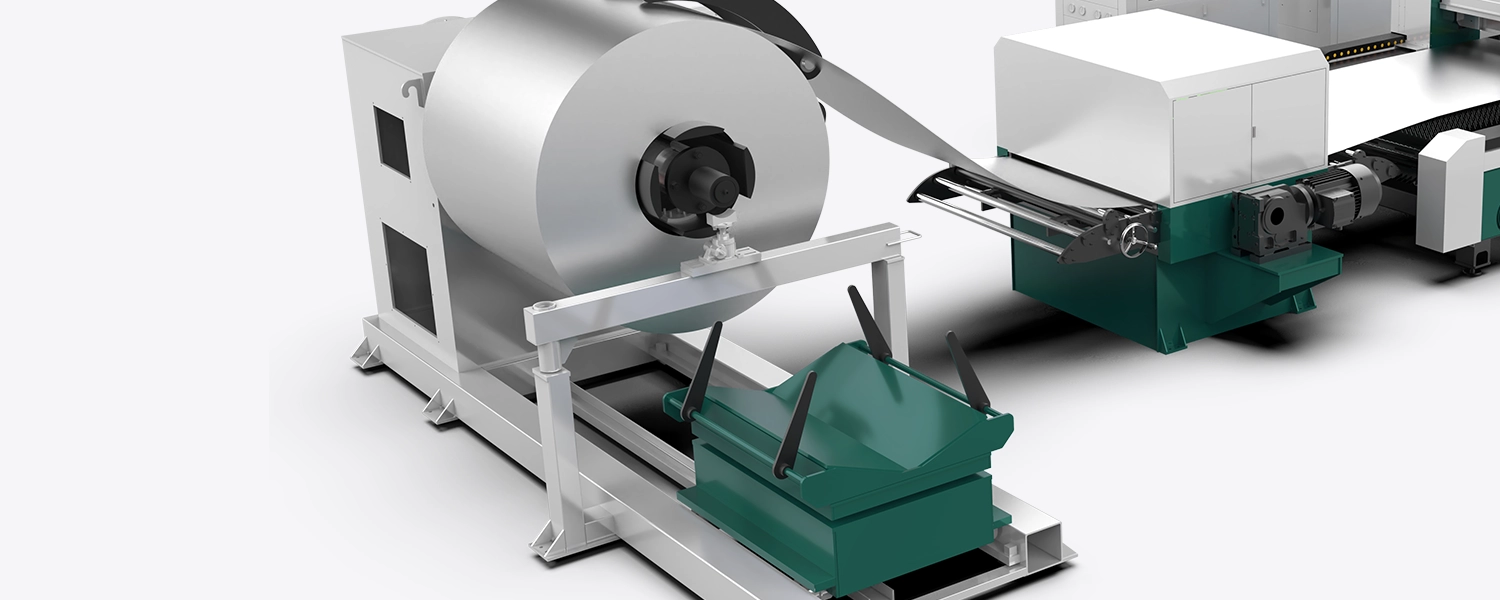

Roll material slitting
Seamless connection between coil feeding and cutting processes，The gap in coil processing is reduced to the extreme。
YYC 30 Precision rack：for3Injecting strong and stable power into the slitting of coils of mm and below
Industrial grade transmission benchmark configuration，Help reduce costs and improve efficiency in the slitting process。
Level crosscut

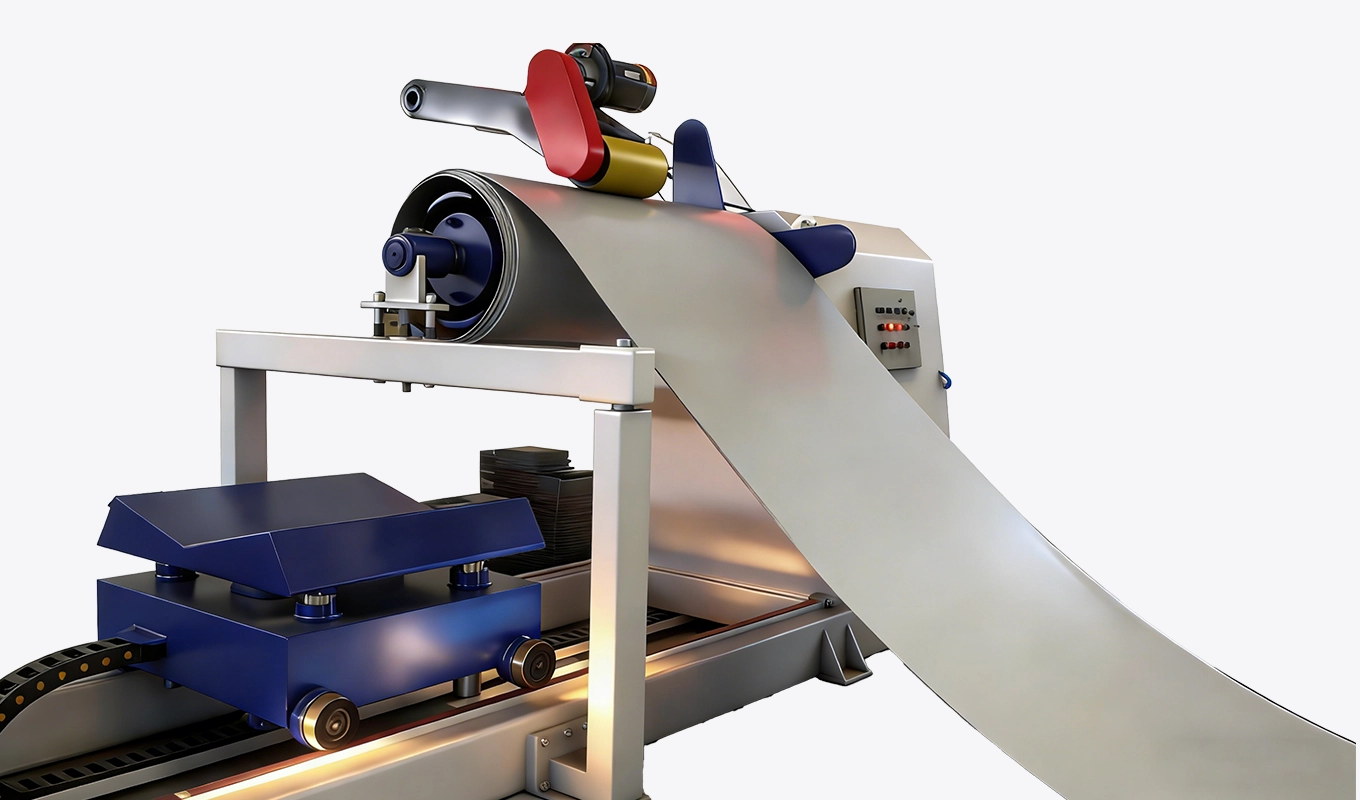

Roll the board flat

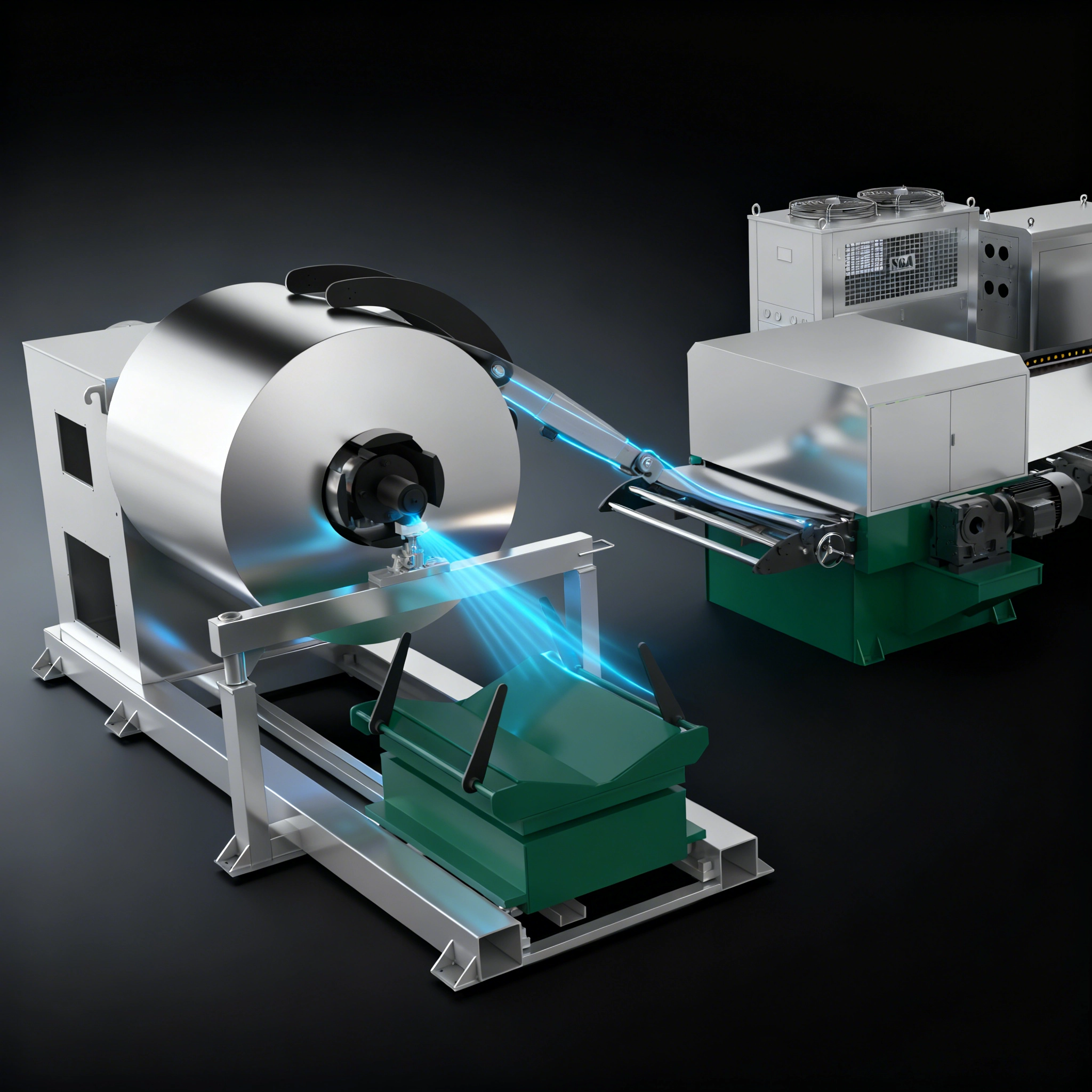

Adopt automated integrated design，Relying on precise cutting and leveling technology，Realize full-process automated processing of steel coils， Effectively complete unwinding、Leveling、The whole process of cross-cutting and stacking is connected。The unit is controlled through intelligent linkage，Convert steel coils into flat sheets of varying lengths， Synchronous automatic stacking，Improved efficiency compared with traditional step-by-step operations 60% above，Processing accuracy has jumped to the forefront of the industry， Suitable for large-scale、High-precision plate processing conditions，Cutting consistency is close to optimal under high-speed operation.，Ensure the regularity of finished products and improve production efficiency。
Leveling and finishing

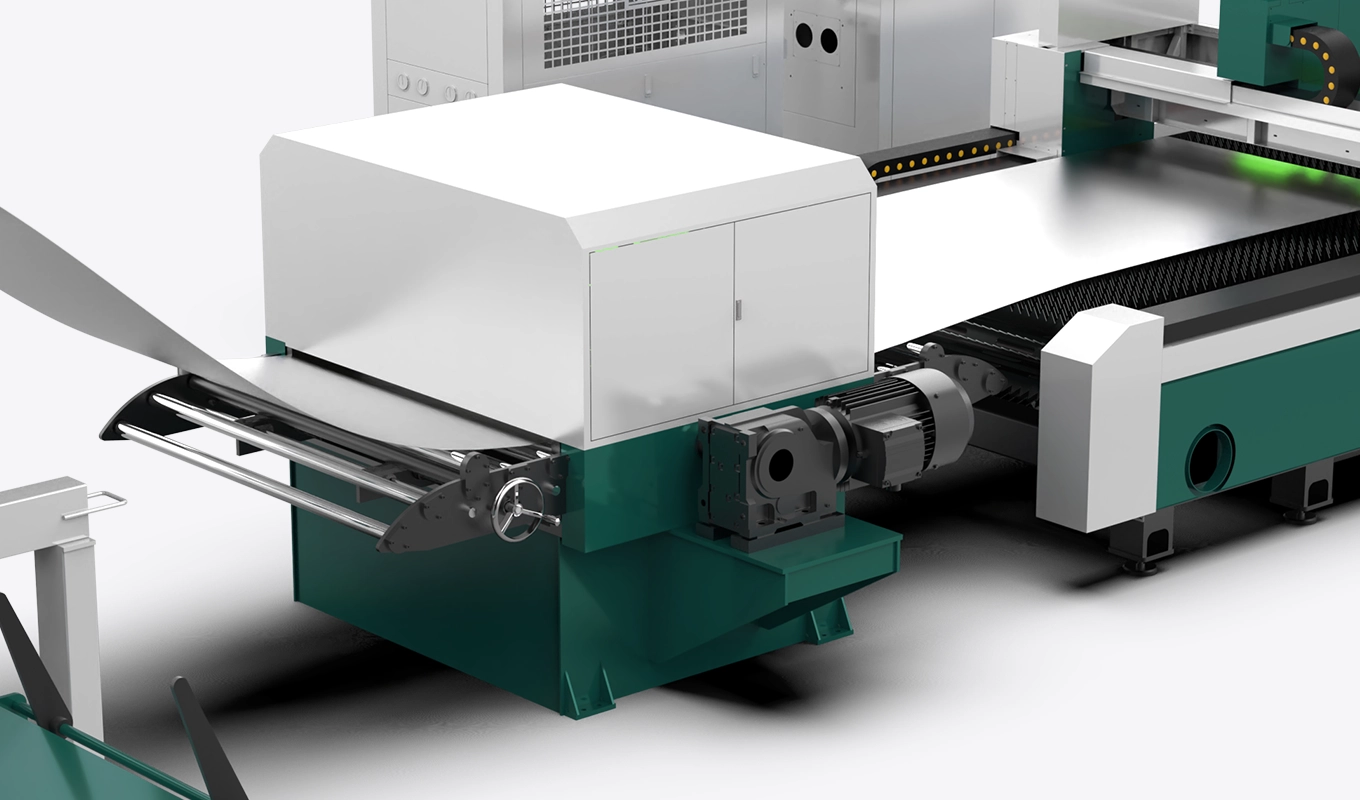

Roll leveling
Using integrated roller system + Intelligent servo control design，Relying on four-roller leveling and precise parameter adjustment technology，Realize the entire process of automatic leveling of coil materials， Complete loading effectively、Rolling and leveling、Accuracy calibration and discharging are coordinated throughout the process.。The unit is controlled through intelligent linkage，Convert coil plate to specified thickness / width of flat sheet， Simultaneously complete precision calibration and orderly stacking of materials，Improved efficiency compared with traditional manual leveling 70% above，The processing thickness tolerance is controlled within ±0.02mm Inside， Leap to the industry's high-precision processing echelon，Can meet multiple specifications、Highly consistent plate leveling conditions，The consistency of roller leveling under high-speed operation is close to optimal.， Ensure finished product flatness and production rhythm optimization。
Precision transmission
Best Performance
useYYCPrecision rack brand，Relying on grinding gear making process and high frequency quenching treatment，Tooth surface hardness reaches HRC42-55，Tooth shape accuracy conforms to DIN5 level standard，Cumulative error≤0.022mm/300mm。 Rack body selection S45C Medium carbon steel base material，With modular installation hole design，Support unlimited stroke splicing，Adapted to long-distance transmission scenarios。 The precision rack transmission efficiency is as high as 98%，High speed operation up to 11m/s，Combined with low friction、Low noise characteristics； Zero backlash structure achieves positioning accuracy ±20 Micron，More traditional transmission parts（such as ball screw）More suitable for high-precision processing conditions。 under heavy load、long trip、Under high-frequency operation conditions，Still maintaining transmission stability and positioning accuracy，Meet the continuous operational needs of high-precision manufacturing。
Put an end to false propaganda
| model | C15 Pro | C20 Pro | C30 Pro | C60 Pro |
|---|---|---|---|---|
| Laser power | 1500W | 2000W | 3000W | 6000W |
| Work surface size |
3000x1500mm 4000x2000mm |
3000x1500mm 4000x2000mm |
3000x1500mm 4000x2000mm |
3000x1500mm 4000x2000mm |
| Maximum cutting speed | 92m/min | 92m/min | 92m/min | 92m/min |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Maximum cutting thickness for batch processing(carbon steel) | 12mm (special circumstances16mm) | 16mm (special circumstances20mm) | 18mm (special circumstances25mm) | 22mm (special circumstances25mm) |
| Maximum cutting thickness for batch processing(Stainless steel) | 5mm (special circumstances8mm) | 6mm (special circumstances10mm) | 8mm (special circumstances12mm) | 14mm (special circumstances20mm) |
| Maximum cutting thickness for batch processing(Aluminum alloy) | 3mm (special circumstances5mm) | 4mm (special circumstances6mm) | 4mm (special circumstances8mm) | 10mm (special circumstances16mm) |
| Maximum cutting thickness for batch processing(copper) | 3mm (special circumstances4mm) | 4mm (special circumstances6mm) | 4mm (special circumstances8mm) | 10mm (special circumstances16mm) |
| Cooling method | water cooling | water cooling | water cooling | water cooling |
| power demand | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ |
| acceleration | 0.8G | 0.8G | 0.8G | 0.8G |
We are an aluminum products factory，use Senrytech C After series，15 tons of aluminum coils processed from 8 hours reduced to 4 Hour，0.8mm Thin aluminum notch error≤0.02mm，The pass rate is from 88% rise to 99.5%，Double improvement in efficiency and accuracy！
As an auto parts factory，C The series solves our production pain points —— able 12 hours of continuous processing，1.2mm Aluminum coil cutting fast 35%，It also saves the polishing process.，Single line monthly savings 2 Thousands of costs！

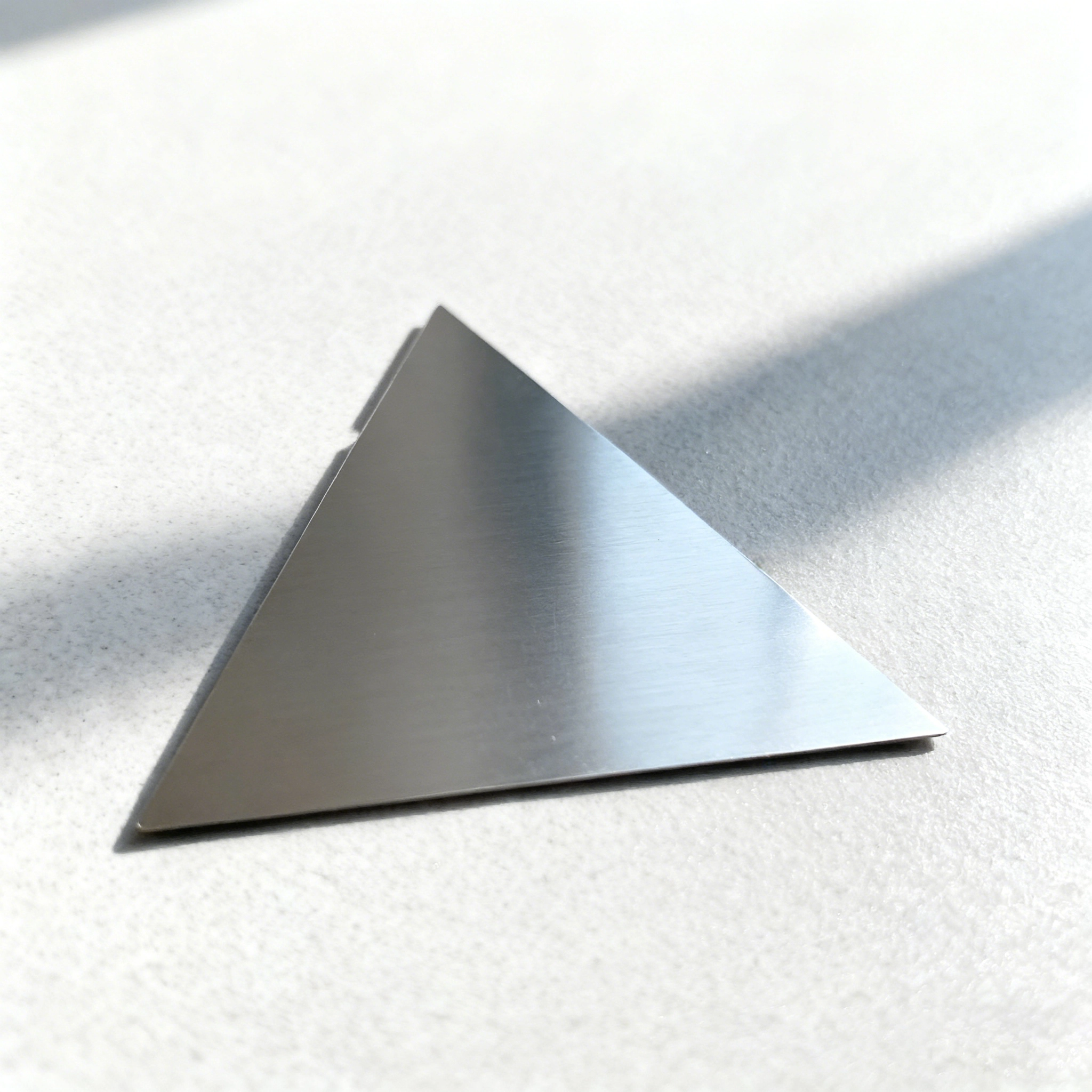

We make thin aluminum casings for electronic equipment，C The series makes the scrap rate from 10% down to 1.5%，Save every month 3 tons of aluminum；0.03mm Precision without secondary processing，new employee 3 You can get started in the sky，So practical！
Senrytech A
3000W The following are preferred，Original core parts will
not shrink！Tailored for start-ups，0.8G Stable acceleration
±0.05mm Accuracy，Lower the threshold for professional
cutting。
Senrytech B
12000Wpower ceiling！Reinforced bed to resist
deformation，electricity Machine reducer power
doubled，1.5Gacceleration，Put medium thickness Board
cutting efficiency reaches new heights。
Senrytech B Plus
Side opening surround saves space！The loading table can be
pulled out manually，Suitable for small workshops，Double
optimization of safety and space utilization，Don't be
showy。
Senrytech B Pro
10 Extremely fast exchange and loading in seconds，Automatic and seamless connection between two stations，2.0G High acceleration realization equipment‘No downtime’Production，Directly double production capacity，Accurately solve the standby pain points of factory batch processing.
Senrytech B ProMax
Fully surrounded by sheet metal + International safety certification，Specifically customized for export companies！inherit B Pro 10 Loading in seconds + 2.0G Acceleration core advantages，Safety protection and production efficiency double standard，European market compliance is smooth，No additional premium。
Senrytech B Ultra
True fully automatic loading and unloading closed loop！Feeding、cutting、Fully independent cutting，Overlay full surround + High power，Taking laser-cut smart ceilings to new heights，The black light factory was launched directly。
Senrytech C
15 Ton load limit + Automatic material transfer system，0.5-2mm Aluminum coils are cut directly into sheets，1.0G Accelerate continuous production，Completely say goodbye to the cumbersome manual feeding，Provide efficient closed-loop solutions for aluminum products companies。
Senrytech G
12-14 meters long ground rail，12000-60000W Ultra high
power，Designed for large components、Heavy duty plate
cutting design，±0.05mm Precision ensures long-piece
processing quality。
Senrytech M
±8 Micron accuracy！Mini body takes up no space，Highest 6kW
power，Designed for precision parts processing，Small
stature hides real skills，Take precision cutting to the
extreme。
Senrytech S
Specialized C/H Section steel、Channel steel！14 Meters long
travel，Customized cutting paths，No fuss、No rework，Create
efficient special solutions for the steel structure
industry。
