4Chuck side-mounted top flagship laser pipe cutting machine

Brush up on the key points first

Four card linkage，stable as a rock

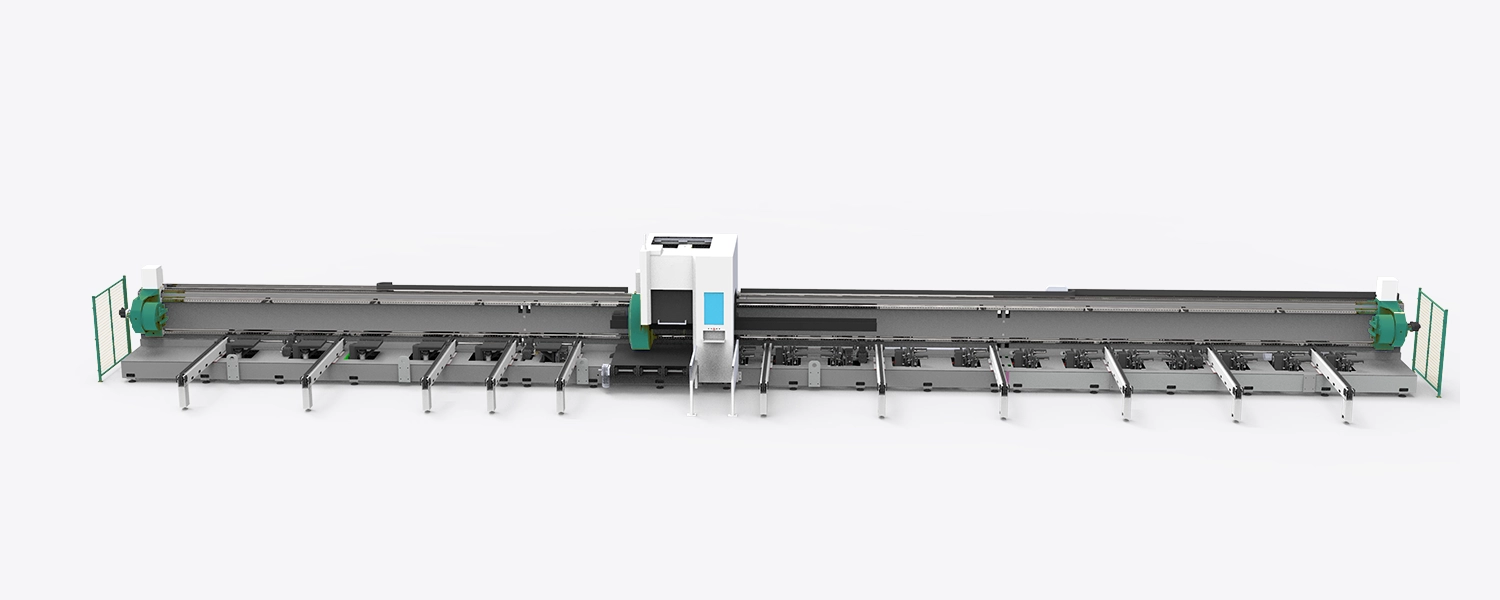

Senrytech C4 Ultra Pipe cutting accuracy

Side mounted four cards，stable as a rock

Four card linkage clamping，Side-mounted structural design

Side-mounted four-chuck layout，Equipped with multi-station linkage clamping，Make pipe clamping more stable，Effectively avoid shaking and deflection during long tube processing，Laying a solid foundation for high-precision cutting。

Senrytech C4 Ultra Laser pipe cutting machine laser head

Intelligent protection，Efficient cutting

Quick focus，Improve processing efficiency

Built-in crash protection，Equipped with water cooling system and protective window temperature detection，Monitor and respond to abnormal conditions in real time，Avoid equipment damage，Ensure long-term stable operation。

Senrytech C4 Ultra Baichu operating system

Bai Chu 5000A Kernel，Strong computing power and fast response

Intelligent interactive interface，Efficient operation and less worry

Deeply adapted to pipe cutting scenarios，Stable escort of the whole process。

Design process

Efficient adaptation
Flexible circulation

Using semi-automatic loading and unloading design，adaptation 20-650mm Pipe diameter range，Cooperate with the supporting frame and positioning mechanism，Realize a single pipe 30s Internal fast loading and positioning， Repeatable feeding accuracy reaches ±0.1mm；Equipped with pneumatic lifting and roller conveyor units，Complete pipe lifting in a compact space、Conveying and docking， response time＜0.5s，Suitable for high dust cutting conditions；Modular integrated loading rack、Positioning assembly and conveyor roller set，have IP54 Protection level，Improved maintenance cycle 25%， Can be flexibly connected to the production line，Taking into account small batch and multi-variety production scenarios。

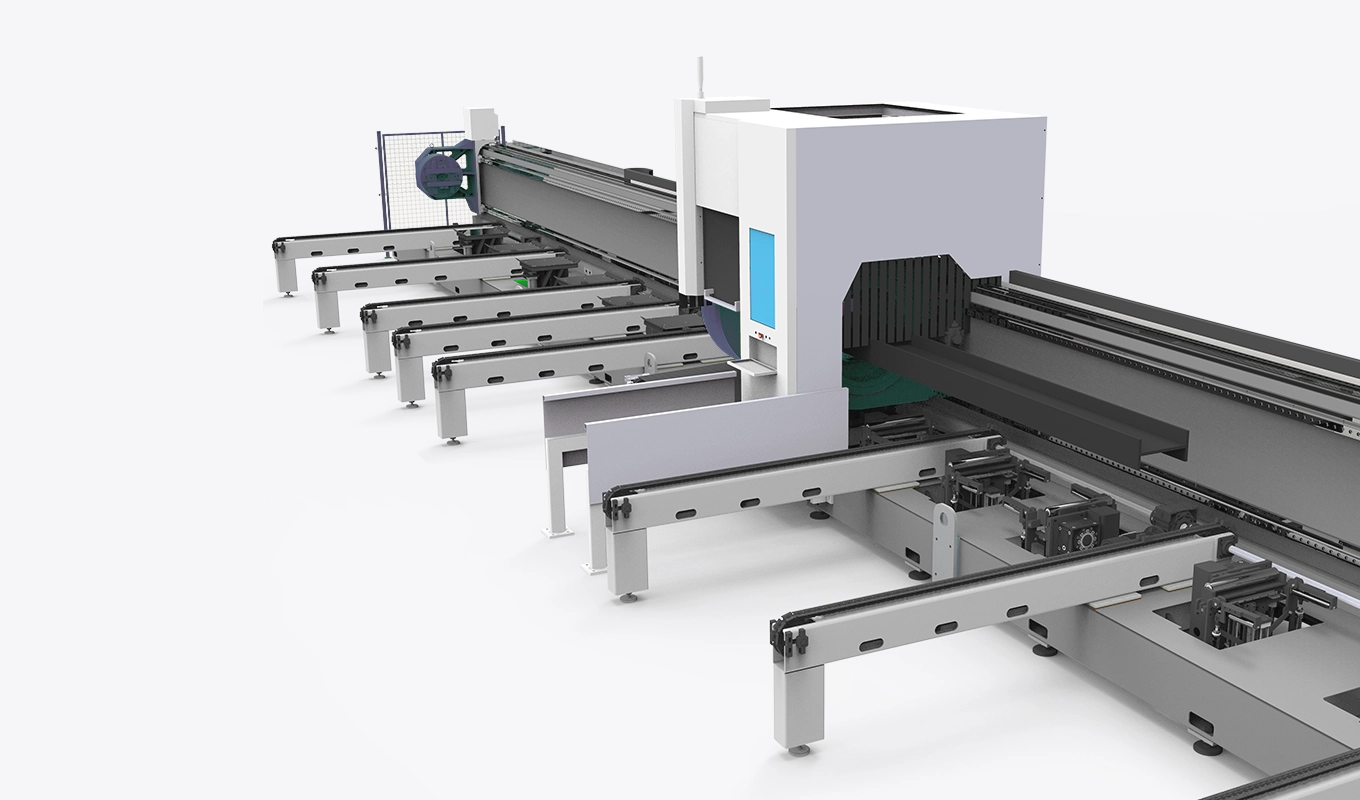

Senrytech C4 Ultra Semi-automatic loading and unloading

Follow-up feeding support
An efficient assistant for stable and continuous cutting

Adopt follow-up linkage structure，Can be synchronized with the cutting process in real time，Provides dynamic support for long pipes，Avoid cutting deviations caused by sagging due to dead weight。 Equipped with adaptive adjustment function，Compatible with different pipe diameters、length of pipe，Stable loading in a compact space，Greatly improve the smoothness of continuous cutting。 Modular integrated protection design，Suitable for high dust cutting conditions，Extended maintenance cycle，Make long tube processing more worry-free、Efficient。

Side mounted pneumatic chuck
Strong centering clamping core

Adopt side-mounted pneumatic drive structure，With four-claw linkage centering design，Achievable 0.05mm Repeat positioning accuracy within，Provides a stable clamping reference for pipe cutting。 Equipped with high thrust cylinder unit，output 100kg-800kg Adjustable clamping force，Compatible with different wall thicknesses、material pipe，Stable clamping without slip even during high-speed cutting。 Modular integrated dust seal design，Suitable for high dust cutting conditions，Improved maintenance cycle 60%，And the side-mounted layout releases more processing space，Suitable for continuous cutting of long tubes。

Technical parameters

model	C4-360Ultra	C4-550Ultra	C4-650Ultra
diameter（roundφ/square□）	φ/□ 20-360mm	φ/□ 40-550mm	φ/□ 38-650mm
I-beam	≤22#	≤42#	≤63#
Feeding length（roundφ/square□）	0-6m 0-9m 0-12m	0-6m 0-9m 0-14m	0-6m 0-9m 0-12m
tail length（roundφ/square□）	0mm	0mm	0mm
Optional power	6000w 12000w 20000w	6000w 12000w 20000w	6000w 12000w 20000w
Number of chucks	4	4	4
Chuck speed	30r/min	30r/min	30r/min
maximum acceleration	0.7G	0.7G	0.7G
Feeding method	Semi-automatic	Semi-automatic	Semi-automatic
Material receiving method	Semi-automatic	Semi-automatic	Semi-automatic
Heat dissipation method	air cooling	air cooling	air cooling
smoke purifier	Optional	Optional	Optional
Site reserved size	Feeding0-6mneed18mx4mx3m Feeding0-9mneed21mx5mx4m Feeding0-12mneed30mx5mx4m	Feeding0-6mneed20mx4mx3m Feeding0-9mneed23mx5mx4m Feeding0-14mneed32mx5mx4m	Feeding0-6mneed22mx5mx4m Feeding0-9mneed25mx6mx5m Feeding0-12mneed32mx8mx5m

Parameter data is based on standard test environment，Actual use may vary depending on material properties、Operating conditions vary slightly
