Efficient advancement，Extremely fast board change
Intelligent obstacle avoidance，Safe and worry-free
Using high-precision sensing technology，Protrusions on the machining path can be dynamically identified、Obstacles such as residual materials，Automatically adjust laser head height and path，Protect equipment from damage，It can also ensure cutting accuracy and efficiency.，Greatly improve the stability and safety when processing complex plate materials。

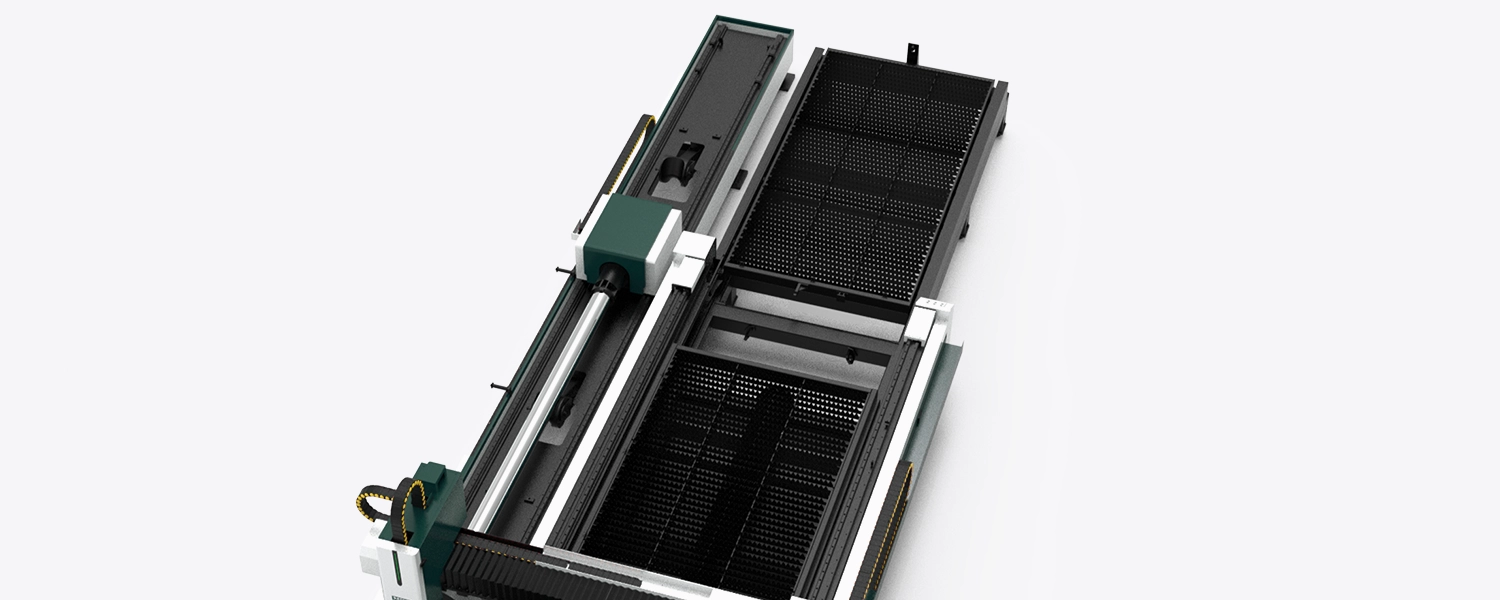

Extremely fast board change，Efficient circulation
Adopt double workbench alternating design，The platform automatically switches after processing is completed.，Finished product unloading and raw material loading can be completed while the new plate is being processed.，No need to wait for downtime，Effectively reduce auxiliary time，Improve the production efficiency of the entire line 30% above，Especially suitable for continuous processing scenarios of batch plates。
Servo drive，Precise and powerful
Adopt high-power servo drive system，With high torque、Low heat generation characteristics，Can realize high-speed start and stop and precise positioning，It can still maintain smooth movement in complex cutting scenes.，Effectively improve cutting accuracy and speed，Reduce equipment operating noise and wear at the same time，Extend service life。
Double wheel claw
High precision clamping core
Adopts rack and pinion interconnected transmission structure，With double roller claw design，accomplish0.05mmRepeat positioning accuracy and0.05mmBounce accuracy， Equipped with an exclusive single-row dual-cylinder drive unit，Output in a compact space100kg-800kgMaximum clamping force，response time＜0.3s， Modular integrated roller set、Cylinder group and rack box，With high protection level，Suitable for high dust cutting conditions，Improved maintenance cycle 30%；

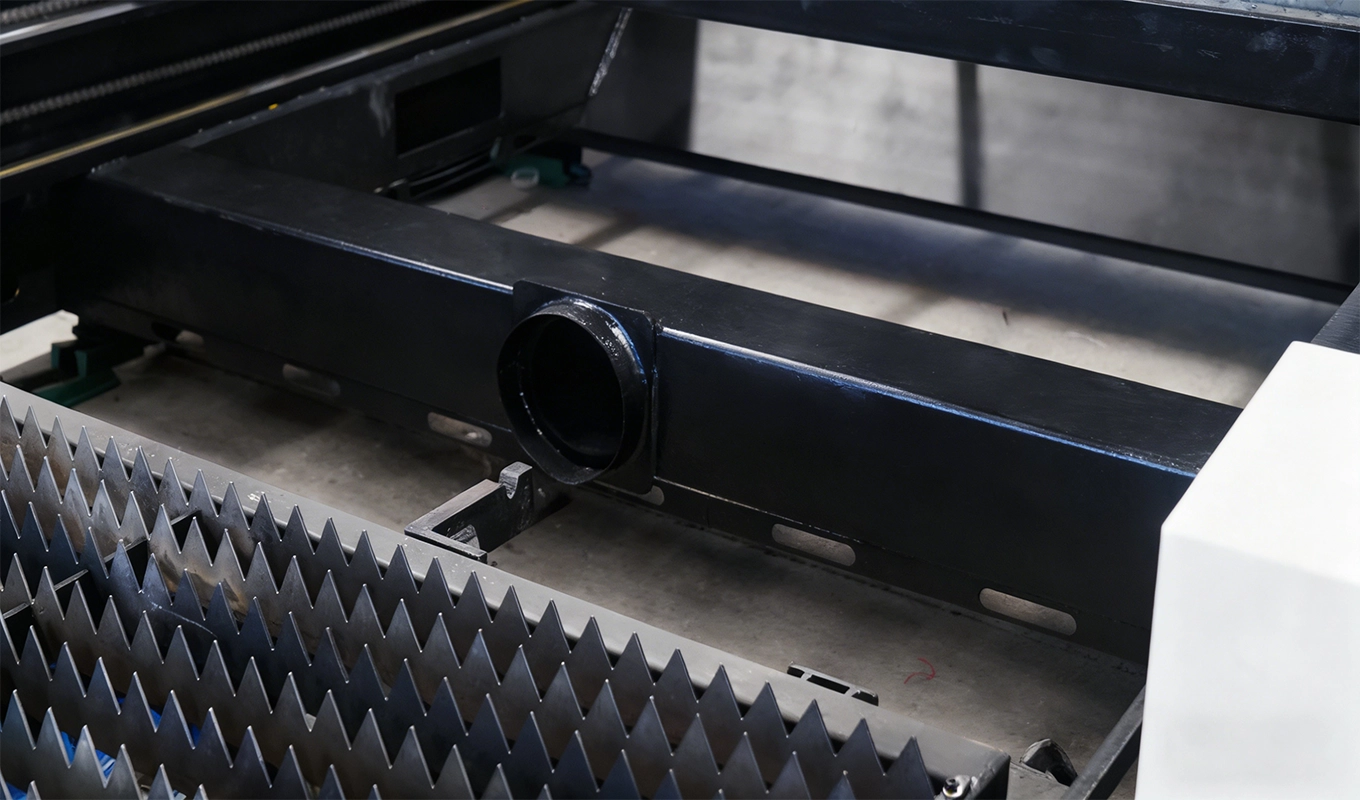

Zone dust removal
Clean intelligent control
use “cutting area + Smoke exhaust area + console” Three-level zoning dust removal design：The cutting area is equipped with a follow-up suction hood（Follow the movement of the cutting head，Air volume≥6000m³/h）， Targeted capture of metal smoke generated at the moment of cutting；The smoke exhaust area relies on overhead air ducts + High efficiency filter cartridge（Filtering accuracy 0.3μm），Intercepting fine dust； Side-suction low-power fans are used in the console area，Keep the environment clean。The system is equipped with a smoke concentration sensor，Each partition starts and stops independently / Shift，Energy consumption is lower than traditional single-fan dust removal 35%。
Precision transmission
Best Performance

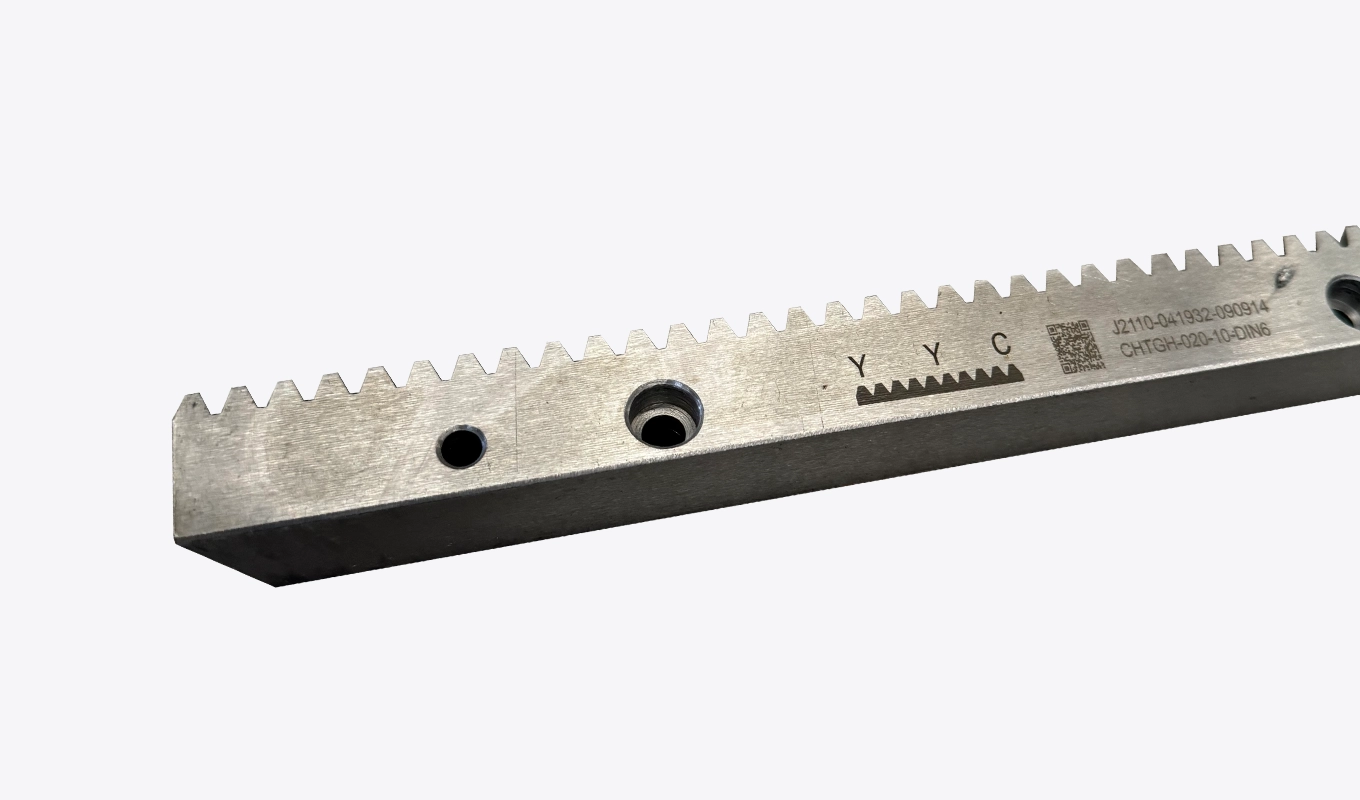

useYYCPrecision rack brand，Relying on grinding gear making process and high frequency quenching treatment，Tooth surface hardness reaches HRC42-55，Tooth shape accuracy conforms to DIN5 level standard，Cumulative error≤0.022mm/300mm。 Rack body selection S45C Medium carbon steel base material，With modular installation hole design，Support unlimited stroke splicing，Adapted to long-distance transmission scenarios。 The precision rack transmission efficiency is as high as 98%，High speed operation up to 11m/s，Combined with low friction、Low noise characteristics； Zero backlash structure achieves positioning accuracy ±20 Micron，More traditional transmission parts（such as ball screw）More suitable for high-precision processing conditions。 under heavy load、long trip、Under high-frequency operation conditions，Still maintaining transmission stability and positioning accuracy，Meet the continuous operational needs of high-precision manufacturing。
Put an end to false propaganda
| model | BT20 Pro | BT30 Pro | BT60 Pro | BT120 Pro |
|---|---|---|---|---|
| Laser power | 2000W | 3000W | 6000W | 12000W |
| Work surface size |
1500x3000mm 2500x6000mm |
1500x3000mm 2500x6000mm |
1500x3000mm 2500x6000mm |
1500x3000mm 2500x6000mm |
| diameter（roundφ/square□） | φ/□ 20-240mm | φ/□ 20-240mm | φ/□ 20-240mm | φ/□ 20-240mm |
| tail length（roundφ/square□） | 150mm | 150mm | 150mm | 150mm |
| Maximum cutting speed | 65m/min | 65m/min | 65m/min | 65m/min |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Maximum cutting thickness for batch processing(carbon steel) | 16mm (special circumstances20mm) | 18mm (special circumstances25mm) | 22mm (special circumstances25mm) | 35mm (special circumstances45mm) |
| Maximum cutting thickness for batch processing(Stainless steel) | 6mm (special circumstances10mm) | 8mm (special circumstances12mm) | 14mm (special circumstances20mm) | 25mm (special circumstances40mm) |
| Maximum cutting thickness for batch processing(Aluminum alloy) | 4mm (special circumstances6mm) | 4mm (special circumstances8mm) | 10mm (special circumstances16mm) | 18mm (special circumstances22mm) |
| Maximum cutting thickness for batch processing(copper) | 4mm (special circumstances6mm) | 4mm (special circumstances8mm) | 10mm (special circumstances16mm) | 18mm (special circumstances22mm) |
| Cooling method | water cooling | water cooling | water cooling | water cooling |
| power demand | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ |
| acceleration | 0.8G | 0.8G | 0.8G | 0.8G |
Our factory is established BT-Pro After plate and tube integrated machine，Whether it is plates or pipes, it can be processed in one stop，The accuracy is stable at ±0.02mm within，Smooth cut without burrs，Directly eliminating the subsequent polishing process。The equipment’s automatic exchange platform allows loading, unloading and processing to proceed simultaneously，The delivery efficiency of small batch orders is directly improved 40%，Now customers praise us for our fast delivery、Stable quality。
BT-Pro The design is so practical，round tube、square tube、Special-shaped pipes can be quickly clamped，Fastest material change and debugging 3 It can be done in minutes。Novices can work independently by following the operation manual for half a day，The equipment operates with low noise，Does not affect other workstations at all。Now it has become part of our workshop “All-rounder”，There is no need to change equipment when switching between plates and tubes，Greatly reduced our production investment。
Compared several devices，Finally chose BT-Pro，Mainly fancy its intelligent obstacle avoidance and servo drive system。The laser head can automatically avoid obstacles during cutting，Servo motor responds quickly、Accurate positioning，The cutting accuracy of complex workpieces is improved than before 15%。Moreover, the integrated plate and tube design eliminates the need to purchase plate and tube machines separately.，It can save a lot of costs in one year.，This equipment is indeed the right one to buy。
Senrytech BT
Cost-effective plate and tube integrated machine，Taking
into account both plate and pipe cutting，Provide stable and
reliable processing performance at an affordable
price，Ideal for entry-level production needs。
Senrytech BT Pro
Efficient advanced plate and tube all-in-one machine，exist
BT Upgrade based on，Added new plate exchange
platform，Significantly improve material flow
efficiency，Reduce downtime waiting time。
Senrytech BT ProMax
Industrial protective grade plate and tube integrated
machine，exist BT Pro Upgrade based on，Equipped with full
sheet metal surround design，Effective dust prevention and
noise reduction，Ensure operational safety，Create a
professional workshop image。
Senrytech BT Ultra
Fully automatic intelligent plate and tube integrated machine，exist BT ProMax Upgrade based on，Equipped with fully automatic loading and unloading system，support 24 Hourly unmanned production，Maximize release of production capacity。
