Senrytech A2 Plus

Double wheel claw
High precision clamping core

Adopts rack and pinion interconnected transmission structure，With double roller claw design，accomplish0.05mmRepeat positioning accuracy and0.05mmBounce accuracy， Equipped with an exclusive single-row dual-cylinder drive unit，Output in a compact space100kg-800kgMaximum clamping force，response time＜0.3s， Modular integrated roller set、Cylinder group and rack box，With high protection level，Suitable for high dust cutting conditions，Improved maintenance cycle 30%；

Proportional valve
Precise pressure control core

Equipped with high-precision pressure sensor and digital display module，support 0.001MPa Resolution real-time feedback，The output pressure can be 0.005~0.9MPa Continuous stepless adjustment within the range； Driven by high-speed response solenoid valve，response time＜100ms，Cooperate PID closed loop control，Pressure control accuracy can reach ±0.5%； integrated IP65 Grade dustproof and waterproof structure，Adapt to high vibration、High dust industrial environment，Also has overvoltage、Overcurrent protection function；

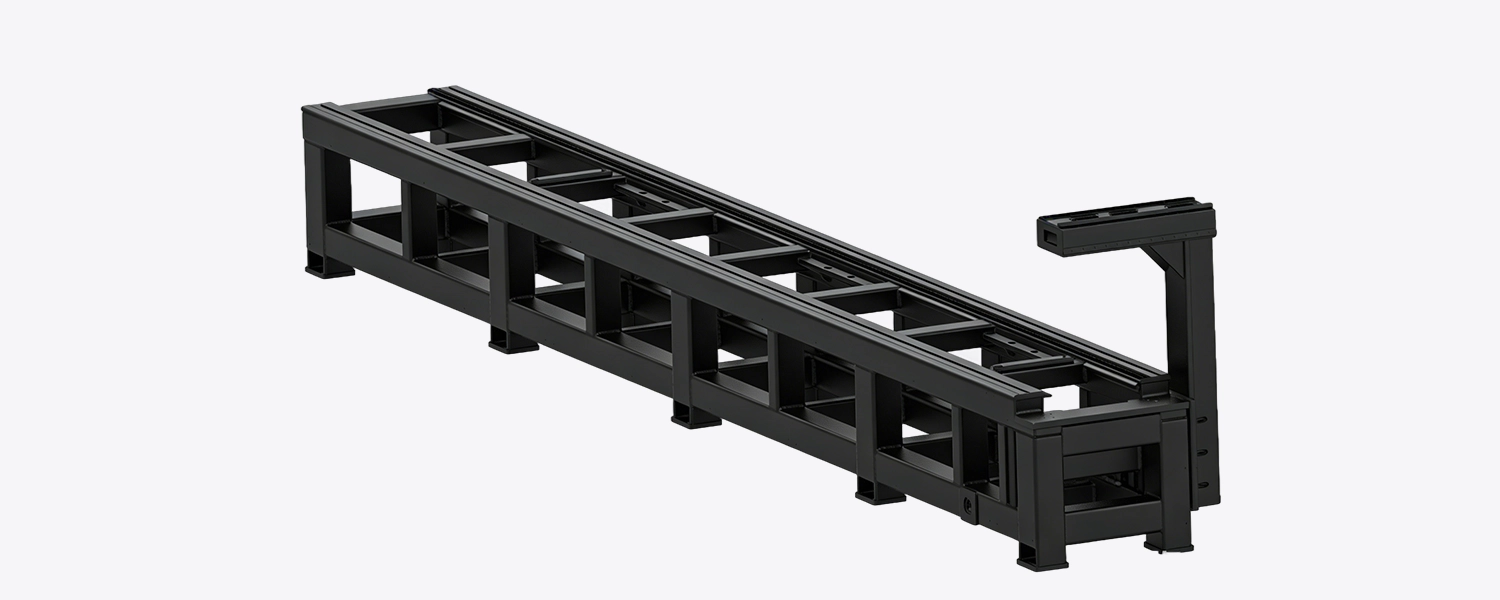

Formal design
Stable load-bearing, Precise cutting

Adopt formal structure design，Equipped with high rigidity lathe bed and adaptive clamping mechanism，Strong load-bearing capacity，Excellent clamping stability； Can adapt to pipe processing needs of different pipe diameters，Effectively avoid deflection and vibration during cutting，Make sure the cutting section is smooth、Controllable precision， Suitable for large batches、Highly consistent pipe cutting production scenarios。

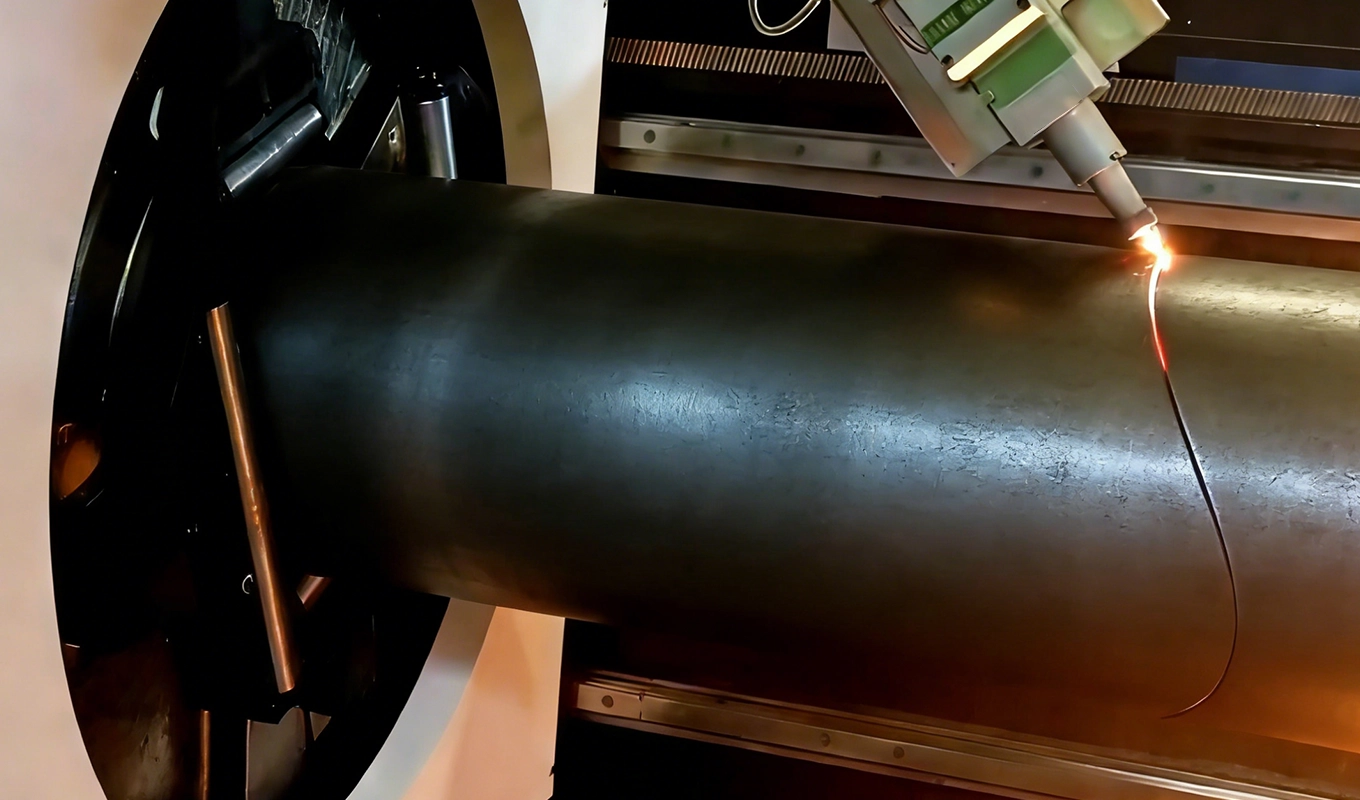

Laser bevel cutting（Optional）
One-time molding，Worry-free weld bead

Using non-contact laser processing technology，Equipped with high rigidity machine bed and adaptive clamping mechanism， Precise and controllable bevel angle，Smooth cross section without burrs，Effectively avoid thermal deformation and secondary grinding of traditional processing。 Suitable for large pipe diameters、Batch bevel processing requirements for thick-walled pipes，Provide a uniform groove surface for the welding process，Significantly improve weld strength and production efficiency。

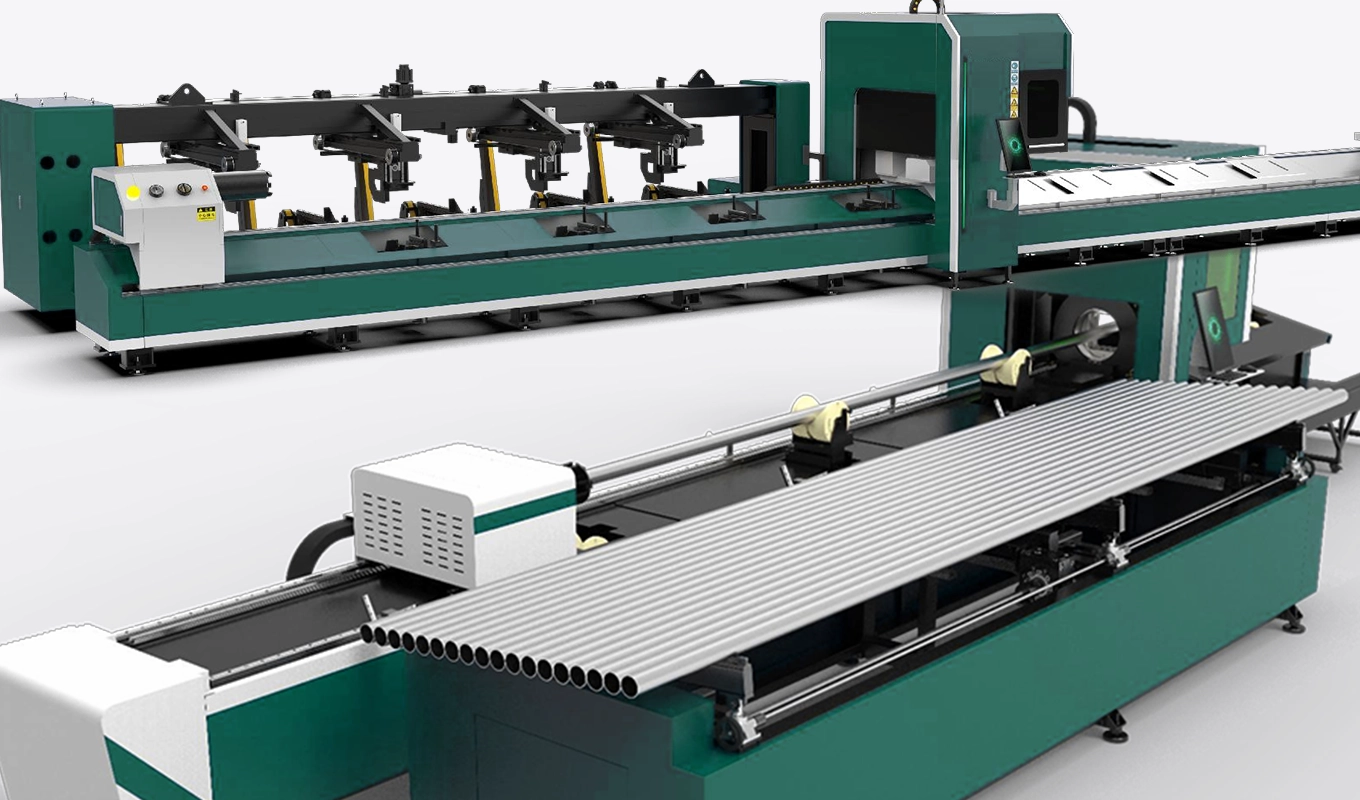

Fully automatic / Semi-automatic loading（Optional）
One-click loading，Efficient and worry-free

Adopt intelligent feeding and precise positioning technology，Equipped with flexible support and adaptive clamping mechanism， Feeding speed and spacing are accurately controllable，Effectively avoid manual loading errors and safety risks。 Adapt to different pipe diameters、Length of pipe batch loading requirements，Provide a stable and continuous supply of raw materials for the cutting process，Significantly improve production efficiency and equipment utilization。

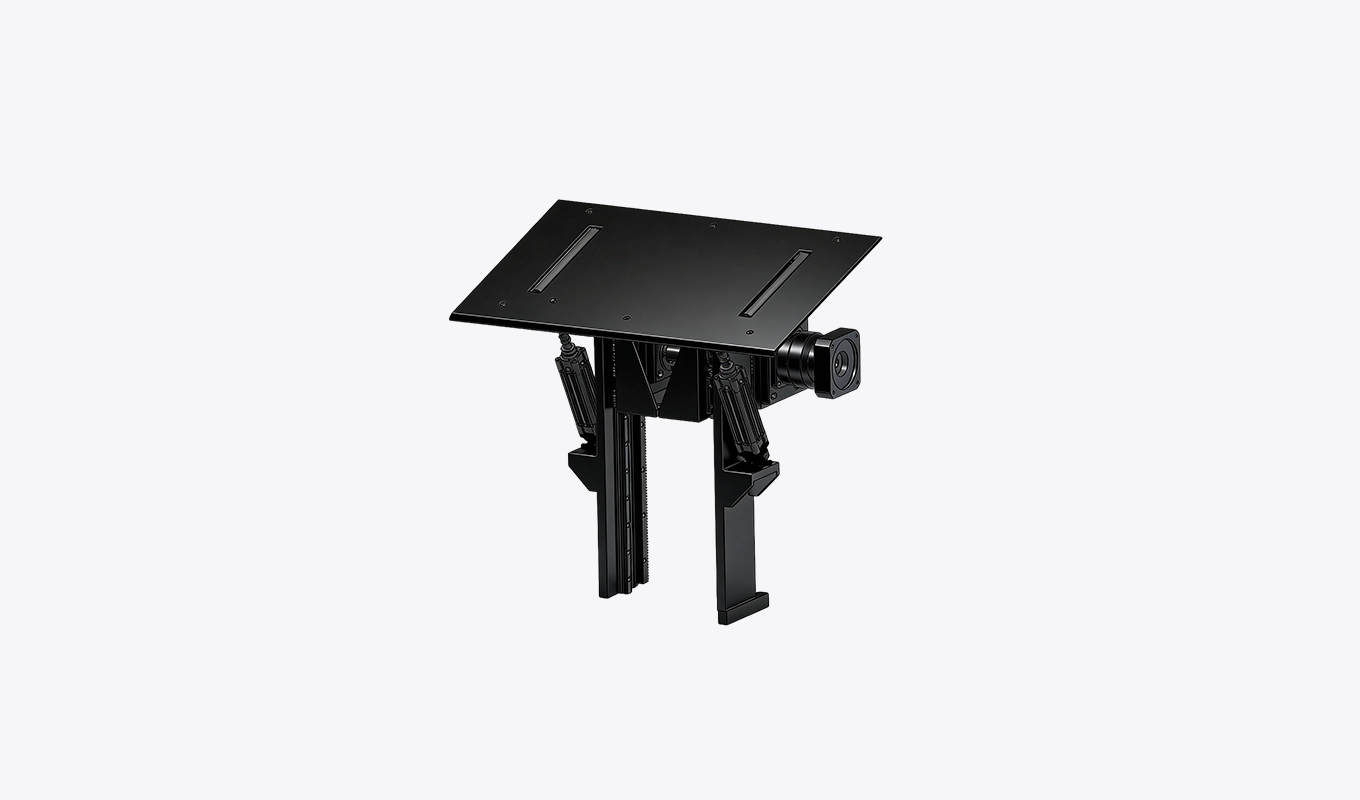

Unloading follow-up support（Standard configuration）
Follow up in real time，Safe and worry-free

Adopt adaptive follow-up support technology，Equipped with high stability lifting structure，Support height matches pipe cutting dynamics in real time，Effectively prevent long pipes from sagging and shaking。 Suitable for large pipe diameters、Continuous cutting requirements for long pipes，Provide a stable pipe support surface for the cutting process，Significantly improve cutting accuracy and material utilization。
