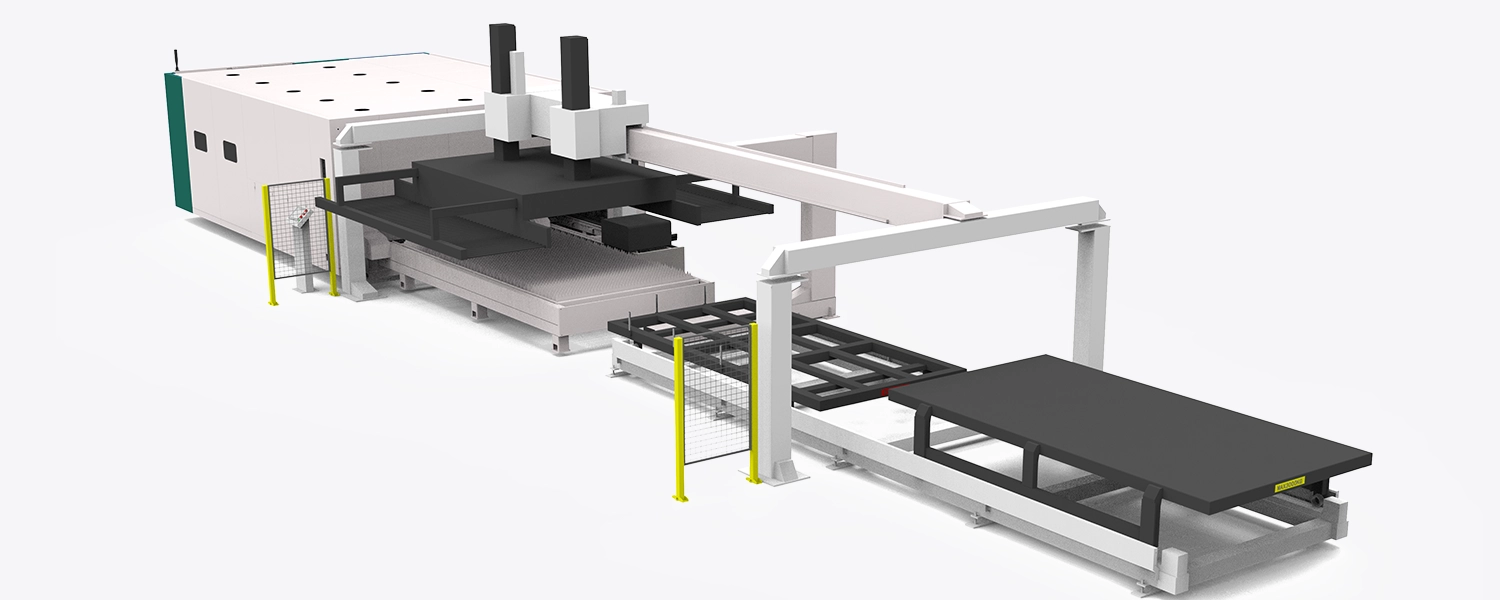

unattended，Automatic loading and unloading
Automatic loading and unloading system
Adopt intelligent gantry grabbing structure，Cooperate with precise positioning sensing design，Achievable ±0.1mm Plate positioning accuracy within，Provide efficient loading and unloading flow standards for plate and tube integrated machines。
Insensitive perforation，Efficient cutting
Non-sensory perforation technology and intelligent focus system，Significantly shortens piercing time，Built-in crash protection and temperature monitoring，Ensure long-term stable operation，Significantly improve processing efficiency。
Servo drive，Precise and powerful
Adopt high-power servo drive system，With high torque、Low heat generation characteristics，Can realize high-speed start and stop and precise positioning，It can still maintain smooth movement in complex cutting scenes.，Effectively improve cutting accuracy and speed，Reduce equipment operating noise and wear at the same time，Extend service life。

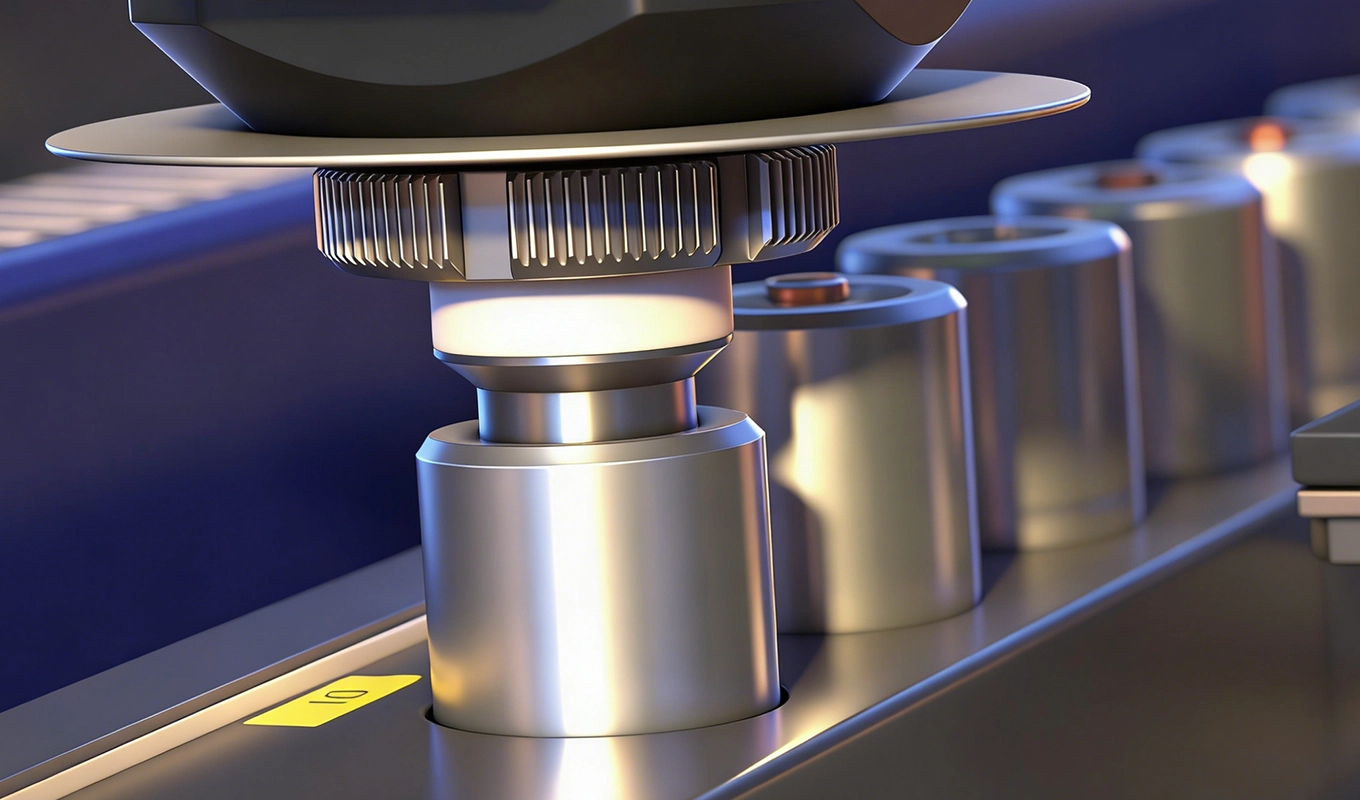

Smart head change
Precisely adapted cutting core
Adopts quick-release nozzle locking structure，Designed with automatic positioning pins，Achievable 3 Complete nozzle replacement within seconds，Provide an efficient process switching benchmark for multi-material cutting。 Equipped with high-precision servo positioning unit，output ±0.02mm Repeat positioning accuracy，Compatible with different apertures、Material cutting nozzle，Able to maintain stable output without deviation during continuous production。 Modular integrated automatic cleaning and anti-collision protection，Suitable for high dust cutting conditions，Improved maintenance cycle 40%， And the automatic head-changing layout releases more space for manual intervention.，Adapt to multi-variety and small batch production scenarios。

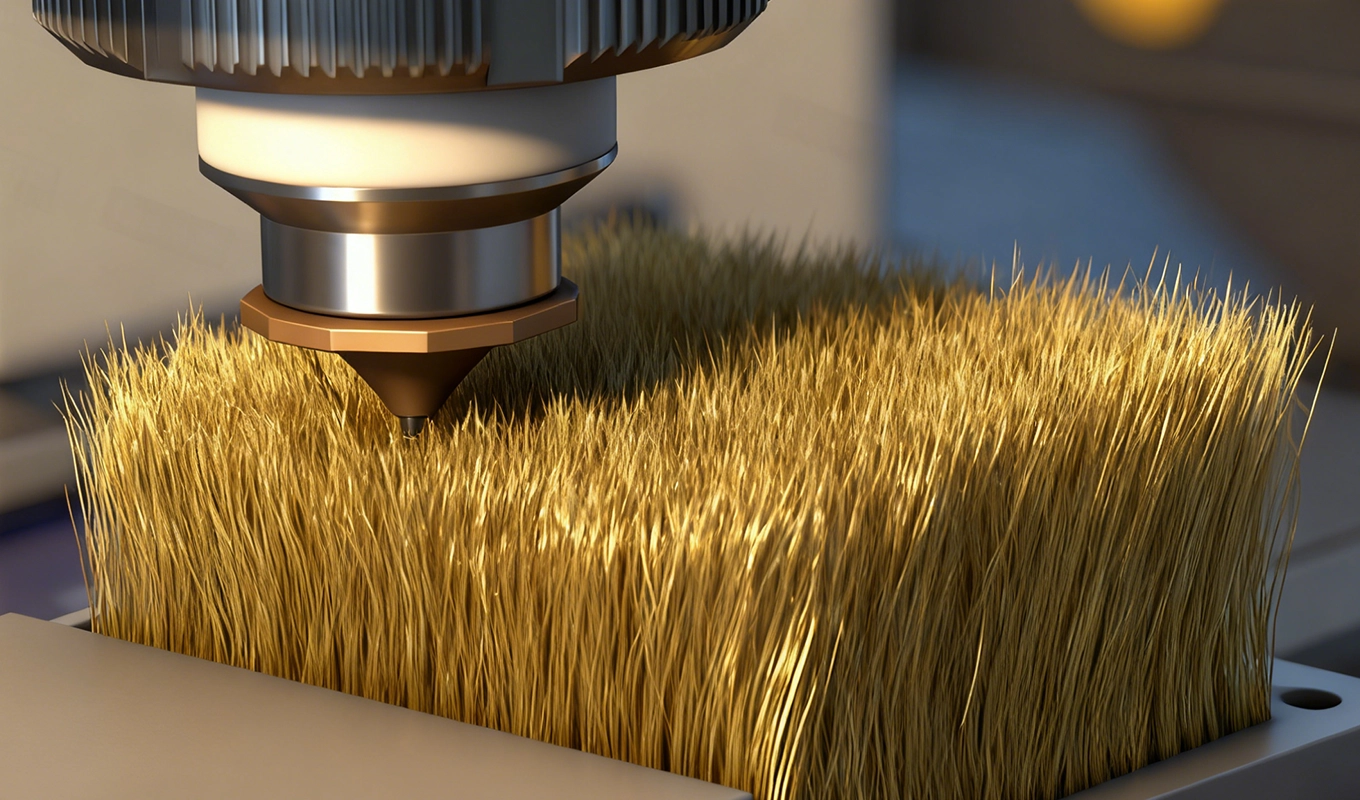

Automatic self-cleaning
Long-lasting clean cutting guarantee
Adopt follow-up brush cleaning structure，Designed with synchronous movement of laser head，Continuous cleaning of slag during cutting can be achieved，Provides a stable clean benchmark for high-precision cutting。 Equipped with highly wear-resistant nylon brush unit，Output efficient scraping force，Compatible with slag adhesion under different working conditions，It can maintain an unobstructed and stable light path during continuous cutting.。

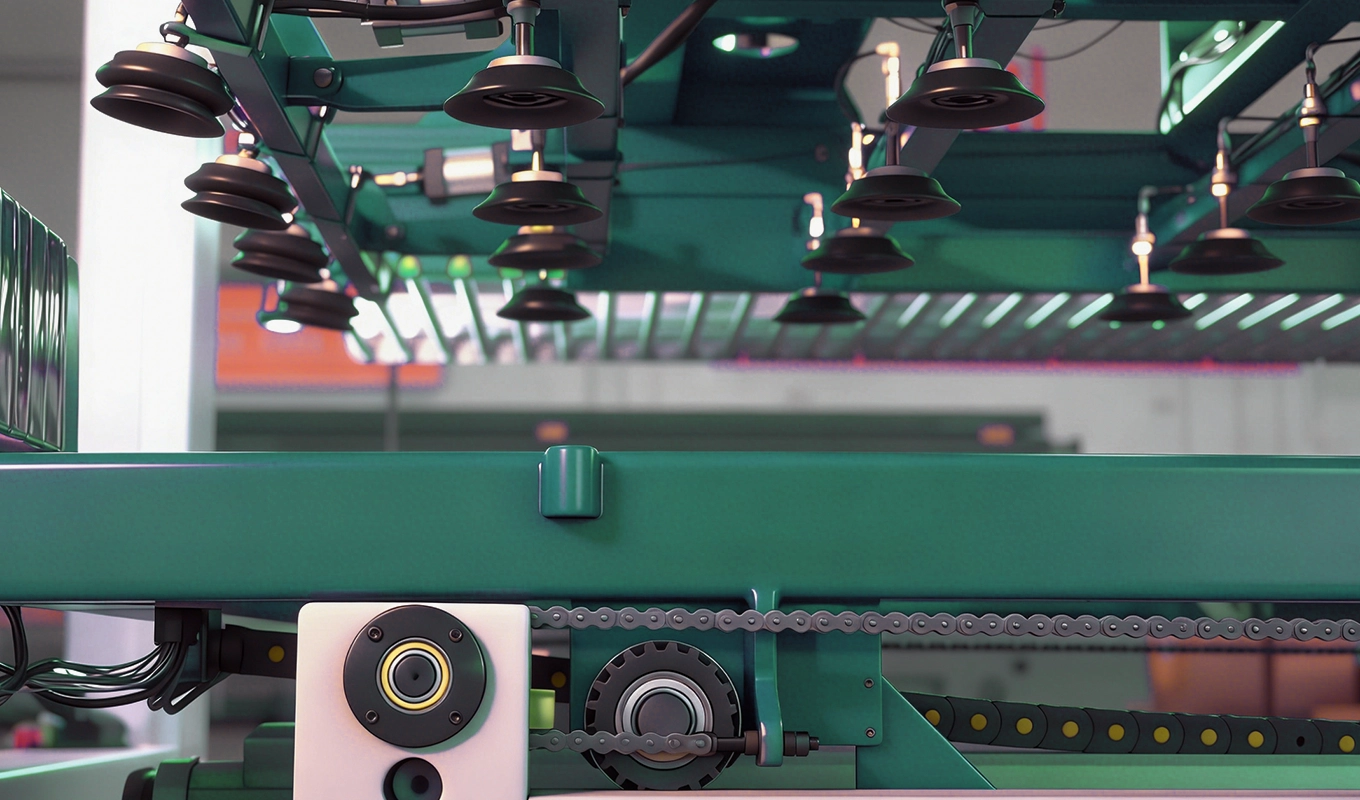

Vacuum suction cup array
Plate gripper with precise
adsorption
Adopt multiple sets of independent vacuum suction cup structure，Cooperate with zoned pressure control design，Able to achieve dead-angle adsorption of plates of different sizes，Provide a stable grasping benchmark for automatic loading and unloading。 Equipped with high-flow vacuum generating unit，output 0.8-0.95MPa adsorption pressure，Compatible with different thicknesses、material plate，Stable gripping without slipping even during high-speed transportation。 Use anti-collision cushioning rubber pad，Adapt to high-load production conditions，Effectively reduce the risk of plate collisions，And the partitioned voltage control layout releases more space for adaptation.，Suitable for automatic loading and unloading of multiple specifications of plates。
Put an end to false propaganda
| model | BT20 Ultra | BT30 Ultra | BT60 Ultra | BT120 Ultra |
|---|---|---|---|---|
| Laser power | 2000W | 3000W | 6000W | 12000W |
| Work surface size |
1500x3000mm 1500x6000mm 2000x4000mm 2000x6000mm 2500x6000mm |
1500x3000mm 1500x6000mm 2000x4000mm 2000x6000mm 2500x6000mm |
2000x6000mm 2500x6000mm |
2000x6000mm 2500x6000mm |
| diameter（roundφ/square□） | φ/□ 20-240mm | φ/□ 20-240mm | φ/□ 20-240mm | φ/□ 20-240mm |
| tail length（roundφ/square□） | 150mm | 150mm | 150mm | 150mm |
| Maximum cutting speed | 65m/min | 65m/min | 65m/min | 65m/min |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Maximum cutting thickness for batch processing(carbon steel) | 16mm (special circumstances20mm) | 18mm (special circumstances25mm) | 22mm (special circumstances25mm) | 35mm (special circumstances45mm) |
| Maximum cutting thickness for batch processing(Stainless steel) | 6mm (special circumstances10mm) | 8mm (special circumstances12mm) | 14mm (special circumstances20mm) | 25mm (special circumstances40mm) |
| Maximum cutting thickness for batch processing(Aluminum alloy) | 4mm (special circumstances6mm) | 4mm (special circumstances8mm) | 10mm (special circumstances16mm) | 18mm (special circumstances22mm) |
| Maximum cutting thickness for batch processing(copper) | 4mm (special circumstances6mm) | 4mm (special circumstances8mm) | 10mm (special circumstances16mm) | 18mm (special circumstances22mm) |
| Cooling method | water cooling | water cooling | water cooling | water cooling |
| power demand | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ |
| acceleration | 0.8G | 0.8G | 0.8G | 0.8G |
Used Senrytech C4 Ultra Four-card side-mounted laser pipe cutting machine，The accuracy of our processing of stainless steel pipes is stable at ±0.03mm within，The incision is smooth and burr-free，The previously necessary manual polishing process is eliminated.。The four-card side-mounted design makes long tube clamping more stable.，Delivery speed for small batch custom orders has increased 40%，Customer satisfaction is significantly higher。
Senrytech C4 Ultra Four-card side-mounted model adapts to round tube、square tube、Special-shaped pipes and other specifications，Fastest material change and debugging 5 It can be completed in minutes。The four-card side-mounted structure makes clamping more convenient，Novices in our workshop can learn independently by following the operation manual in just one day.，When the equipment is running, the noise is only 65 About decibels，It will not interfere with the normal production of surrounding workstations at all.。
from our workshop Senrytech C4 Ultra The four-card side-mounted payment has been running stably for half a year.，The energy consumption of fiber cutting is lower than that of previous equipment 30%，Calculated, you can save nearly every month 1500 Yuan electricity bill。The four-card side-mounted design makes long tube processing more stable，For small and medium-sized processing plants like ours，It's very cost-effective，Stable and cost-effective。
Senrytech BT
Cost-effective plate and tube integrated machine，Taking
into account both plate and pipe cutting，Provide stable and
reliable processing performance at an affordable
price，Ideal for entry-level production needs。
Senrytech BT Pro
Efficient advanced plate and tube all-in-one machine，exist
BT Upgrade based on，Added new plate exchange
platform，Significantly improve material flow
efficiency，Reduce downtime waiting time。
Senrytech BT ProMax
Industrial protective grade plate and tube integrated
machine，exist BT Pro Upgrade based on，Equipped with full
sheet metal surround design，Effective dust prevention and
noise reduction，Ensure operational safety，Create a
professional workshop image。
Senrytech BT Ultra
Fully automatic intelligent plate and tube integrated machine，exist BT ProMax Upgrade based on，Equipped with fully automatic loading and unloading system，support 24 Hourly unmanned production，Maximize release of production capacity。
