Compact and efficient cutting flagship model

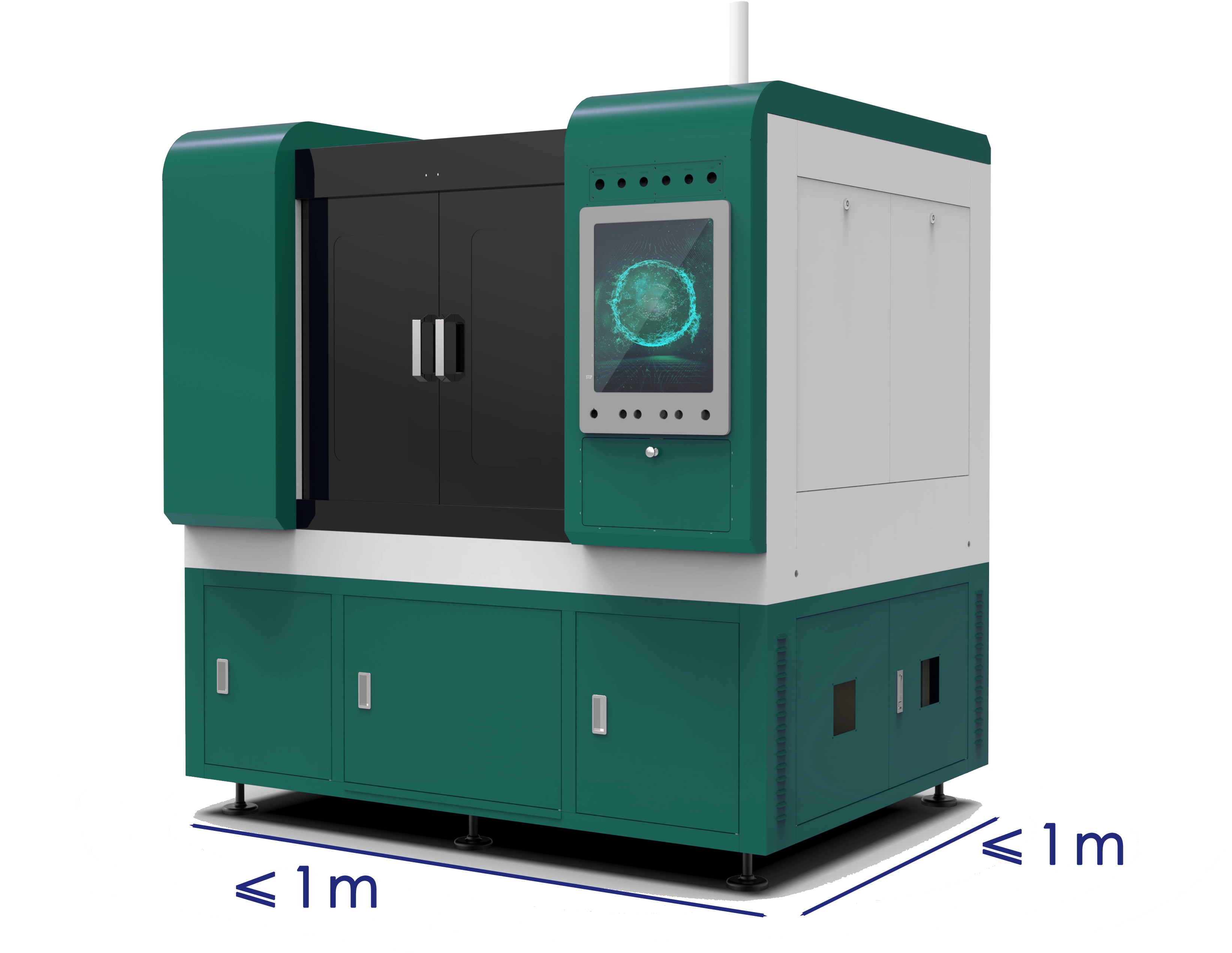

Compact body
Equipment size adapts to various site layouts，Small space can also accommodate professional cutting equipment。
.webp)

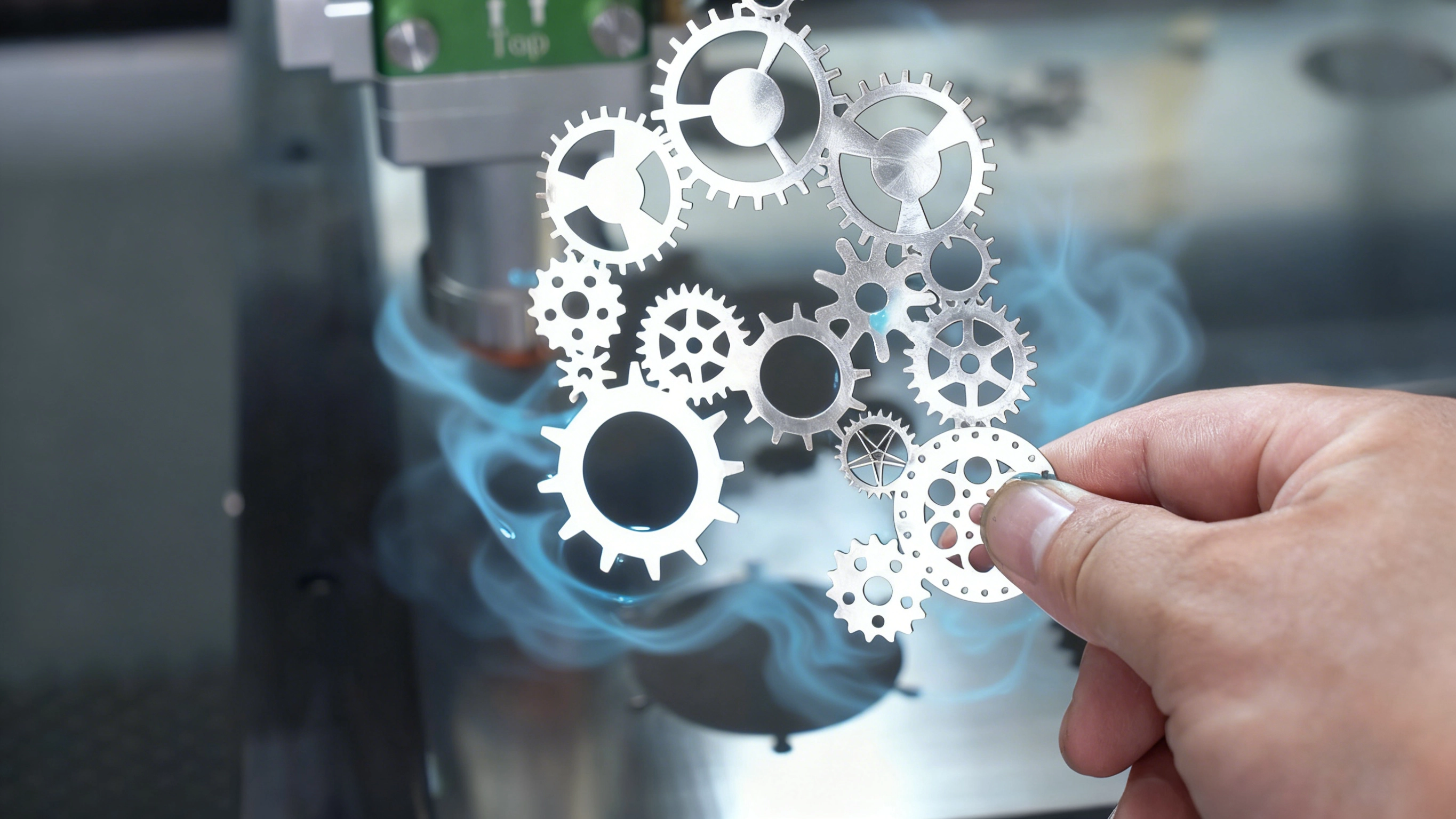

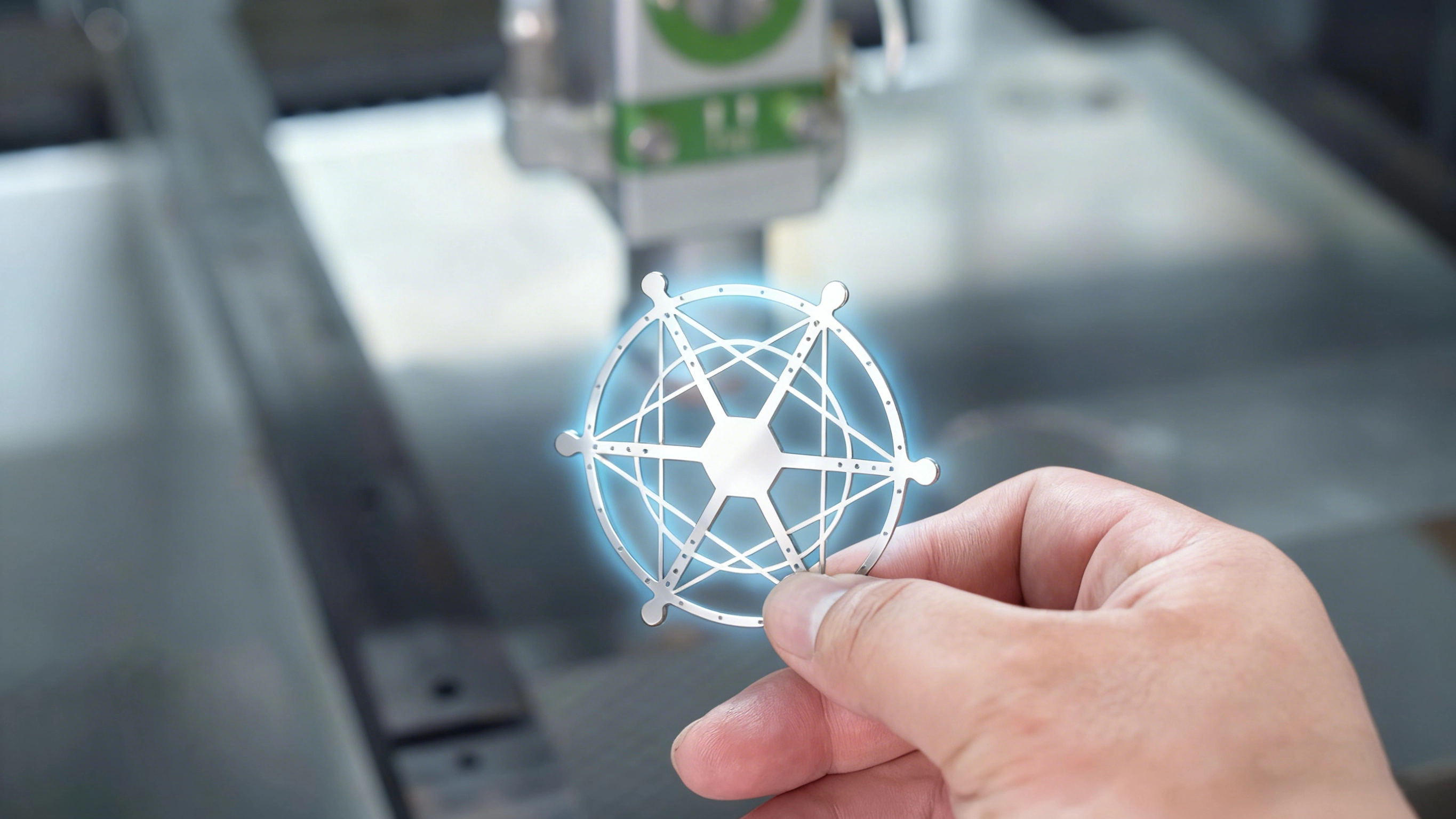

Cutting accuracy 8 Micron
Positioning accuracy≤0.008mm（8 Micron），Processing level comparable to precision instruments，Even complex workpieces can be cut accurately and accurately.。

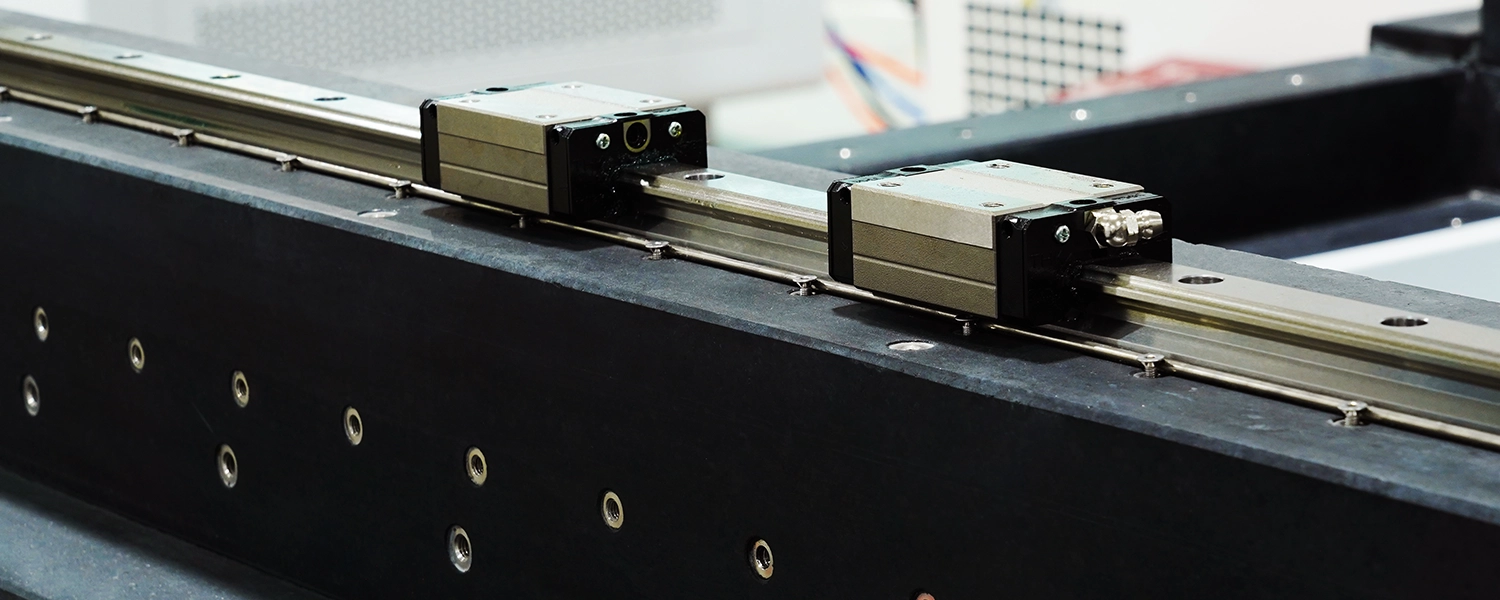

acceleration 1.5G
Ultra-fast dynamic response，The processing rhythm is greatly accelerated，It takes less time at the same production capacity，Production efficiency jumps directly。

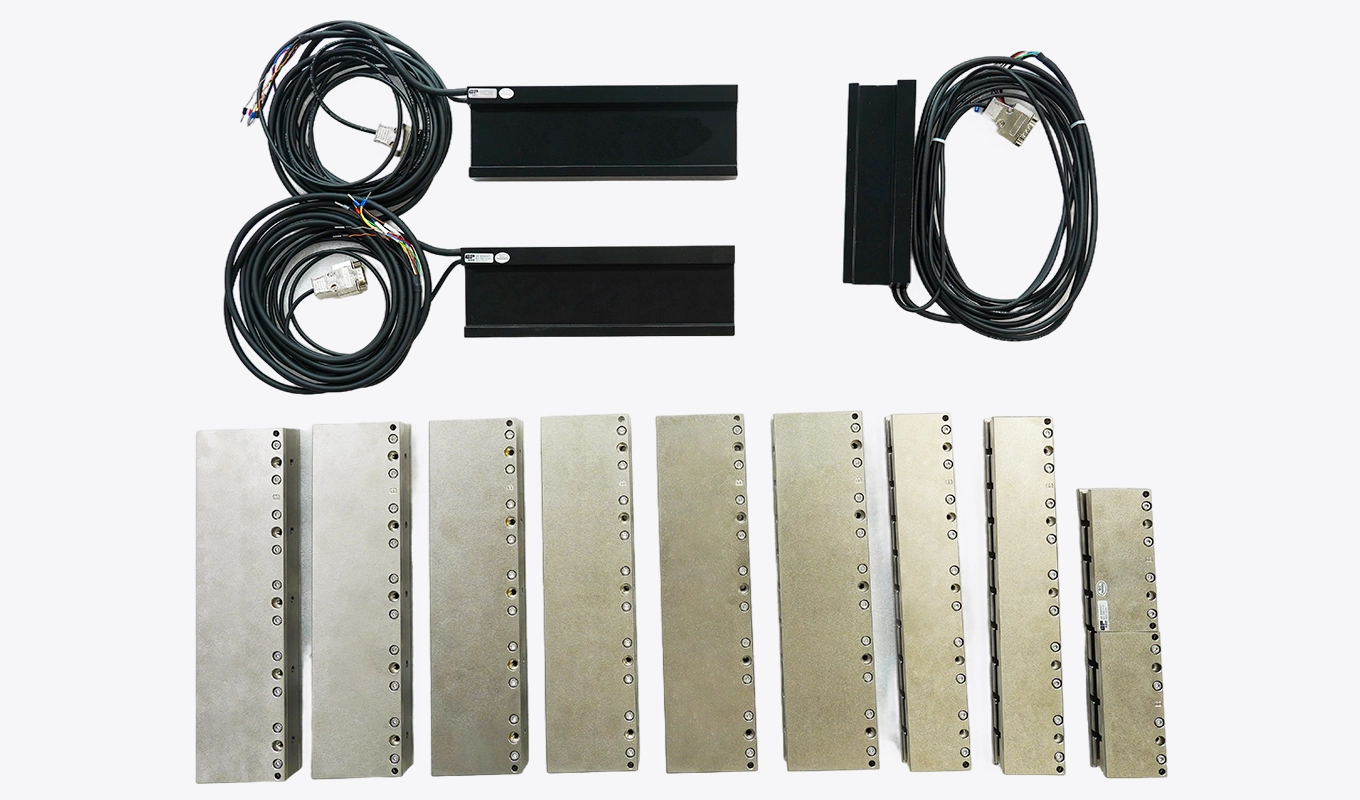

U type linear motor
Super stable drive core
carry U magnetic levitation linear motor，use U Type magnetic circuit structure design，Thrust output is uniform and stable， Operating noise is significantly lower than traditional motors，Fast dynamic response；Contactless transmission structure reduces mechanical wear， Can adapt to high speed、High-precision cutting motion scenes，Greatly improve the long-term operation stability of the equipment。

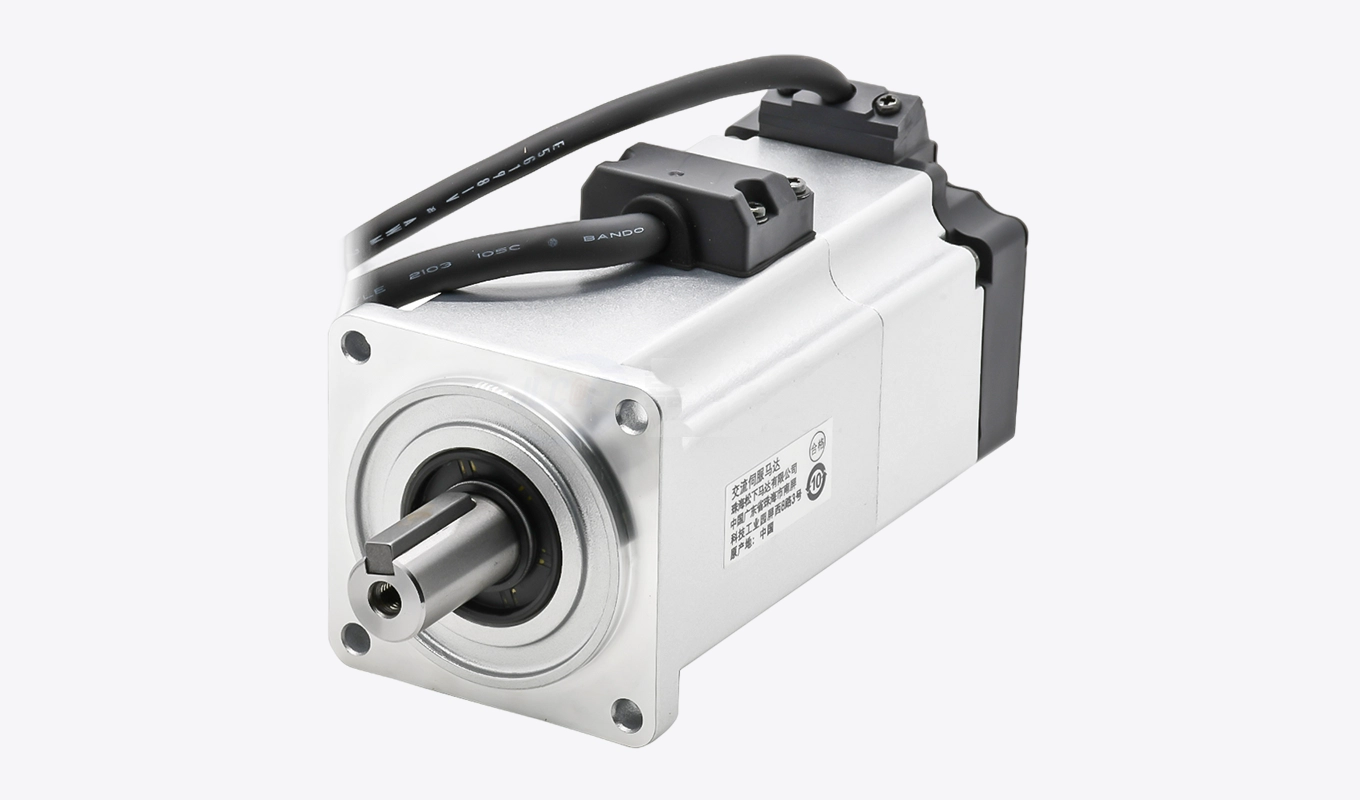

Panasonic motor module
Precision power guarantee
Configure Panasonic motor module，Relying on the brand’s mature precision transmission technology，Transmission accuracy error can be controlled within a very small range， Strong load adaptability，Can stably match the high frequency start and stop of equipment、Speed regulation requirements；Low failure rate in long-term operation， Provide continuous、Reliable output support。

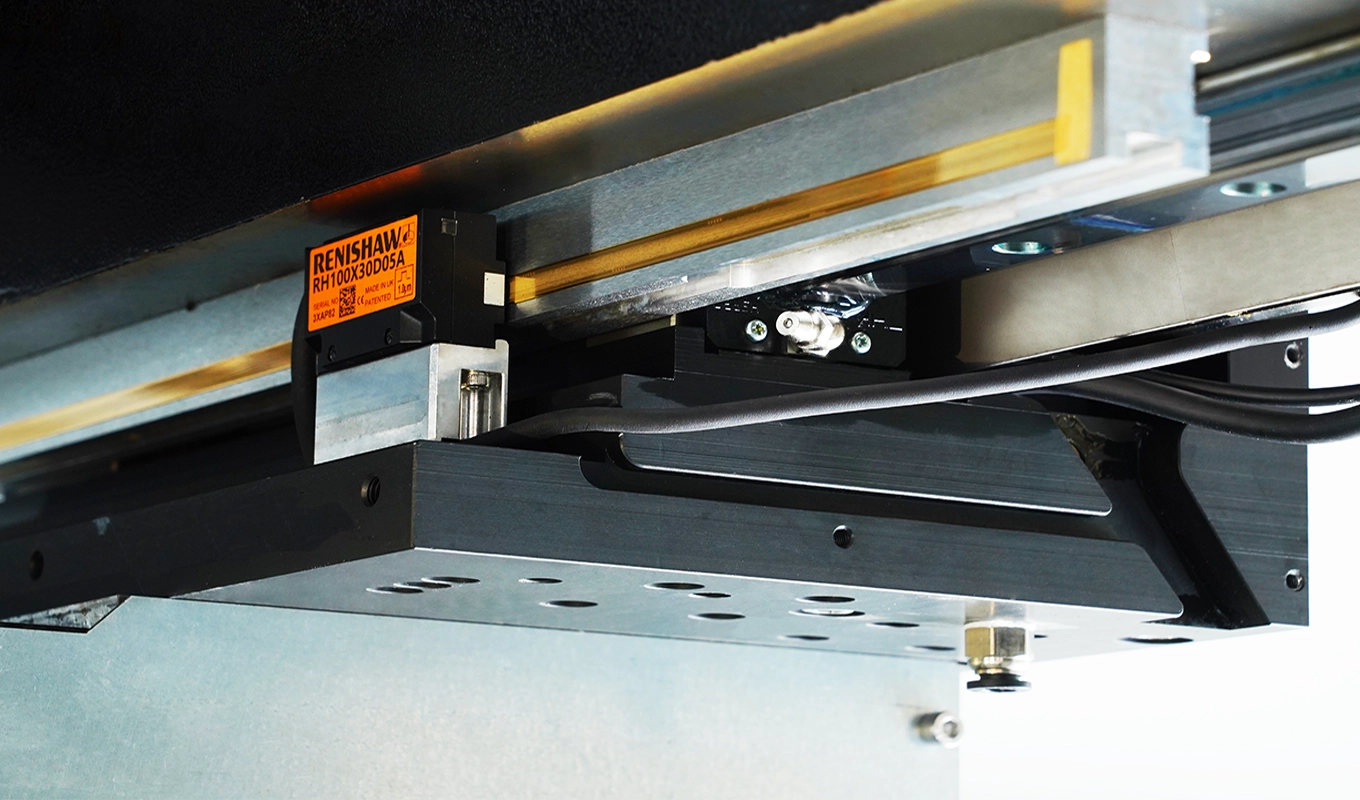

importFAGORRaster read head
Micron level precision scale
Using imported grating reading head，Resolution up to 0.5μm， High positioning accuracy，Minimal repeat positioning error；It can provide precise position feedback for equipment processing movements.， Make sure to cut、Millimeter-level precision control of transmission movements，Suitable for precision processing scenarios such as high-precision laser cutting。
Put an end to false propaganda
| model | M10 | M15 | M20 | M30 | M60 |
|---|---|---|---|---|---|
| Laser power | 1000W | 1500W | 2000W | 3000W | 6000W |
| Work surface size |
600x600mm 800x800mm 1000x1000mm |
600x600mm 800x800mm 1000x1000mm |
600x600mm 800x800mm 1000x1000mm |
600x600mm 800x800mm 1000x1000mm |
600x600mm 800x800mm 1000x1000mm |
| Maximum cutting speed | 45m/min | 45m/min | 45m/min | 45m/min | 45m/min |
| Positioning accuracy | ±8μm | ±8μm | ±8μm | ±8μm | ±8μm |
| Repeat positioning accuracy | ±8μm | ±8μm | ±8μm | ±8μm | ±8μm |

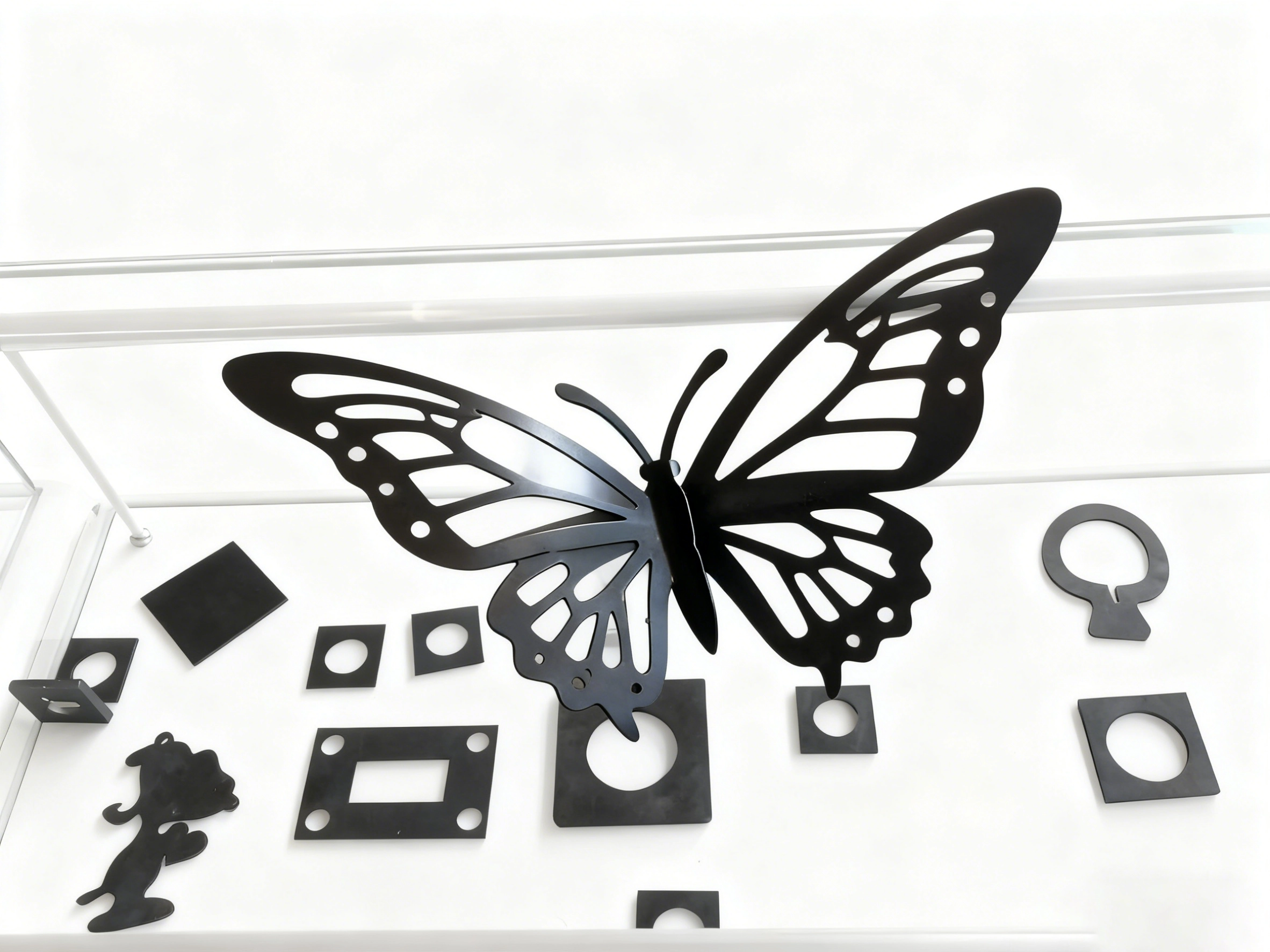

| Maximum cutting thickness for batch processing(carbon steel) | 8mm (special circumstances20mm) | 12mm (special circumstances25mm) | 16mm (special circumstances20mm) | 18mm (special circumstances25mm) | 22mm (special circumstances25mm) |

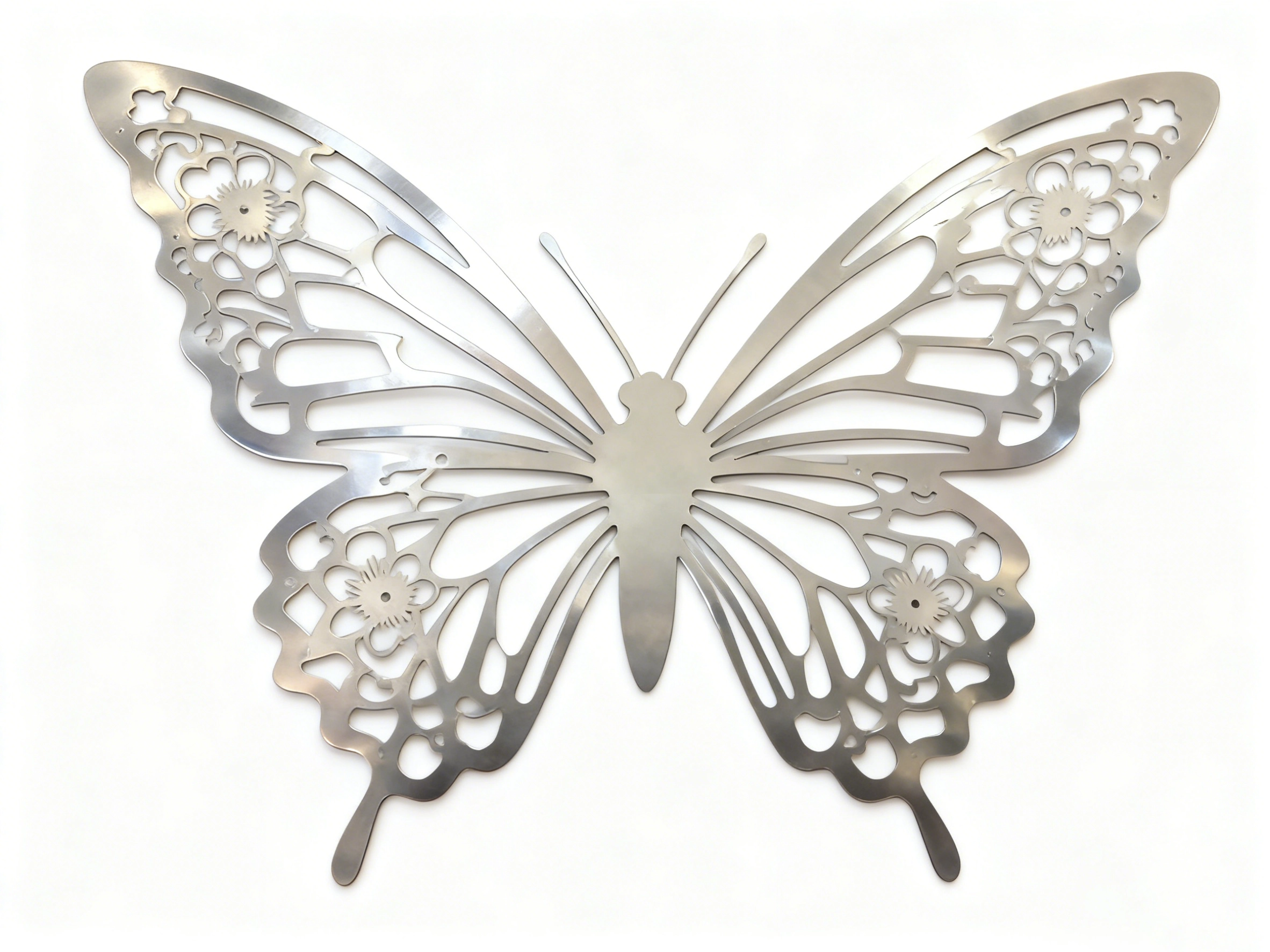

| Maximum cutting thickness for batch processing(Stainless steel) | 4mm (special circumstances10mm) | 5mm (special circumstances12mm) | 6mm (special circumstances10mm) | 8mm (special circumstances12mm) | 14mm (special circumstances20mm) |
| Maximum cutting thickness for batch processing(Aluminum alloy) | 1mm (special circumstances6mm) | 3mm (special circumstances8mm) | 4mm (special circumstances6mm) | 4mm (special circumstances8mm) | 10mm (special circumstances16mm) |

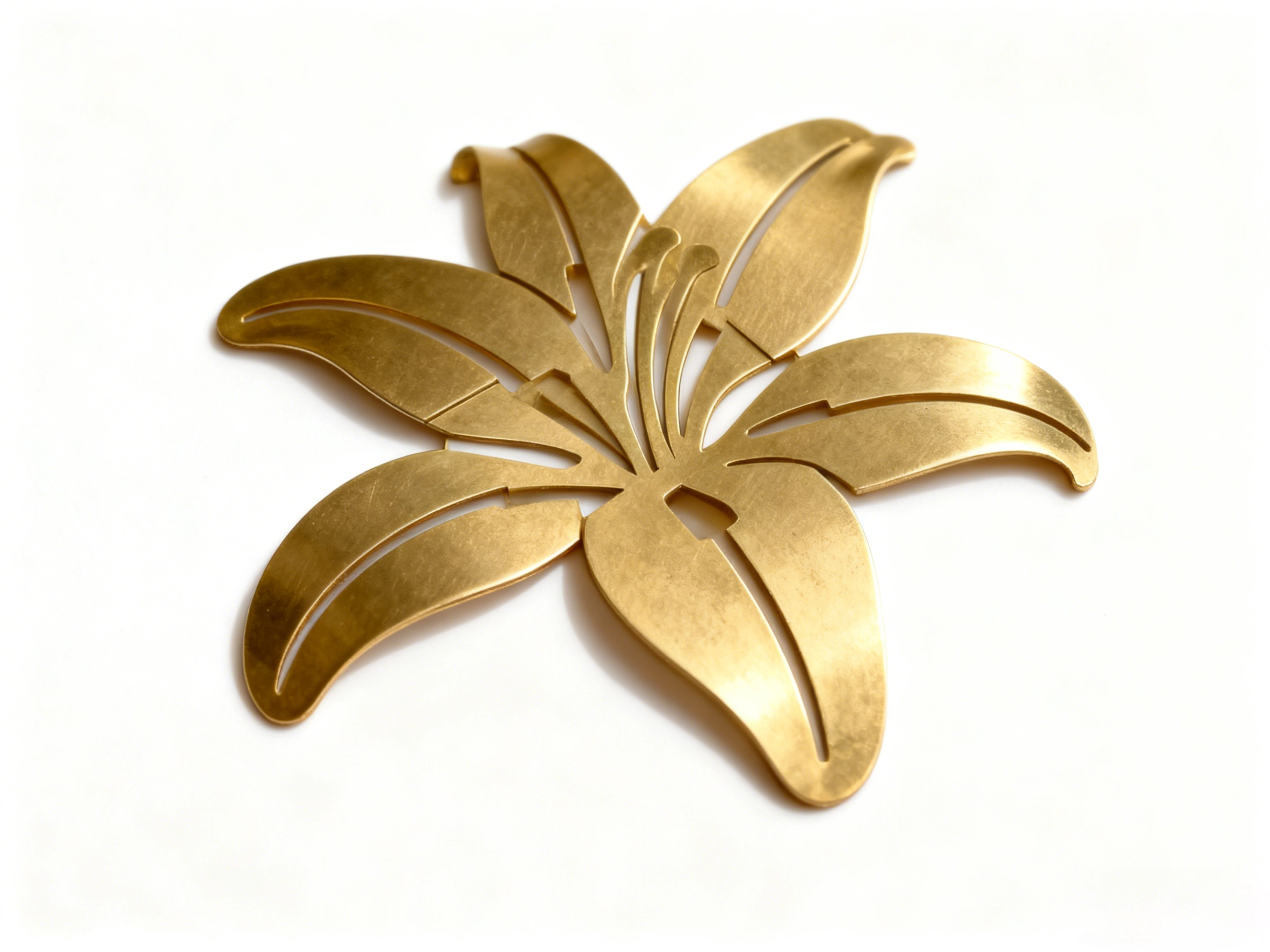

| Maximum cutting thickness for batch processing(copper) | 1mm (special circumstances6mm) | 3mm (special circumstances8mm) | 4mm (special circumstances6mm) | 4mm (special circumstances8mm) | 10mm (special circumstances16mm) |
| Cooling method | water cooling | water cooling | water cooling | water cooling | water cooling |
| power demand | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ |
| acceleration | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G |
We make precision instrument accessories，Senrytech M series ±8 Micron precision is amazing！Zero error in cutting ultra-thin alloy materials，Complex aperture molding in one go，No need for secondary calibration，The product qualification rate is directly reached 99.9%，Customers who inspected the factory praised the professionalism of the equipment！
As an electronic component manufacturer，Demanding precision down to the micron level，M The series fully meets the standards！±8 Micron cutting accuracy and stable output，Mass production of small-sized parts with excellent consistency，Equipped with intelligent positioning system，Save half the time for material change and debugging，Capacity improvement 25%！
Processing of medical precision parts，M Series’ accuracy exceeds expectations！±8 Micron error control，Get the perfect fit for your implantable accessories，A variety of biocompatible materials can be cut accurately，No burrs、No deformation，Compliance and stability both online，Choose the right equipment and worry less！
Senrytech A
3000W The following are preferred，Original core parts will
not shrink！Tailored for start-ups，0.8G Stable acceleration
±0.05mm Accuracy，Lower the threshold for professional
cutting。
Senrytech B
12000Wpower ceiling！Lathe bed reinforced to resist
deformation，electricity Machine reducer power
doubled，1.5Gacceleration，Put medium thickness Board
cutting efficiency reaches new heights。
Senrytech B Plus
Side opening surround saves space！The loading table can be
pulled out manually，Suitable for small workshops，Double
optimization of safety and space utilization，Don't be
showy。
Senrytech B Pro
10 Extremely fast exchange and loading in seconds，Automatic and seamless connection between two stations，2.0G High acceleration realization equipment‘No downtime’Production，Directly double production capacity，Accurately solve the standby pain points of factory batch processing.
Senrytech B ProMax
Fully surrounded by sheet metal + International safety certification，Specifically customized for export companies！inherit B Pro 10 Loading in seconds + 2.0G Acceleration core advantages，Safety protection and production efficiency double standard，European market compliance is smooth，No additional premium。
Senrytech B Ultra
True fully automatic loading and unloading closed loop！Feeding、cutting、Fully independent cutting，Overlay full surround + High power，Taking laser-cut smart ceilings to new heights，The black light factory was launched directly。
Senrytech C
15 Ton load limit + Automatic material transfer system，0.5-2mm Aluminum coils are cut directly into sheets，1.0G Accelerate continuous production，Completely say goodbye to the cumbersome manual feeding，Provide efficient closed-loop solutions for aluminum products companies。
Senrytech G
12-14 meters long ground rail，12000-60000W Ultra high
power，Designed for large components、Heavy duty plate
cutting design，±0.05mm Precision ensures long-piece
processing quality。
Senrytech S
Specialized C/H Section steel、Channel steel！14 Meters long
travel，Customized cutting paths，No fuss、No rework，Create
efficient special solutions for the steel structure
industry。
