Laser sheet cutting machineBseries

Brush up on the key points first

Thick Sheet cutting strength

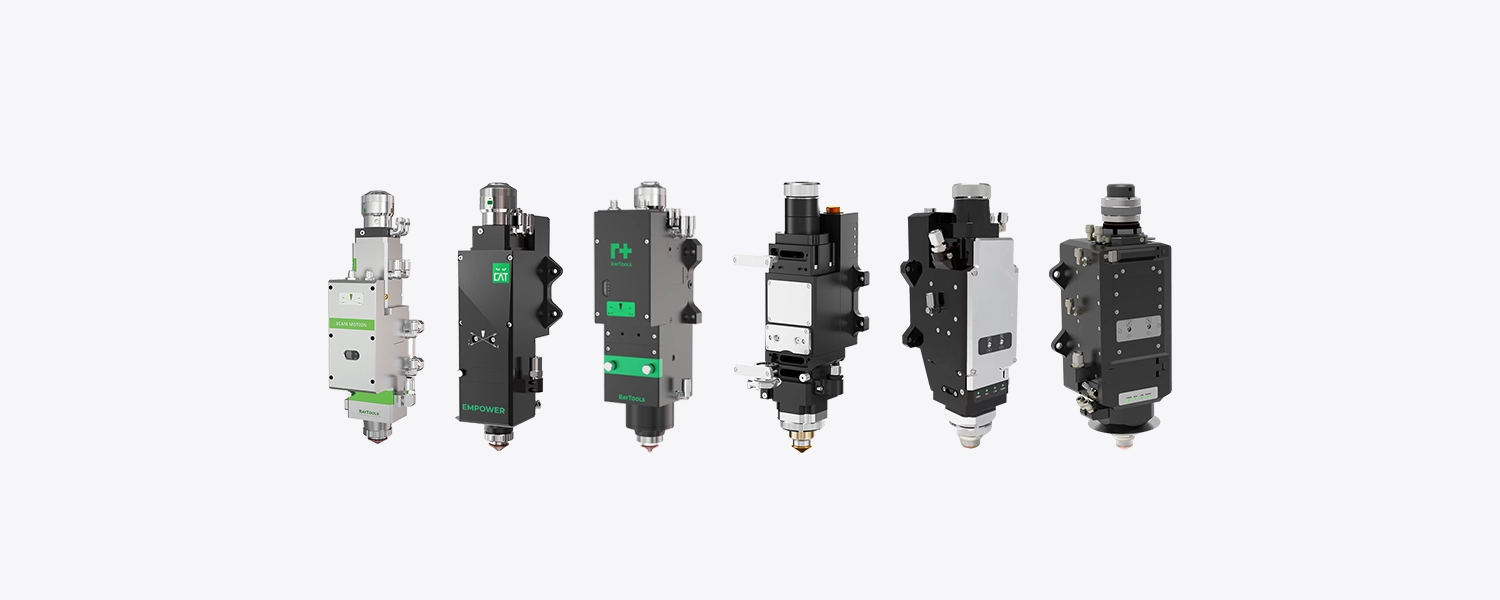

Intelligent laser cutting head

Double optical protection for greater durability

Multiple sets of protective lenses+Back panel anti-collision+Newly upgraded mechanical design。

Senrytech ±0.05 Millimeter precision fiber laser cutting machine

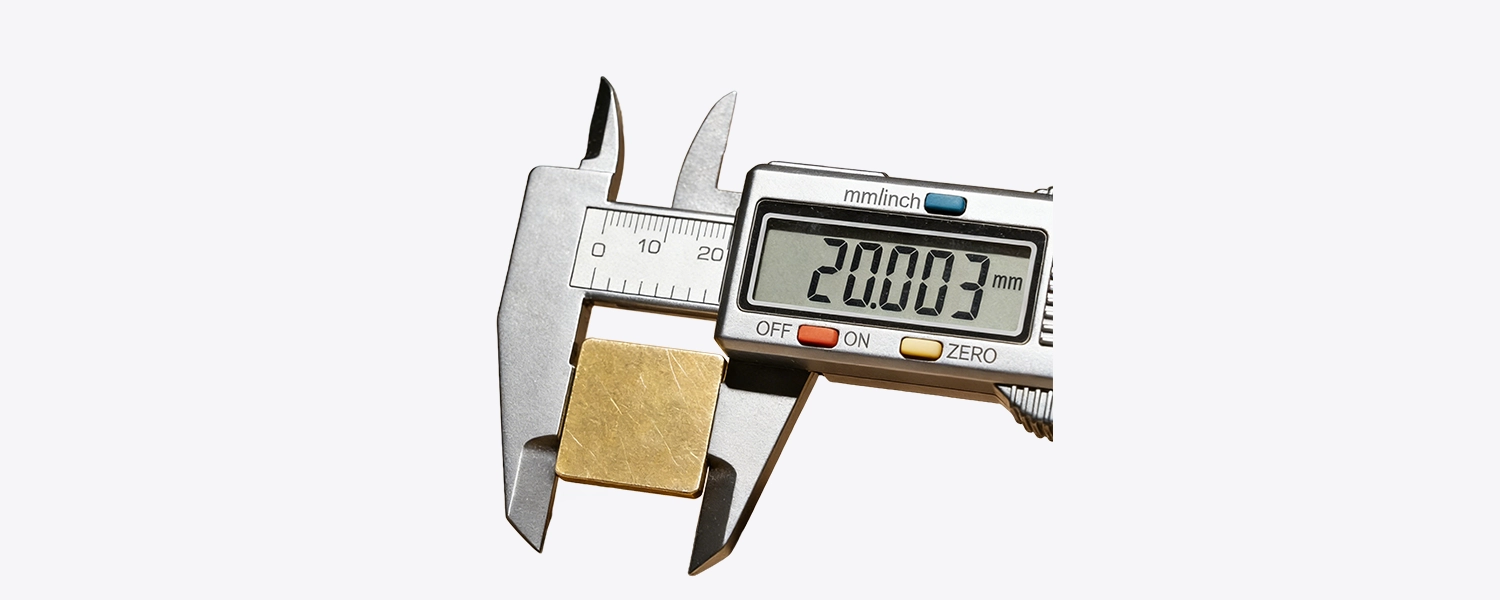

Accuracy Highlights

±0.05mm Cutting accuracy

cutting “Exactly” hard power。

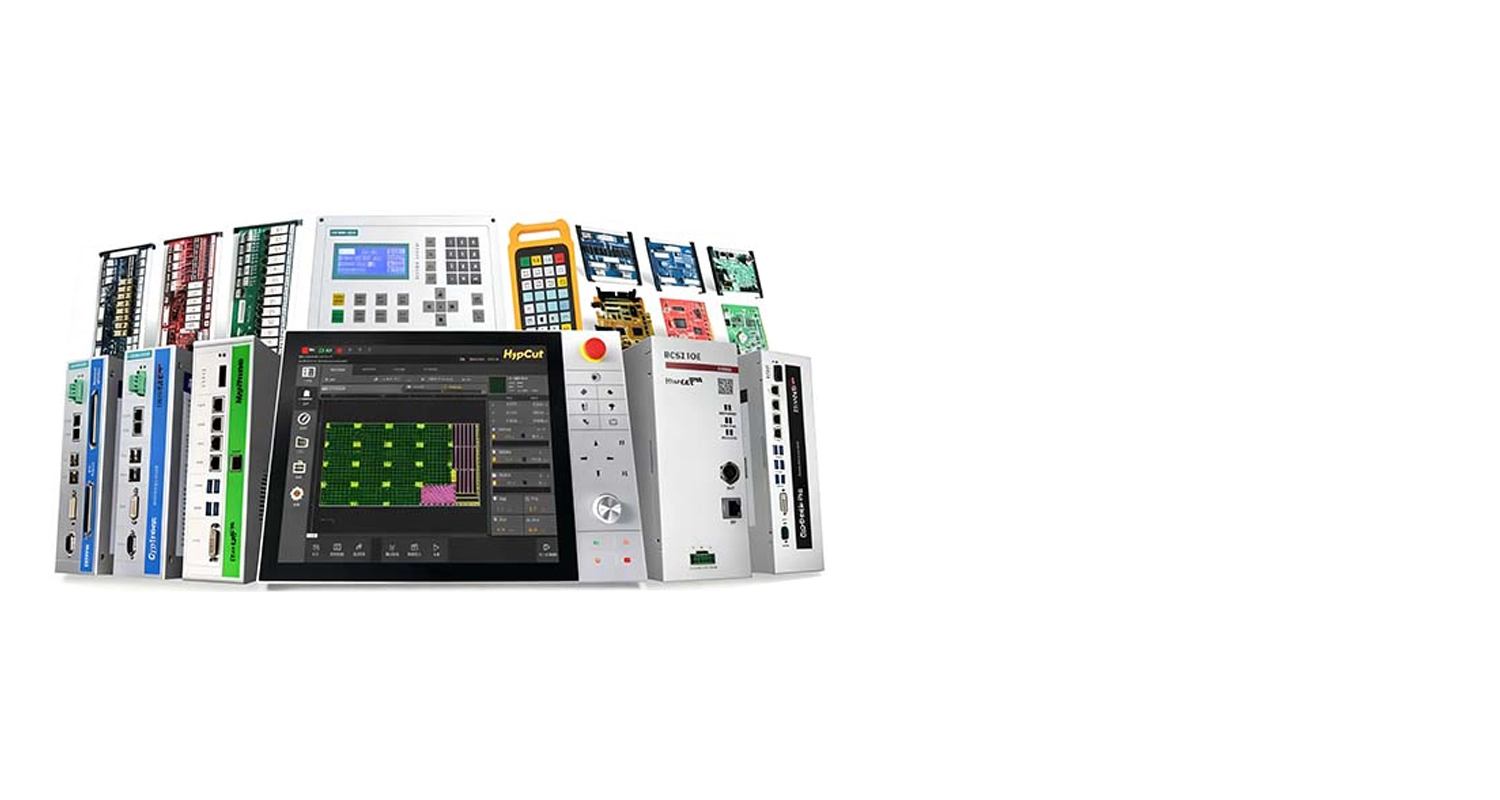

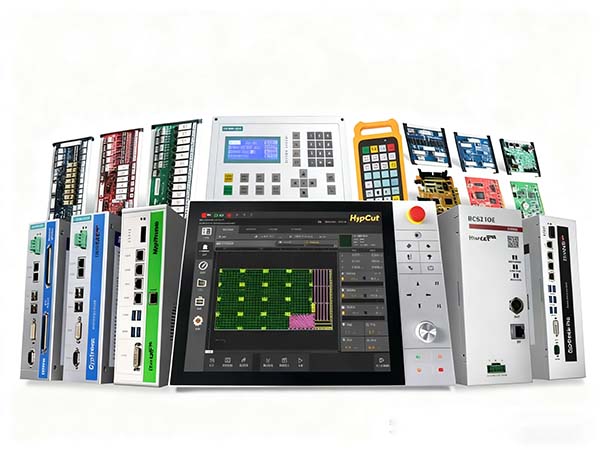

Senrytech BReinforced bed fiber laser cutting machine intelligent operation control system

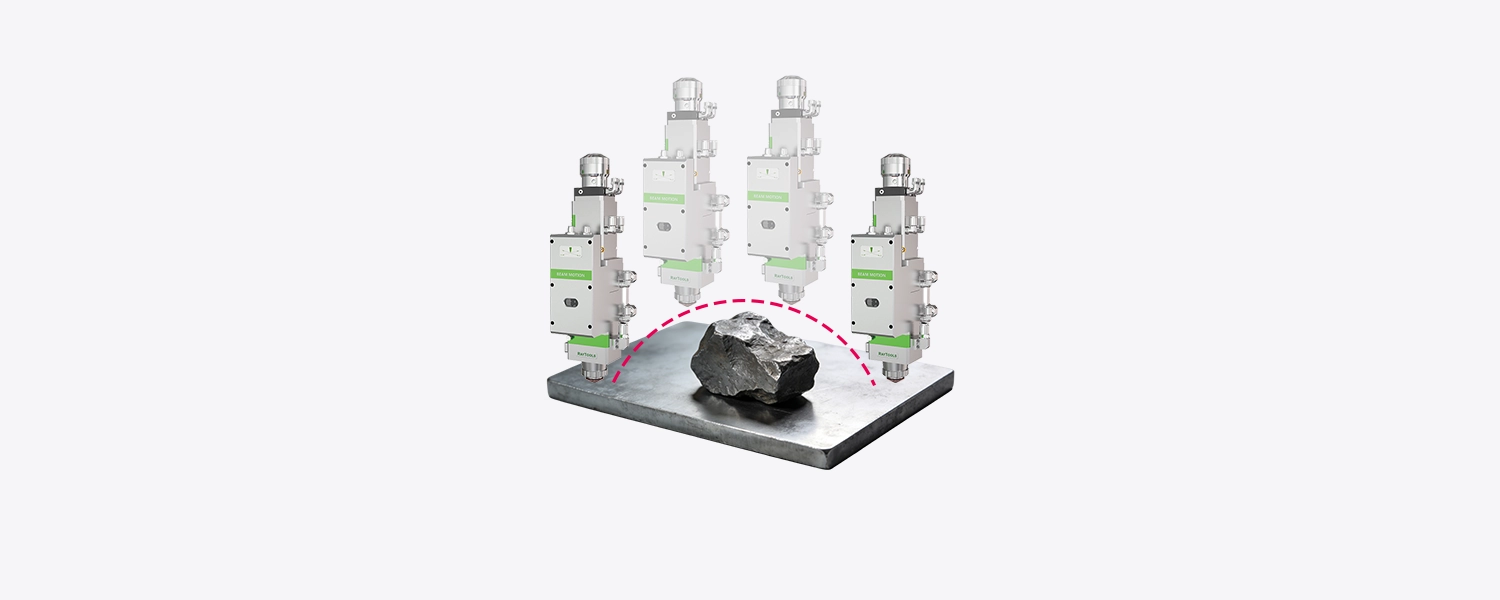

Air movement and obstacle avoidance

Smart lift，Reduce ineffective damage to the cutting head

Cutting status according to part during idle movement，Intelligent adjustment of lifting height，Reduce the risk of head banging。

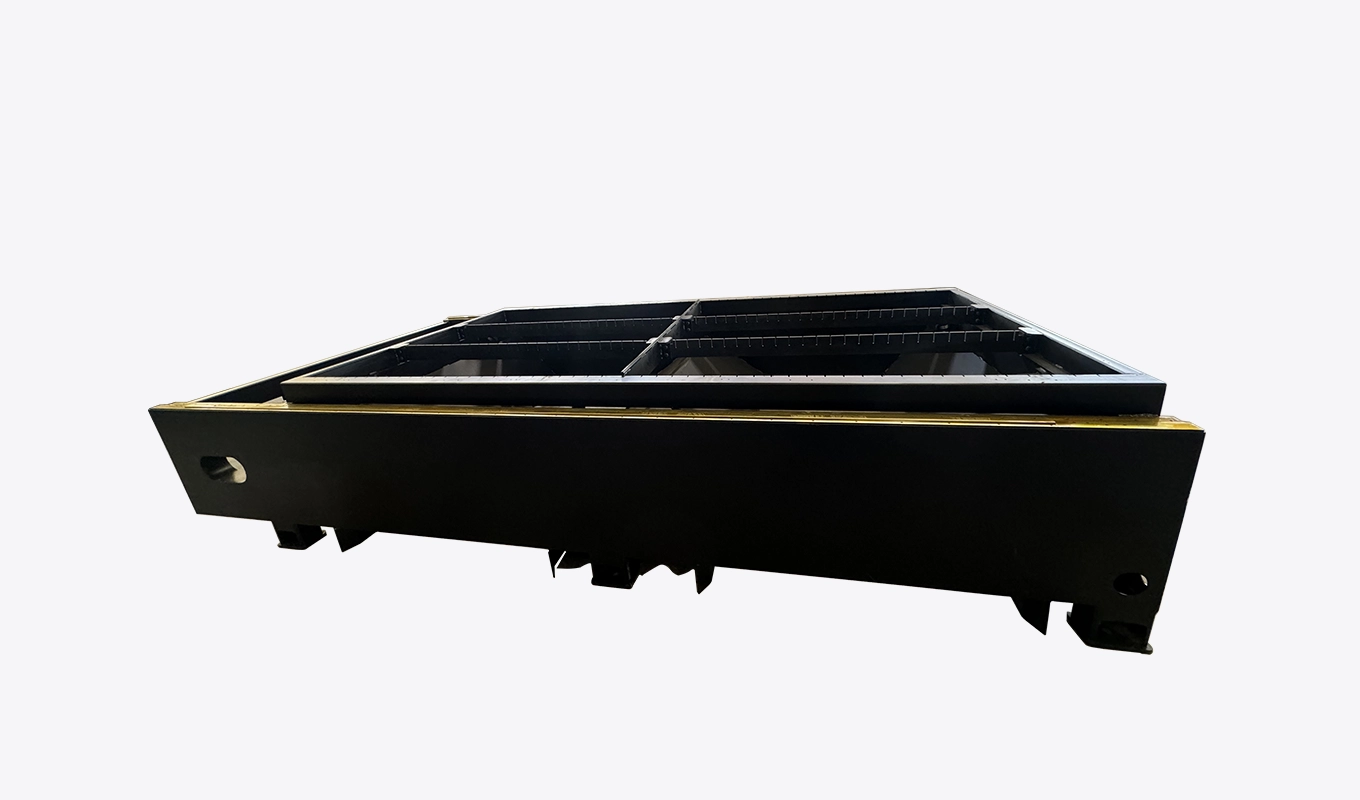

Design process

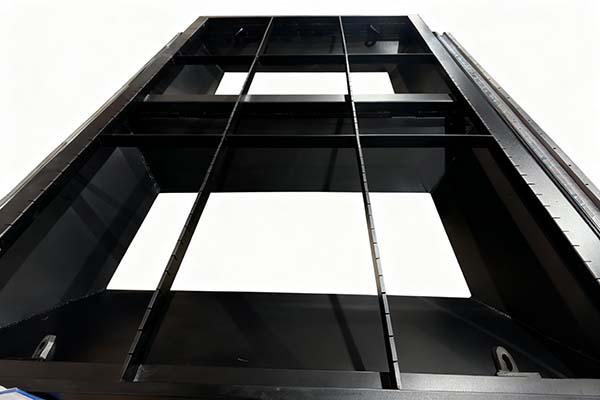

Quenching rigidity
Thick Sheet bed

Brand new steel Sheets & tubes, Q345B/Q235B and other alloy steels/carbon structural steel，Using segmented jump welding，PAG High frequency quenching with water-based quenching fluid，Secondary aging tempering，Three coordinate detections make the equipment more load-bearing and resistant to deformation.，Thick Sheet cutting/High-speed operation can be accurate and stable， It can also switch from low-speed processing to high-speed cutting，When processing heavy-duty workpieces，The bed does not shift due to force，Make every welding seam precise and in place。

Senrytech B Stable bed laser cutting machine

Solid as a rock
Careful every moment

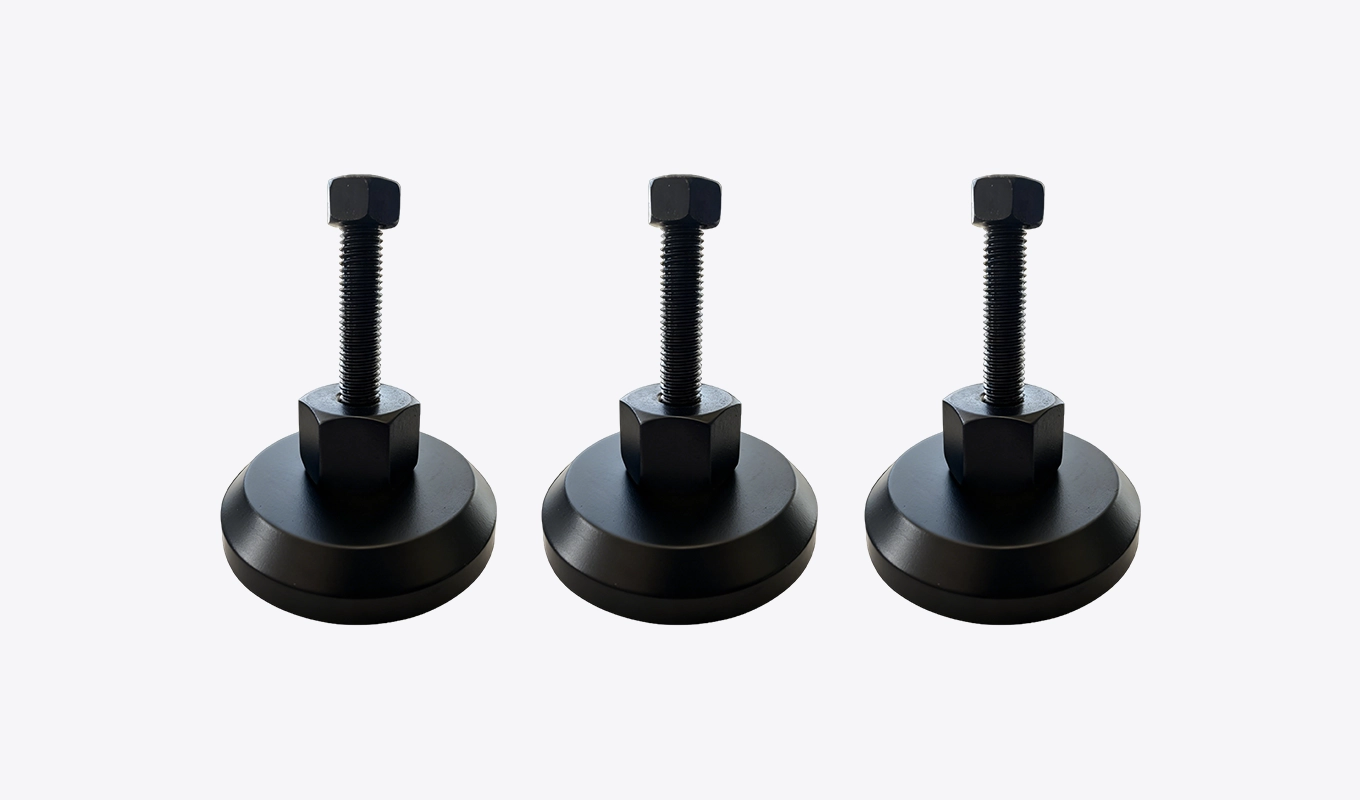

High-rigidity bolt footing serves as the core support component of fiber laser cutting machine，Through precise leveling structure and strong anchoring design， Realize equipment level error≤0.1mm/m precision calibration，Simultaneously spread device overload（adaptation 0.5-12t tons of models）、Cushioning cutting vibration， Avoid displacement deviation from the fundamental level，Ensure high-power cutting（6000W+）time-trajectory accuracy and long-term stability of the equipment，It is a necessary basic configuration for precision machining scenarios.。

Senrytech B High-strength foot adapted for medium-thick Sheet processing fiber laser cutting machine

Micron level precision control
Ten years of longevity protection

Japanese quality benchmark，both 350% Instant torque and quiet operation advantages，Warranty protection + Wide adaptability，Become the preferred power core for precision manufacturing Support multiple communication protocols and multi-axis linkage，key components 10 Longevity design，Install compatible、Easy to operate，Reduce operation and maintenance costs，Adapt to all industrial automation scenarios。

Senrytech B High power servo motor medium and thick Sheet laser cutting machine

Technical parameters

model	B20	B30	B60	B120
Laser power	2000W	3000W	6000W	12000W
Work surface size	1540x3050mm 1540x6050mm 2040x4050mm 2040x6050mm 2510x6150mm	1540x3050mm 1540x6050mm 2040x4050mm 2040x6050mm 2510x6150mm	1540x3050mm 1540x6050mm 2040x4050mm 2040x6050mm 2510x6150mm	1540x3050mm 1540x6050mm 2040x4050mm 2040x6050mm 2510x6150mm
Maximum cutting speed	92m/min	92m/min	92m/min	92m/min
Positioning accuracy	±0.05mm	±0.05mm	±0.05mm	±0.05mm
Repeat positioning accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm

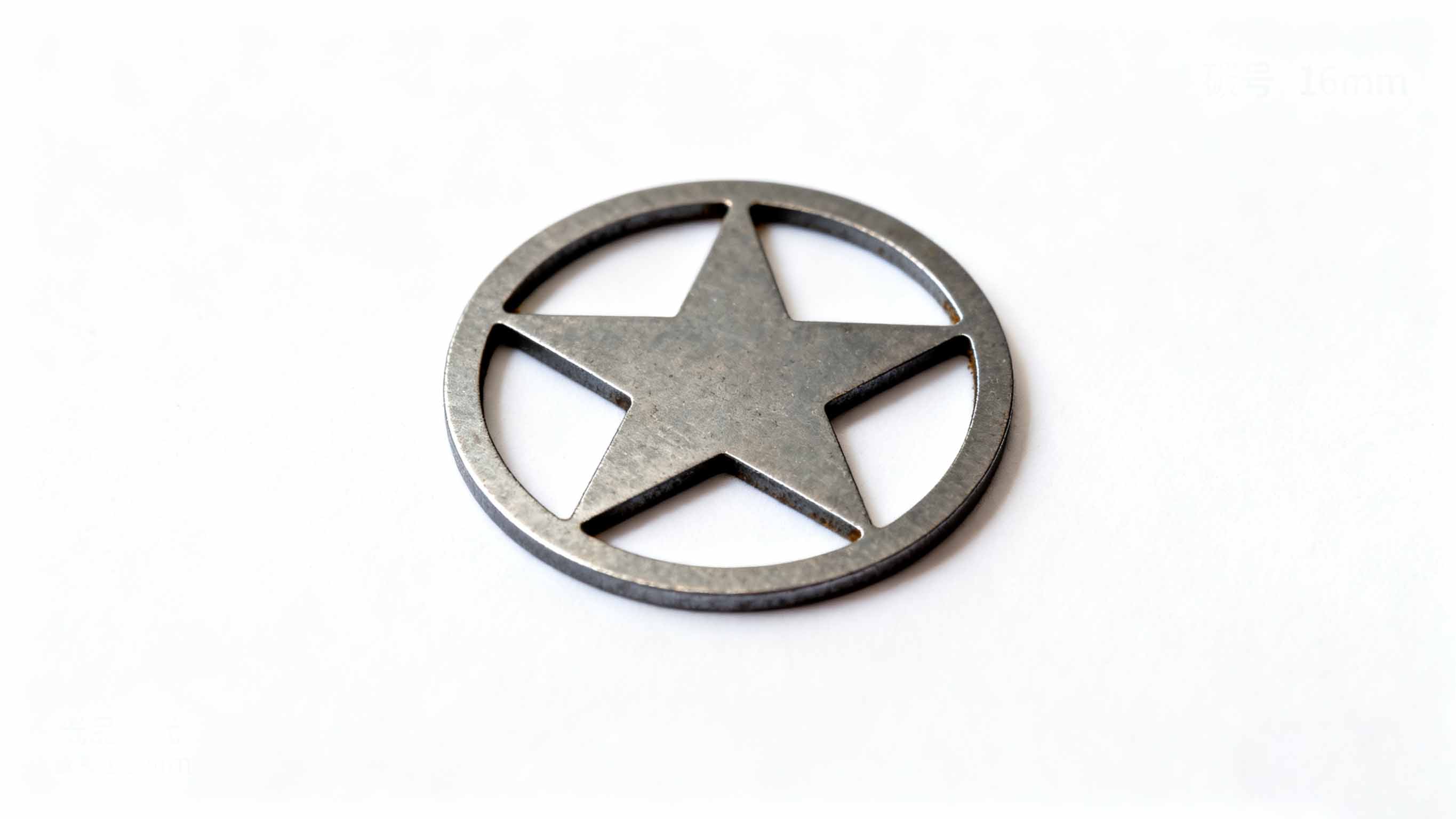

Maximum cutting thickness for batch processing(carbon steel)	16mm (special circumstances20mm)	18mm (special circumstances25mm)	22mm (special circumstances25mm)	35mm (special circumstances45mm)
Maximum cutting thickness for batch processing(Stainless steel)	6mm (special circumstances10mm)	8mm (special circumstances12mm)	14mm (special circumstances20mm)	25mm (special circumstances40mm)
Maximum cutting thickness for batch processing(Aluminum alloy)	4mm (special circumstances6mm)	4mm (special circumstances8mm)	10mm (special circumstances16mm)	18mm (special circumstances22mm)

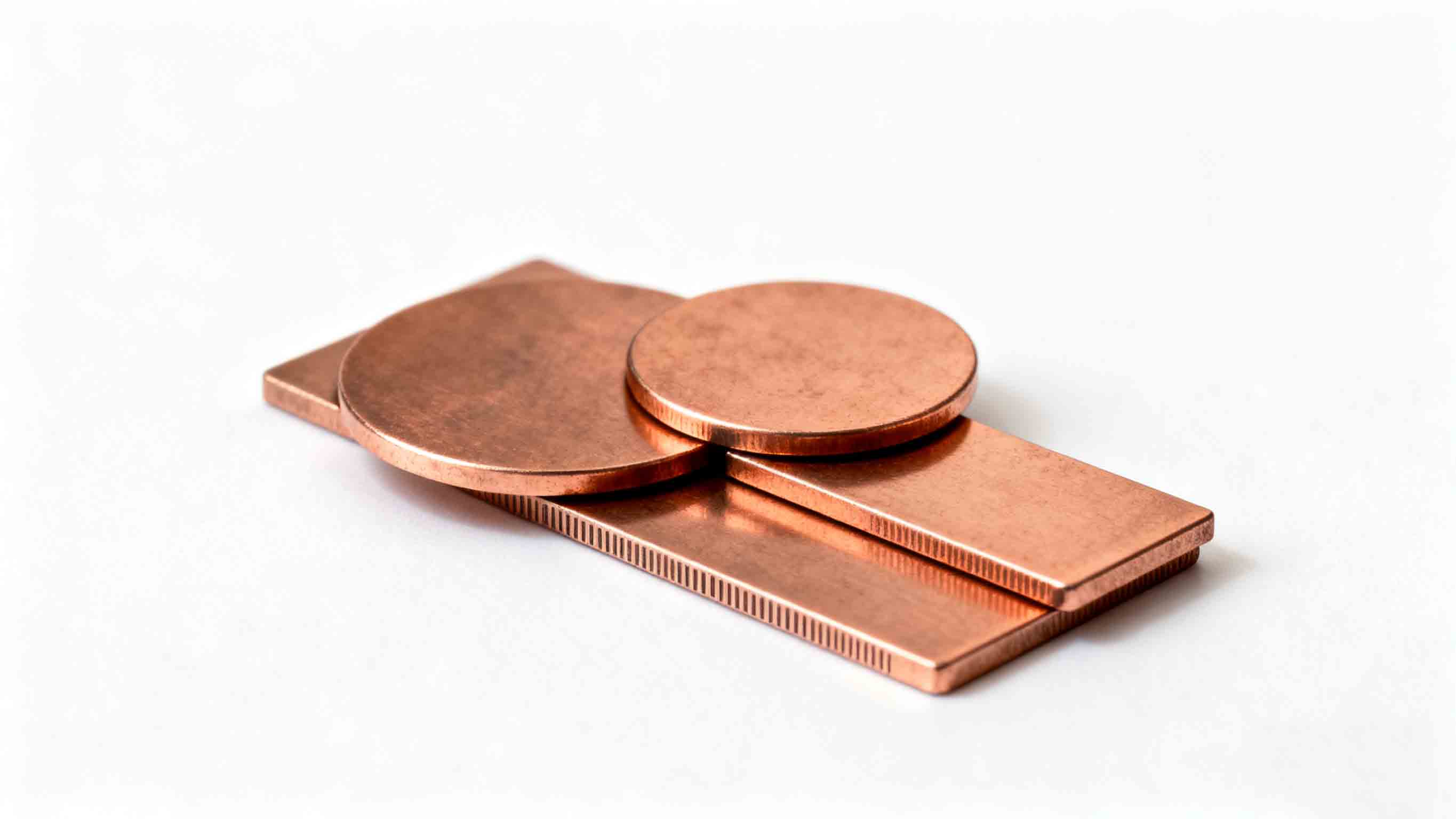

Maximum cutting thickness for batch processing(copper)	4mm (special circumstances6mm)	4mm (special circumstances8mm)	10mm (special circumstances16mm)	18mm (special circumstances22mm)
Cooling method	water cooling	water cooling	water cooling	water cooling
power demand	380V/3PH 50/60HZ	380V/3PH 50/60HZ	380V/3PH 50/60HZ	380V/3PH 50/60HZ
acceleration	1.5G	1.5G	1.5G	1.5G

Parameter data is based on standard test environment，Actual use may vary depending on material properties、Operating conditions vary slightly
