Laser sheet cutting machineB Ultraseries

Brush up on the key points first

Top version of unmanned production

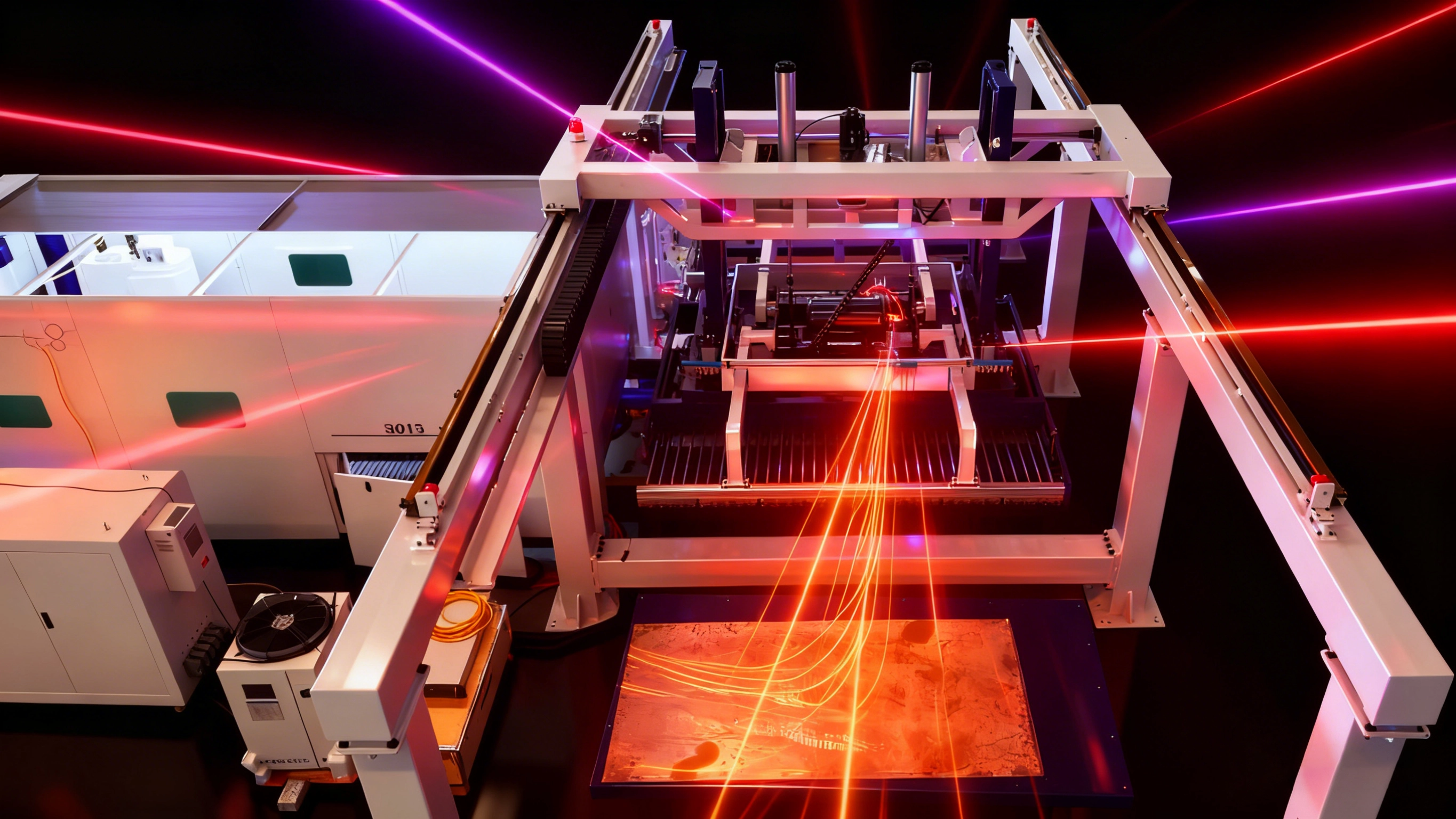

Senrytech B Ultra Fully automatic loading and unloading fiber laser cutting machine

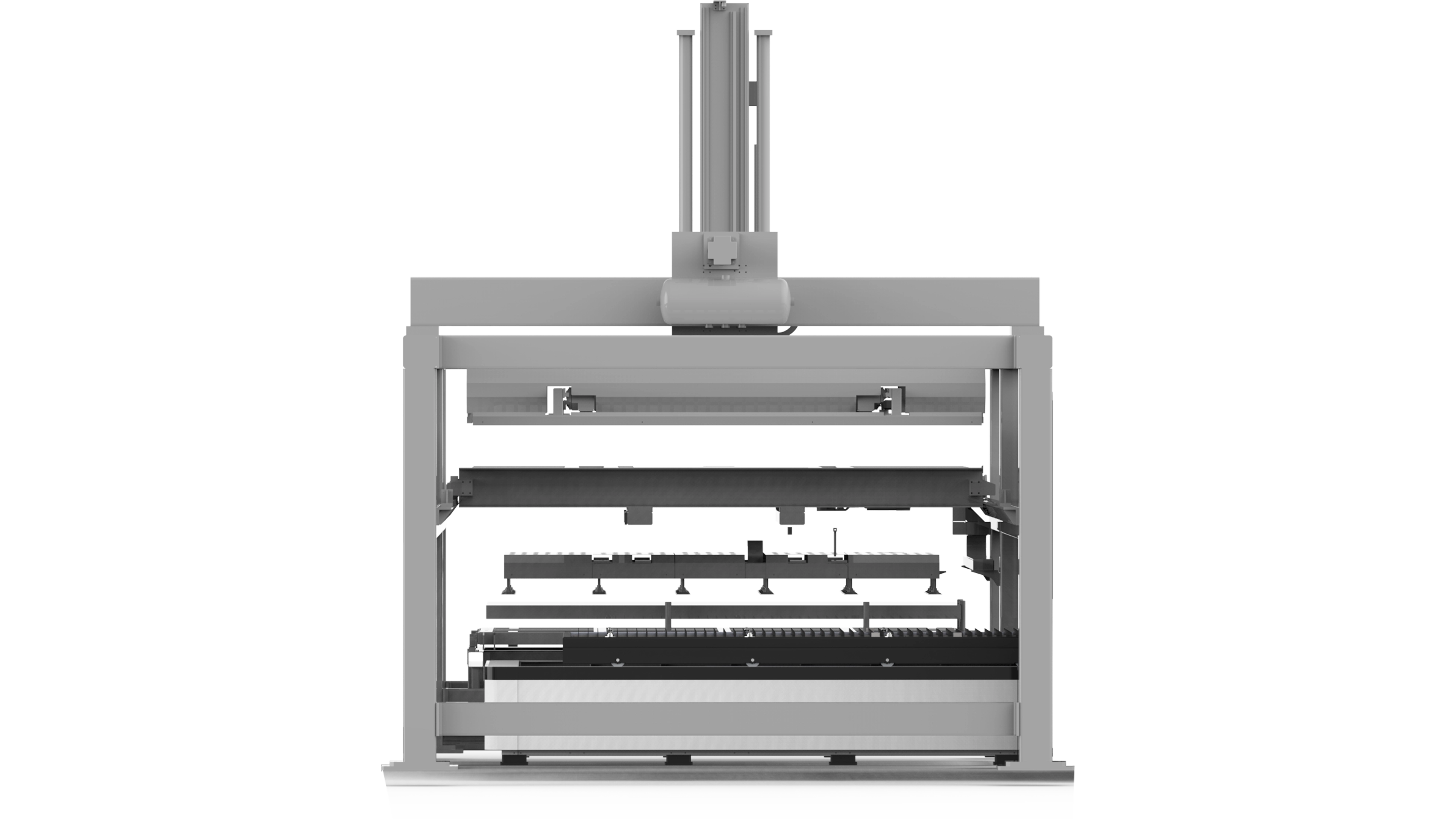

Fully automatic loading and unloading，unmanned + Efficient dual online

Fully automatic loading and unloading + 0 Waiting for connection Production does not stop buff

Automatic loading、The whole process of blanking，No manual intervention required，Seamless connection between processing and material flow，Production gaps are reduced to the extreme。

Core power servo motor

Large format full frequency2900WSuper reliable power

Strong power + A new benchmark for precision controlled industrial drives。

One stroke flying cutting technique

Precisely controlled cutting，Easily control millimeter-level cutting errors

Reduce the number of perforations and idle time，Porous parts efficiency can be improved 30%–50%。

Design process

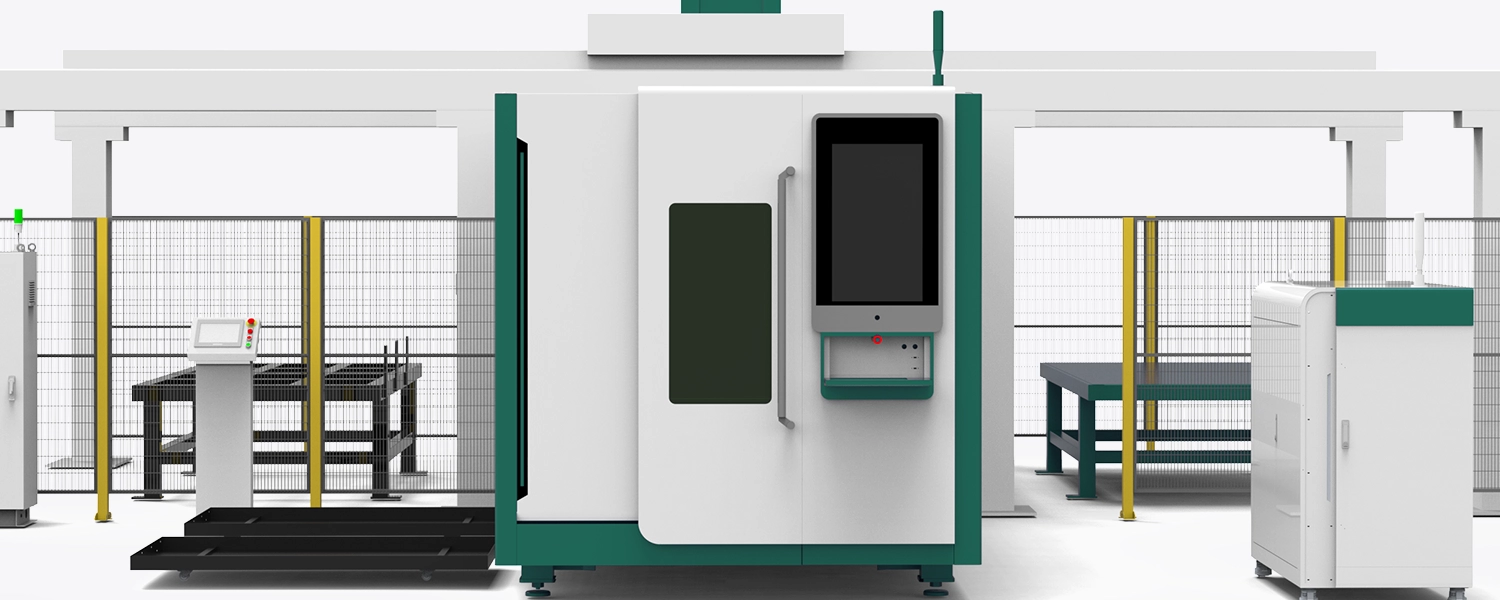

Sheet metal surround
Protection increases steadily

Designed with a fully enclosed sheet metal structure，Relying on high rigidity plate and sealing technology，Achieve full protection of the processing environment， Effectively avoid dust、Issues such as debris spillage and external interference。Surrounded by integrated precision welding，With sealed cabin design， Operation noise is controlled to the industry's lowest standard range，Simultaneous upgrade of cleanliness and safety of operating environment。The sheet metal surround solution， Improved protection performance compared to open structures 90% above，The sealing performance of equipment operation has jumped to the forefront of the industry，Suitable for high cleanliness、Low-interference and refined processing conditions， Cabin stability approaches optimal under high-speed cutting conditions，Ensure the processing environment is controllable and without omissions，Adapt to high-demand production scenarios，Both protection reliability and working condition adaptability。

Senrytech B Ultra Unattended fiber laser cutting machine

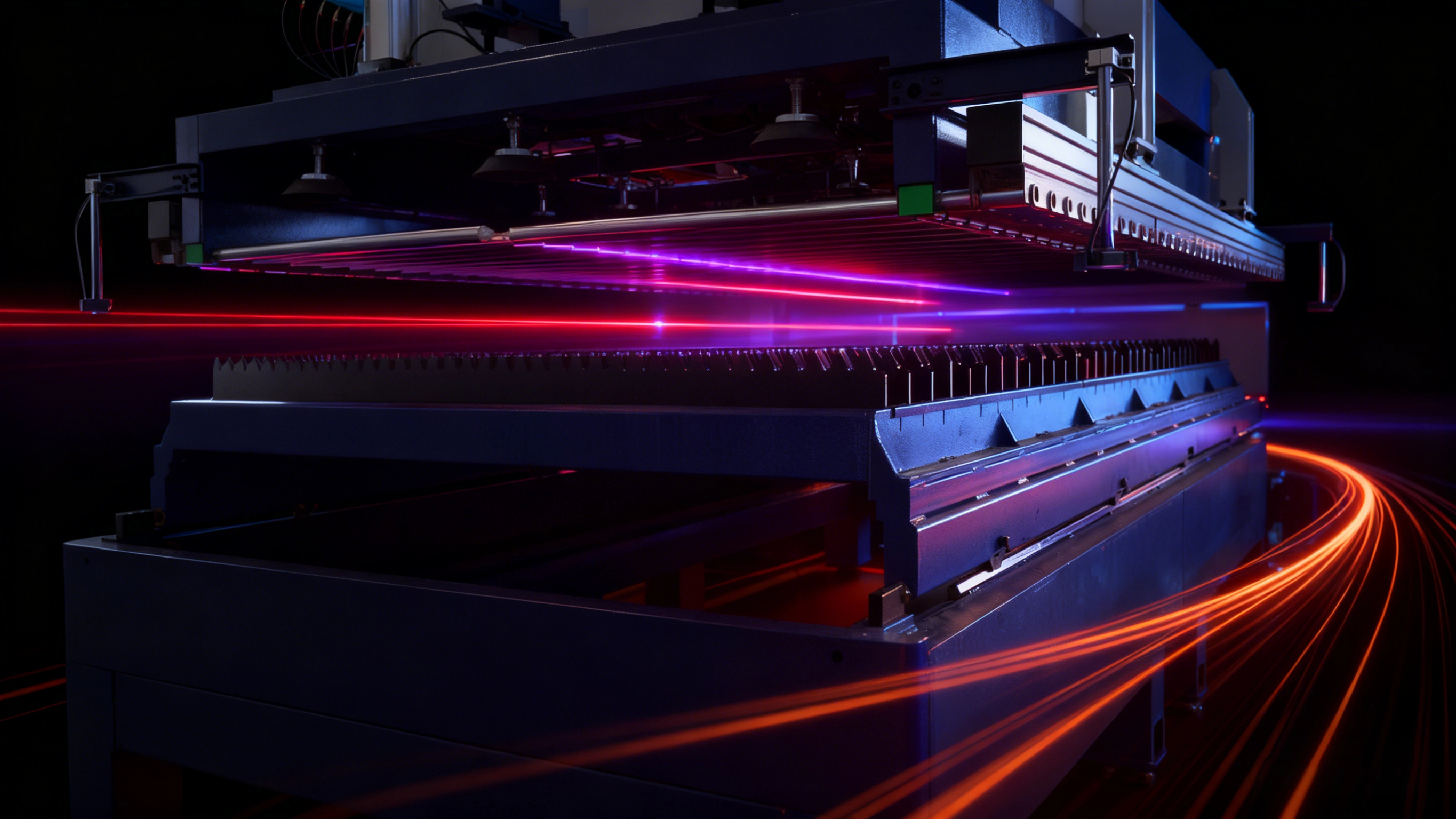

Extremely fast feeding
Efficiency soars

Adopt intelligent linkage design of switching platform，Relying on high-speed transmission and precise positioning system，accomplish15 Extremely fast feeding in seconds，Effectively avoid waiting in the traditional loading process、Problems such as time-consuming alignment。 The platform is made of lightweight high-strength alloy material，Cooperate with servo drive fast response mechanism，Switching rhythm is stable and controllable，Loading repeat accuracy deviation≤±0.5mm。 The exchange platform loading solution，Improved efficiency compared with conventional manual loading80%above，Equipment standby time is reduced to industry-leading levels，Can meet high batch size、Fast-turnover continuous production conditions， Platform operation smoothness approaches optimal under high-speed switching state，Ensure there are no breakpoints in material connection，Adapt to high-frequency processing needs，Combines operational convenience and production efficiency。

Senrytech B Ultra Efficient loading and unloading fiber laser cutting machine

Precision transmission
Best Performance

useYYCPrecision rack brand，Relying on grinding gear making process and high frequency quenching treatment，Tooth surface hardness reaches HRC42-55，Tooth shape accuracy conforms to DIN5 level standard，Cumulative error≤0.022mm/300mm。 Rack body selection S45C Medium carbon steel base material，With modular installation hole design，Support unlimited stroke splicing，Adapted to long-distance transmission scenarios。 The precision rack transmission efficiency is as high as 98%，High speed operation up to 11m/s，Combined with low friction、Low noise characteristics； Zero backlash structure achieves positioning accuracy ±20 Micron，More traditional transmission parts（such as ball screw）More suitable for high-precision processing conditions。 under heavy load、long trip、Under high-frequency operation conditions，Still maintaining transmission stability and positioning accuracy，Meet the continuous operational needs of high-precision manufacturing。

Zone dust removal
Clean intelligent control

use “cutting area + Smoke exhaust area + console” Three-level zoning dust removal design：The cutting area is equipped with a follow-up suction hood（Follow the movement of the cutting head，Air volume≥6000m³/h）， Targeted capture of metal smoke generated at the moment of cutting；The smoke exhaust area relies on overhead air ducts + High efficiency filter cartridge（Filtering precision 0.3μm），Intercepting fine dust； Side-suction low-power fans are used in the console area，Keep the environment clean。The system is equipped with a smoke concentration sensor，Each partition starts and stops independently / Shift，Energy consumption is lower than traditional single-fan dust removal 35%。

Senrytech B UltraEfficient production of laser cutting equipment

Technical parameters

model	B20 Ultra	B30 Ultra	B60 Ultra	B120 Ultra
Laser power	2000W	3000W	6000W	12000W
Work surface size	1510x3050mm 1510x6050mm 2000x4050mm	1510x3050mm 1510x6050mm 2000x4050mm	1510x3050mm 1510x6050mm 2000x4050mm	1510x3050mm 1510x6050mm 2000x4050mm
Maximum cutting speed	100m/min	100m/min	100m/min	100m/min
Positioning accuracy	±0.05mm	±0.05mm	±0.05mm	±0.05mm
Repeat positioning accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm

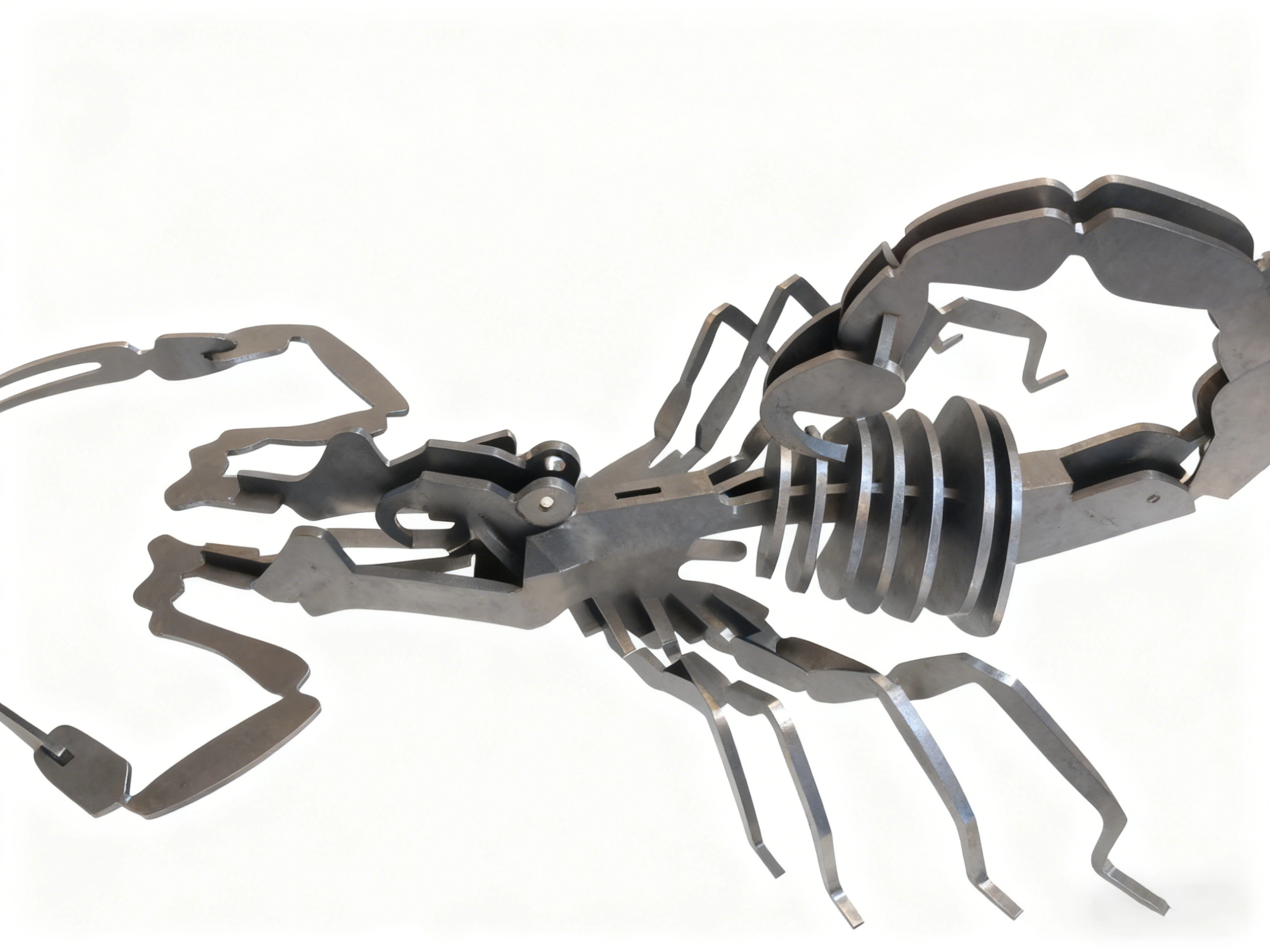

Maximum cutting thickness for batch processing(carbon steel)	16mm (special circumstances20mm)	18mm (special circumstances25mm)	22mm (special circumstances25mm)	35mm (special circumstances45mm)

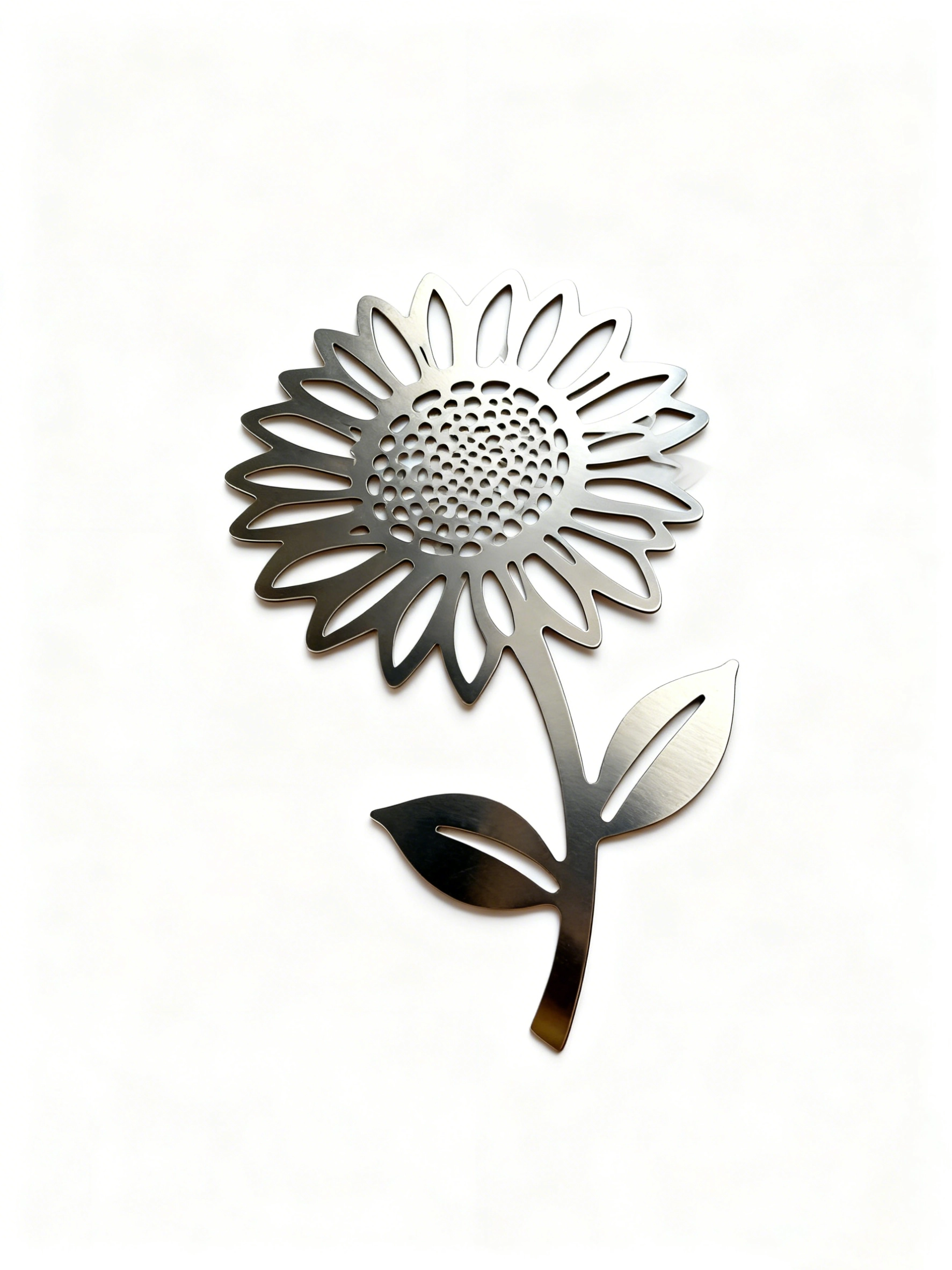

Maximum cutting thickness for batch processing(Stainless steel)	6mm (special circumstances10mm)	8mm (special circumstances12mm)	14mm (special circumstances20mm)	25mm (special circumstances40mm)

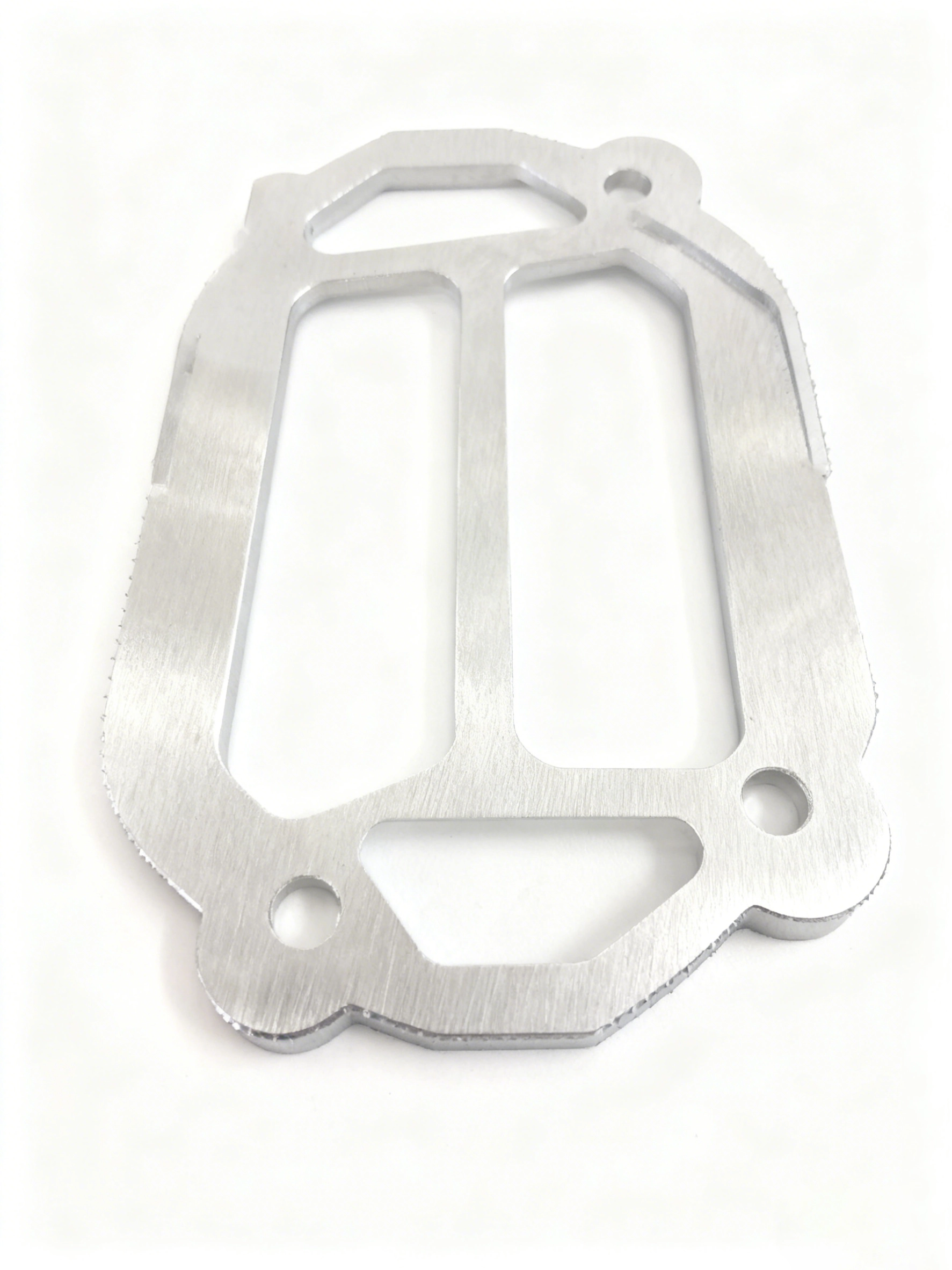

Maximum cutting thickness for batch processing(Aluminum alloy)	4mm (special circumstances6mm)	4mm (special circumstances8mm)	10mm (special circumstances16mm)	18mm (special circumstances22mm)

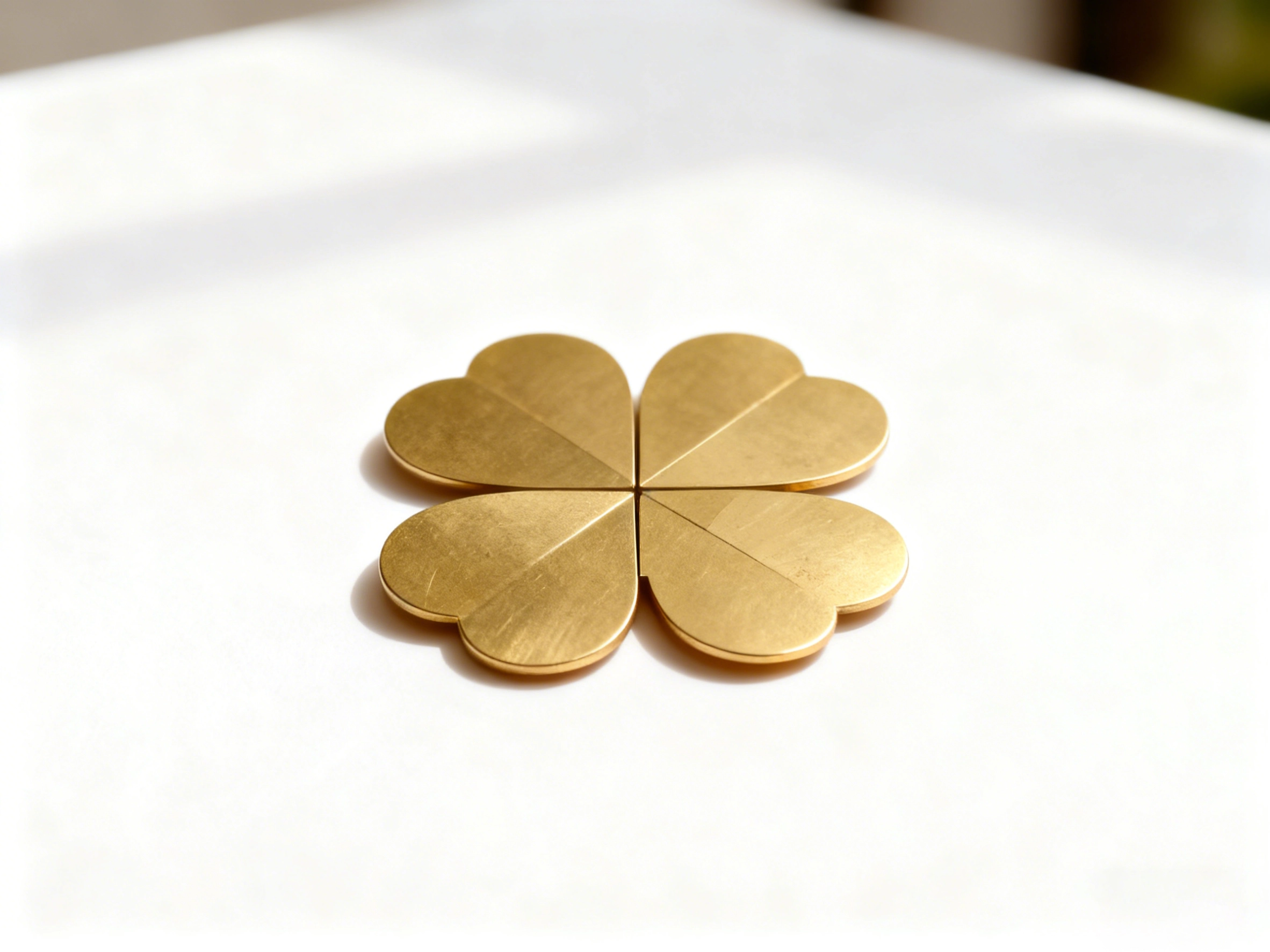

Maximum cutting thickness for batch processing(copper)	4mm (special circumstances6mm)	4mm (special circumstances8mm)	10mm (special circumstances16mm)	18mm (special circumstances22mm)
Cooling method	water cooling	water cooling	water cooling	water cooling
power demand	380V/3PH 50/60HZ	380V/3PH 50/60HZ	380V/3PH 50/60HZ	380V/3PH 50/60HZ
acceleration	2.0G	2.0G	2.0G	2.0G

Parameter data is based on standard test environment，Actual use may vary depending on material properties、Operating conditions vary slightly

Customer testimonials

Introduced in our factory B Ultra After series laser sheet cutting machine，Production efficiency has improved by at least 40%。The dual automatic loading system fully realizes unmanned operation，Needed before 3 The process of personal shift supervision，Now 1 Individuals can easily take care of both。The cutting accuracy is even better.，0.03mm Error control allows our product qualification rate to increase from 92% promoted to 99%，Customer complaints about product quality dropped to almost zero。

Mr. Sun

A sheet metal processing company General manager

As a precision sheet metal processing company，We have extremely high requirements on the stability of our equipment。B Ultra The series has been running continuously for three months，Never had any downtime，The durability of the device exceeded our expectations。And its energy consumption is lower than the traditional equipment used before 25%，It can save us a lot of money on electricity bills every year。The operation interface is also very user-friendly，New employees can become proficient in it in half a day。

Mr. Zhao

A sheet metal bending machinery company
