2Chuck side-mounted flagship laser pipe cutting machine

Brush up on the key points first

dynamic stability，Intelligent adjustment

Side hanging bed

Rock-Stable Precision Base

Side-mounted design allows the bed to receive more even force，Deformation during operation is minimized，Avoids cutting deviations caused by uneven stress in traditional structures。

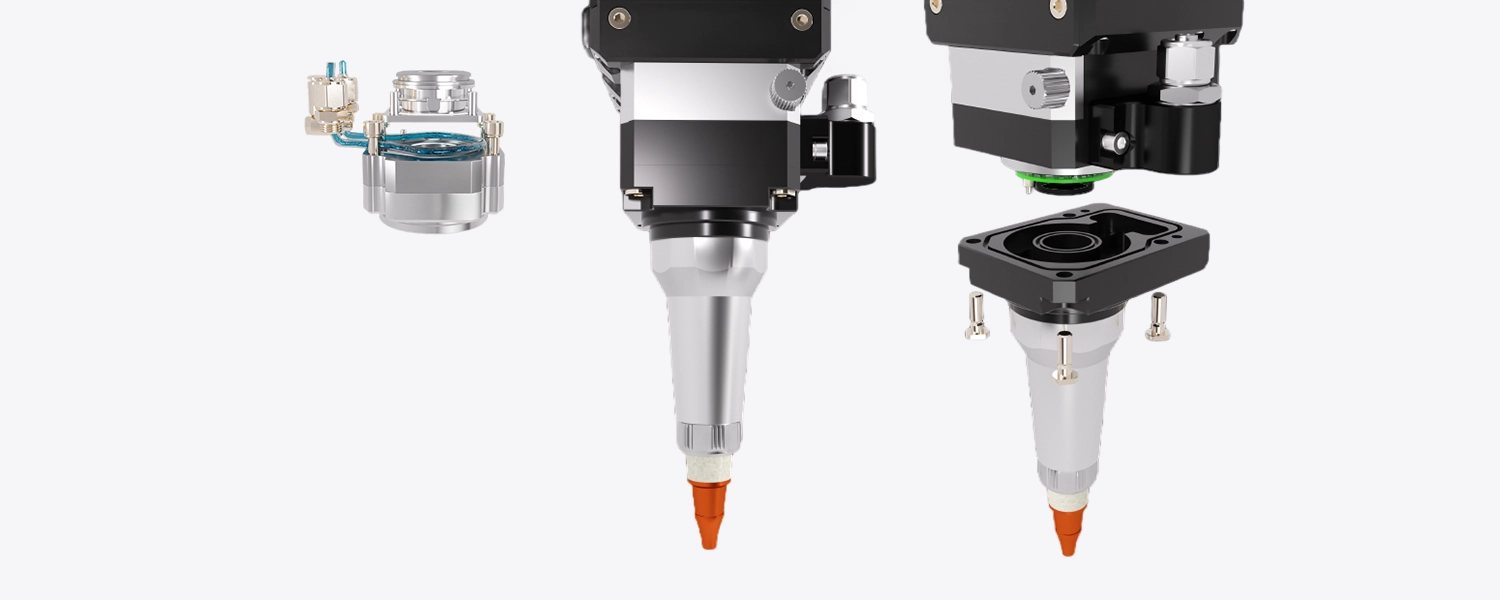

Senrytech A2 ULTRA Intelligent cutting water-cooled laser head

Smart cutting head

Precise and meticulous execution core

Equipped with intelligent protection functions such as built-in collision protection，The cutting head can quickly rebound to avoid damage when encountering an accident.，Not only extends the life of the equipment，It also avoids the impact of faults on accuracy.。

Senrytech A2 ULTRA Laser pipe cutting machine square tube / round tube / Full coverage of section steel

One machine for multiple purposes，Pipes take all

Multi-compatible，square tube / round tube / Full coverage of section steel

Support square tube、round tube、Cutting of various pipes such as profile steel，Can handle various processing needs without changing equipment，Adapt to various production scenarios。

Design process

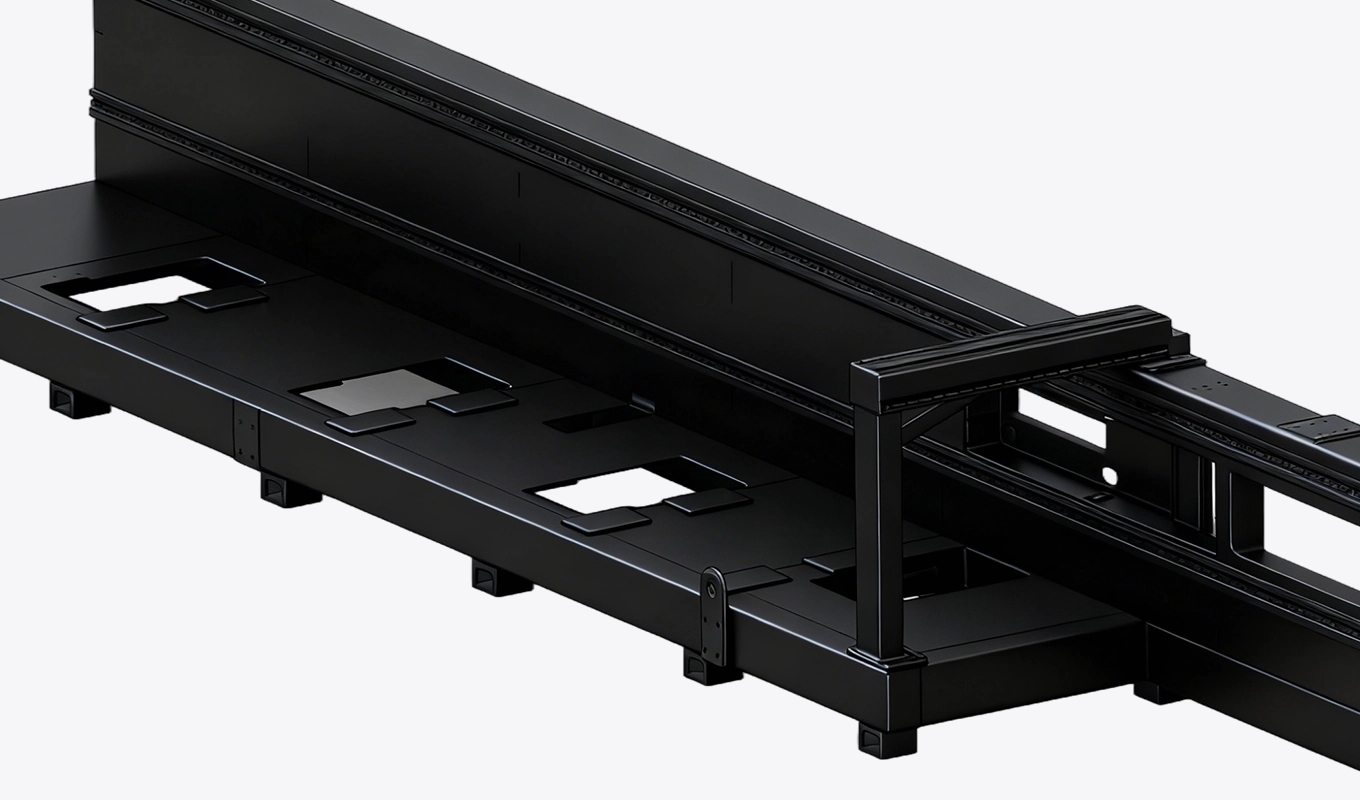

Side hanging bed
The cornerstone of precision for stability and long-term success

Adopt integrated side-mounted bed structure，Cooperate with high-precision linear guide rail and transmission system，Achieve micron-level dynamic motion accuracy，Provide a smooth and reliable movement platform for the cutting head。 Equipped with lightweight and high-rigidity design，Ensuring deformation control during high-speed operation in a compact body，response time＜0.1s，Adapt to the working conditions of continuous cutting of long pipes。 Modular integrated bed、Guide rails and drive units，With high protection level，Adapt to high dust cutting scenes，Improved maintenance cycle 50%，Make stable processing more worry-free。

Senrytech A2 ULTRA Integrated side-mounted bed structure

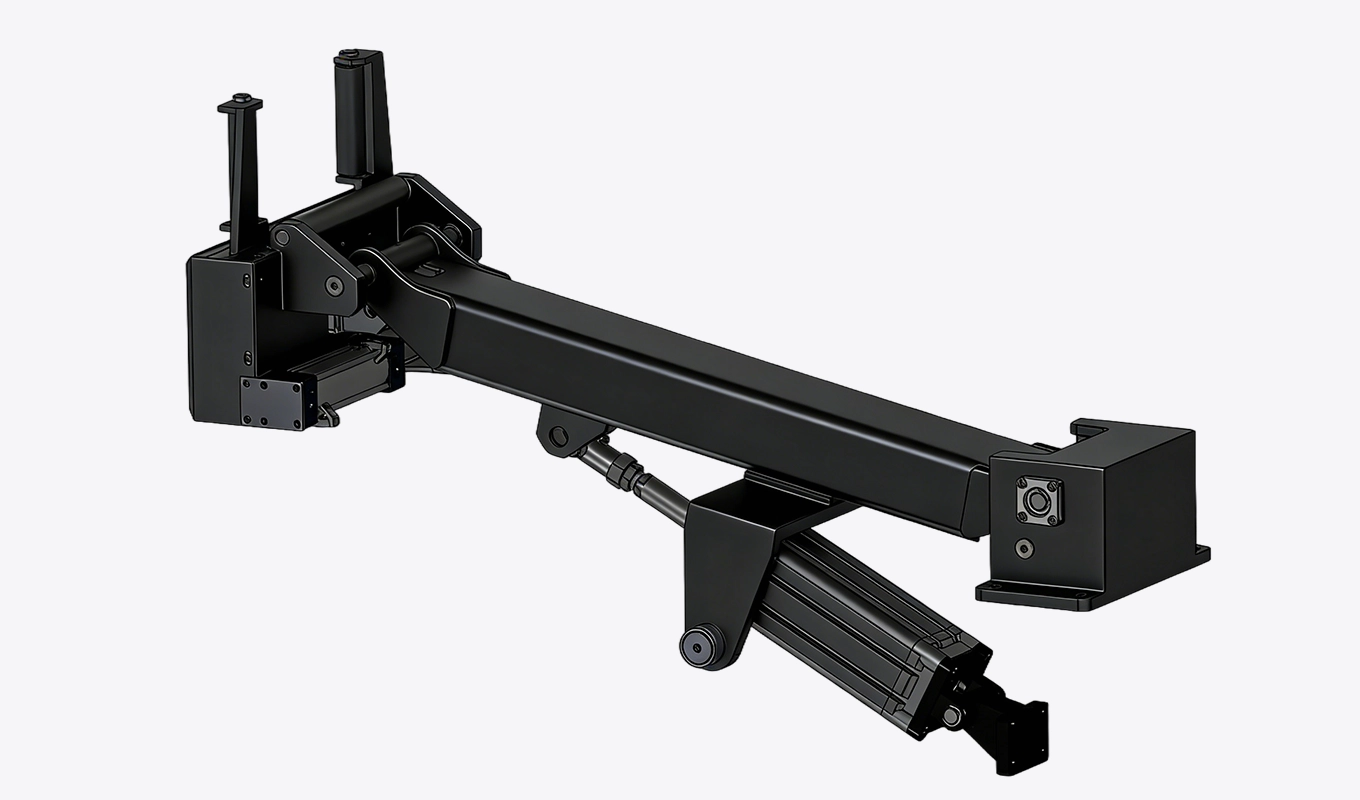

Follow-up feeding support
An efficient assistant for stable and continuous cutting

Adopt follow-up linkage structure，Can be synchronized with the cutting process in real time，Provides dynamic support for long pipes，Avoid cutting deviations caused by sagging due to dead weight。 Equipped with adaptive adjustment function，Compatible with different pipe diameters、length of pipe，Stable loading in a compact space，Greatly improve the smoothness of continuous cutting。 Modular integrated protection design，Suitable for high dust cutting conditions，Extended maintenance cycle，Make long tube processing more worry-free、Efficient。

Senrytech A2 ULTRA Plate welding machine bed

Side mounted pneumatic chuck
Strong centering clamping core

Adopt side-mounted pneumatic drive structure，With four-claw linkage centering design，Achievable 0.05mm Repeat positioning accuracy within，Provides a stable clamping reference for pipe cutting。 Equipped with high thrust cylinder unit，output 100kg-800kg Adjustable clamping force，Compatible with different wall thicknesses、material pipe，Stable clamping without slip even during high-speed cutting。 Modular integrated dust seal design，Suitable for high dust cutting conditions，Improved maintenance cycle 60%，And the side-mounted layout releases more processing space，Suitable for continuous cutting of long tubes。

Senrytech A2 ULTRA Side mounted pneumatic chuck

Technical parameters

model	A2-160Ultra	A2-240Ultra	A2-360Ultra	A2-550Ultra
diameter（roundφ/square□）	φ/□ 8-165mm	φ/□ 10-240mm	φ/□ 20-360mm	φ/□ 40-550mm
I-beam	≤10#	≤18#	≤22#	≤42#
Feeding length（roundφ/square□）	0-6m 0-9m 0-12m	0-6m 0-9m 0-12m	0-6m 0-9m 0-12m	0-6m 0-9m 0-12m
tail length（roundφ/square□）	210mm	265mm	270mm	100mm
Optional power	1500w 2000w 3000w	1500w 2000w 3000w 6000w	1500w 2000w 3000w 6000w 12000w	3000w 6000w 12000w
Number of chucks	2	2	2	2
Chuck speed	140r/min	100r/min	100r/min	30r/min
maximum acceleration	0.7G	0.7G	0.7G	0.7G
Feeding method	Semi-automatic	Semi-automatic	Semi-automatic	Semi-automatic
Material receiving method	Material receiving trolley	Material receiving trolley	Material receiving trolley or material receiving table	receiving table
Heat dissipation method	air cooling	air cooling	air cooling	air cooling
smoke purifier	Optional	Optional	Optional	Optional
Site reserved size	Feeding0-6mneed11mx4mx3m Feeding0-9mneed15mx5mx4m Feeding0-12mneed19mx5mx4m	Feeding0-6mneed11mx4mx3m Feeding0-9mneed15mx5mx4m Feeding0-12mneed19mx5mx4m	Feeding0-6mneed11mx4mx3m Feeding0-9mneed15mx5mx4m Feeding0-12mneed19mx5mx4m	Feeding0-6mneed11mx4mx3m Feeding0-9mneed15mx5mx4m Feeding0-12mneed19mx5mx4m

Parameter data is based on standard test environment，Actual use may vary depending on material properties、Operating conditions vary slightly

Customer testimonials

Our factory specializes in small batch stainless steel pipe customization，The biggest headache before was that the incisions were filled with burrs.、Unstable accuracy，It takes a lot of time to polish every time。Changed A2 ULTRA Behind the side-mounted pipe cutting machine，±0.05mm The cutting accuracy directly solves this pain point，The incision is smooth and smooth，Eliminates subsequent polishing process，The delivery efficiency of small orders has at least improved 30%。For companies like us that pursue precision processing，This device is really fragrant。

Mr. Zheng

A precision instrument processing Co., Ltd. General manager

Our workshop pipe specifications are miscellaneous，round tube、Square tubes are available，The previous equipment was slow in refueling and debugging，Newbies need to be trained for a long time before they can get started。A2 ULTRA Very adaptable，It only takes ten minutes to change materials and debug it.，New employees can operate independently after just two days of training.，And it makes very little noise when running，It does not affect the work at the workstation next to it at all.，The overall production rhythm in the workshop has become much smoother.。

Mr. Li

An electronic components factory

As a small and medium-sized processing factory，Cost control is key。This one A2 ULTRA We used it for more than three months in a row，Never had a single malfunction，The most surprising thing is its energy consumption —— Nearly lower than our previous old equipment 40%，Calculated, I can save a thousand yuan on electricity bills every month.。Strong stability、Low energy consumption、Fast return on money，For factories like us that pursue cost-effectiveness，This is one‘Save worry and money’equipment。
