King model for heavy-duty cutting of extra-long pieces

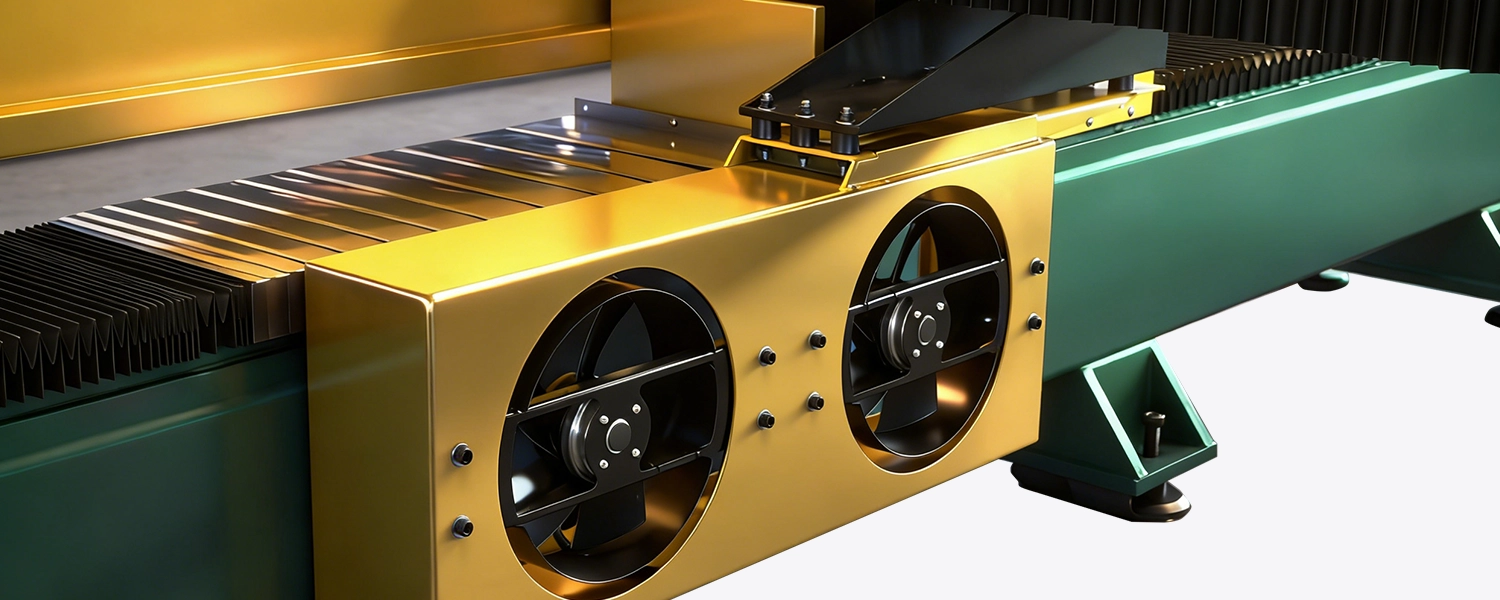

Air cooling
Powerful cooling with dual fans，Adaptable equipment for long-term operation，Ensure core components are stable at low temperatures，Extend equipment life。

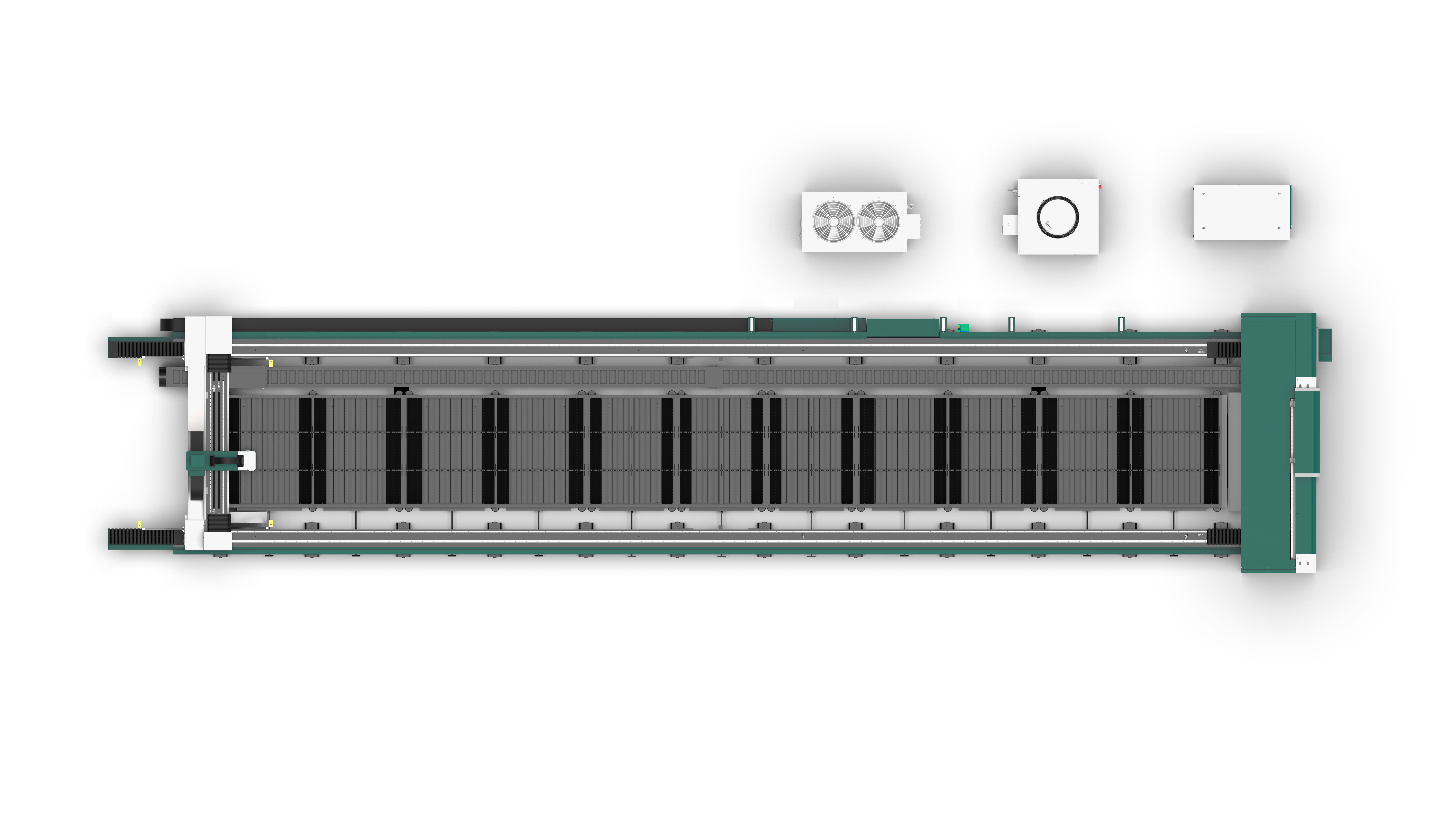

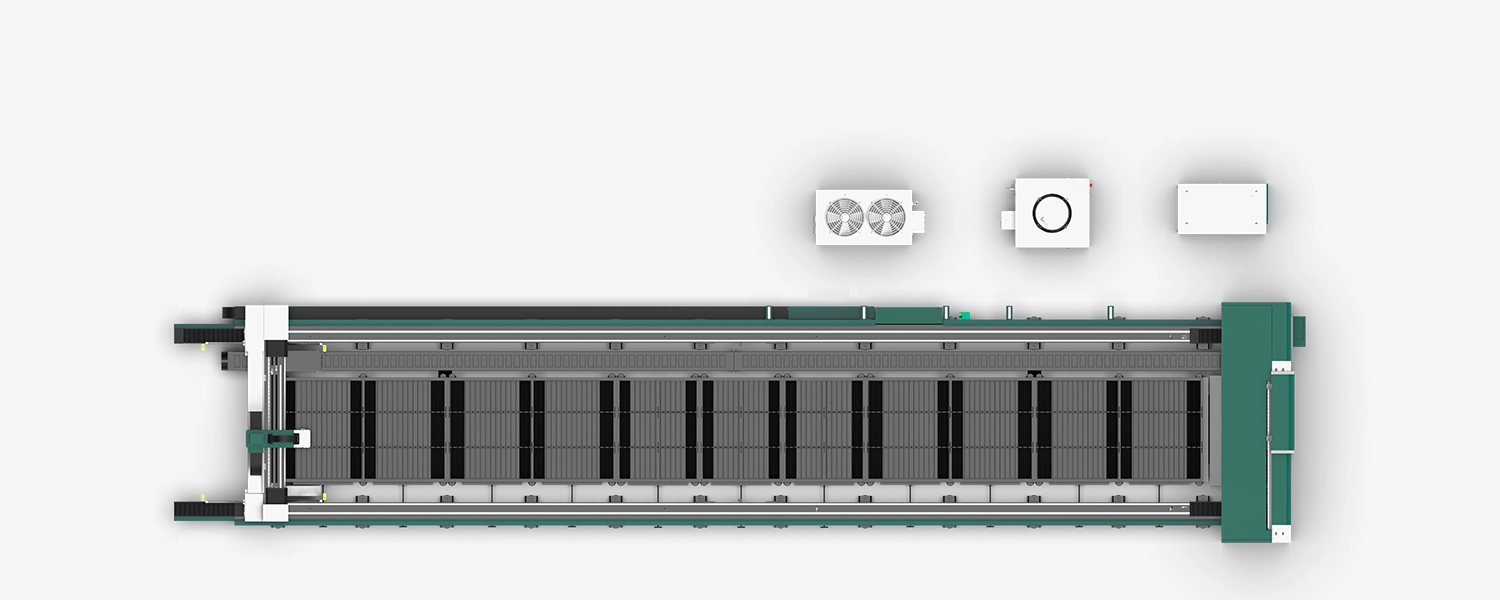

Extra long ground rail
Suitable for cutting ultra-long workpieces，Track accuracy upgrade，Smooth operation without deviation，Significantly expand processing scope。

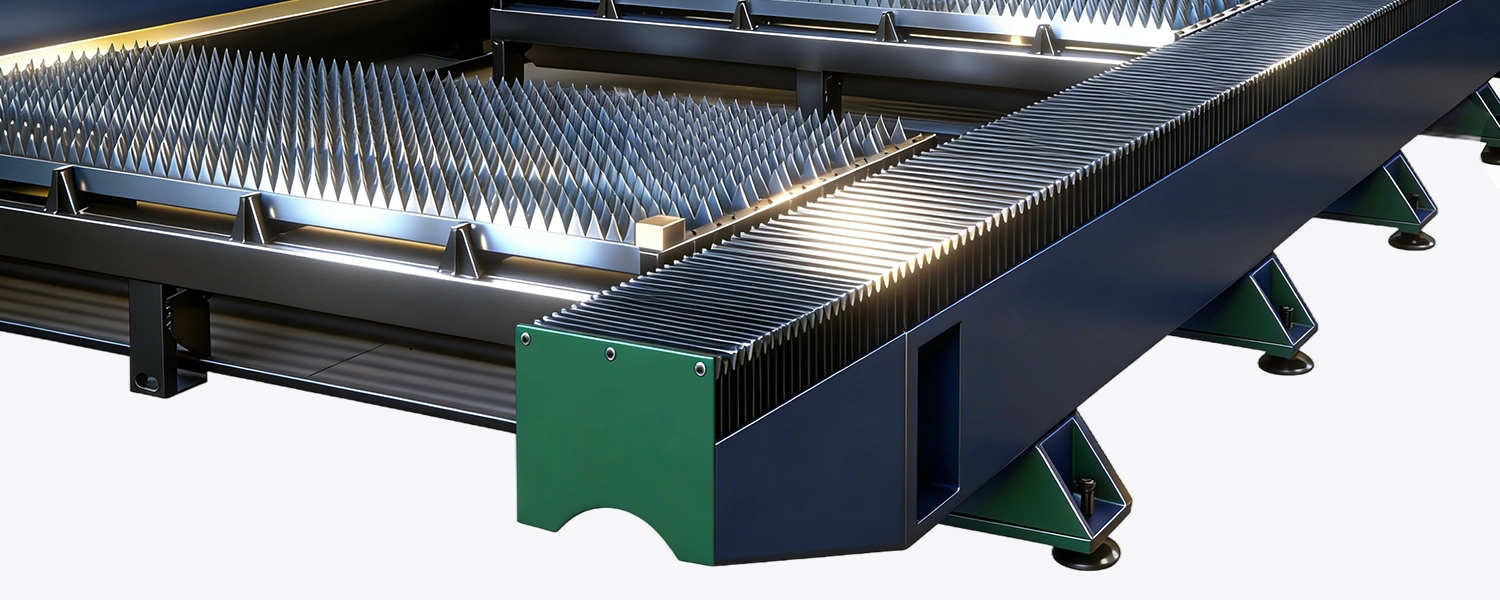

Overweight lathe
High load-bearing bed structure，Suppress vibration during high-speed operation，Guarantee cutting accuracy and stability，More reliable for heavy-duty processing。

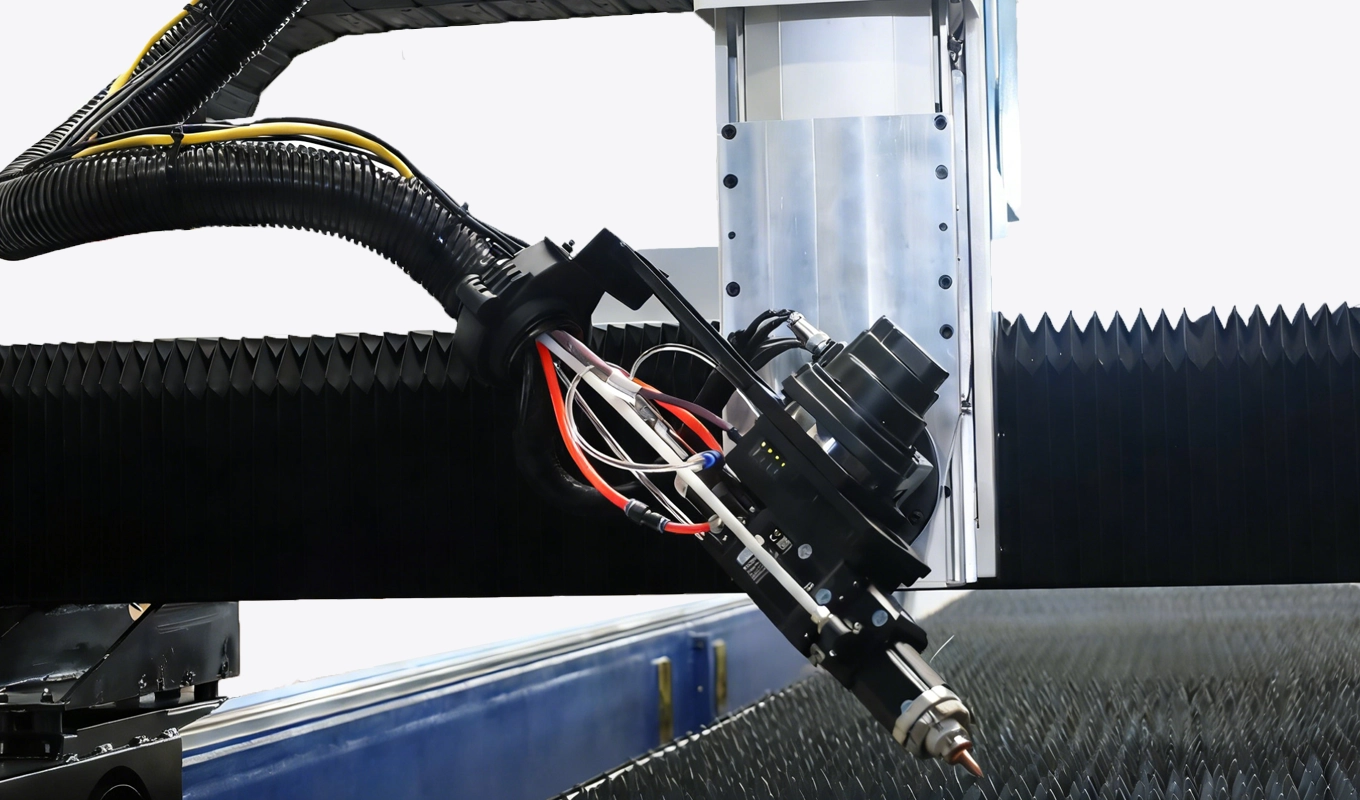

Bevel cutting
Multi-process adaptation
Equipped with optional bevel cutting function module，Bevel angle coverage 15°-60°（Accuracy ±0.5°），Suitable for carbon steel、Stainless steel、Welding pretreatment scenarios for aluminum alloy and other materials； Equipped with intelligent bevel parameter library，According to the thickness of the workpiece（3mm-50mm）Match cutting speed、Gas ratio，With dynamic follow-up height adjustment system， Ensure groove surface roughness Ra≤12.5μm，Meet the weld fusion requirements of high-strength welding；No need to configure additional special beveling equipment， Achievable only through functional expansion of this device “cutting + Pokou” Integrated processing，Significantly reduce production line process flow time，Improve the processing efficiency of complex components。

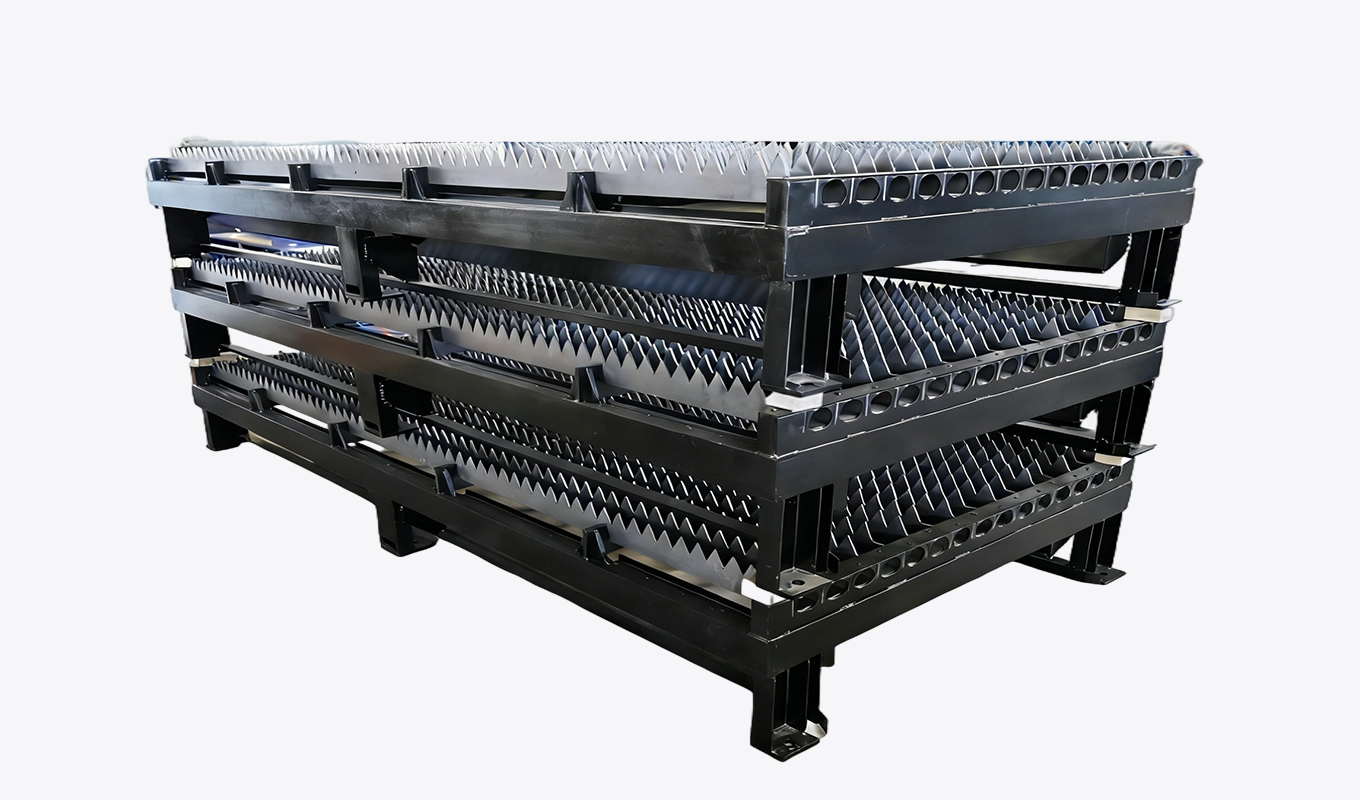

Modular bed
Highly scalable architecture
Adopt high-precision modular bed design，The bed unit is based on GB/T 1184-2011 Precision level geometric tolerance standard processing，Single unit straightness≤0.03mm/m、Flatness≤0.04mm/m； Selection of bed body Q355B low alloy high strength steel，Aging annealing eliminates internal stress，Cooperate T Groove + Modular splicing structure of positioning pins， support 5m-30m Seamless expansion of extra long strokes，Overall straightness error after splicing≤0.08mm / full length；The bed unit supports independent disassembly and maintenance，With quick installation cable drag chain、Pipe interface， The on-site deployment cycle is shorter than that of traditional integrated lathes 60%，Adapt to the layout adjustment of different production lines at the same time（such as linear arrangement、L type arrangement），Taking into account production flexibility and site adaptability。

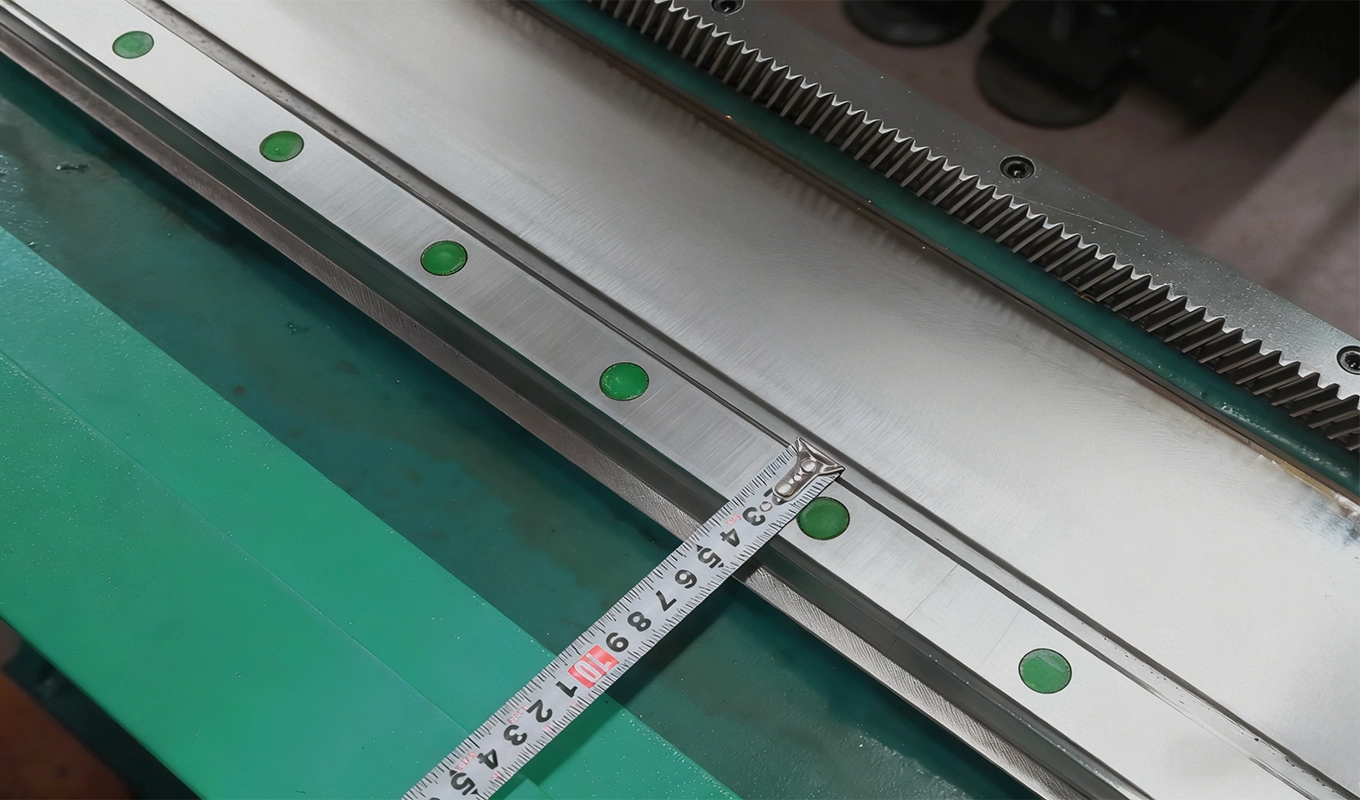

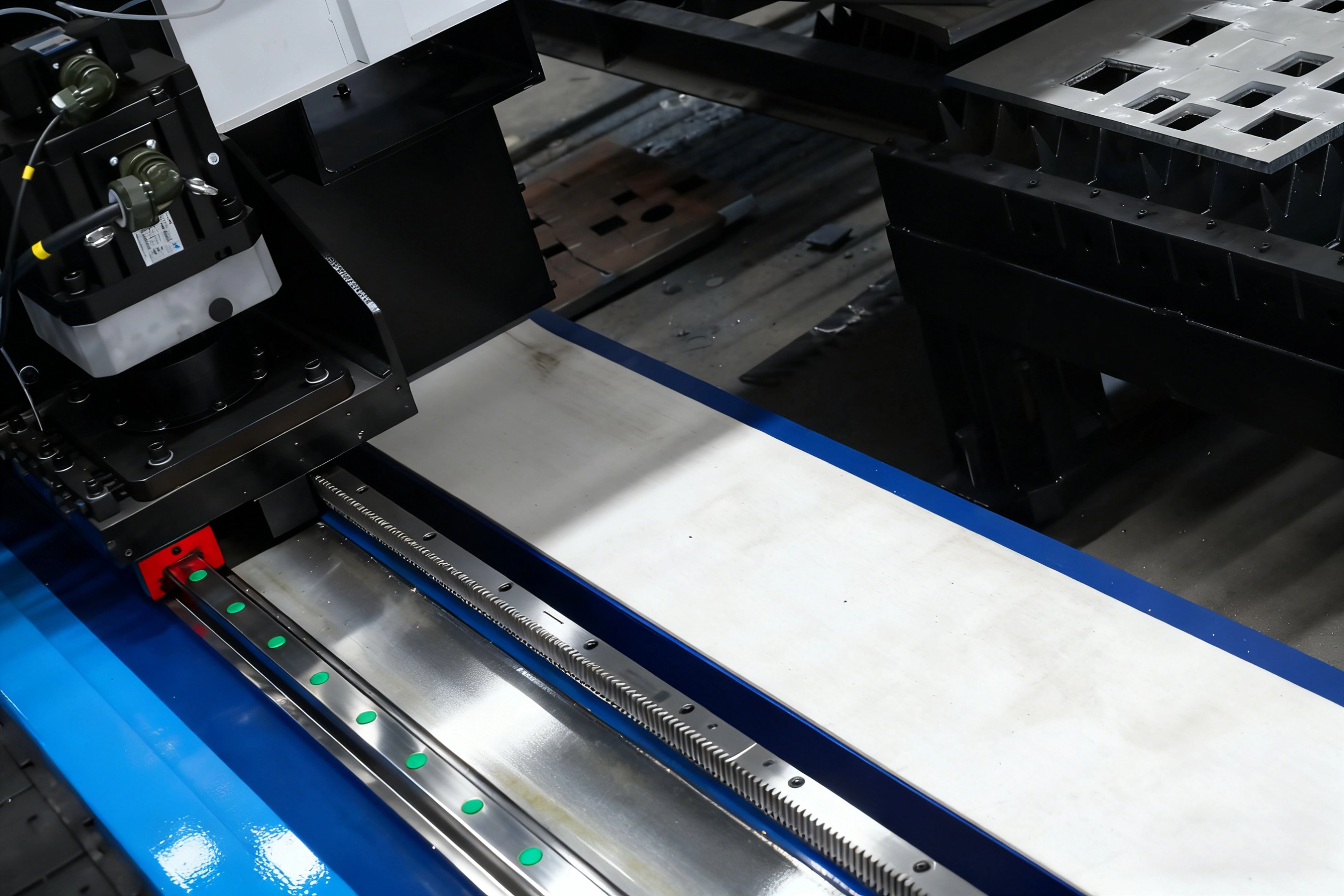

YYC Precision rack
Highly reliable transmission
carryYYC Precision ground rack，use S45C Medium carbon steel base material after quenching and tempering treatment（hardness HB220-250），Teeth hardened by high frequency induction（hardness HRC42-55）and precision grinding， Tooth shape accuracy conforms to DIN 5 level standard（GB/T 10096-2018 Same level），Cumulative pitch error≤0.022mm/300mm；The rack adopts modular mounting hole design，Support unlimited stroke splicing， Transmission clearance after splicing≤0.01mm，Suitable for long distance（≥10m）High-speed transmission scene，The transmission efficiency reaches 98%，The maximum operating line speed can reach 11m/s；With tooth back preloading structure， Achieve positioning accuracy ±20μm，Repeat positioning accuracy ±5μm，More traditional ball screw drive，under heavy load（≥5000N）、high frequency（≥1200 Second-rate /h）Under operating conditions， Improved transmission stability 40%，Noise reduced to≤65dB（A），Suitable for high-precision laser cutting、Continuous operation requirements such as CNC machining。
Put an end to false propaganda
| model | G12000 | G20000 | G30000 | G40000 | G50000 | G60000 |
|---|---|---|---|---|---|---|
| Laser power | 12000W | 20000W | 30000W | 40000W | 50000W | 60000W |
| Work surface size |
3000x1500mm 6000x1500mm 14000x1500mm 6000x2000mm 12000x2000mm 20000x2500mm 26000x3000mm 24000x3500mm 26000x3500mm 26000x4000mm |
3000x1500mm 6000x1500mm 14000x1500mm 6000x2000mm 12000x2000mm 20000x2500mm 26000x3000mm 24000x3500mm 26000x3500mm 26000x4000mm |
3000x1500mm 6000x1500mm 14000x1500mm 6000x2000mm 12000x2000mm 20000x2500mm 26000x3000mm 24000x3500mm 26000x3500mm 26000x4000mm |
3000x1500mm 6000x1500mm 14000x1500mm 6000x2000mm 12000x2000mm 20000x2500mm 26000x3000mm 24000x3500mm 26000x3500mm 26000x4000mm |
3000x1500mm 6000x1500mm 14000x1500mm 6000x2000mm 12000x2000mm 20000x2500mm 26000x3000mm 24000x3500mm 26000x3500mm 26000x4000mm |
3000x1500mm 6000x1500mm 14000x1500mm 6000x2000mm 12000x2000mm 20000x2500mm 26000x3000mm 24000x3500mm 26000x3500mm 26000x4000mm |
| Maximum cutting speed | 60m/min | 60m/min | 60m/min | 60m/min | 60m/min | 60m/min |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |

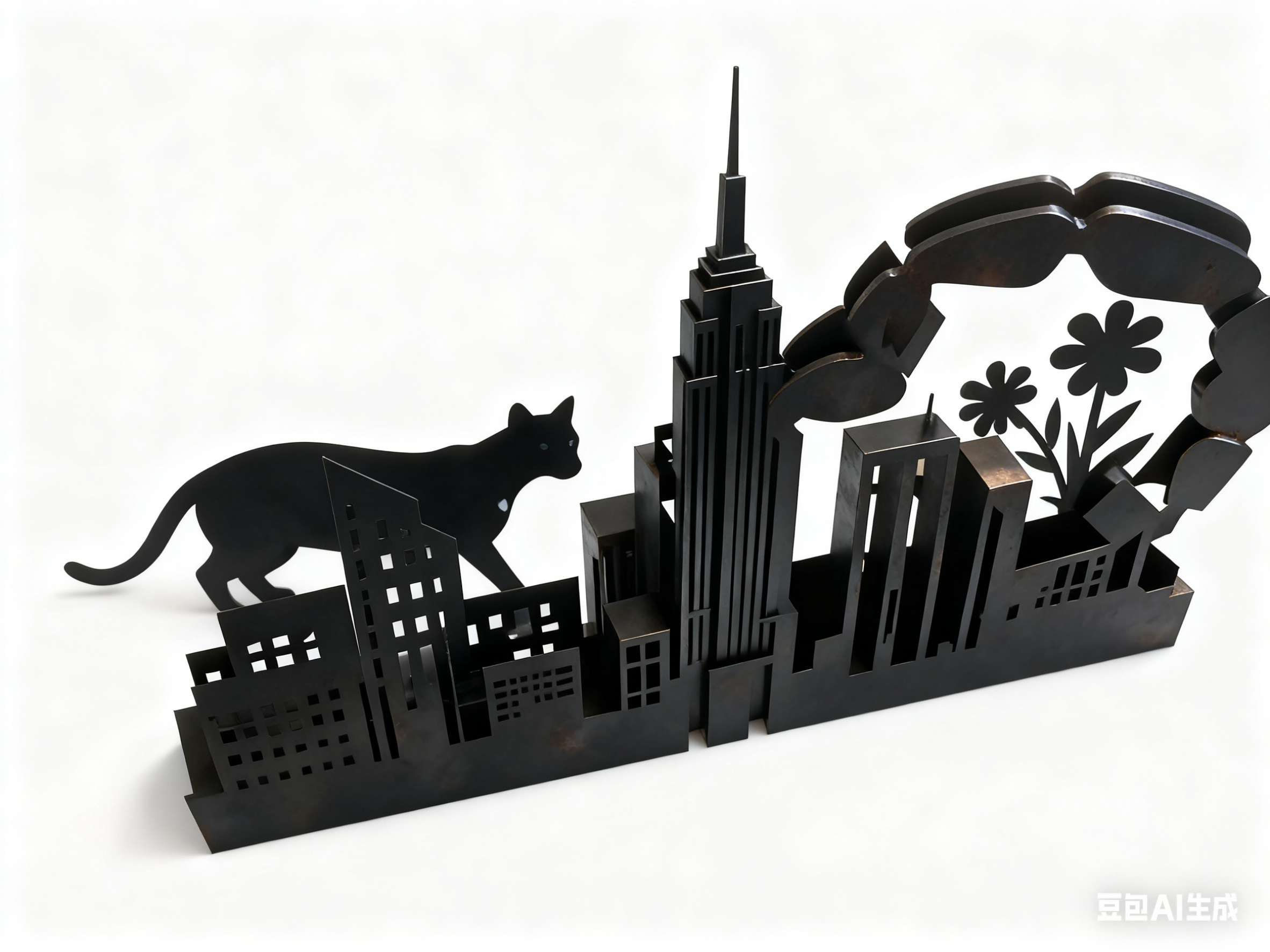

| Maximum cutting thickness for batch processing(carbon steel) | 35mm >(special circumstances45mm) | 50mm >(special circumstances70mm) | 50mm >(special circumstances70mm) | 50mm >(special circumstances70mm) | 55mm >(special circumstances75mm) | 60mm >(special circumstances80mm) |
| Maximum cutting thickness for batch processing(Stainless steel) | 25mm >(special circumstances40mm) | 35mm >(special circumstances50mm) | 40mm >(special circumstances55mm) | 50mm >(special circumstances70mm) | 55mm >(special circumstances75mm) | 60mm >(special circumstances80mm) |
| Maximum cutting thickness for batch processing(Aluminum alloy) | 18mm >(special circumstances22mm) | 30mm >(special circumstances50mm) | 30mm >(special circumstances50mm) | 40mm >(special circumstances60mm) | 50mm >(special circumstances70mm) | 60mm >(special circumstances80mm) |

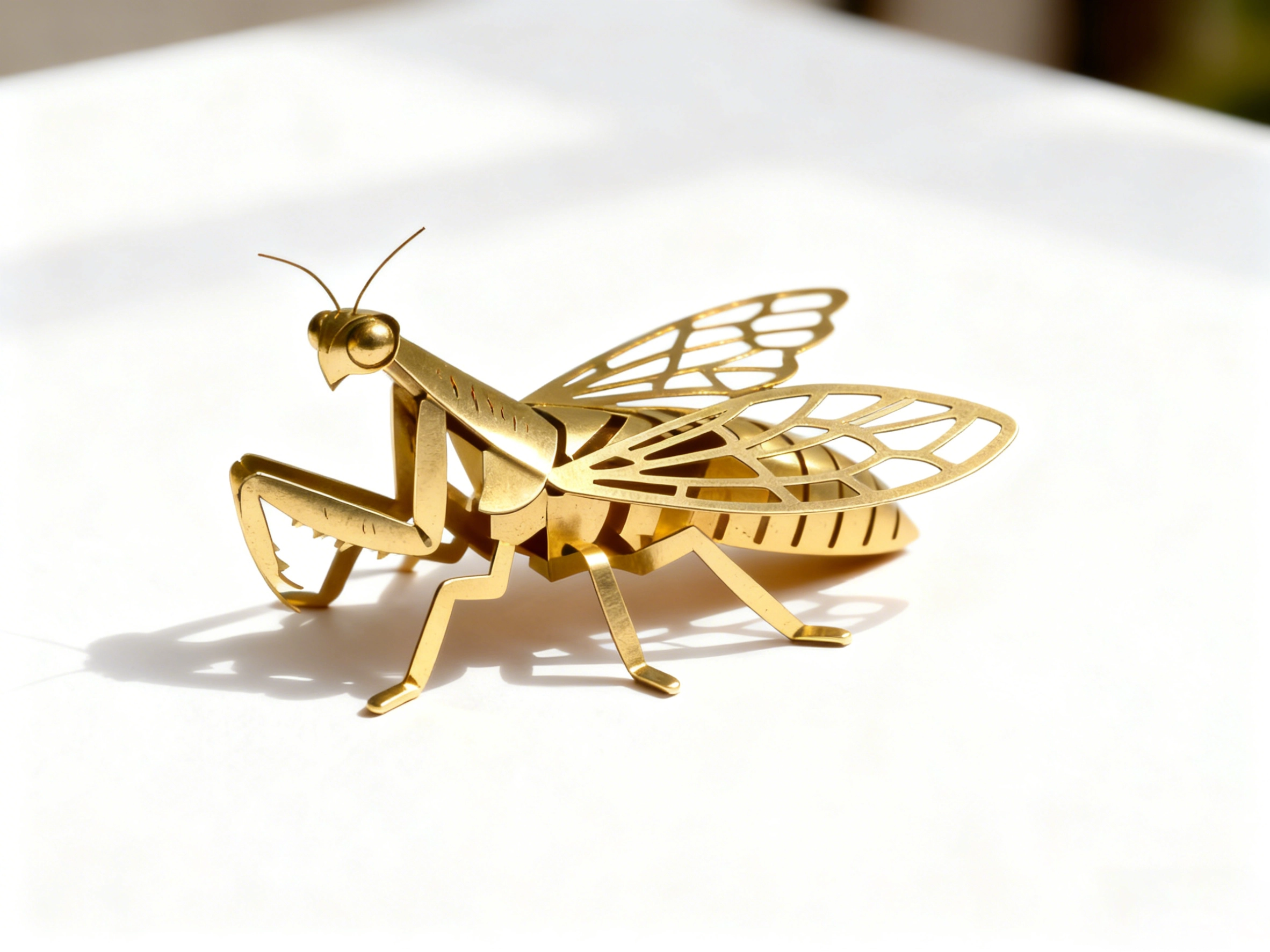

| Maximum cutting thickness for batch processing(copper) | 18mm >(special circumstances22mm) | 20mm >(special circumstances24mm) | 20mm >(special circumstances24mm) | 20mm >(special circumstances24mm) | 20mm >(special circumstances26mm) | 22mm >(special circumstances28mm) |
| Cooling method | water cooling | water cooling | water cooling | water cooling | water cooling | water cooling |
| power demand | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ |
| acceleration | 0.6G | 0.6G | 0.6G | 0.6G | 0.6G | 0.6G |
We are a precision sheet metal processing factory，Senrytech G Series laser cutting machines are amazing！Houda 12mm Steel plate cutting is fast and stable，Smooth incision without burrs，The error is controlled within 0.01mm Inside，More efficient than previous equipment 40%，The order delivery cycle is directly shortened by half！
Producing large-scale machinery parts，G The large countertop design of the series is so practical！2.5m×6m The plates do not need to be processed in sections，One-time molding rate 100%，Equipped with intelligent typesetting system，Improved material utilization 15%，Save a lot of raw material costs every month，Very stable，It has been running continuously for a week without any problems.！
We are a steel structure processing factory，Senrytech G The series is simply a tool for efficiency！20mm Cuts thick, high-strength steel plates faster than older equipment 50%，The incision is smooth and no secondary treatment is required，Large load-bearing design can easily handle ultra-wide plates，Direct increase in monthly production capacity 30%，So awesome！
Senrytech A
3000W The following are preferred，Original core parts will
not shrink！Tailored for start-ups，0.8G Stable acceleration
±0.05mm Accuracy，Lower the threshold for professional
cutting。
Senrytech B
12000Wpower ceiling！Lathe bed reinforced to resist
deformation，electricity Machine reducer power
doubled，1.5Gacceleration，Put medium thickness Board
cutting efficiency reaches new heights。
Senrytech B Plus
Side opening surround saves space！The loading table can be
pulled out manually，Suitable for small workshops，Double
optimization of safety and space utilization，Don't be
showy。
Senrytech B Pro
10 Extremely fast exchange and loading in seconds，Automatic and seamless connection between two stations，2.0G High acceleration realization equipment‘No downtime’Production，Directly double production capacity，Accurately solve the standby pain points of factory batch processing.
Senrytech B ProMax
Fully surrounded by sheet metal + International safety certification，Specifically customized for export companies！inherit B Pro 10 Loading in seconds + 2.0G Acceleration core advantages，Safety protection and production efficiency double standard，European market compliance is smooth，No additional premium。
Senrytech B Ultra
True fully automatic loading and unloading closed loop！Feeding、cutting、Fully independent cutting，Overlay full surround + High power，Taking laser-cut smart ceilings to new heights，The black light factory was launched directly。
Senrytech C
15 Ton load limit + Automatic material transfer system，0.5-2mm Aluminum coils are cut directly into sheets，1.0G Accelerate continuous production，Completely say goodbye to the cumbersome manual feeding，Provide efficient closed-loop solutions for aluminum products companies。
Senrytech G
12-14 meters long ground rail，12000-60000W Ultra high
power，Designed for large components、Heavy duty plate
cutting design，±0.05mm Precision ensures long-piece
processing quality。
Senrytech M
±8 Micron accuracy！Mini body takes up no space，Highest 6kW
power，Designed for precision parts processing，Small
stature hides real skills，Take precision cutting to the
extreme。
Senrytech S
Specialized C/H Section steel、Channel steel！14 Meters long
travel，Customized cutting paths，No fuss、No rework，Create
efficient special solutions for the steel structure
industry。
