Senrytech R 4in1 Four-in-one laser processing equipment | handheld welding gun+collaborative robot，Flexible production line solutions

Brush up on the key points first

Versatility and cost controllable in both directions

Senrytech Thin plate robot laser welding machine

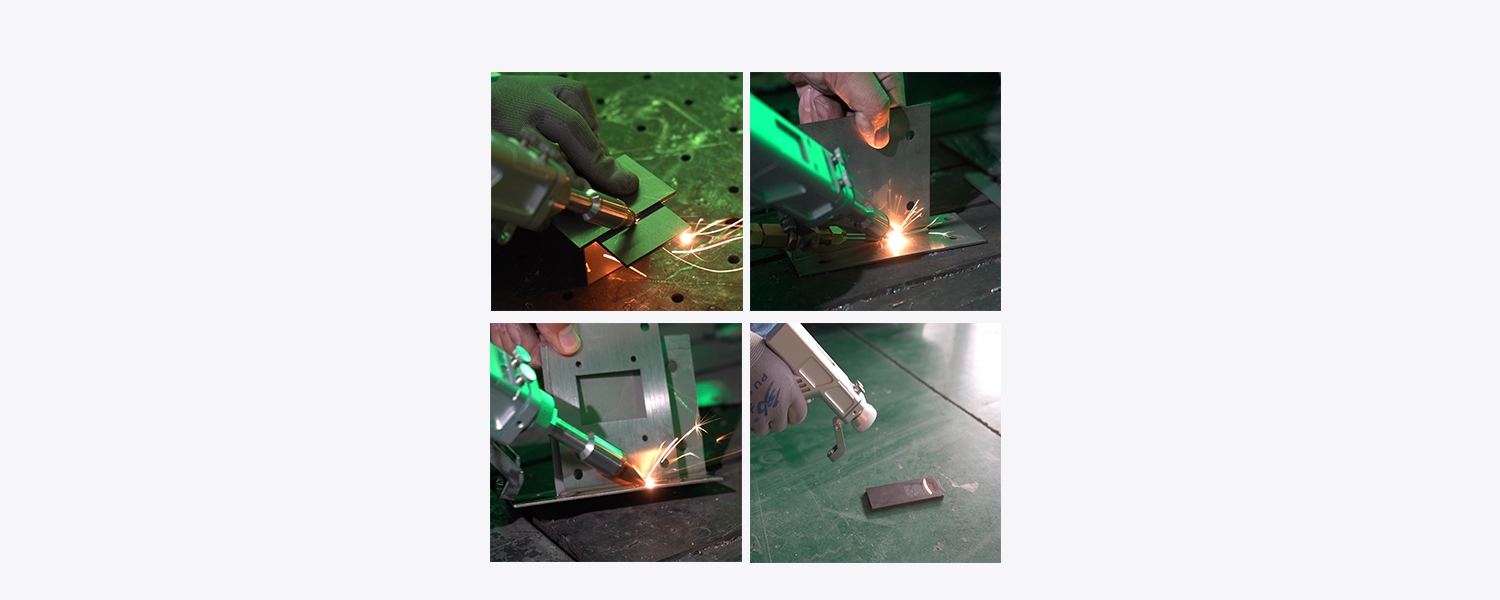

Four effects in one

One machine with multiple functions，Double leap in efficiency and value

set cutting、welding、Clean、Rust removal in one，Simplify operating procedures，Reduce equipment purchase and maintenance costs，Make production more efficient、more economical。

Senrytech 4 in 1 Robot laser welding machine wire feeder

Wire feeding is smooth and worry-free

multipath adaptation，Stable wire feeding without deviation

adaptation 0.8 / 1.0 / 1.2 / 1.6 / 2.0mm Full specification welding wire，Precise wire feeding without slipping，Ensure the welding process is stable and reliable。

Robot laser welding machine for small processing enterprises

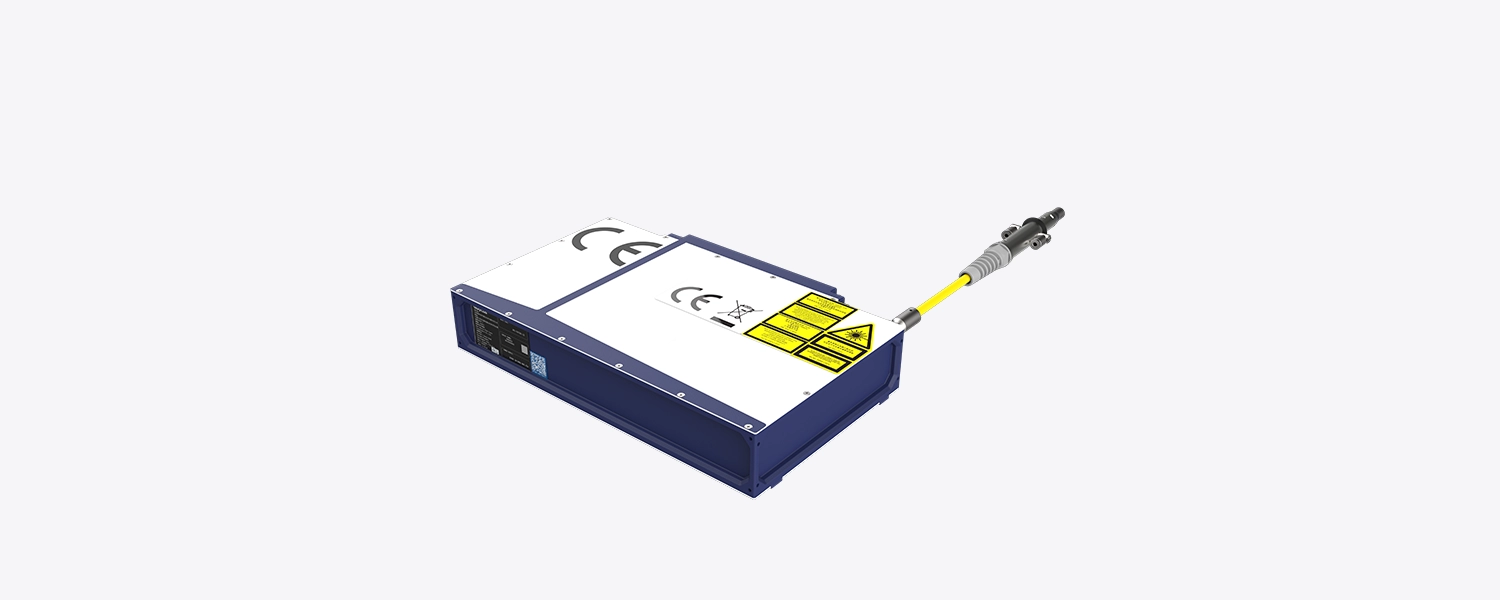

Stable beam output

Powerful and reliable，Long-term operation is more worry-free

Stable power output，Industrial grade durable design，Suitable for long-term continuous processing，Ensure production continuity and equipment life。

Design process

Stable light output
persistent job

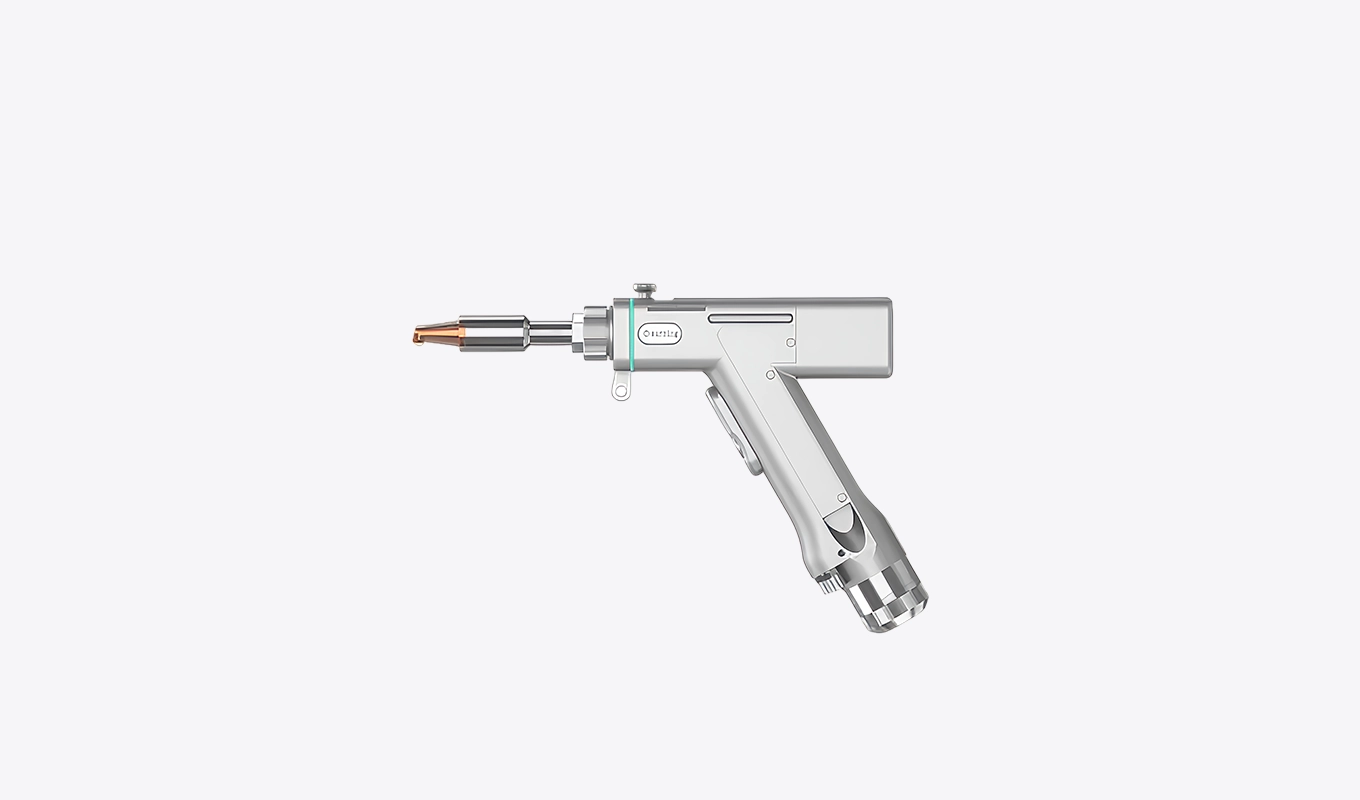

SUP23T The welding gun head adopts integrated precision optical design，Achieve high efficiency of laser energy through optimized optical path structure、stable transmission， Ensure precise beam focus during welding、Even energy distribution，Effectively improve weld penetration and forming quality。The main body of the gun head is made of aviation-grade aluminum alloy.， Precision CNC Machining and surface hardening，Combines lightweight and high rigidity，Can withstand long-term high-load operations。Built-in intelligent temperature control system and dual-circuit water cooling structure， Can quickly remove working heat，Avoid performance degradation of optical components due to overheating，Ensure the continuous and stable operation of equipment under harsh working conditions。 The gun head supports quick replacement of nozzles and protective lenses，Modular design significantly reduces maintenance costs and downtime；Compatible with lasers of multiple power levels simultaneously， Suitable for carbon steel、Stainless steel、Welding requirements for various materials such as aluminum alloys， Ideal core component for industrial laser welding applications。

Multiple welding method
Weld as you wish

This welding system supports stack welding、spot welding、butt welding、tower welding、splice welding、T Type welding and other welding forms，Through precise beam control and process parameter optimization， Achievable for different materials、Efficient welding of different structural parts。Whether it is tight fusion of thin plate stack welding、T Type welded high-strength connection，Or the splicing and molding of complex structural parts?， All can ensure that the welding seam is beautifully formed.、Stable mechanical properties。The system’s built-in process database and intelligent adjustment algorithm，Can automatically match the best parameters according to welding form and material properties， Significantly lower the operating threshold，Improve production efficiency and process consistency，Is the ideal solution to meet diversified industrial welding needs。

Senrytech Robotic multi-element laser welding machine

One tool talks too much
Efficient work（Not all standard configuration）

This series of nozzles are specially customized for four-in-one laser welding machines，Precision processed from high-purity copper material，Excellent thermal conductivity and high temperature resistance， Adaptable to cutting、welding、Weld cleaning、Different process requirements such as rust removal。Nozzles of different specifications through optimized hole diameter and structural design， Accurately matches the beam focusing requirements of the corresponding process，Ensure efficient energy transfer、Stablize，Effectively improve processing accuracy and molding quality。

One machine collaboration
Smart welding

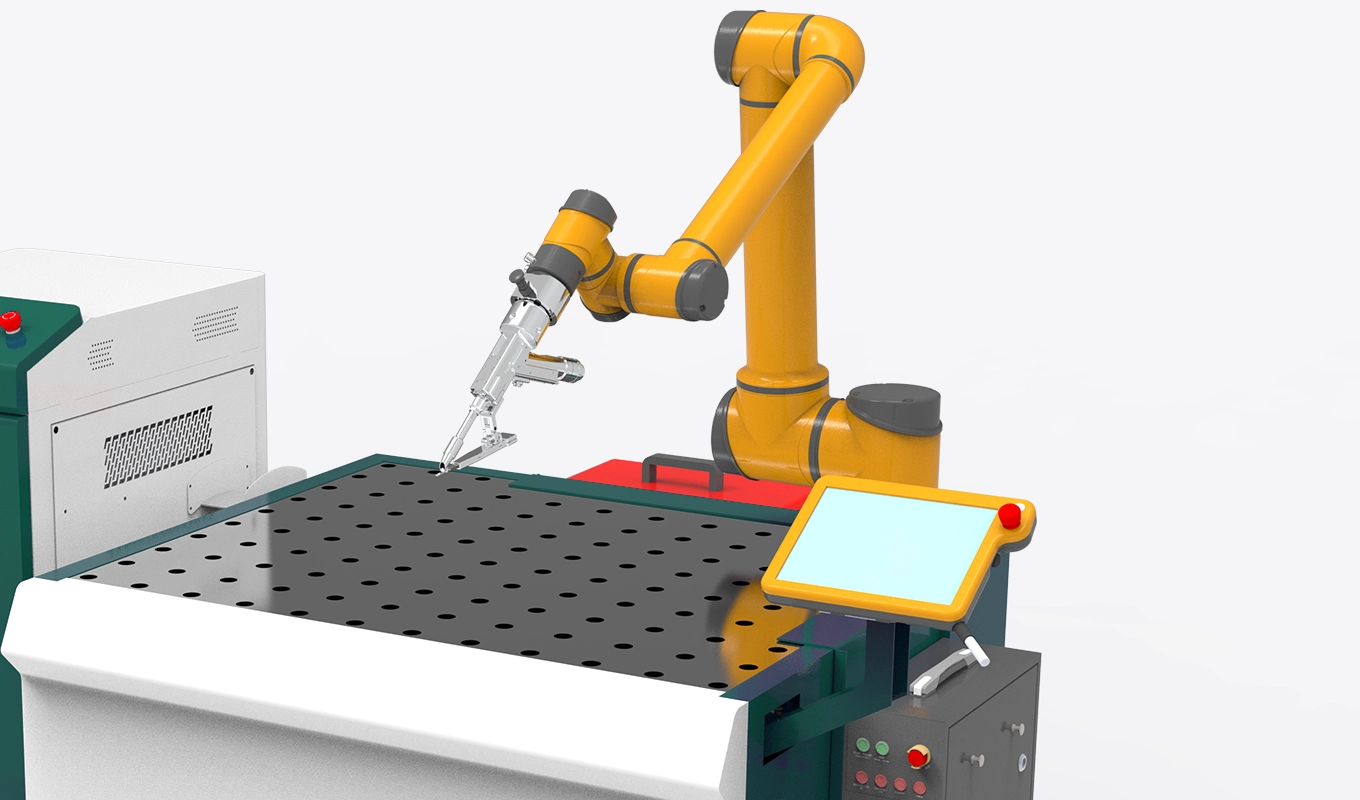

Equipped with high-precision welding robot arm，With flexible motion control and intelligent following algorithm，Realize complex trajectory automated welding operations， Support continuous welding、spot welding、Weaving and other modes，Greatly improve welding consistency and stability。 The robot arm can flexibly adapt to different workpiece angles and spatial positions，Reduce manual dependence，Improve production line automation level and production efficiency。

Technical parameters

model	R15 4in1	R20 4in1	R30 4in1
Laser maximum power	1500W	2000W	3000W
Function	welding / cutting / Welding slag removal / rust removal	welding / cutting / Welding slag removal / rust removal	welding / cutting / Welding slag removal / rust removal
Weld width	0-8mm	0-8mm	0-8mm
Wire feeding method	single wire feed Double wire feed（Optional）	single wire feed Double wire feed（Optional）	single wire feed Double wire feed（Optional）
Welding wire diameter	0.8 / 1.0 / 1.2 / 1.6 / 2.0mm	0.8 / 1.0 / 1.2 / 1.6 / 2.0mm	0.8 / 1.0 / 1.2 / 1.6 / 2.0mm
Maximum welding thickness(carbon steel)	4mm	6mm	8mm
Maximum welding thickness(Stainless steel)	4mm	6mm	8mm
Maximum welding thickness(aluminum)	3mm	5mm	6mm
Cooling method	water cooling	water cooling	water cooling
power demand	220V/3PH 50/60HZ	220V/3PH 50/60HZ	220V/3PH 50/60HZ
size	900x750x1000mm	900x750x1000mm	1250x750x1000mm

Parameter data is based on standard test environment，Actual use may vary depending on material properties、Operating conditions vary slightly

Customer testimonials

Our workshop previously welded、cutting、Slag cleaning needs to be completed by three pieces of equipment，The production line occupies a large area、It takes time to change the process，Labor costs also remain high。introduce Senrytech R 4in1 back，One piece of equipment can cover the entire process，The model of collaborative robot paired with handheld welding gun is too flexible —— Batch standardized welding is handed over to robots，Special-shaped parts、Small batch custom processing can be done by switching to a handheld welding gun，No need to repeatedly debug the production line。1500-3000W The power adjustability also adapts to our different processing needs from thin steel plates to thick carbon steel.，Put into production 3 months，Production line flexibility has been improved 60%，Comprehensive processing costs have been reduced by nearly 30%，completely exceeded expectations！

Mr. Chen

Auto parts processing companies・Production Director

Welding of structural parts of engineering machinery、Slag cleaning conditions are complex，Extremely high requirements for accuracy and efficiency。Senrytech R 4in1 The automated operation capabilities solve our biggest pain points：The positioning accuracy of collaborative robots can reach ±0.1mm，Welding consistency far exceeds that of any other job，The slag cleaning process can also be completed automatically，Completely say goodbye to the dust and inefficiency of manual slag cleaning。And the equipment power can be flexibly adjusted，Accurately matching parameters for base materials of different thicknesses，This avoids burning through the workpiece due to excessive power.，There will also be no incomplete processing due to insufficient power.。Compared with traditional single-function laser equipment，Shortened changeover time 80%，Single-shift productivity increased 40%，The equipment is very cost-effective and practical.。

Ms. Liu

Engineering machinery manufacturing company・process engineer

Our factory used to do welding、cutting、Clean slag、Polishing required several pieces of equipment.，Not only takes up space，It takes half an hour for workers to change processes and adjust machines.。On R 4in1 after，One device to do it all，Especially the welding robot arm is so practical —— Batch standard parts are handed over to robots for automatic welding，The accuracy can be stable ±0.1mm，It is also easy to switch to handheld mode for small batches of special-shaped parts，1500-3000W Power adjustable，Both thin aluminum plates and thick carbon steel can be welded。Now the single-shift production capacity has been increased 40%，The equipment occupies less than half the area，Labor costs can be saved nearly every month 2 Ten thousand，The price/performance ratio is nothing to say！
