mass production efficiency
Single switching station support
15Quick exchange in seconds，Seamless switching between double loading tables，Reduce standby time to a minimum。

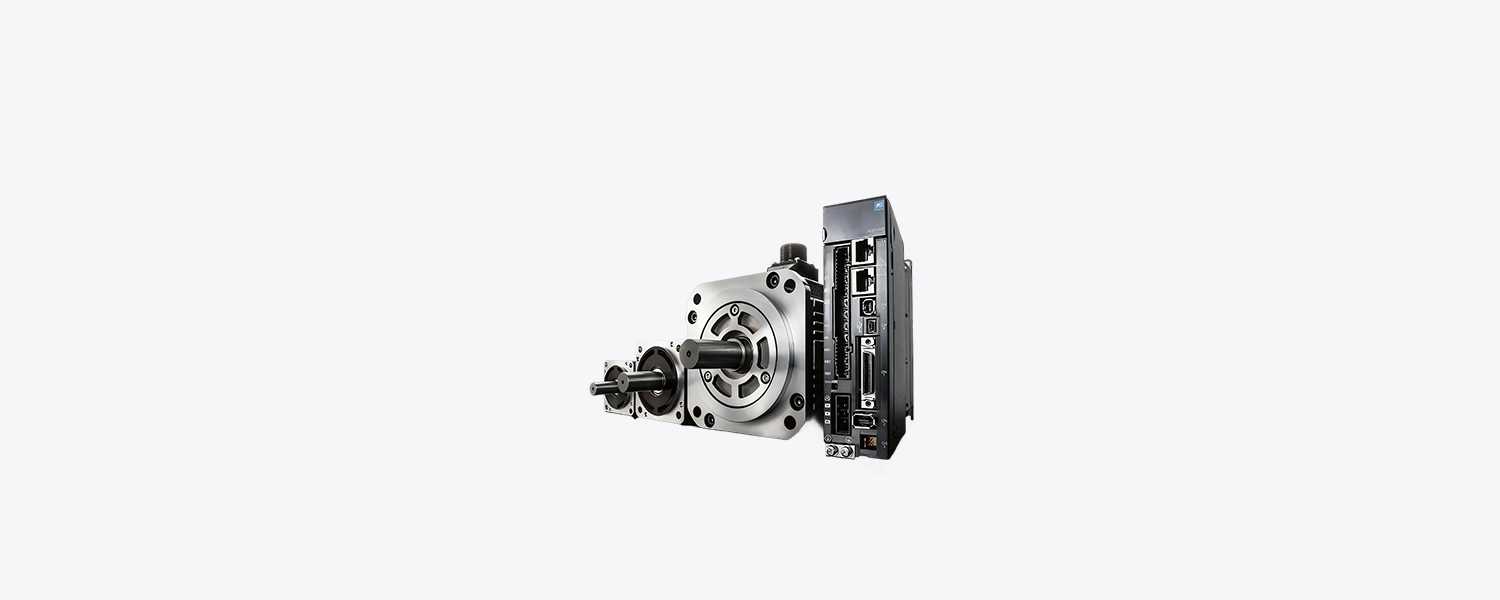

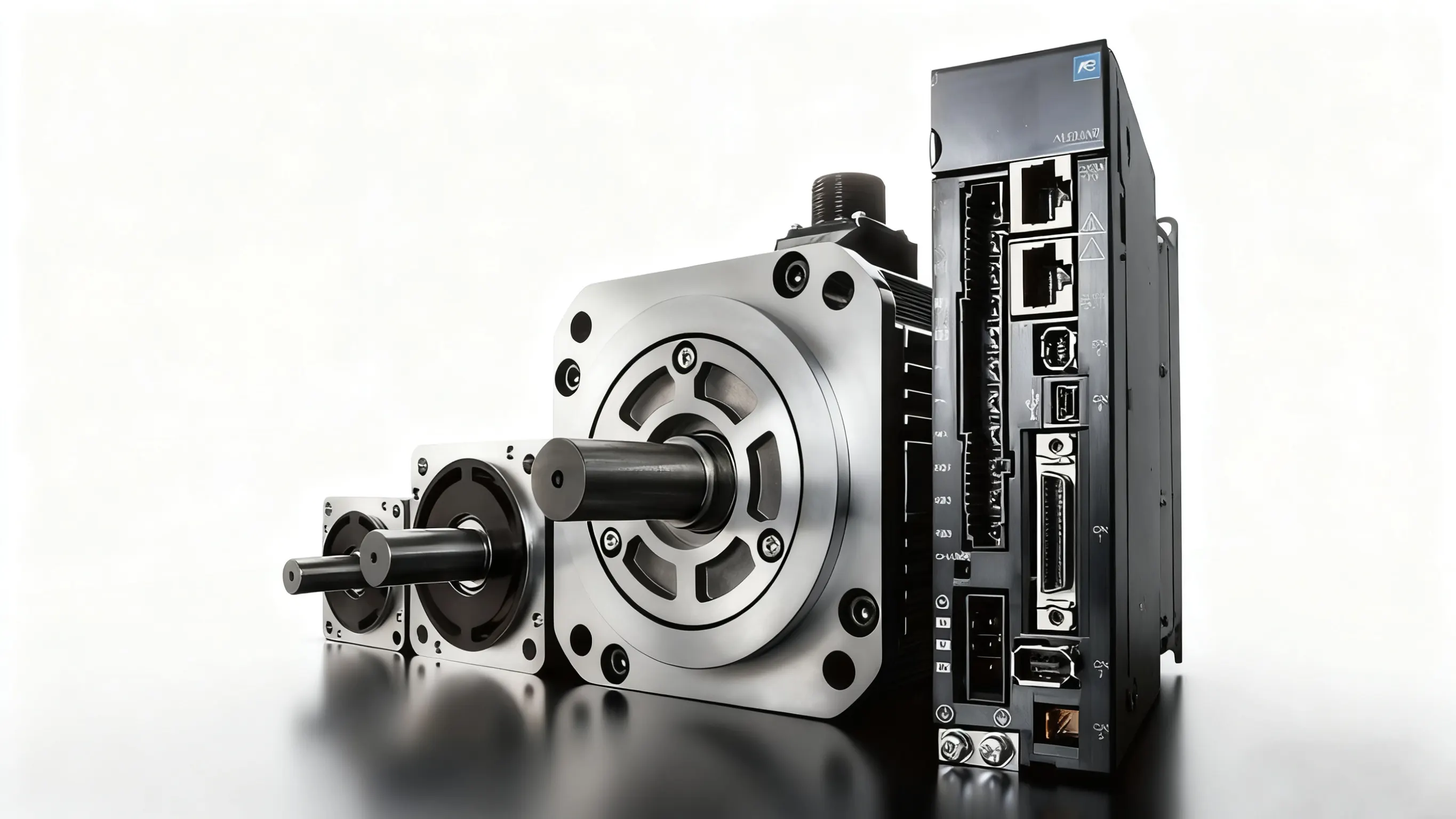

Core power servo motor
Strong power + A new benchmark for precision controlled industrial drives。
Insensitive perforation technology
Improved perforation efficiency 20% above，Saves time compared to traditional preheating perforation 80%，Cooperate ±0.03mm Level repeat positioning accuracy，Achieve the unity of efficiency and precision。

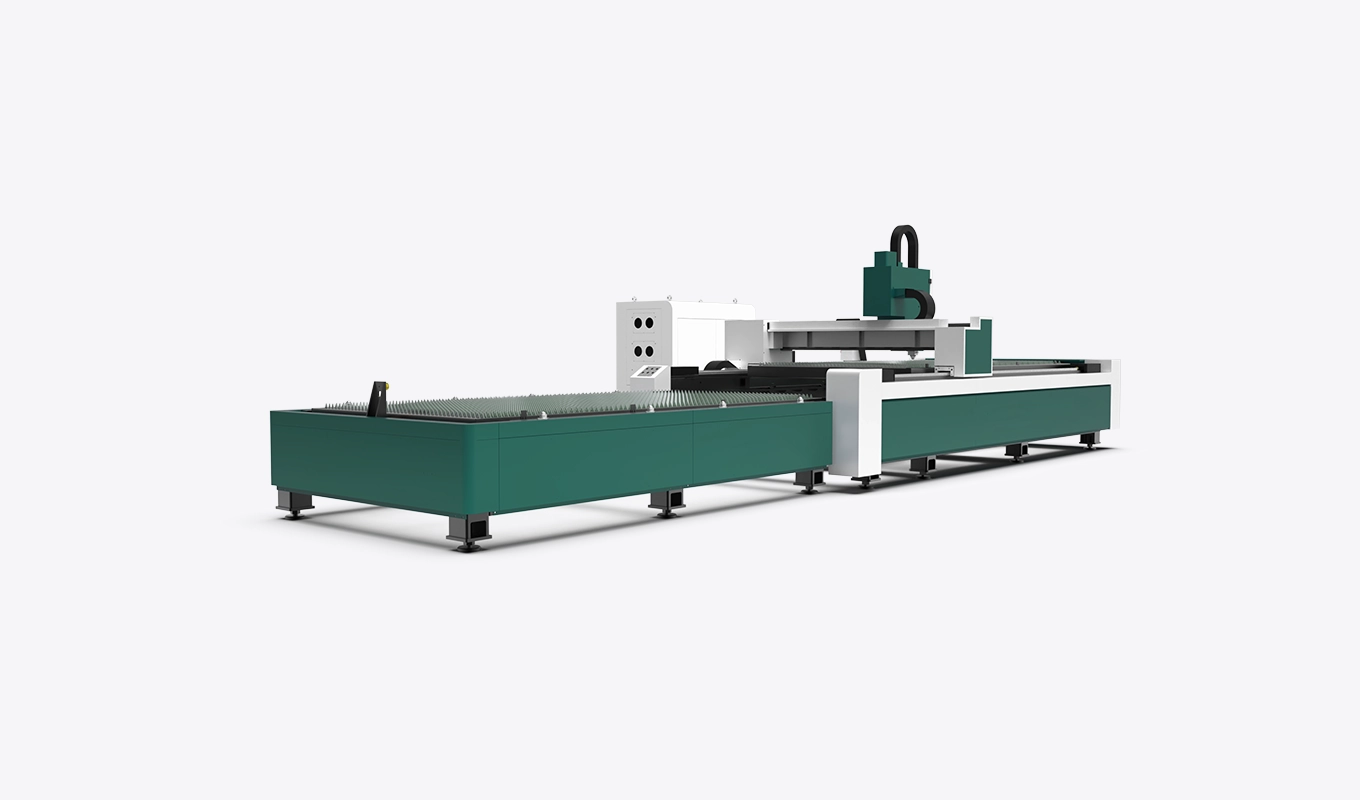

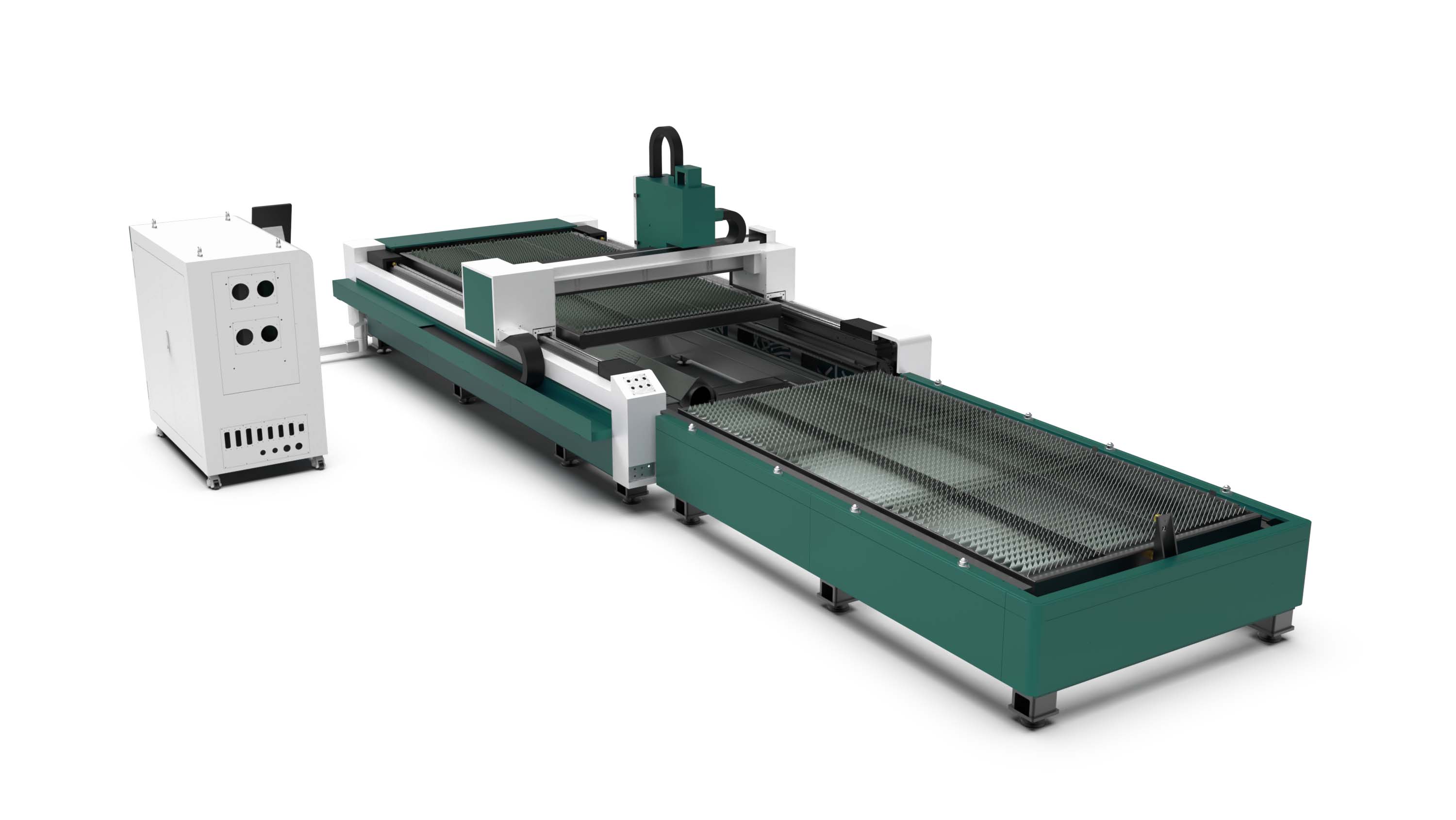

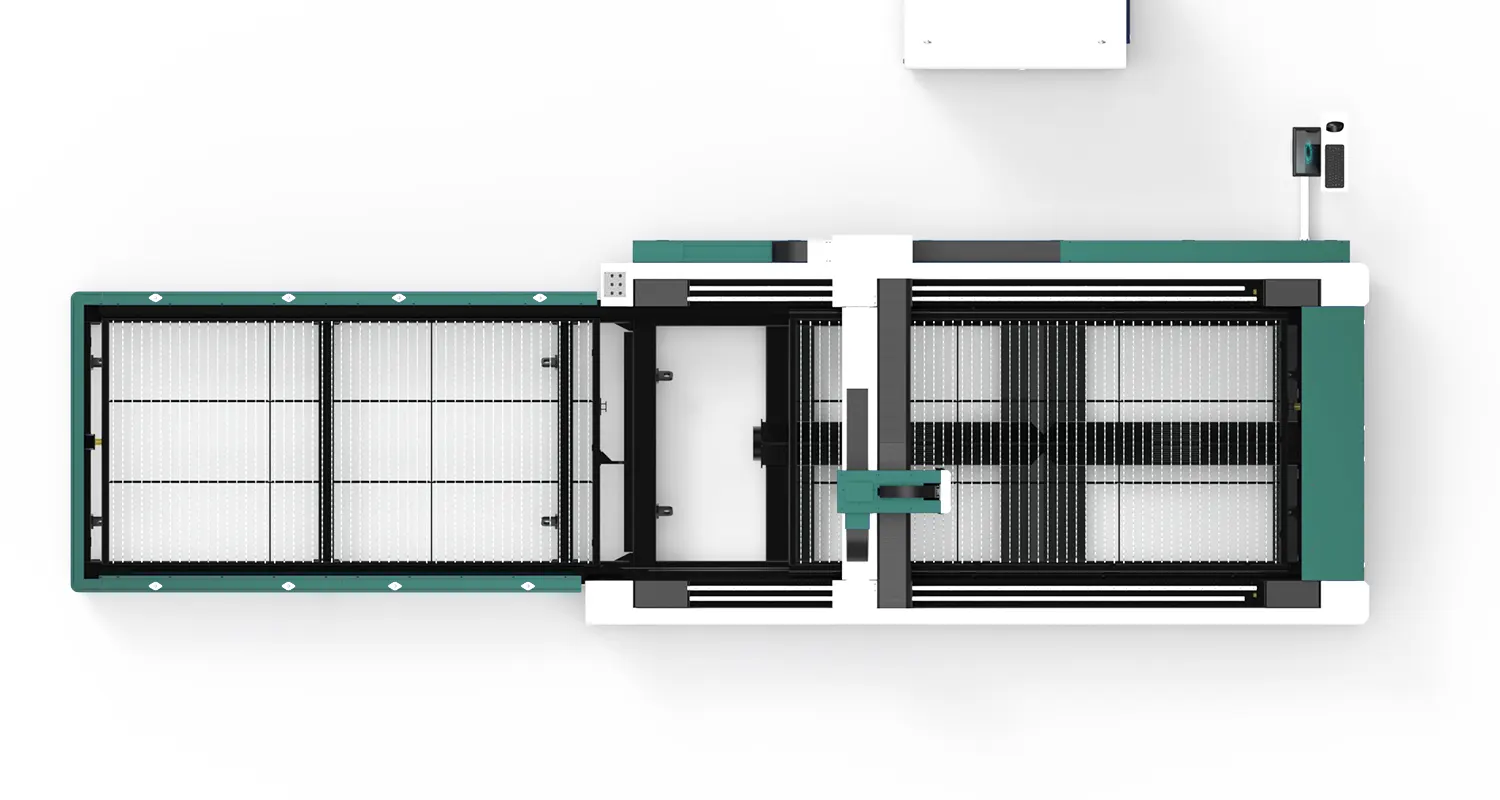

Extremely fast feeding
Efficiency soars
Adopt intelligent linkage design of switching platform，Relying on high-speed transmission and precise positioning system，accomplish15 Extremely fast feeding in seconds，Effectively avoid waiting in the traditional loading process、Problems such as time-consuming alignment。 The platform is made of lightweight high-strength alloy material，Cooperate with servo drive fast response mechanism，Switching rhythm is stable and controllable，Loading repeat accuracy deviation≤±0.5mm。 The exchange platform loading solution，Improved efficiency compared with conventional manual loading80%above，Equipment standby time is reduced to industry-leading levels，Can meet high batch size、Fast-turnover continuous production conditions， Platform operation smoothness approaches optimal under high-speed switching state，Ensure there are no breakpoints in material connection，Adapt to high-frequency processing needs，Combines operational convenience and production efficiency。
Precision transmission
Best Performance

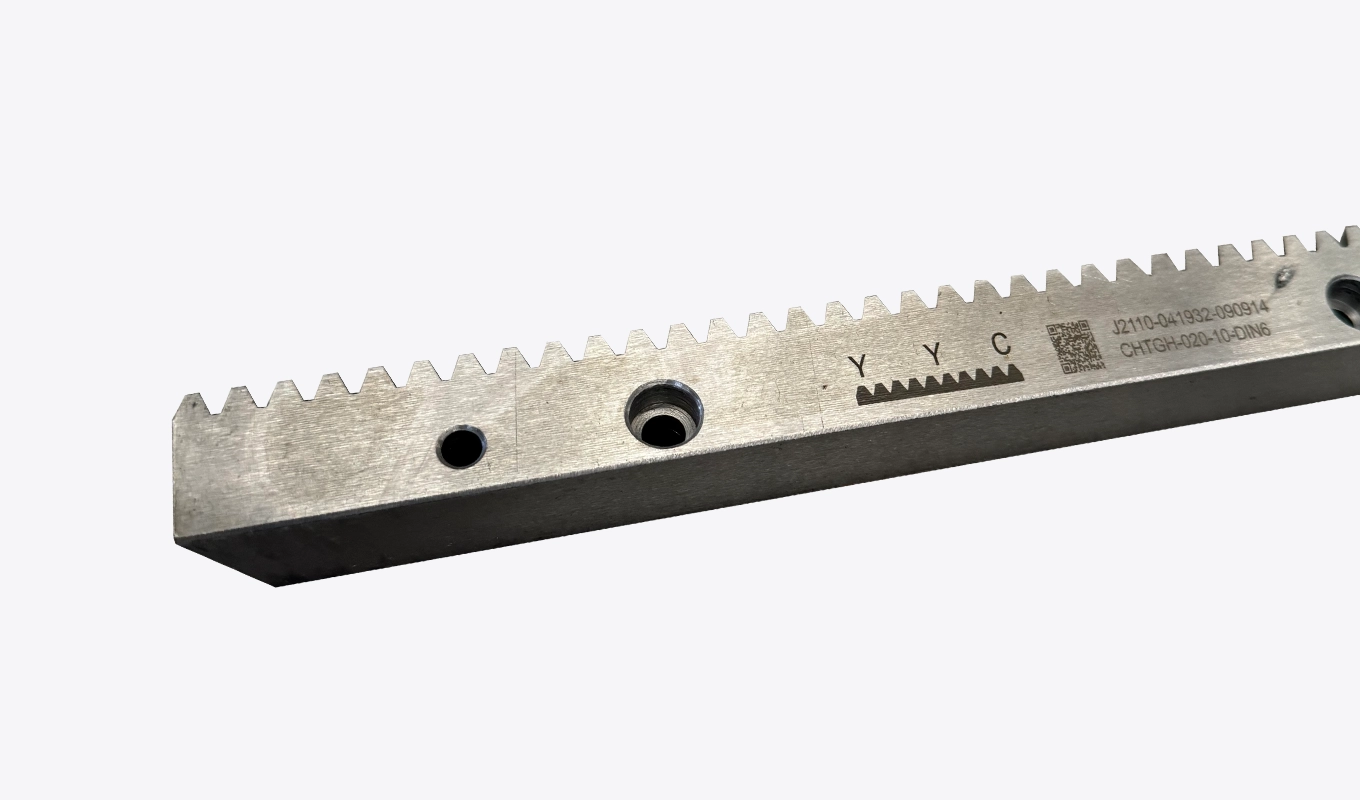

useYYCPrecision rack brand，Relying on grinding gear making process and high frequency quenching treatment，Tooth surface hardness reaches HRC42-55，Tooth shape accuracy conforms to DIN5 level standard，Cumulative error≤0.022mm/300mm。 Rack body selection S45C Medium carbon steel base material，With modular installation hole design，Support unlimited stroke splicing，Adapted to long-distance transmission scenarios。 The precision rack transmission efficiency is as high as 98%，High speed operation up to 11m/s，Combined with low friction、Low noise characteristics； Zero backlash structure achieves positioning accuracy ±20 Micron，More traditional transmission parts（such as ball screw）More suitable for high-precision processing conditions。 under heavy load、long trip、Under high-frequency operation conditions，Still maintaining transmission stability and positioning accuracy，Meet the continuous operational needs of high-precision manufacturing。

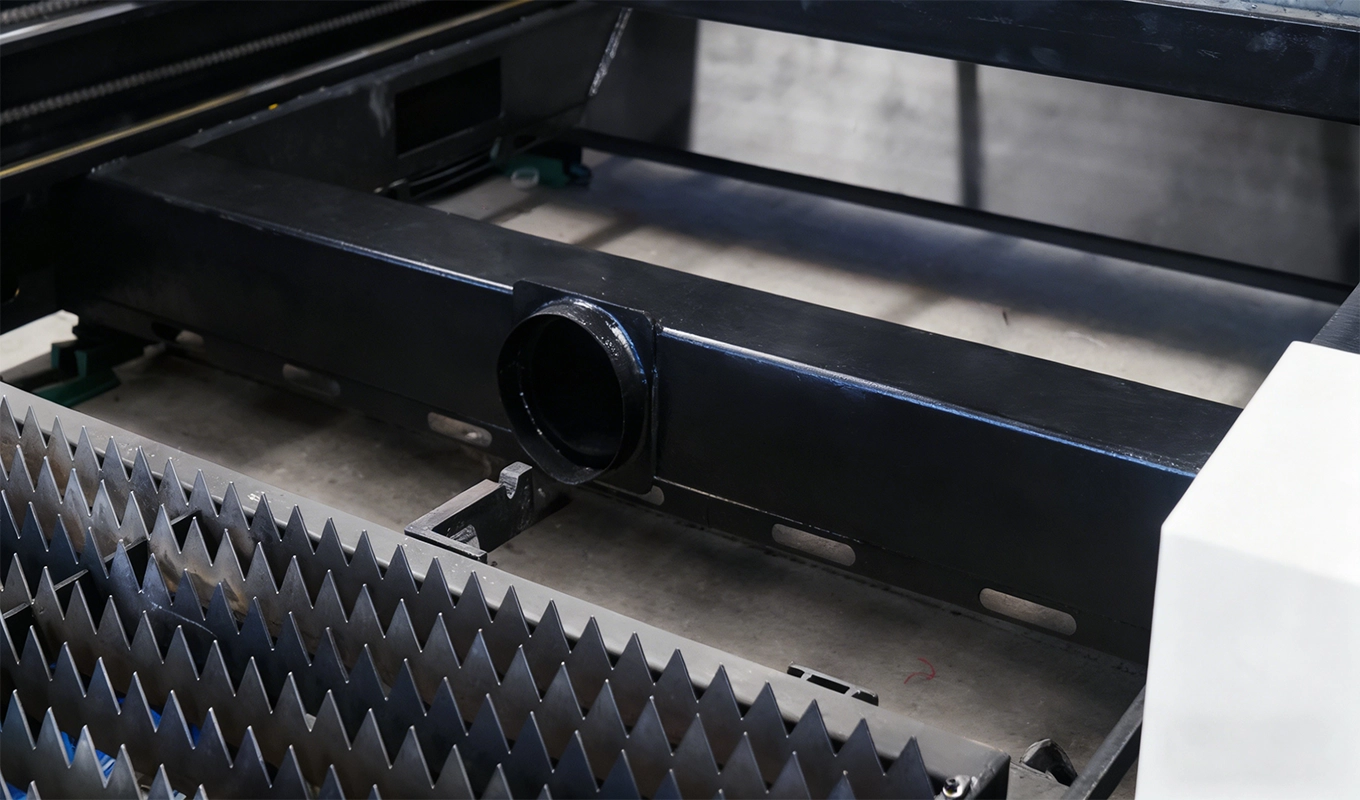

Zone dust removal
Clean intelligent control
use “cutting area + Smoke exhaust area + console” Three-level zoning dust removal design：The cutting area is equipped with a follow-up suction hood（Follow the movement of the cutting head，Air volume≥6000m³/h）， Targeted capture of metal smoke generated at the moment of cutting；The smoke exhaust area relies on overhead air ducts + High efficiency filter cartridge（Filtering precision 0.3μm），Intercepting fine dust； Side-suction low-power fans are used in the console area，Keep the environment clean。The system is equipped with a smoke concentration sensor，Each partition starts and stops independently / Shift，Energy consumption is lower than traditional single-fan dust removal 35%。
Put an end to false propaganda
| model | B20 Pro | B30 Pro | B60 Pro | B120 Pro |
|---|---|---|---|---|
| Laser power | 2000W | 3000W | 6000W | 12000W |
| Work surface size |
1510x3050mm 1510x6050mm 2000x4050mm 2510x6030mm |
1510x3050mm 1510x6050mm 2000x4050mm 2510x6030mm |
1510x3050mm 1510x6050mm 2000x4050mm 2510x6030mm |
1510x3050mm 1510x6050mm 2000x4050mm 2510x6030mm |
| Maximum cutting speed | 92m/min | 92m/min | 92m/min | 92m/min |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |

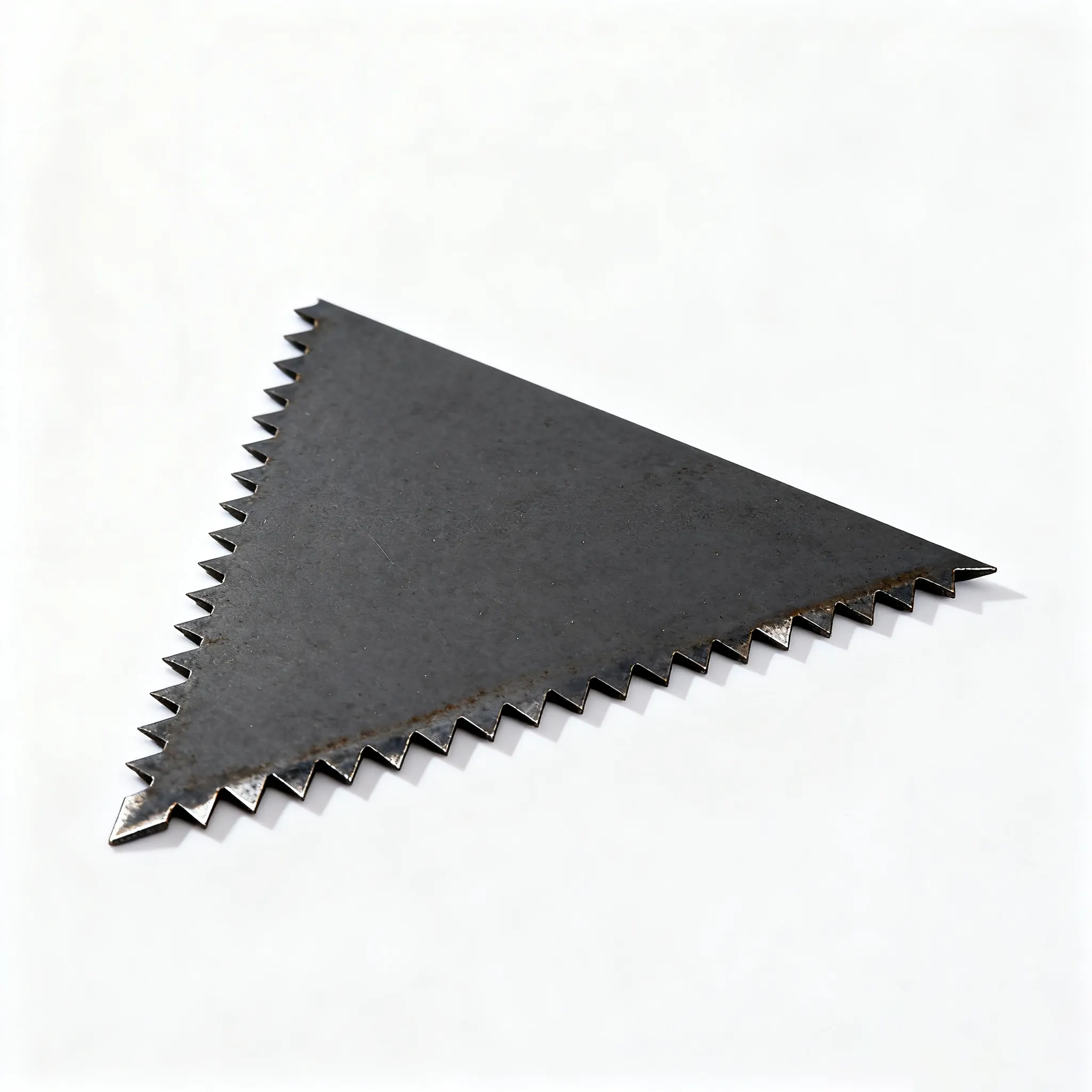

| Maximum cutting thickness for batch processing(carbon steel) | 16mm (special circumstances20mm) | 18mm (special circumstances25mm) | 22mm (special circumstances25mm) | 35mm (special circumstances45mm) |
| Maximum cutting thickness for batch processing(Stainless steel) | 6mm (special circumstances10mm) | 8mm (special circumstances12mm) | 14mm (special circumstances20mm) | 25mm (special circumstances40mm) |
| Maximum cutting thickness for batch processing(Aluminum alloy) | 4mm (special circumstances6mm) | 4mm (special circumstances8mm) | 10mm (special circumstances16mm) | 18mm (special circumstances22mm) |

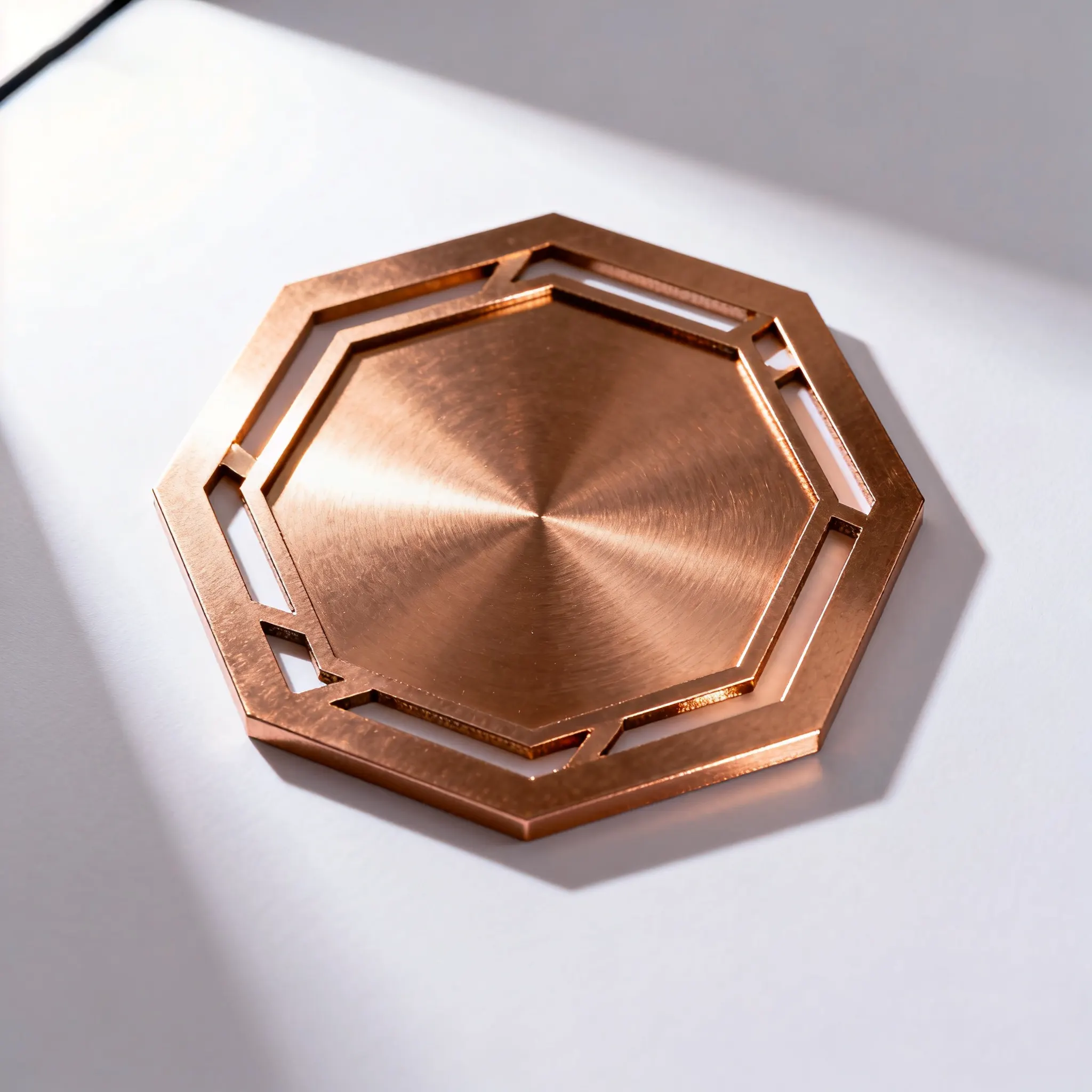

| Maximum cutting thickness for batch processing(copper) | 4mm (special circumstances6mm) | 4mm (special circumstances8mm) | 10mm (special circumstances16mm) | 18mm (special circumstances22mm) |
| Cooling method | water cooling | water cooling | water cooling | water cooling |
| power demand | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ |
| acceleration | 1.5G | 1.5G | 1.5G | 1.5G |
As a company engaged in precision sheet metal processing，We have particularly high requirements for equipment stability。B Pro The automatic exchange platform allows us to say goodbye to the cumbersome process of traditional processing. —— Previous platform while cutting，You can prepare ingredients in advance for the next platform，Seamless connection with almost zero waiting。It has been running for more than half a year，Never had any trouble，The smoothness of the cutting surface is much better than the previous equipment.，There are fewer complaints from customers about product quality.。This is good equipment that can really help companies reduce costs and increase efficiency.。
自从车间换上了 Senrytech B Pro Series laser cutting machine，The design with automatic switching platform really solved our big problem。In the past, loading and unloading of plates always had to be stopped and waited.，Now the machine can complete platform switching by itself，I can cut several more batches of ingredients throughout the day.。There is nothing to say about the cutting accuracy.，Can handle both thick and thin plates stably，It is also easy for workers to operate，Now even novices can get started quickly。This equipment is worth buying，Production efficiency increased by at least 30%！
At first, I was worried whether the automatic exchange platform would be complicated.，After using it, I realized that I was worrying too much.。B Pro The platform switching response is particularly fast，And the positioning is precise，There is no need to worry about plate offset affecting cutting accuracy.。We mainly process stainless steel plates，In the past, two people were too busy managing one computer.，Now one person can easily take care of it，Can also handle other processes at the same time。Saved labor costs and time costs，It didn’t take long to earn back the difference in price of the equipment.，I sincerely recommend it to colleagues who have mass production needs.！
Senrytech A
3000W The following are preferred，Original core parts will
not shrink！Tailored for start-ups，0.8G Stable acceleration
±0.05mm Accuracy，Lower the threshold for professional
cutting。
Senrytech B
12000Wpower ceiling！Reinforced bed to resist
deformation，electricity Machine reducer power
doubled，1.5Gacceleration，Put medium thickness Board
cutting efficiency reaches new heights。
Senrytech B Plus
Side opening surround saves space！The loading table can be
pulled out manually，Suitable for small workshops，Double
optimization of safety and space utilization，Don't be
showy。
Senrytech B ProMax
Fully surrounded by sheet metal + International safety certification，Specifically customized for export companies！inherit B Pro 10 Loading in seconds + 2.0G Acceleration core advantages，Safety protection and production efficiency double standard，European market compliance is smooth，No additional premium。
Senrytech B Ultra
True fully automatic loading and unloading closed loop！Feeding、cutting、Fully independent cutting，Overlay full surround + High power，Taking laser-cut smart ceilings to new heights，The black light factory was launched directly。
Senrytech C
15 Ton load limit + Automatic material transfer system，0.5-2mm Aluminum coils are cut directly into sheets，1.0G Accelerate continuous production，Completely say goodbye to the cumbersome manual feeding，Provide efficient closed-loop solutions for aluminum products companies。
Senrytech G
12-14 meters long ground rail，12000-60000W Ultra high
power，Designed for large components、Heavy duty plate
cutting design，±0.05mm Precision ensures long-piece
processing quality。
Senrytech M
±8 Micron accuracy！Mini body takes up no space，Highest 6kW
power，Designed for precision parts processing，Small
stature hides real skills，Take precision cutting to the
extreme。
Senrytech S
Specialized C/H Section steel、Channel steel！14 Meters long
travel，Customized cutting paths，No fuss、No rework，Create
efficient special solutions for the steel structure
industry。
