Senrytech A Pro Series laser welding machine | Three-level power adjustable split welding equipment

Brush up on the key points first

Versatility and cost controllable in both directions

Senrytech A PROSeries of medium-sized enterprise laser welding machines

Four effects in one

One machine with multiple functions，Double leap in efficiency and value

set cutting、welding、Clean、Rust removal in one，Simplify operating procedures，Reduce equipment purchase and maintenance costs，Make production more efficient、more economical。

Senrytech A PROSeries of multi-scenario manufacturing laser welding machines

Wire feeding is smooth and worry-free

multipath adaptation，Stable wire feeding without deviation

adaptation 0.8 / 1.0 / 1.2 / 1.6 / 2.0mm Full specification welding wire，Precise wire feeding without slipping，Ensure the welding process is stable and reliable。

Senrytech A PROseries1500-3000W Laser welding machine

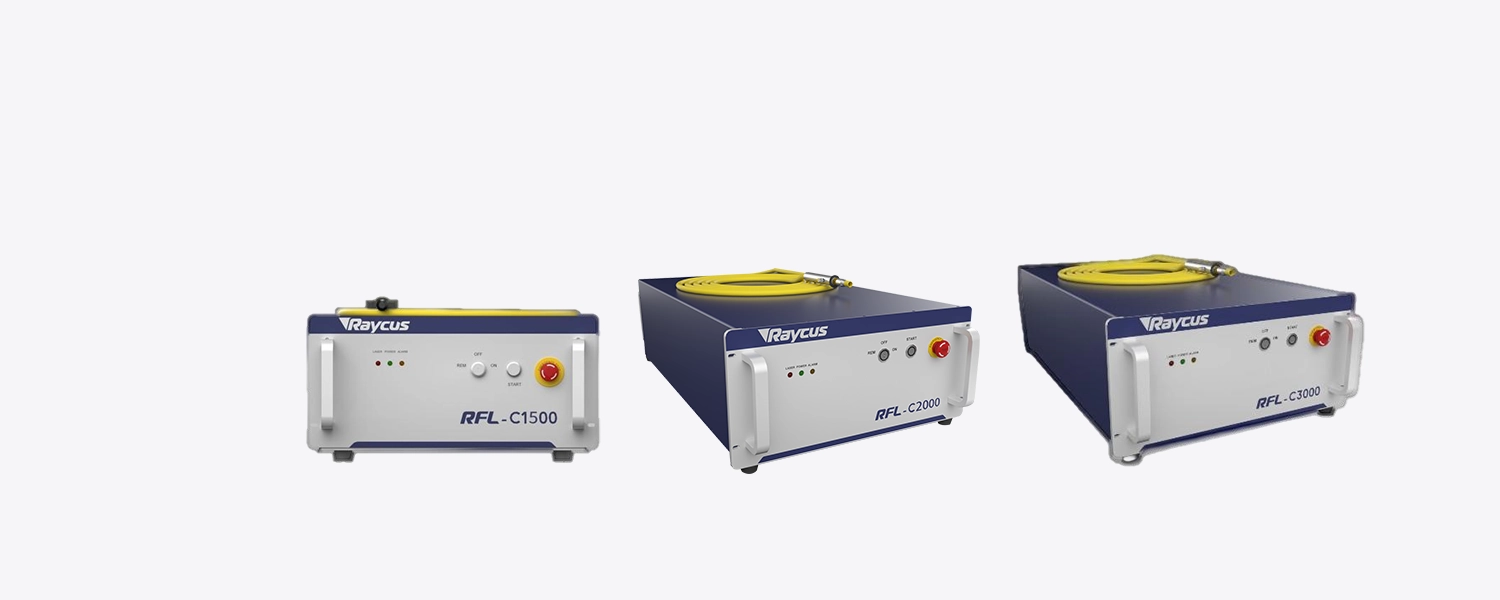

Stable beam output

Powerful and reliable，Long-term operation is more worry-free

Stable power output，Industrial grade durable design，Suitable for long-term continuous processing，Ensure production continuity and equipment life。

Design process

Stable light output
persistent job

SUP23T The welding gun head adopts integrated precision optical design，Achieve high efficiency of laser energy through optimized optical path structure、stable transmission， Ensure precise beam focus during welding、Even energy distribution，Effectively improve weld penetration and forming quality。The main body of the gun head is made of aviation-grade aluminum alloy.， Precision CNC Machining and surface hardening，Combines lightweight and high rigidity，Can withstand long-term high-load operations。Built-in intelligent temperature control system and dual-circuit water cooling structure， Can quickly remove working heat，Avoid performance degradation of optical components due to overheating，Ensure the continuous and stable operation of equipment under harsh working conditions。 The gun head supports quick replacement of nozzles and protective lenses，Modular design significantly reduces maintenance costs and downtime；Compatible with lasers of multiple power levels simultaneously， Suitable for carbon steel、Stainless steel、Welding requirements for various materials such as aluminum alloys， Ideal core component for industrial laser welding applications。

Senrytech A PROseries Split chassis laser welding machine

Multiple welding method
Weld as you wish

This welding system supports stack welding、spot welding、butt welding、tower welding、splice welding、T Type welding and other welding forms，Through precise beam control and process parameter optimization， Achievable for different materials、Efficient welding of different structural parts。Whether it is tight fusion of thin plate stack welding、T Type welded high-strength connection，Or the splicing and molding of complex structural parts?， All can ensure that the welding seam is beautifully formed.、Stable mechanical properties。The system’s built-in process database and intelligent adjustment algorithm，Can automatically match the best parameters according to welding form and material properties， Significantly lower the operating threshold，Improve production efficiency and process consistency，Is the ideal solution to meet diversified industrial welding needs。

Senrytech A PROseries Thick plate laser welding machine

One tool talks too much
Efficient work（Not all standard configuration）

This series of nozzles are specially customized for four-in-one laser welding machines，Precision processed from high-purity copper material，Excellent thermal conductivity and high temperature resistance， Adaptable to cutting、welding、Weld cleaning、Different process requirements such as rust removal。Nozzles of different specifications through optimized hole diameter and structural design， Accurately matches the beam focusing requirements of the corresponding process，Ensure efficient energy transfer、Stablize，Effectively improve processing accuracy and molding quality。

Senrytech A PROseries Double wire feed laser welding machine

Technical parameters

model	A15 Pro	A20 Pro	A30 Pro
Laser maximum power	1500W	2000W	3000W
Function	welding / cutting / Welding slag removal / rust removal	welding / cutting / Welding slag removal / rust removal	welding / cutting / Welding slag removal / rust removal
Weld width	0-8mm	0-8mm	0-8mm
Wire feeding method	single wire feed Double wire feed（Optional）	single wire feed Double wire feed（Optional）	single wire feed Double wire feed（Optional）
Welding wire diameter	0.8 / 1.0 / 1.2 / 1.6 / 2.0mm	0.8 / 1.0 / 1.2 / 1.6 / 2.0mm	0.8 / 1.0 / 1.2 / 1.6 / 2.0mm
Maximum welding thickness(carbon steel)	4mm	6mm	8mm
Maximum welding thickness(Stainless steel)	4mm	6mm	8mm
Maximum welding thickness(aluminum)	3mm	5mm	6mm
Cooling method	water cooling	water cooling	water cooling
power demand	220V/3PH 50/60HZ	220V/3PH 50/60HZ	220V/3PH 50/60HZ
size	900x730x980mm	900x730x980mm	1200x750x980mm

Parameter data is based on standard test environment，Actual use may vary depending on material properties、Operating conditions vary slightly
