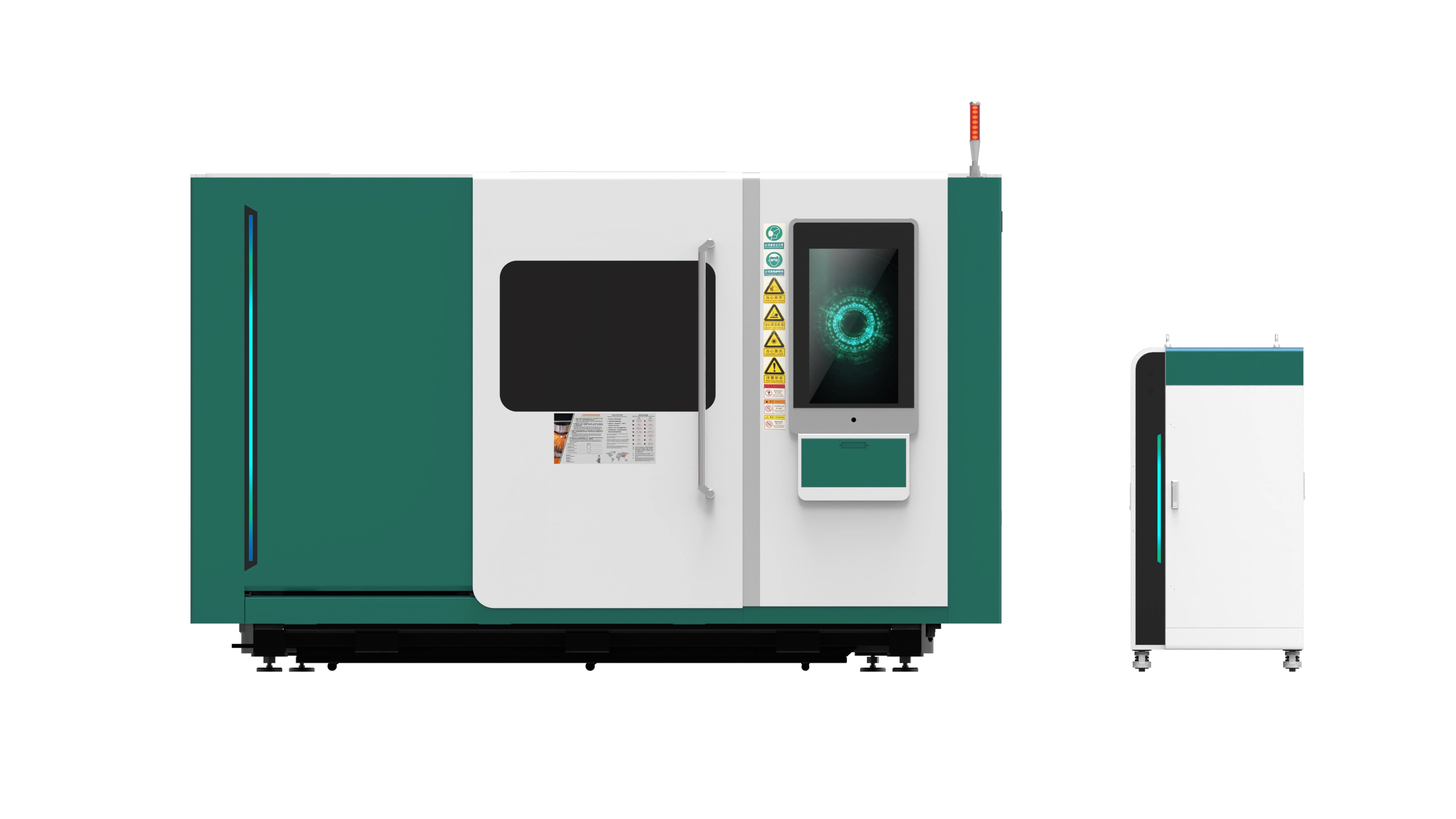

Laser sheet cutting machineB ProMaxseries

Brush up on the key points first

International Compliance and Security Flagship

Sheet metal fully surrounded fiber laser cutting machine

Fully surrounded by sheet metal，protection + Neat Dual Online

Sheet metal surround + 15 Second exchange Efficiency double buff

15 Quick exchange in seconds，Seamless connection between double loading tables，Cut down on standby time。

Sheet metal fully surrounded fiber laser cutting machine servo motor

Core power servo motor

Large format full frequency2900WSuper reliable power

Strong power + A new benchmark for precision controlled industrial drives。

Insensitive perforation technology

“perforation - cutting” Seamless integrated processing

Improved perforation efficiency 20% above，Saves time compared to traditional preheating perforation 80%，Cooperate ±0.03mm Level repeat positioning accuracy，Achieve the unity of efficiency and precision。

Design process

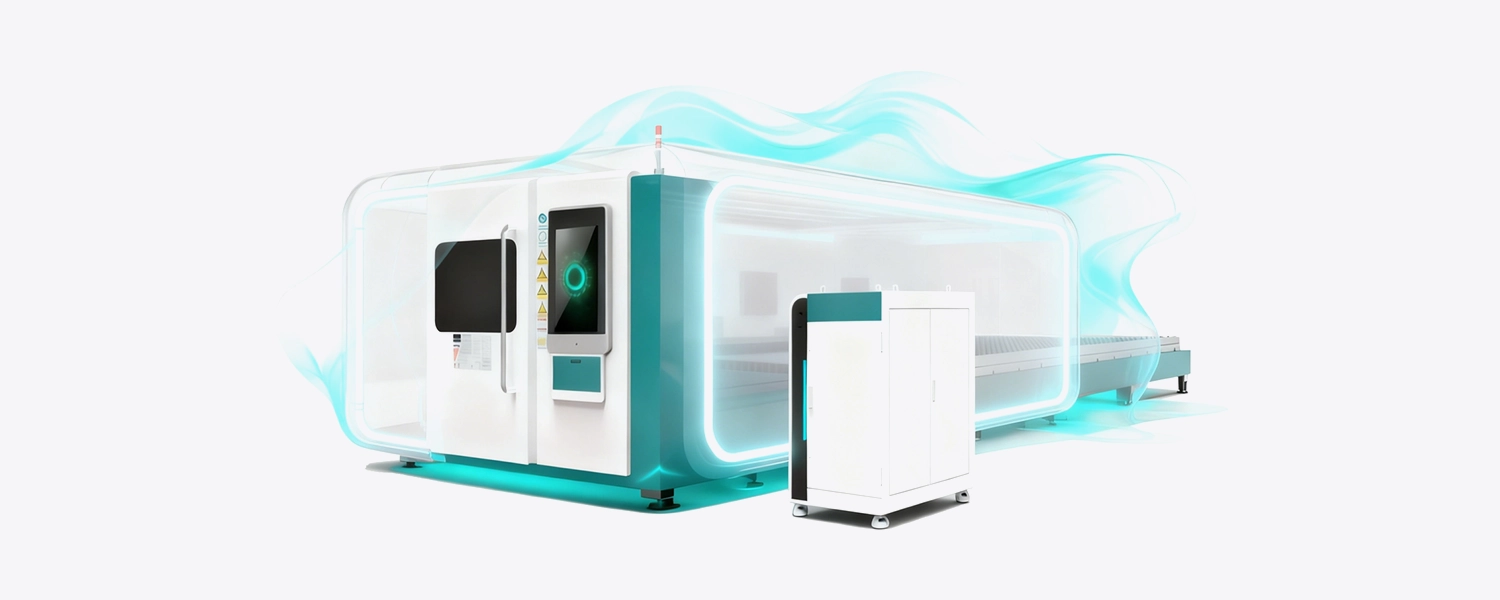

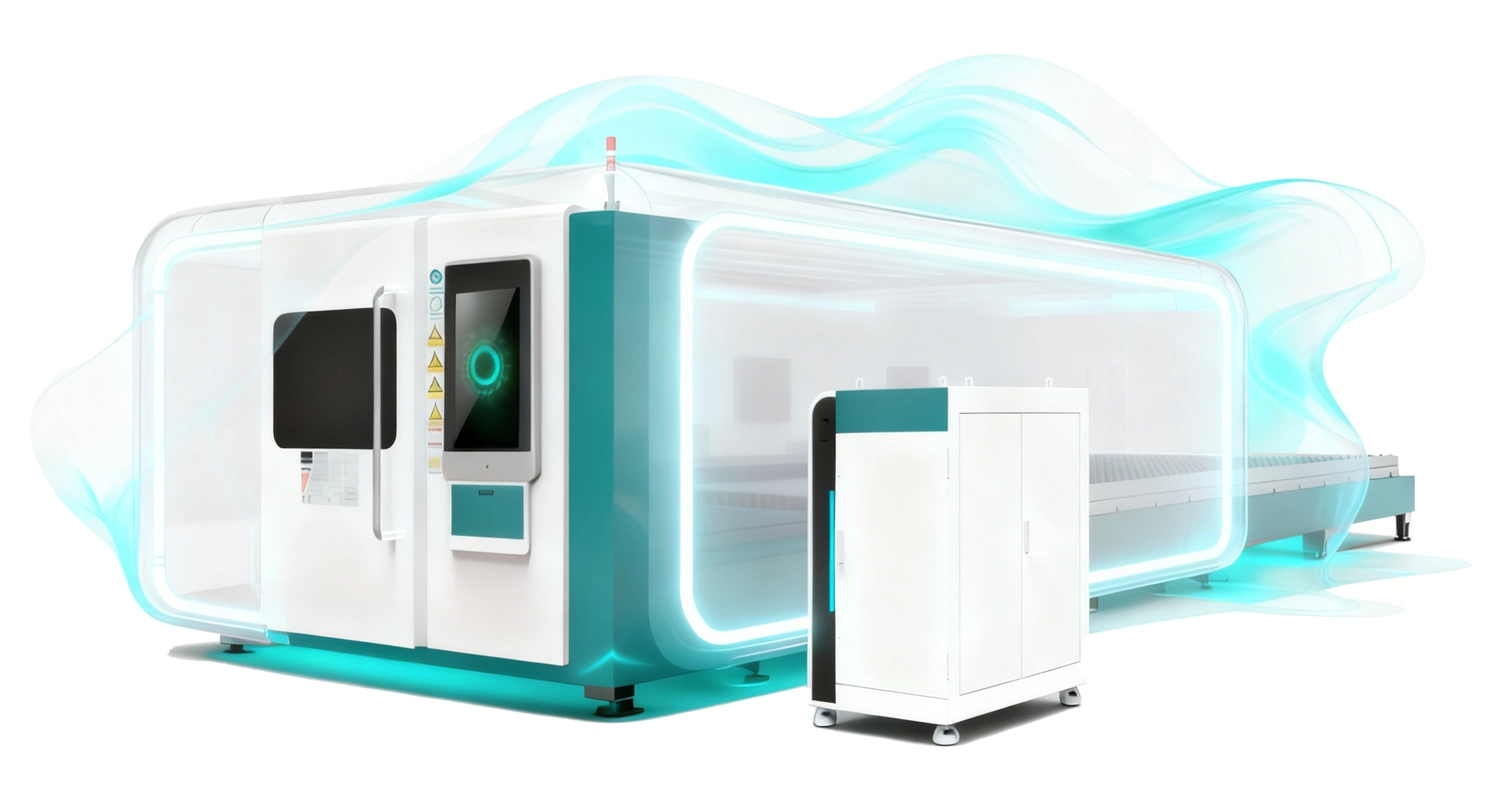

Sheet metal surround
Protection increases steadily

Designed with a fully enclosed sheet metal structure，Relying on high rigidity plate and sealing technology，Achieve full protection of the processing environment， Effectively avoid dust、Issues such as debris spillage and external interference。Surrounded by integrated precision welding，With sealed cabin design， Operation noise is controlled to the industry's lowest standard range，Simultaneous upgrade of cleanliness and safety of operating environment。The sheet metal surround solution， Improved protection performance compared to open structures 90% above，The sealing performance of equipment operation has jumped to the forefront of the industry，Suitable for high cleanliness、Low-interference and refined processing conditions， Cabin stability approaches optimal under high-speed cutting conditions，Ensure the processing environment is controllable and without omissions，Adapt to high-demand production scenarios，Both protection reliability and working condition adaptability。

Safety fiber laser cutting machine plate welding bed

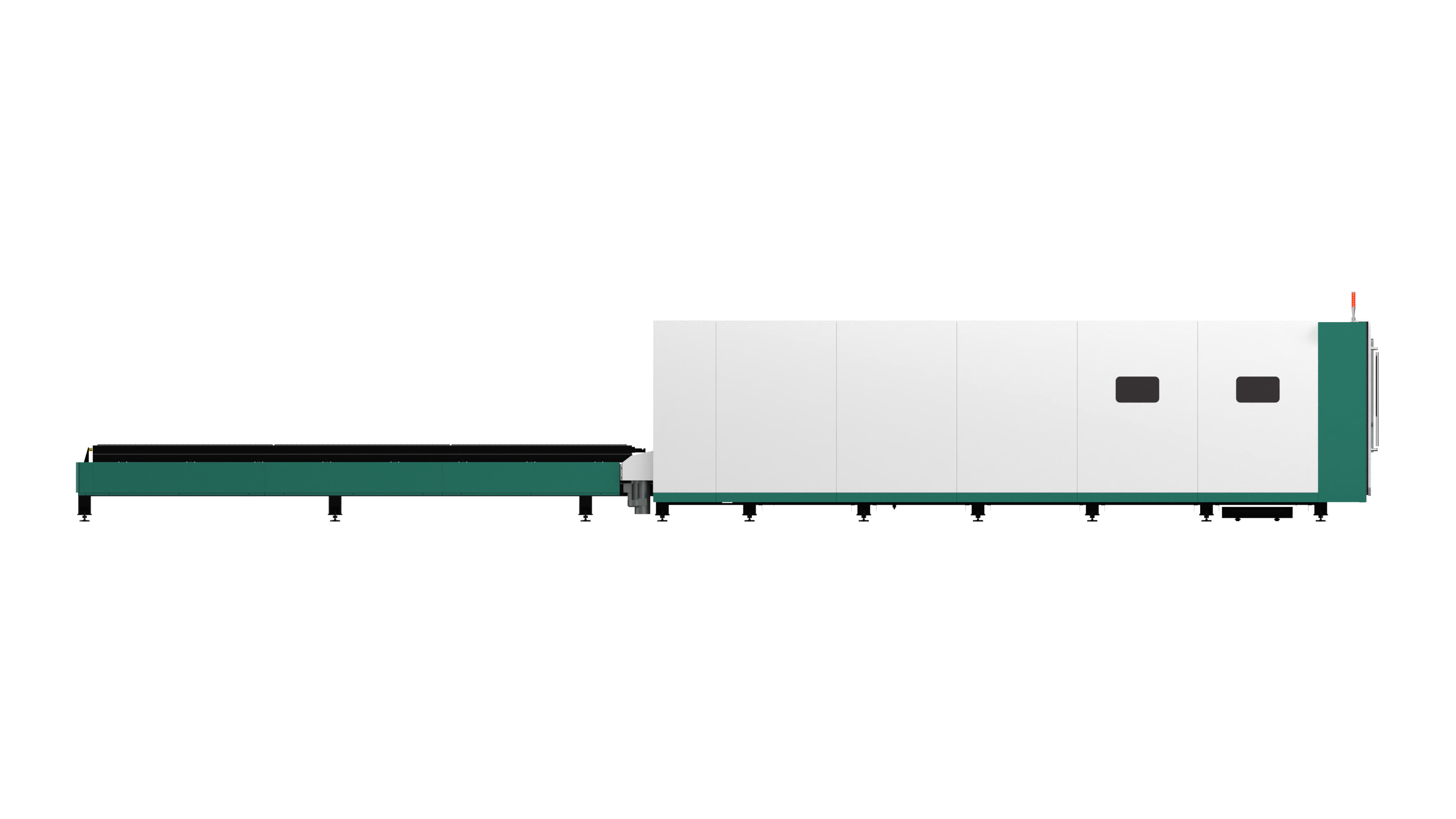

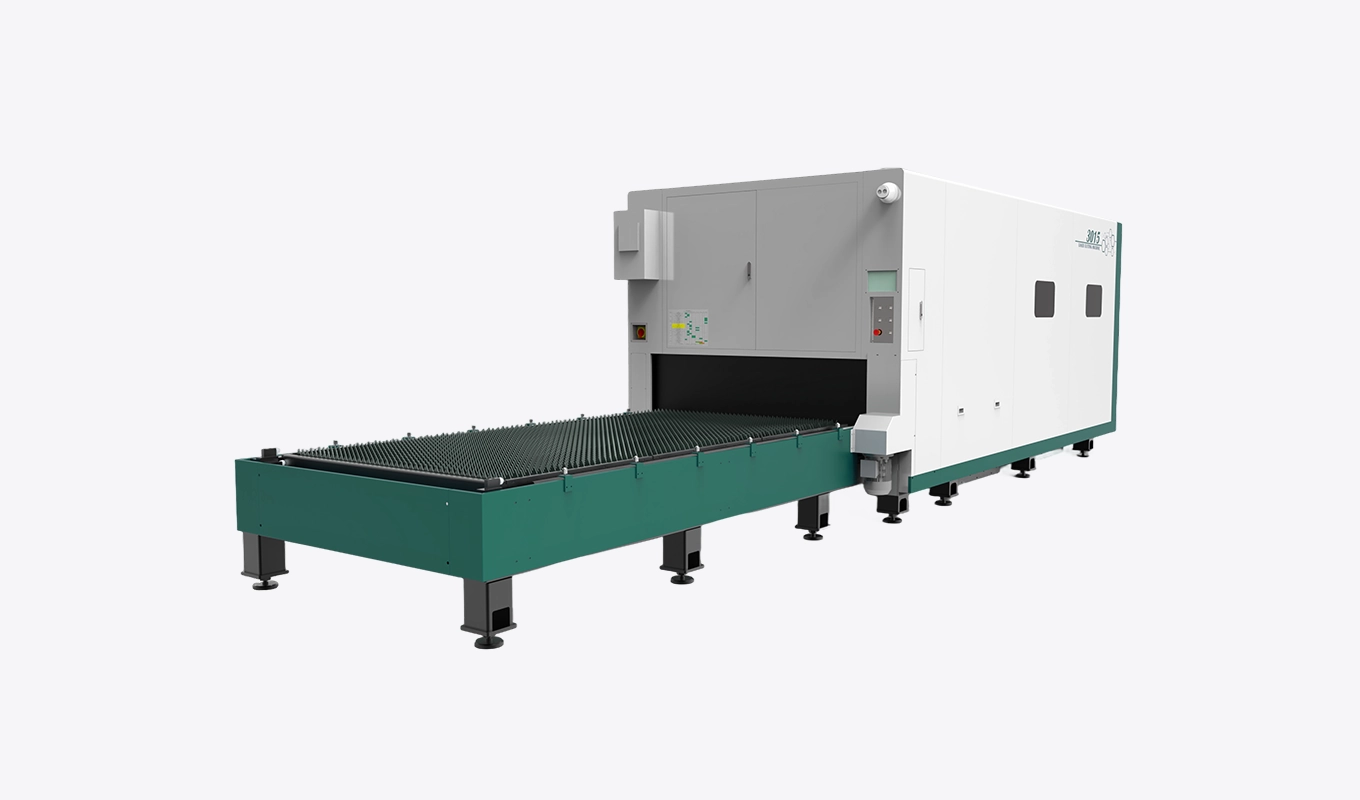

Extremely fast feeding
Efficiency soars

Adopt intelligent linkage design of switching platform，Relying on high-speed transmission and precise positioning system，accomplish15 Extremely fast feeding in seconds，Effectively avoid waiting in the traditional loading process、Problems such as time-consuming alignment。 The platform is made of lightweight high-strength alloy material，Cooperate with servo drive fast response mechanism，Switching rhythm is stable and controllable，Loading repeat accuracy deviation≤±0.5mm。 The exchange platform loading solution，Improved efficiency compared with conventional manual loading80%above，Equipment standby time is reduced to industry-leading levels，Can meet high batch size、Fast-turnover continuous production conditions， Platform operation smoothness approaches optimal under high-speed switching state，Ensure there are no breakpoints in material connection，Adapt to high-frequency processing needs，Combines operational convenience and production efficiency。

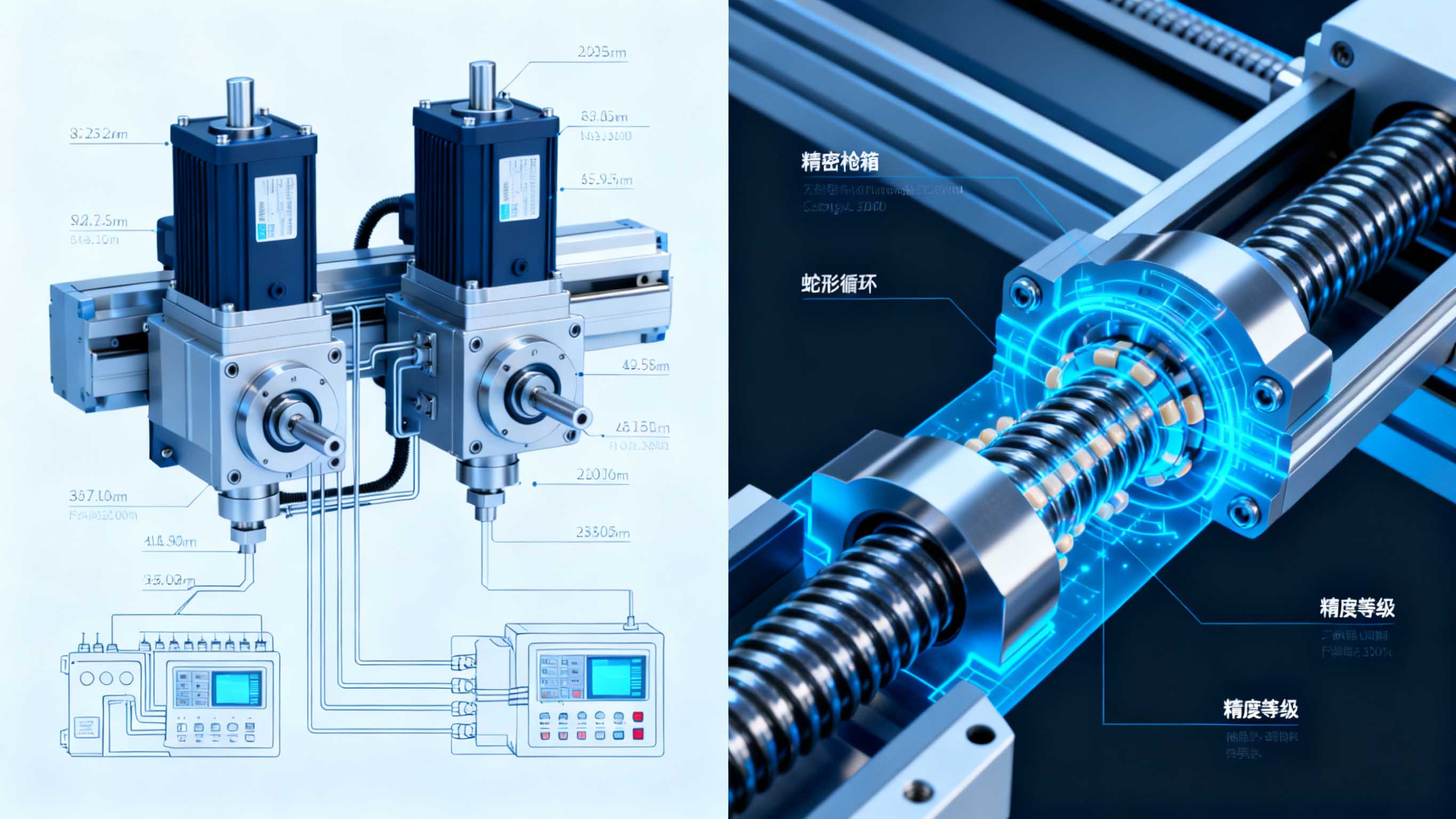

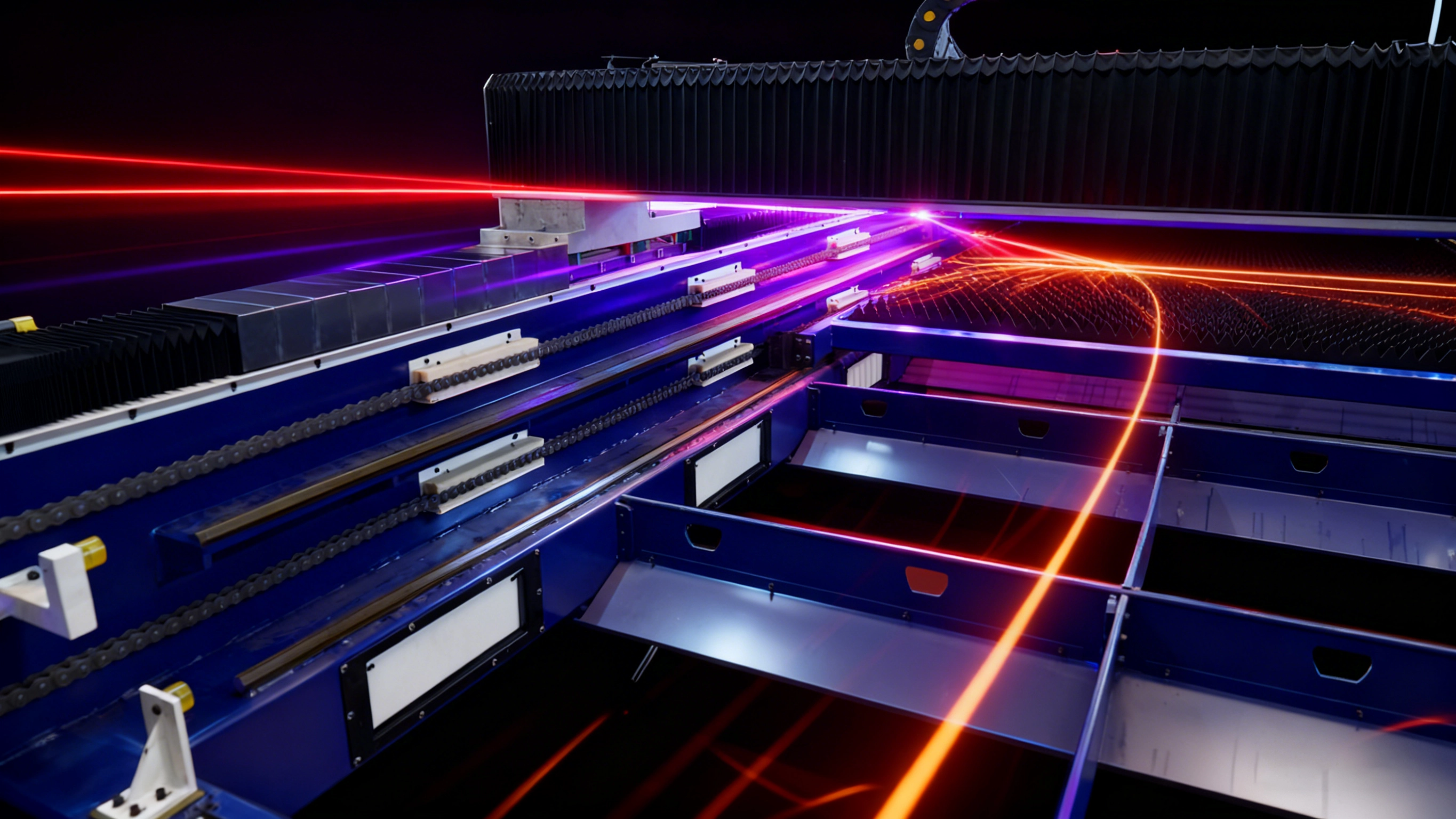

Precision transmission
Best Performance

useYYCPrecision rack brand，Relying on grinding gear making process and high frequency quenching treatment，Tooth surface hardness reaches HRC42-55，Tooth shape accuracy conforms to DIN5 level standard，Cumulative error≤0.022mm/300mm。 Rack body selection S45C Medium carbon steel base material，With modular installation hole design，Support unlimited stroke splicing，Adapted to long-distance transmission scenarios。 The precision rack transmission efficiency is as high as 98%，High speed operation up to 11m/s，Combined with low friction、Low noise characteristics； Zero backlash structure achieves positioning accuracy ±20 Micron，More traditional transmission parts（such as ball screw）More suitable for high-precision processing conditions。 under heavy load、long trip、Under high-frequency operation conditions，Still maintaining transmission stability and positioning accuracy，Meet the continuous operational needs of high-precision manufacturing。

Safe processing of fiber laser cutting machine zone dust removal

Zone dust removal
Clean intelligent control

use “cutting area + Smoke exhaust area + console” Three-level zoning dust removal design：The cutting area is equipped with a follow-up suction hood（Follow the movement of the cutting head，Air volume≥6000m³/h）， Targeted capture of metal smoke generated at the moment of cutting；The smoke exhaust area relies on overhead air ducts + High efficiency filter cartridge（Filtering precision 0.3μm），Intercepting fine dust； Side-suction low-power fans are used in the console area，Keep the environment clean。The system is equipped with a smoke concentration sensor，Each partition starts and stops independently / Shift，Energy consumption is lower than traditional single-fan dust removal 35%。

Senrytech B PROMAX Laser equipment that meets European safety standards

Technical parameters

model	B20 ProMax	B30 ProMax	B60 ProMax	B120 ProMax
Laser power	2000W	3000W	6000W	12000W
Work surface size	1510x3050mm 1510x6050mm 2000x4050mm 2510x6030mm	1510x3050mm 1510x6050mm 2000x4050mm 2510x6030mm	1510x3050mm 1510x6050mm 2000x4050mm 2510x6030mm	1510x3050mm 1510x6050mm 2000x4050mm 2510x6030mm
Maximum cutting speed	100m/min	100m/min	100m/min	100m/min
Positioning accuracy	±0.05mm	±0.05mm	±0.05mm	±0.05mm
Repeat positioning accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm

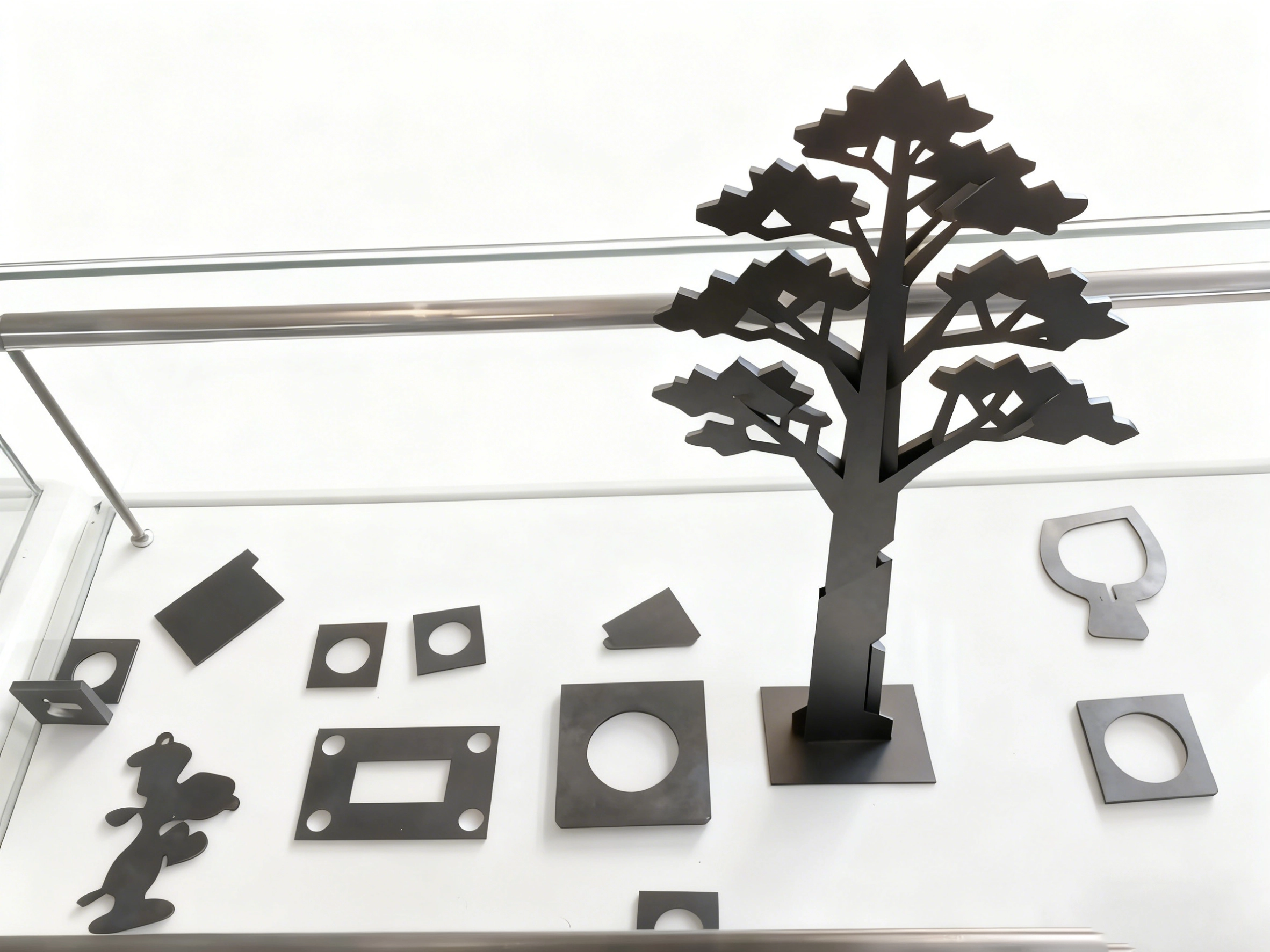

Maximum cutting thickness for batch processing(carbon steel)	16mm (special circumstances20mm)	18mm (special circumstances25mm)	22mm (special circumstances25mm)	35mm (special circumstances45mm)

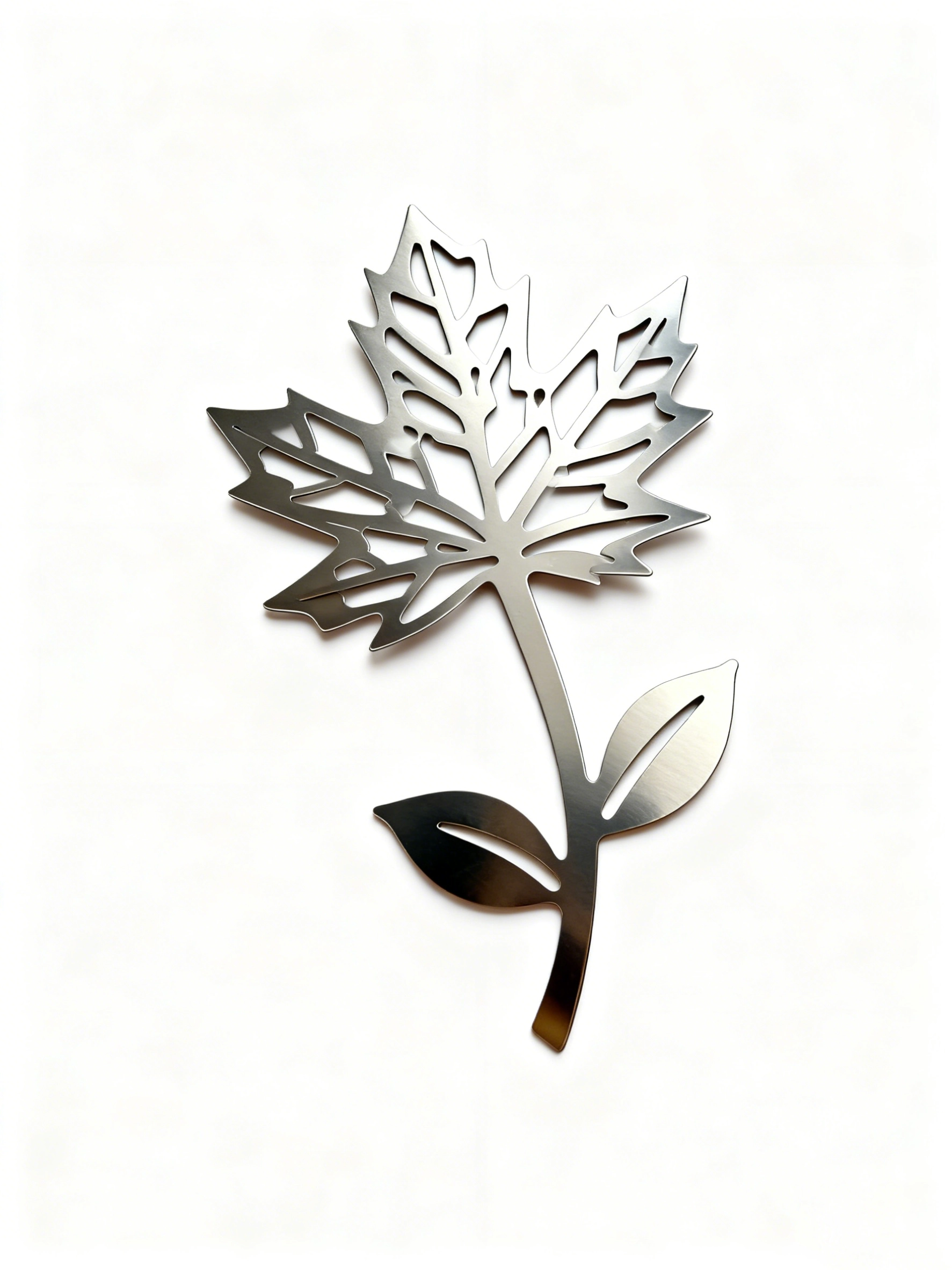

Maximum cutting thickness for batch processing(Stainless steel)	6mm (special circumstances10mm)	8mm (special circumstances12mm)	14mm (special circumstances20mm)	25mm (special circumstances40mm)

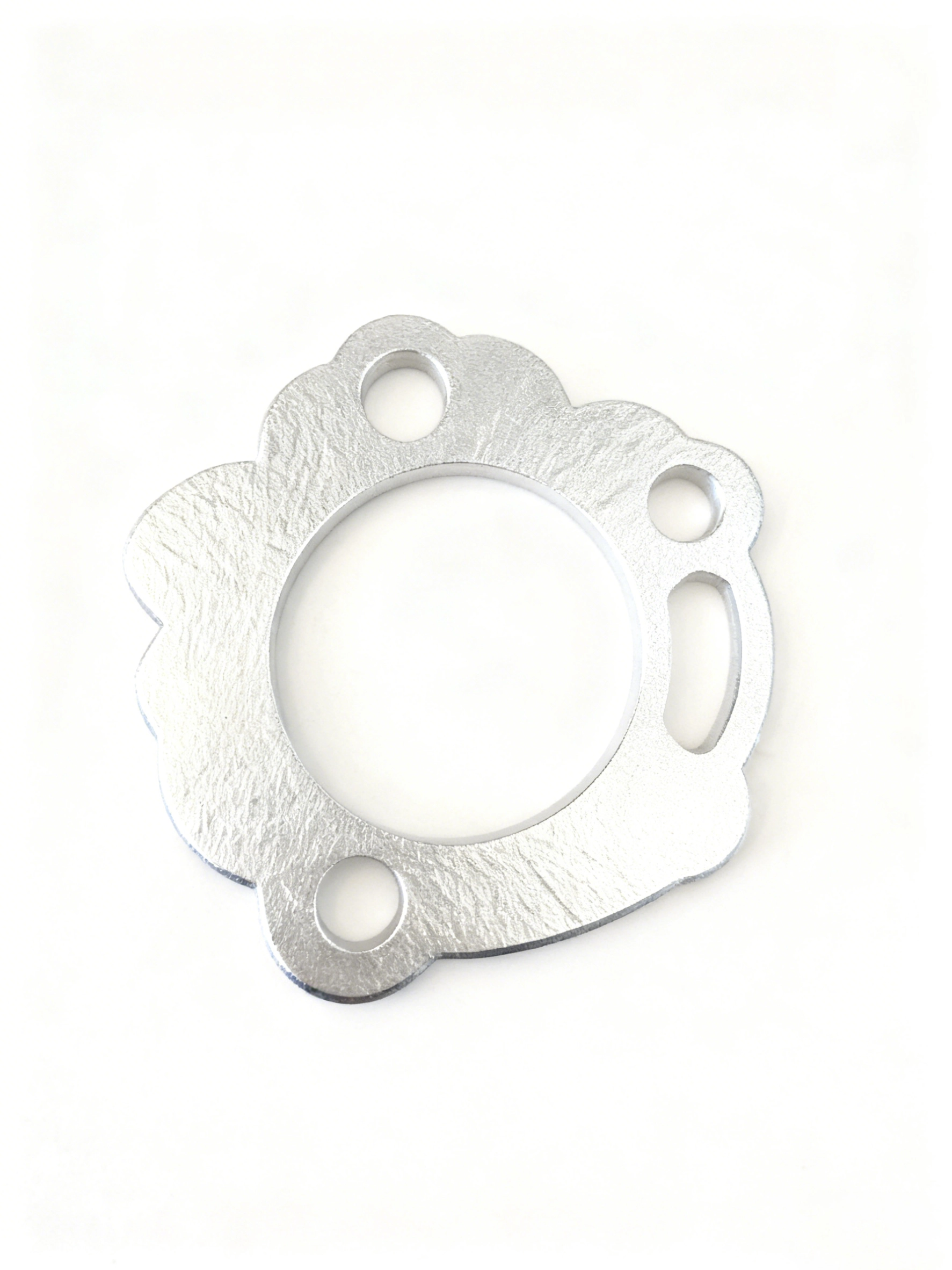

Maximum cutting thickness for batch processing(Aluminum alloy)	4mm (special circumstances6mm)	4mm (special circumstances8mm)	10mm (special circumstances16mm)	18mm (special circumstances22mm)

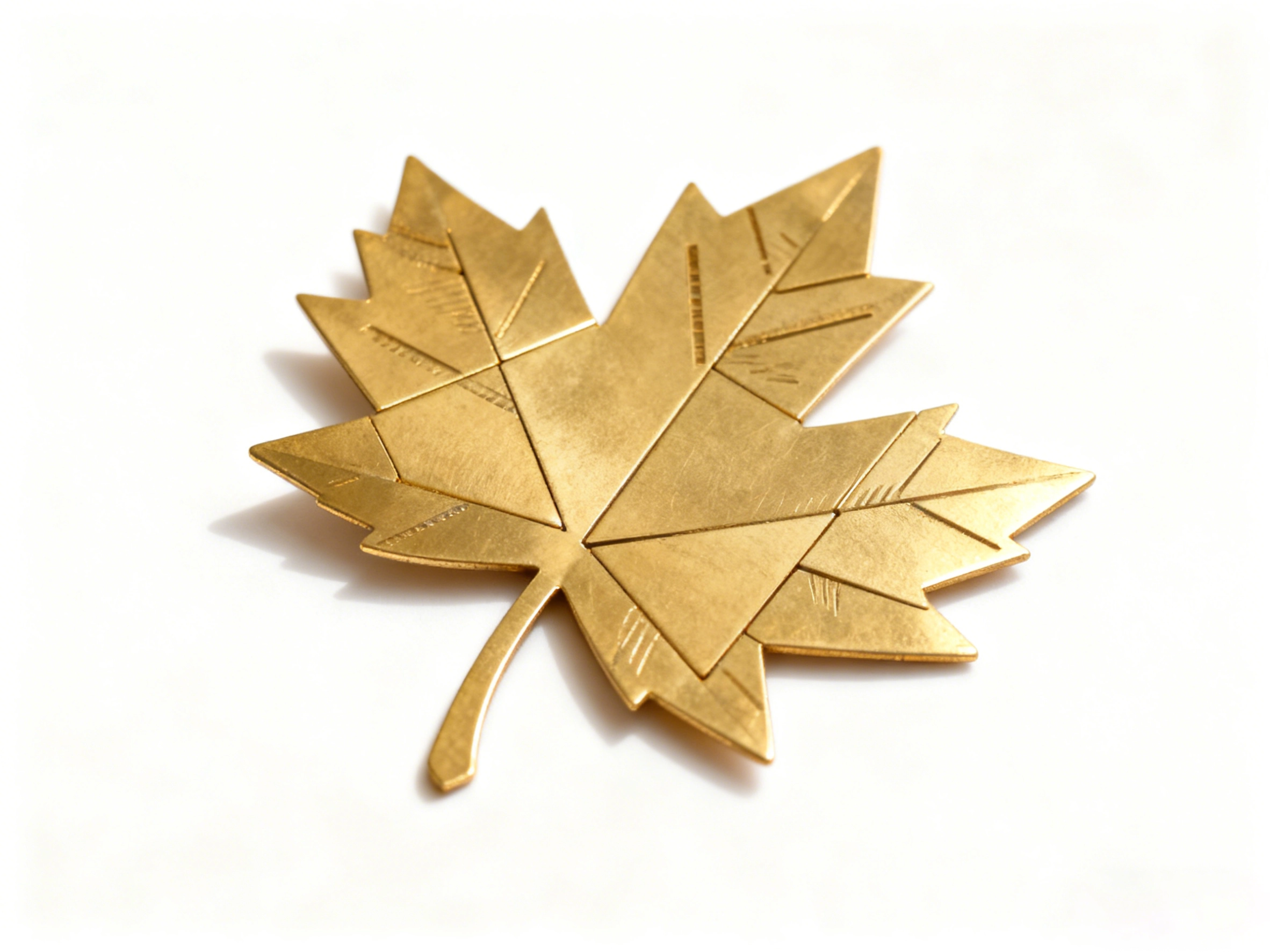

Maximum cutting thickness for batch processing(copper)	4mm (special circumstances6mm)	4mm (special circumstances8mm)	10mm (special circumstances16mm)	18mm (special circumstances22mm)
Cooling method	water cooling	water cooling	water cooling	water cooling
power demand	380V/3PH 50/60HZ	380V/3PH 50/60HZ	380V/3PH 50/60HZ	380V/3PH 50/60HZ
acceleration	2.0G	2.0G	2.0G	2.0G

Parameter data is based on standard test environment，Actual use may vary depending on material properties、Operating conditions vary slightly

Customer testimonials

Introduced by our factory B PROMAX After laser sheet cutting machine，Production efficiency has improved by nearly 40%。The full sheet metal surround design not only greatly reduces working noise，The precise cutting accuracy makes the product qualification rate increase from the original 92% promoted to 99% above。Complex stainless steel special-shaped parts can also be cut and formed in one go，Saves a lot of subsequent polishing steps，This equipment is definitely a powerful assistant in the field of high-end processing。

Mr. Qian

A sheet metal processing company General manager

As a company specializing in aerospace parts processing，We have extremely high requirements for equipment accuracy。B PROMAX performance completely exceeded expectations ——0.03mm Excellent positioning accuracy makes cutting complex curved surfaces a breeze，And keep working 12 Thermal deformation is controlled very well after hours，The stability is far superior to other brands of equipment we have used before。After-sales service response is also very timely，This machine makes us more competitive in the field of precision machining。

Mr. Wang

A large state-owned machinery factory Production Director

from B Pro upgrade to B PROMAX is the wisest decision！The new model’s intelligent typesetting system can improve material utilization 15%，The cost of raw materials alone can save hundreds of thousands every year。The fully enclosed structure makes the workshop environment much tidier.，Dust and light pollution are effectively controlled，Workers feel more at ease when operating。Whether it is the penetration of thick plate cutting or the smoothness of thin plate cutting，All demonstrate the quality of top equipment，Worth recommending to all companies pursuing efficient and precise processing。
