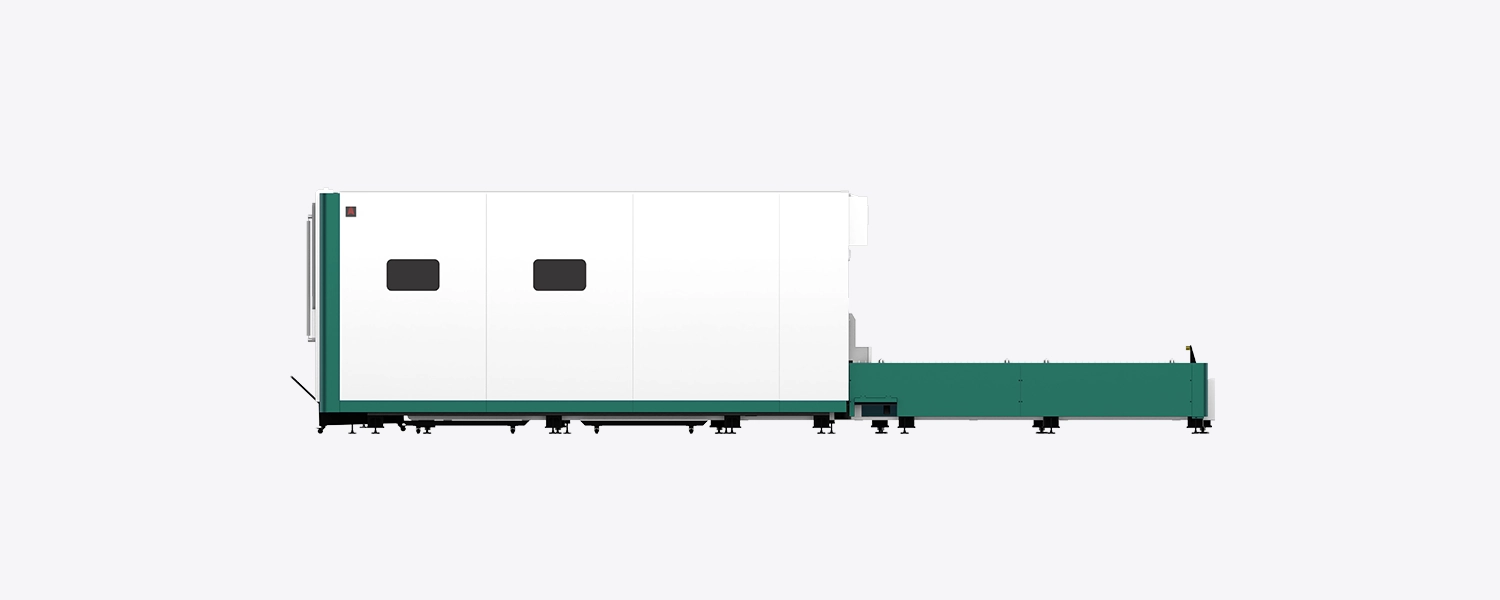

Industrial protection，Sheet metal surround
Dual station switching，Plate and tube through cutting
Equipped with automatic switching platform，Achieve seamless switching between plate and pipe processing，Sheet metal fully surrounds the fuselage to ensure safe operation，Greatly improve multi-material processing efficiency。

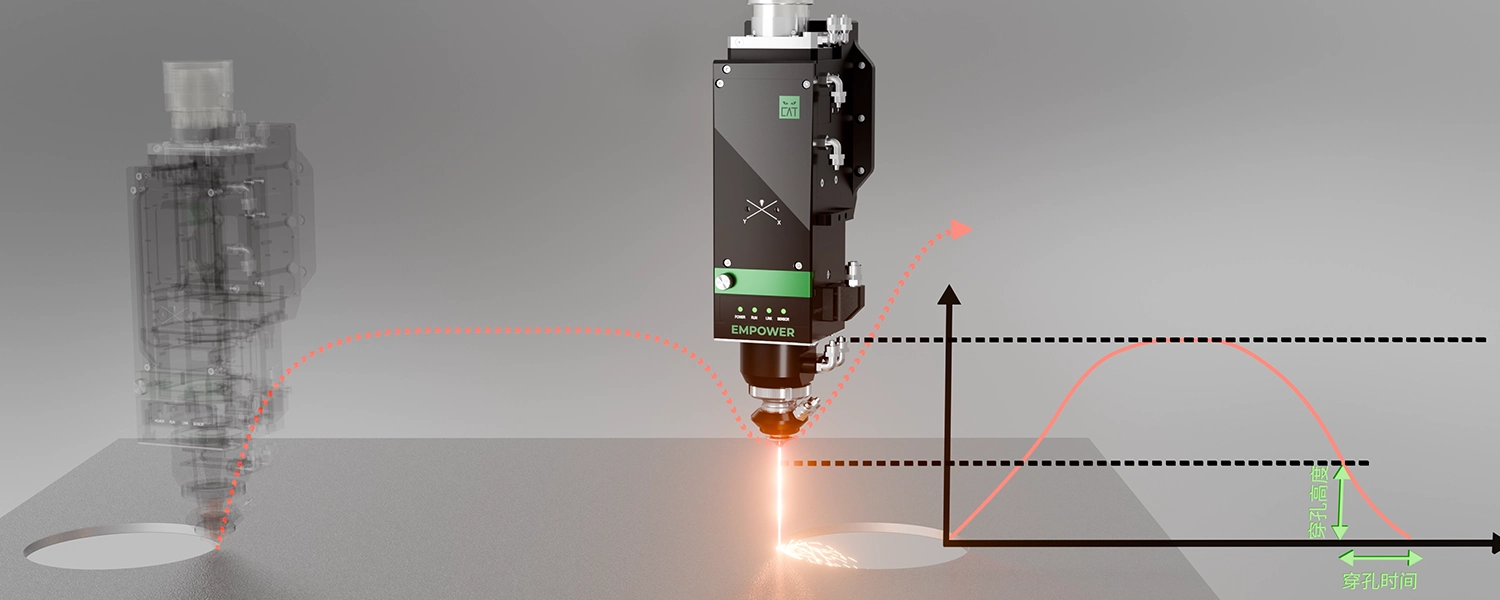

Insensitive perforation，Efficient cutting
Non-sensory perforation technology and intelligent focus system，Significantly shortens piercing time，Built-in crash protection and temperature monitoring，Ensure long-term stable operation，Significantly improve processing efficiency。

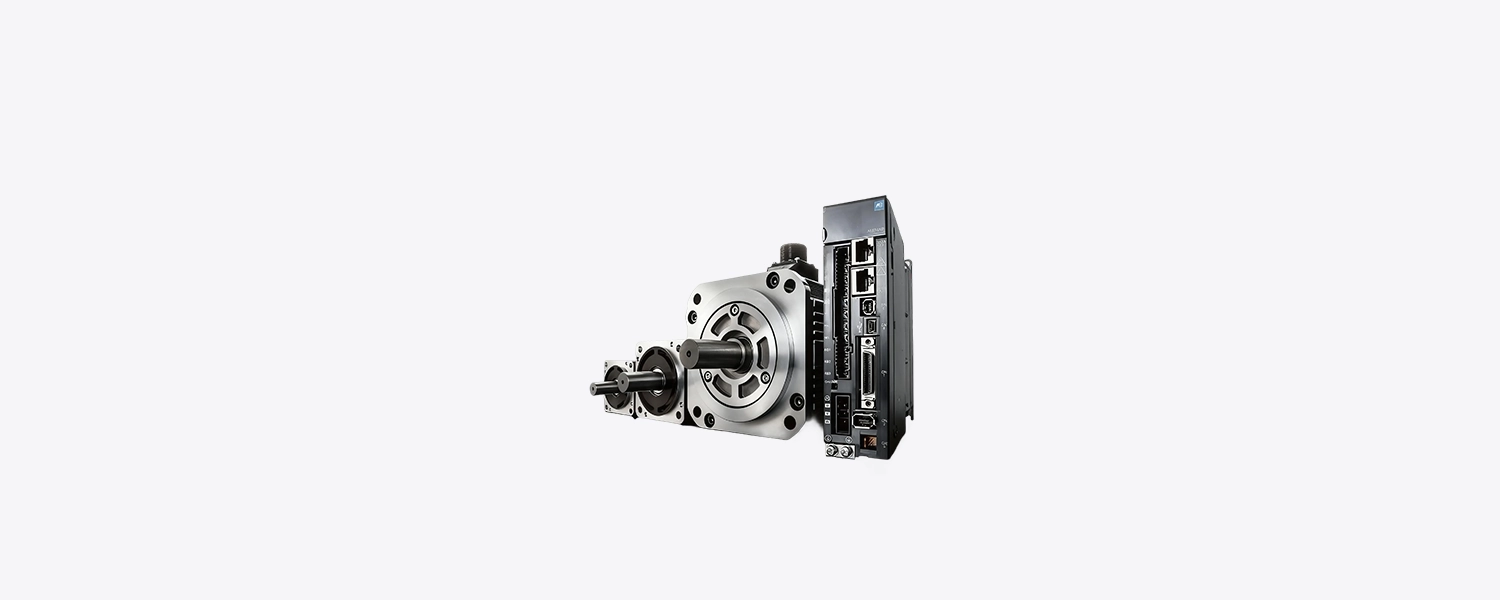

Servo drive，Precise and powerful
Adopt high-power servo drive system，With high torque、Low heat generation characteristics，Can realize high-speed start and stop and precise positioning，It can still maintain smooth movement in complex cutting scenes.，Effectively improve cutting accuracy and speed，Reduce equipment operating noise and wear at the same time，Extend service life。

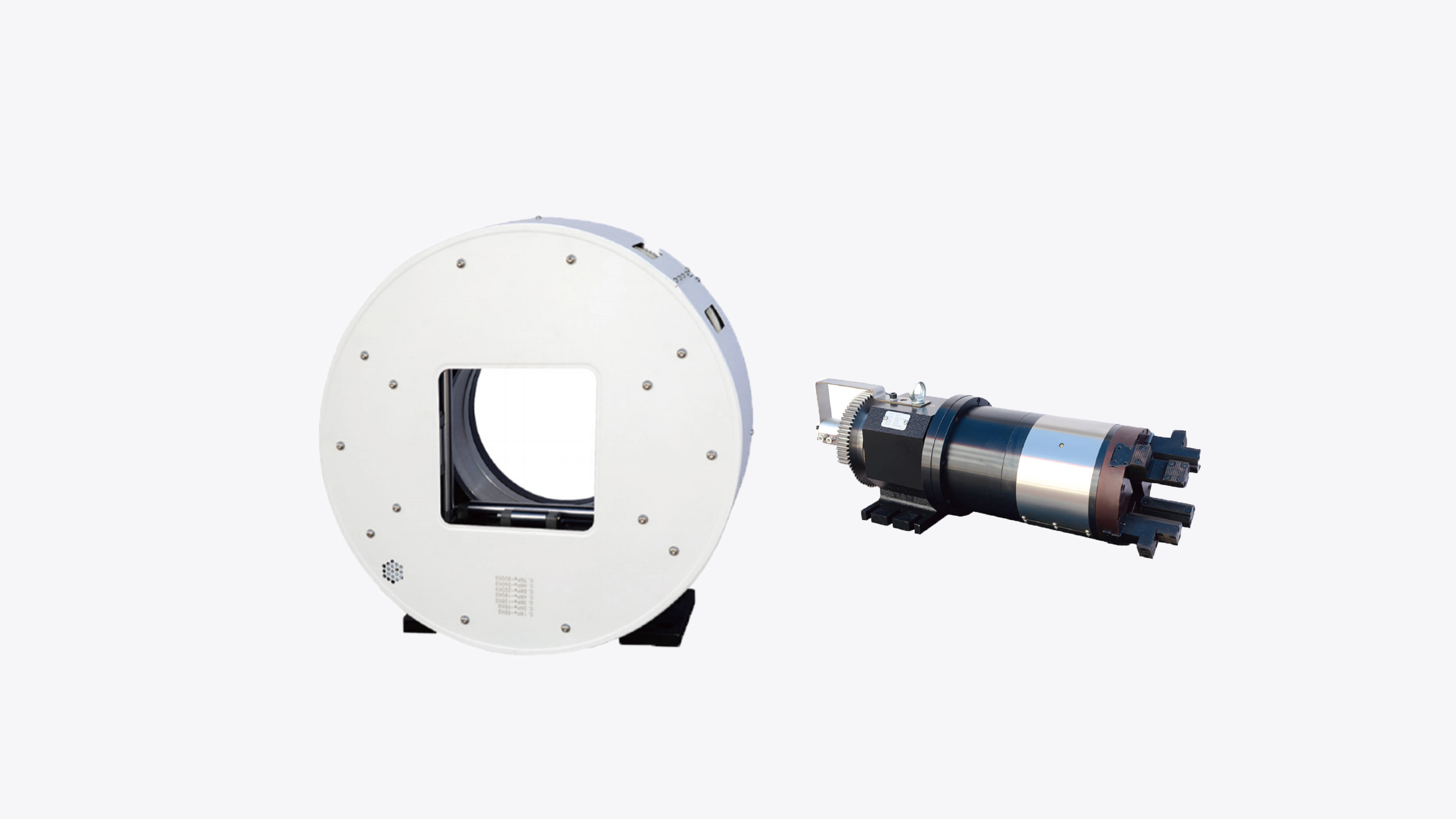

Double wheel claw
High precision clamping core
Adopts rack and pinion interconnected transmission structure，With double roller claw design，accomplish0.05mmRepeat positioning accuracy and0.05mmBounce accuracy， Equipped with an exclusive single-row dual-cylinder drive unit，Output in a compact space100kg-800kgMaximum clamping force，response time＜0.3s， Modular integrated roller set、Cylinder group and rack box，With high protection level，Suitable for high dust cutting conditions，Improved maintenance cycle 30%；

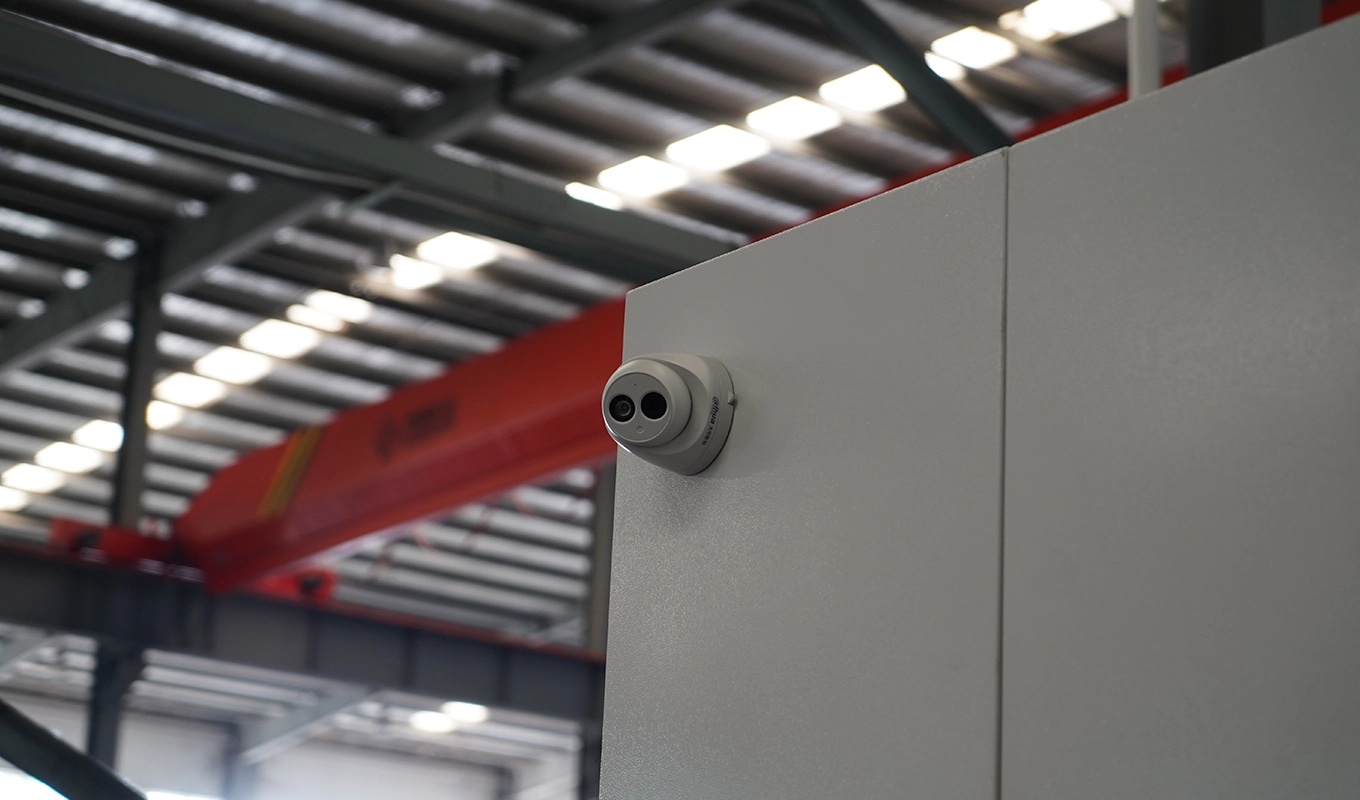

Global real-time monitoring
Intelligent protection of production safety
Equipped with high-definition industrial monitoring system，Can be synchronized with the cutting process in real time，Provide full visual support for long pipe processing，Avoid safety hazards caused by operating blind spots。 Equipped with adaptive adjustment function，Compatible with different pipe diameters、length of pipe，Achieve stable monitoring in complex workshop environments，Significantly improve the safety of continuous production。 Modular integrated protection design，Suitable for high dust cutting conditions，Extended maintenance cycle，Make long tube processing more worry-free、Efficient。

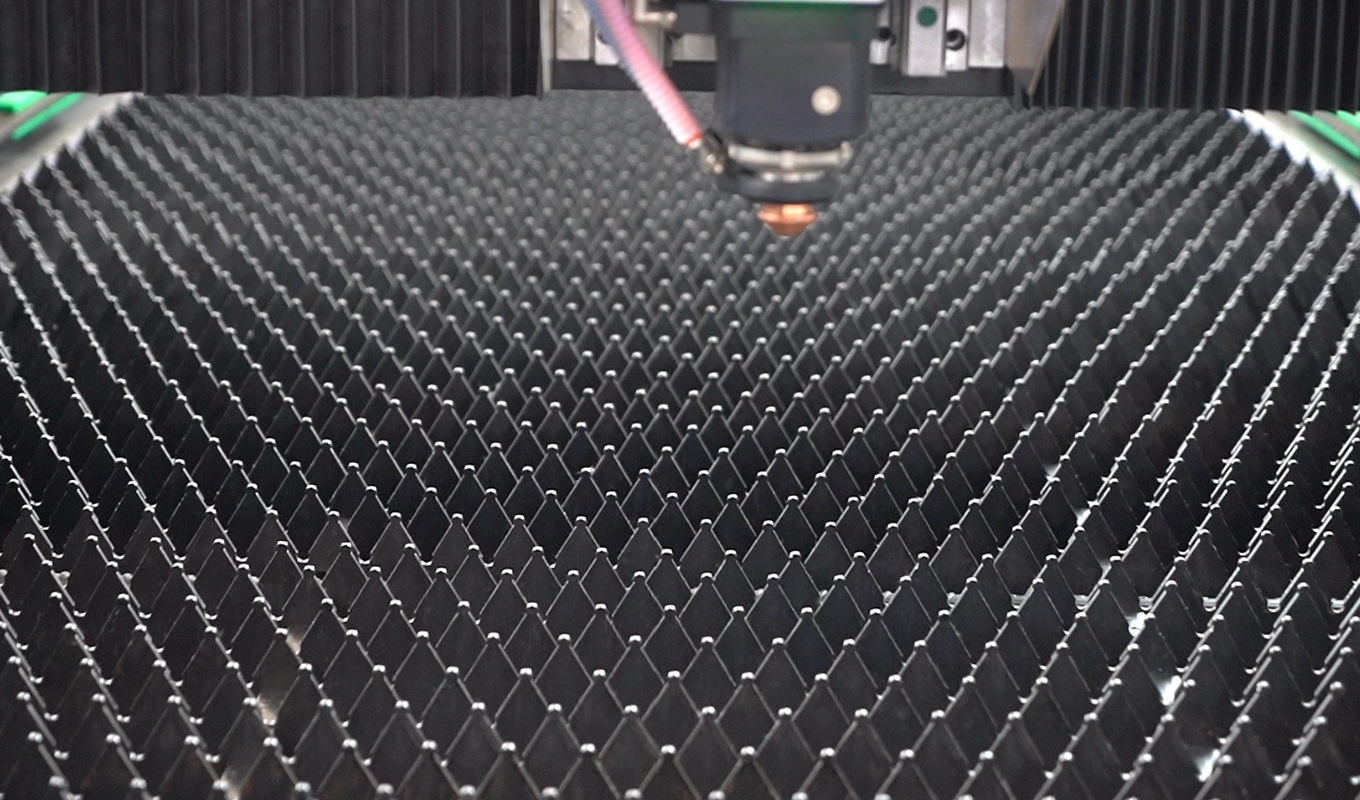

Blade type cutting table
Cutting base for efficient slag removal
Adopt high-density blade array structure，Designed with precise spacing，Achievable 95% The above slag is quickly discharged，Provide a stable support base for plate cutting。 Equipped with high wear-resistant alloy blade unit，output 100kg-500kg single point carrying capacity，Compatible with different thicknesses、material plate，Stable support without deformation even during high-speed cutting。 Modular integrated anti-scratch and wear-resistant coating，Suitable for high dust cutting conditions，Improved maintenance cycle 60%，And the hollow layout releases more space for slag discharge，Suitable for long-term continuous cutting needs。
Put an end to false propaganda
| model | BT20 ProMax | BT30 ProMax | BT60 ProMax | BT120 ProMax |
|---|---|---|---|---|
| Laser power | 2000W | 3000W | 6000W | 12000W |
| Work surface size |
1500x3000mm 1500x6000mm 2000x4000mm 2000x6000mm 2500x6000mm |
1500x3000mm 1500x6000mm 2000x4000mm 2000x6000mm 2500x6000mm |
2000x6000mm 2500x6000mm |
2000x6000mm 2500x6000mm |
| diameter（roundφ/square□） | φ/□ 20-240mm | φ/□ 20-240mm | φ/□ 20-240mm | φ/□ 20-240mm |
| tail length（roundφ/square□） | 150mm | 150mm | 150mm | 150mm |
| Maximum cutting speed | 65m/min | 65m/min | 65m/min | 65m/min |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Repeat positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Maximum cutting thickness for batch processing(carbon steel) | 16mm (special circumstances20mm) | 18mm (special circumstances25mm) | 22mm (special circumstances25mm) | 35mm (special circumstances45mm) |
| Maximum cutting thickness for batch processing(Stainless steel) | 6mm (special circumstances10mm) | 8mm (special circumstances12mm) | 14mm (special circumstances20mm) | 25mm (special circumstances40mm) |
| Maximum cutting thickness for batch processing(Aluminum alloy) | 4mm (special circumstances6mm) | 4mm (special circumstances8mm) | 10mm (special circumstances16mm) | 18mm (special circumstances22mm) |
| Maximum cutting thickness for batch processing(copper) | 4mm (special circumstances6mm) | 4mm (special circumstances8mm) | 10mm (special circumstances16mm) | 18mm (special circumstances22mm) |
| Cooling method | water cooling | water cooling | water cooling | water cooling |
| power demand | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ | 380V/3PH 50/60HZ |
| acceleration | 0.8G | 0.8G | 0.8G | 0.8G |
Used Senrytech C4 Ultra Four-card side-mounted laser pipe cutting machine，The accuracy of our processing of stainless steel pipes is stable at ±0.03mm within，The incision is smooth and burr-free，The previously necessary manual polishing process is eliminated.。The four-card side-mounted design makes long tube clamping more stable.，Delivery speed for small batch custom orders has increased 40%，Customer satisfaction is significantly higher。
Senrytech C4 Ultra Four-card side-mounted model adapts to round tube、square tube、Special-shaped pipes and other specifications，Fastest material change and debugging 5 It can be completed in minutes。The four-card side-mounted structure makes clamping more convenient，Novices in our workshop can learn independently by following the operation manual in just one day.，When the equipment is running, the noise is only 65 About decibels，It will not interfere with the normal production of surrounding workstations at all.。
from our workshop Senrytech C4 Ultra The four-card side-mounted payment has been running stably for half a year.，The energy consumption of fiber cutting is lower than that of previous equipment 30%，Calculated, you can save nearly every month 1500 Yuan electricity bill。The four-card side-mounted design makes long tube processing more stable，For small and medium-sized processing plants like ours，It's very cost-effective，Stable and cost-effective。
Senrytech BT
Cost-effective plate and tube integrated machine，Taking into account both plate and pipe cutting，Provide stable and reliable processing performance at an affordable price，Ideal for entry-level production needs。
Senrytech BT Pro
Efficient advanced plate and tube all-in-one machine，exist BT
Upgrade based on，Added new plate exchange platform，Significantly improve material flow efficiency，Reduce downtime waiting time。
Senrytech BT ProMax
Industrial protective grade plate and tube integrated machine，exist BT Pro
Upgrade based on，Equipped with full sheet metal surround design，Effective dust prevention and noise reduction，Ensure operational safety，Create a professional workshop image。
Senrytech BT Ultra
Fully automatic intelligent plate and tube integrated machine，exist BT ProMax Upgrade based on，Equipped with fully automatic loading and unloading system，support 24 Hourly unmanned production，Maximize release of production capacity。
