Small and compact，Effectiveness remains unchanged
Intelligent protection，Efficient cutting
Built-in crash protection，Equipped with water cooling system and protective window temperature detection，Monitor and respond to abnormal conditions in real time，Avoid equipment damage，Ensure long-term stable operation。

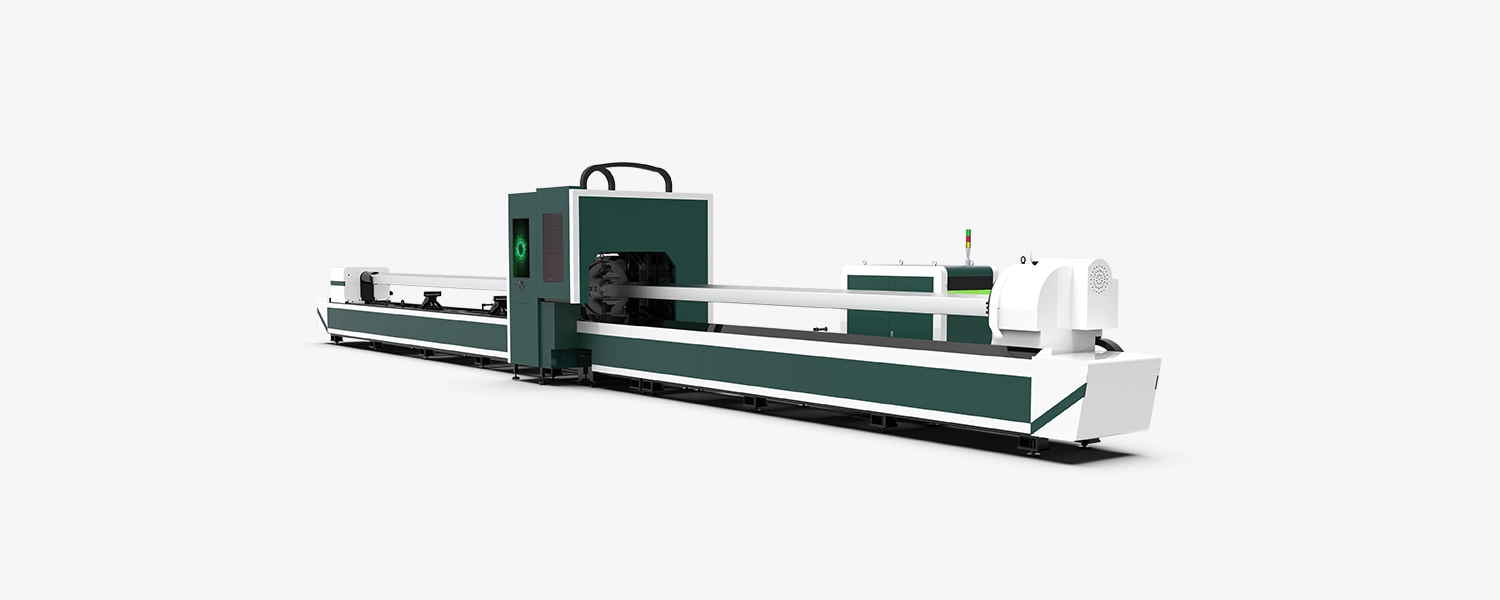

Three card linkage，Zero-tail cutting
Reduce the material waste of enterprises in pipe processing，Especially suitable for batch processing scenarios，Long-term use can significantly reduce production costs，Create higher processing profits for enterprises。
One machine for multiple purposes，Pipes take all

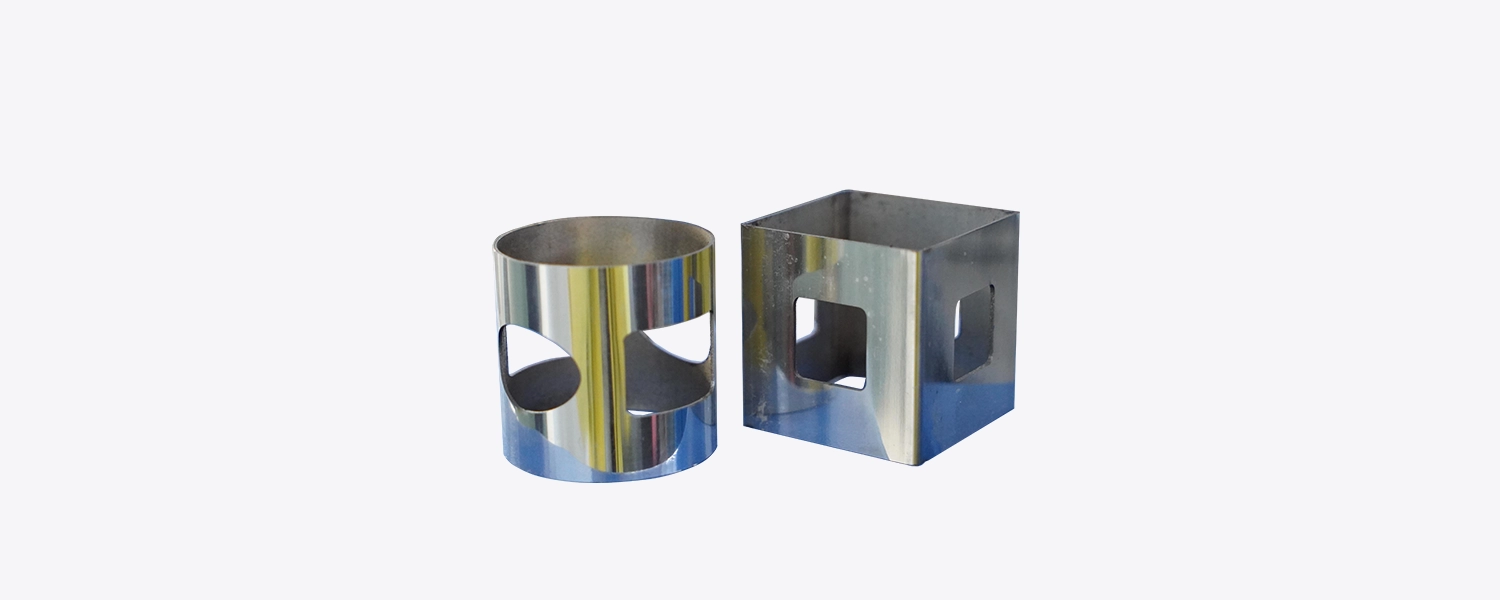

Support square tube、round tube、Cutting of various pipes such as profile steel，Can handle various processing needs without changing equipment，Adapt to various production scenarios。

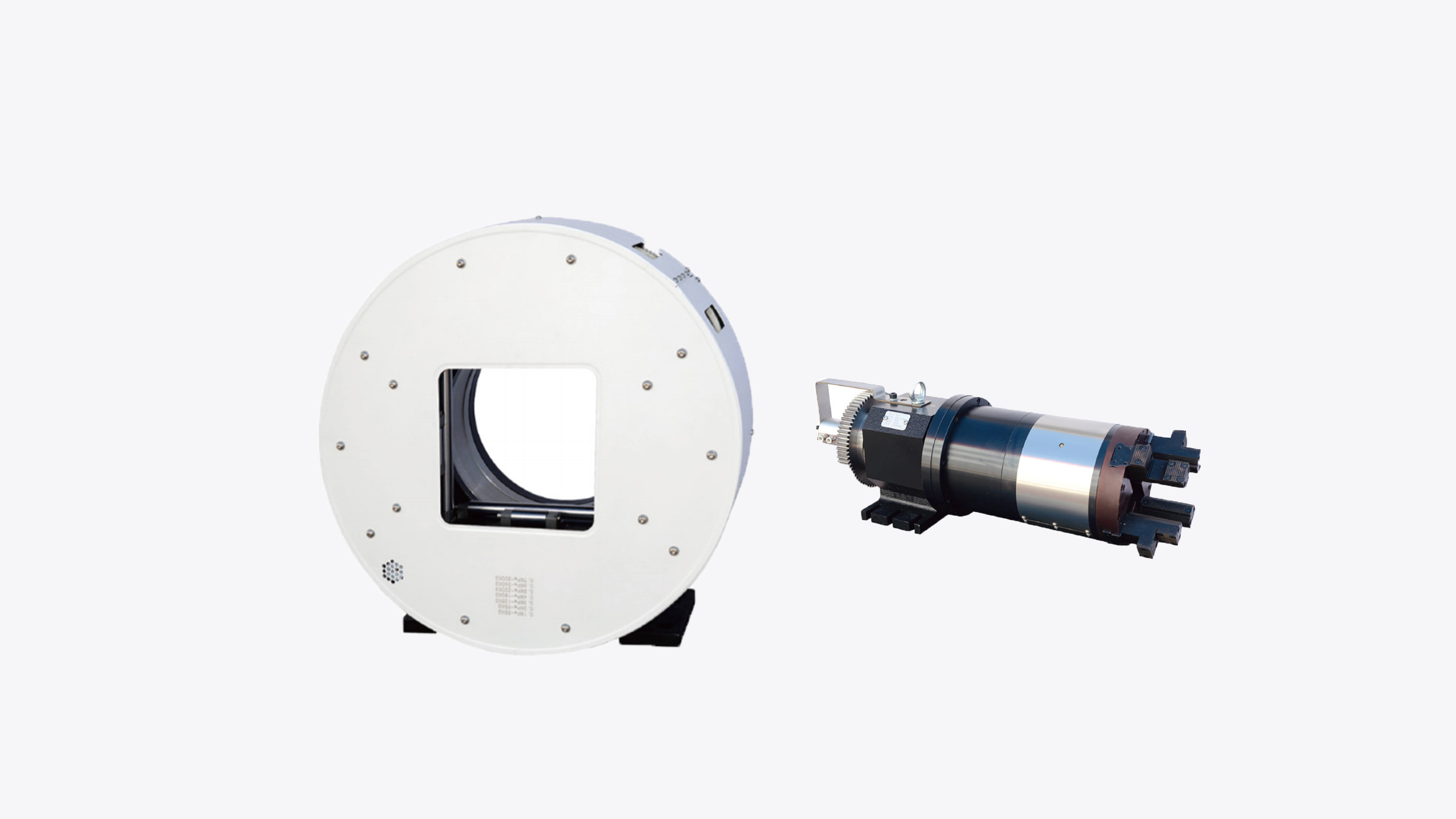

Three card claws
High precision clamping core
Adopts rack and pinion interconnected transmission structure，With double roller claw design，Three chuck synchronous drive， accomplish 0.05mm Repeat positioning accuracy and 0.05mm Bounce accuracy，Provides extremely stable clamping force for pipe cutting。 Modular integrated roller set、Cylinder group and rack box，With high protection level，Suitable for high dust cutting conditions，Improved maintenance cycle 30%；

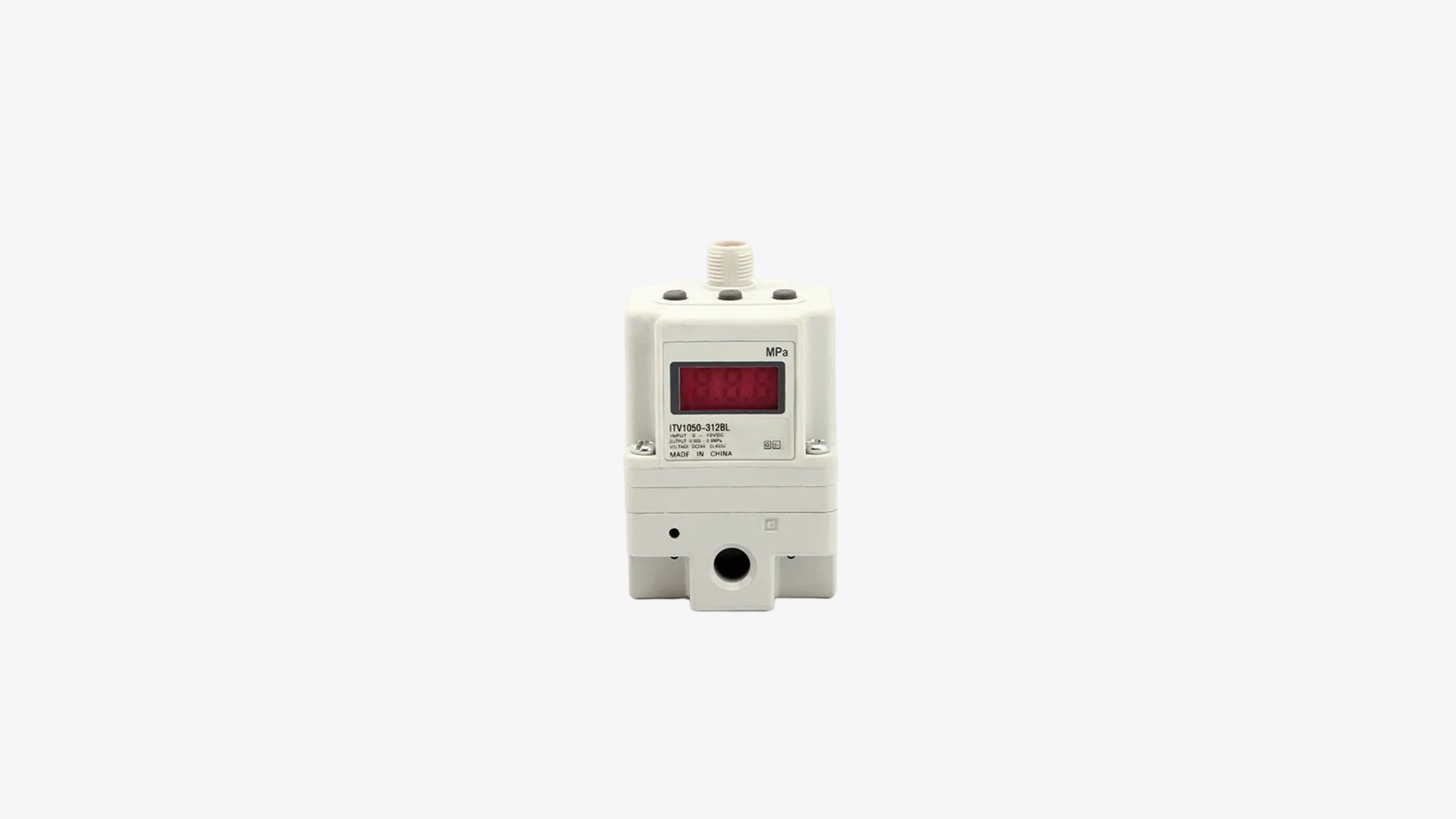

Proportional valve
Precise pressure control core
Equipped with high-precision pressure sensor and digital display module，support 0.001MPa Resolution real-time feedback，The output pressure can be 0.005~0.9MPa Continuous stepless adjustment within the range； Driven by high-speed response solenoid valve，response time＜100ms，Cooperate PID closed loop control，Pressure control accuracy can reach ±0.5%； integrated IP65 Grade dustproof and waterproof structure，Adapt to high vibration、High dust industrial environment，Also has overvoltage、Overcurrent protection function；
Micron level precision control
Ten years of longevity
protection

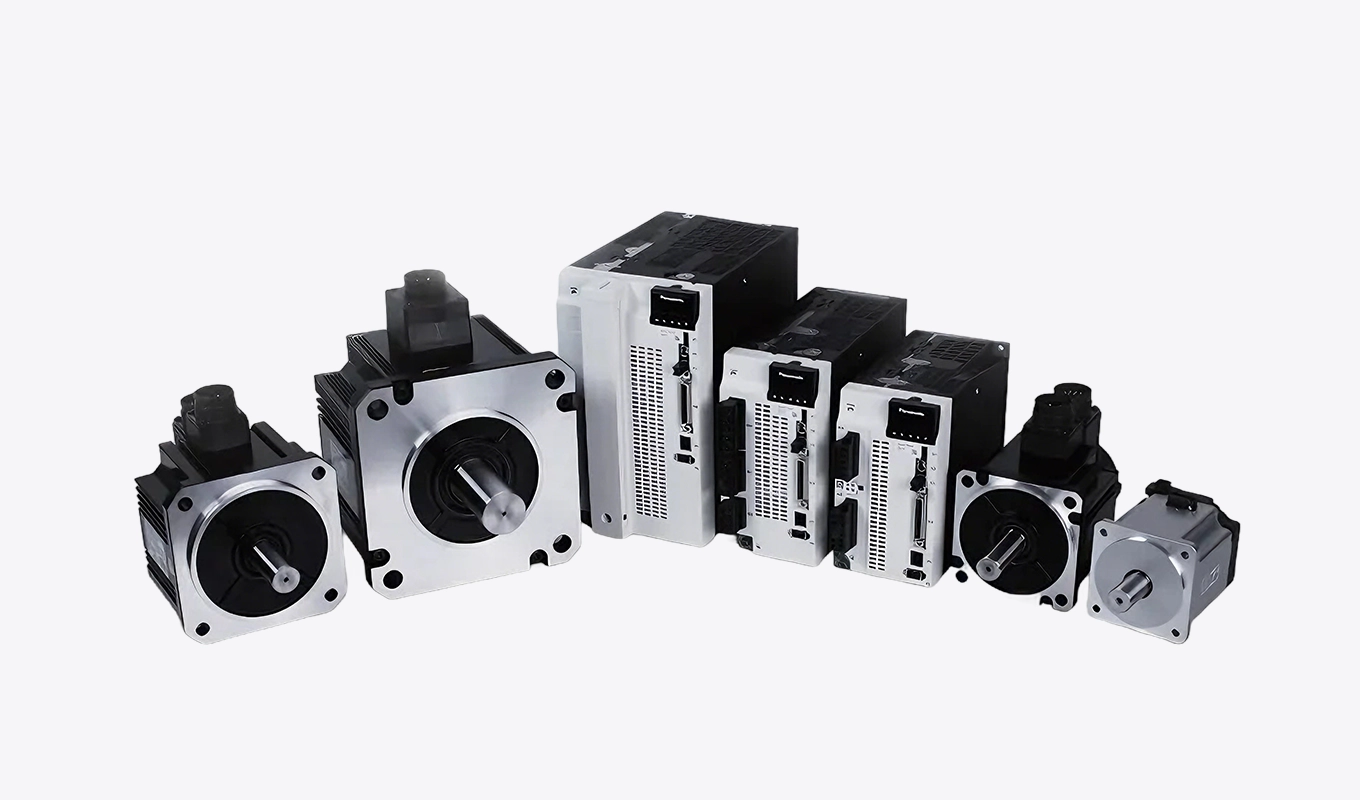

Japanese quality benchmark，both 350% Instant torque and quiet operation advantages，Warranty protection + Wide adaptability，Become the preferred power core for precision manufacturing Support multiple communication protocols and multi-axis linkage，key components 10 Longevity design，Install compatible、Easy to operate，Reduce operation and maintenance costs，Adapt to all industrial automation scenarios。
Put an end to false propaganda
| model | B3-240Plus | B3-360Plus |
|---|---|---|
| diameter（roundφ/square□） | φ/□ 10-240mm | φ/□ 25-360mm |
| I-beam | ≤18# | ≤22# |
| Feeding length（roundφ/square□） | 0-6m 0-9m 0-12m |
0-6m 0-9m 0-12m |
| tail length（roundφ/square□） | 0mm | 0mm |
| Optional power | 1500w 2000w 3000w 6000w |
1500w 2000w 3000w 6000w |
| Number of chucks | 3 | 3 |
| Chuck speed | 75r/min | 75r/min |
| maximum acceleration | 0.7G | 0.7G |
| Feeding method | Manual Fully automatic（Optional0-6m） |
Manual |
| Material receiving method | Material receiving trolley | Material receiving trolley |
| Heat dissipation method | air cooling | air cooling |
| smoke purifier | Optional | Optional |
| Site reserved size |
Feeding0-6mneed11mx4mx3m Feeding0-9mneed15mx5mx4m Feeding0-12mneed19mx5mx4m |
Feeding0-6mneed11mx4mx3m Feeding0-9mneed15mx5mx4m Feeding0-12mneed19mx5mx4m |
use Senrytech B3 Plus Three-chuck pipe cutting machine processing stainless steel pipes，±0.03mm The cutting accuracy exceeds expectations，Smooth cut without burrs，Even the subsequent polishing process is saved.，The delivery efficiency of small batch customized orders is directly improved 30%，This equipment is so worth choosing.。
This one B3 Plus Three chuck equipment adapted to round tubes、Square tube and other pipe specifications，Thanks to the three-chuck structure, the material changing and debugging speed is extremely fast.，Novices in our workshop can operate independently after just two days of learning.，The noise is also low during operation，Daily processing does not affect surrounding workstations at all，The production rhythm is much more stable。
Used it for three consecutive months，B3 Plus The three-chuck pipe cutting machine never went wrong，The clamping stability of the three chucks allows thin-walled tubes to be cut without shaking.，Fiber cutting energy consumption is much lower than that of old equipment，Calculated, this can save nearly a thousand yuan on monthly electricity bills.，The price-performance ratio is very real for our small and medium-sized processing plants.。
Senrytech A2
A2Series pipe cutting machines are cost-effective and
economical models specially designed for cost-sensitive
users.2chuck equipment，Control costs with streamlined and
practical configurations，It is an ideal choice for focusing
on small diameter and thin tube processing scenarios.。
Senrytech A2 Plus
A2 PlusSeries pipe cutting machines withA2Economic model is
built for basic upgrades，Core optimization against
deformation through machine bed reinforcement，Use higher
power motors，Configurations such as doubling the
deceleration power，Greatly improve pipe cutting
efficiency，It is an ideal choice to focus on efficient
processing scenarios of medium-thick pipes.。
Senrytech A2 Ultra
New side-mounted pipe cutting structure，Dual chuck
configuration，Breaking through the limitations of
traditional formal wear design，Adapt to more special pipe
processing scenarios，A new cutting experience。
Senrytech B3 Plus
continue A2 PLUS Core upgrade advantages，Formal design + Upgrade bed / Electrical power，Double upgrade to three chucks，Support multi-station processing，Suitable for mid-to-high-end batch cutting needs；
Senrytech B3 Ultra
inherit A2 ULTRA Side-mounted innovative structure，Three-chuck configuration，Innovative design + Multiple chuck support，Taking into account special processing and efficiency improvement。
Senrytech C4 Ultra
exist C3 ULTRA Upgrade the four-cartridge configuration based on，High-end customized design，Suitable for large batches、Highly demanding pipe cutting operations，Multi-station simultaneous processing，Significantly improve production efficiency。
